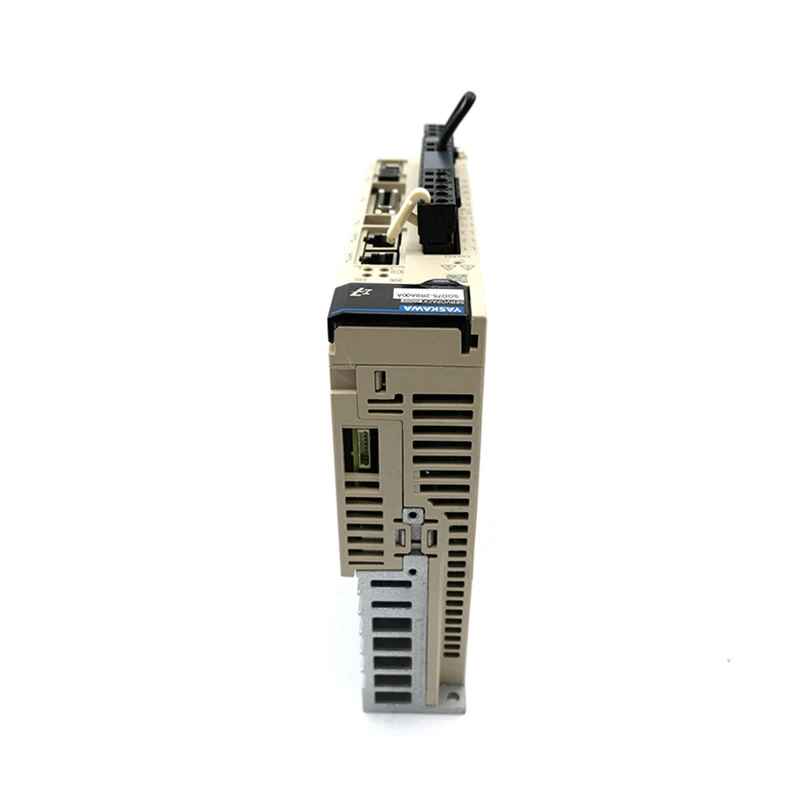

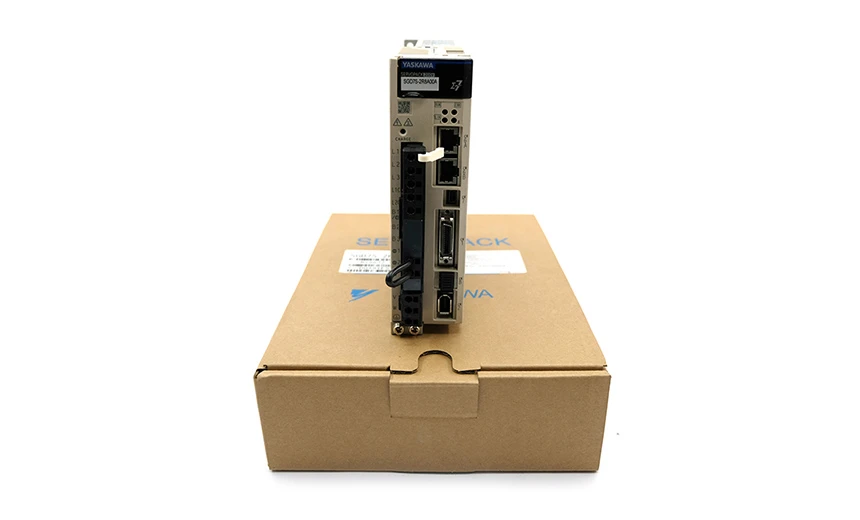

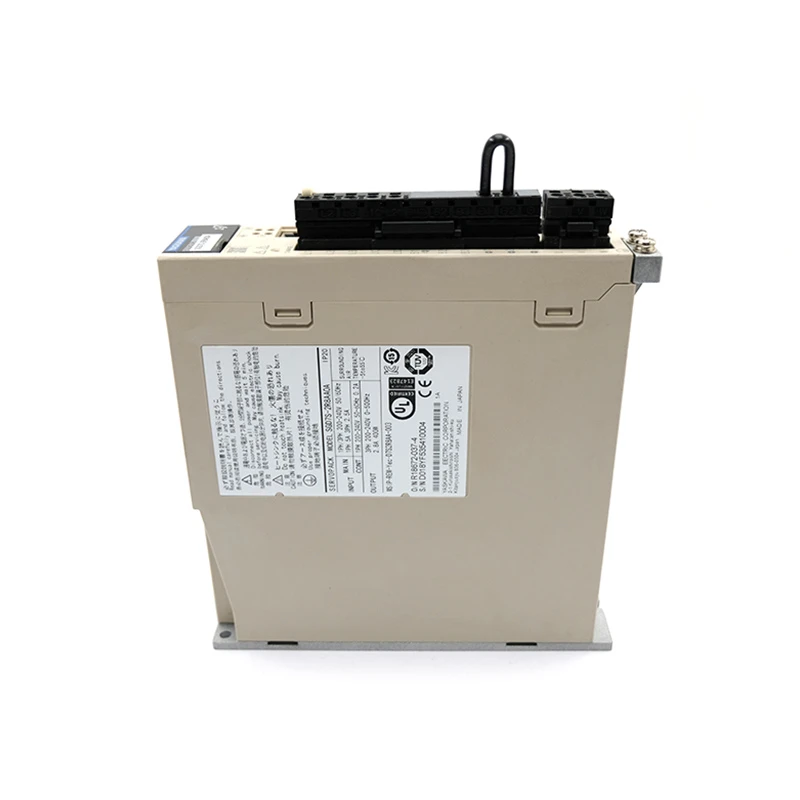

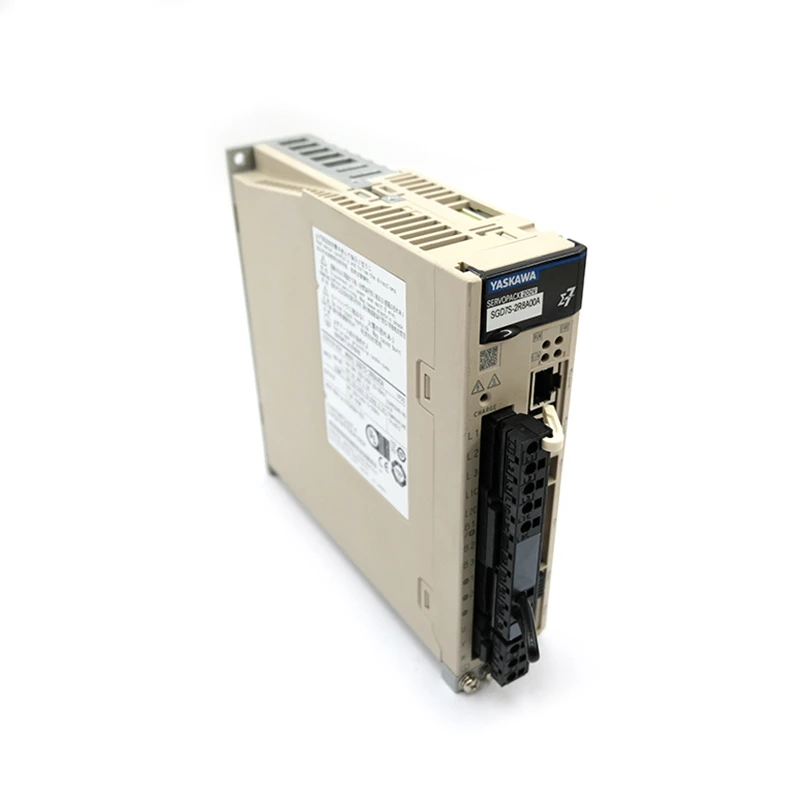

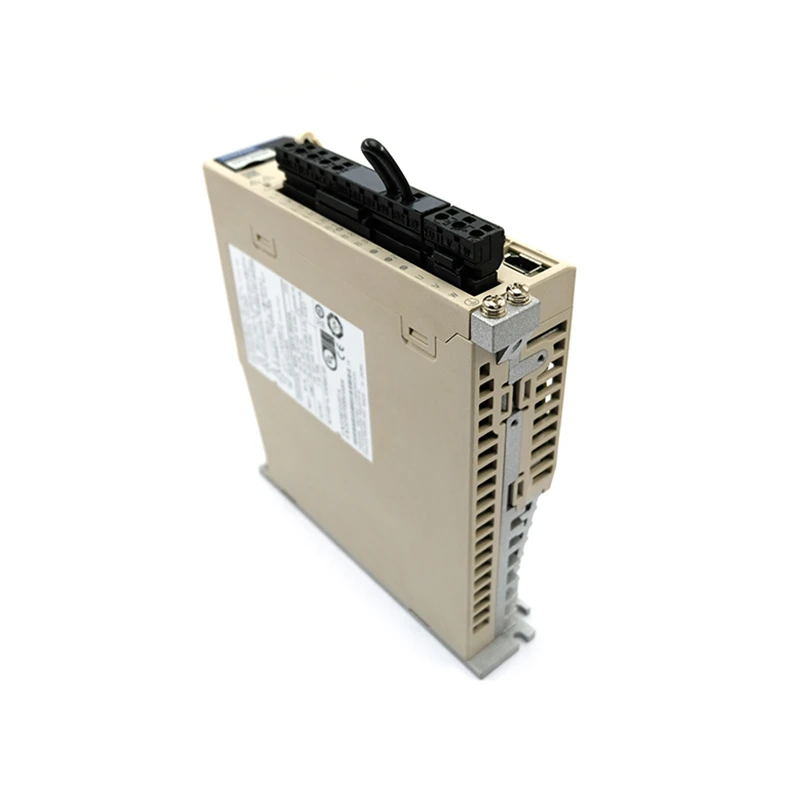

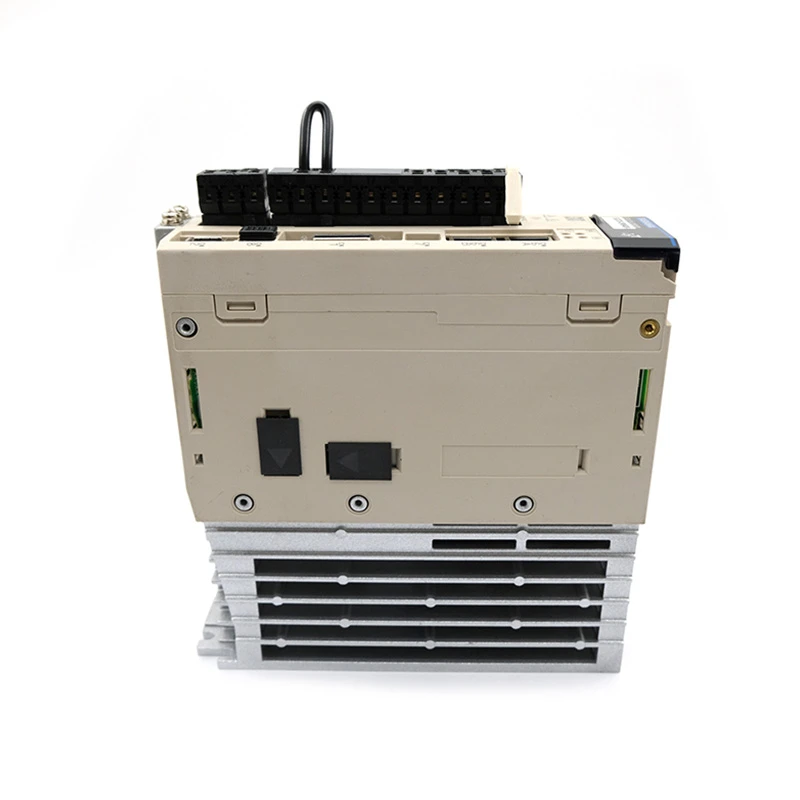

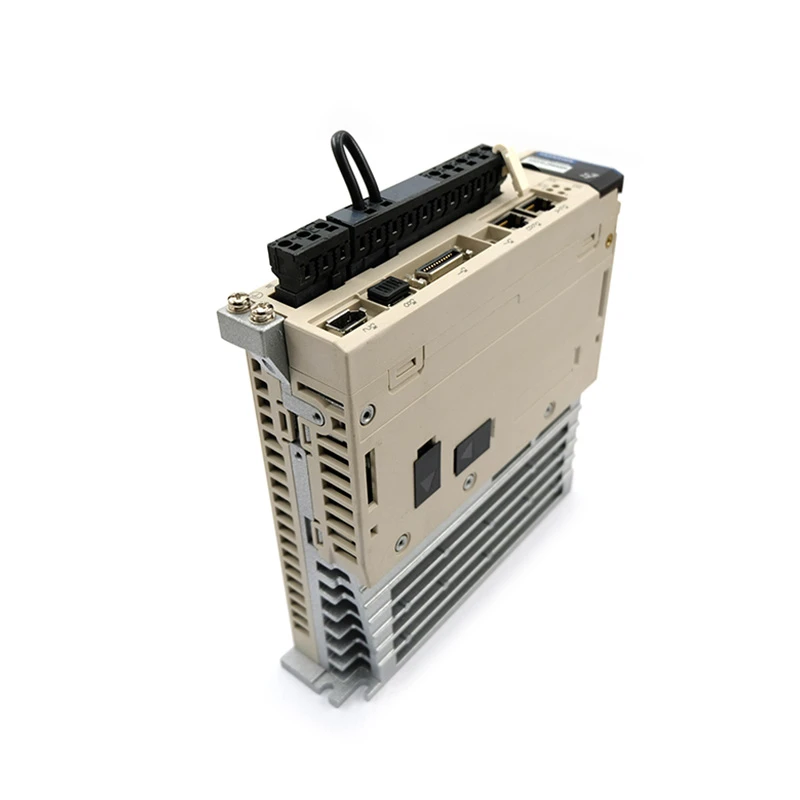

The Yaskawa Drive SGD7S-2R8AA0A is a high-performance servo drive module suitable for a wide range of industrial automation applications.
Brand: Yaskawa
Model: SGD7S-2R8AA0A
Product size with packaging: 28.5*20.5*7.5cm
Power: 0.4kW
Product weight with package: 1.4kg
Voltage: three-phase AC200V
Product type: Servo drive
Origin: Japan
The following is a detailed description of the drive module:
Model and specifications: The SGD7S-2R8AA0A is a driver module model from Yaskawa Corporation with a variety of input and output options, including master input, single/three phase output, and different current and power levels.

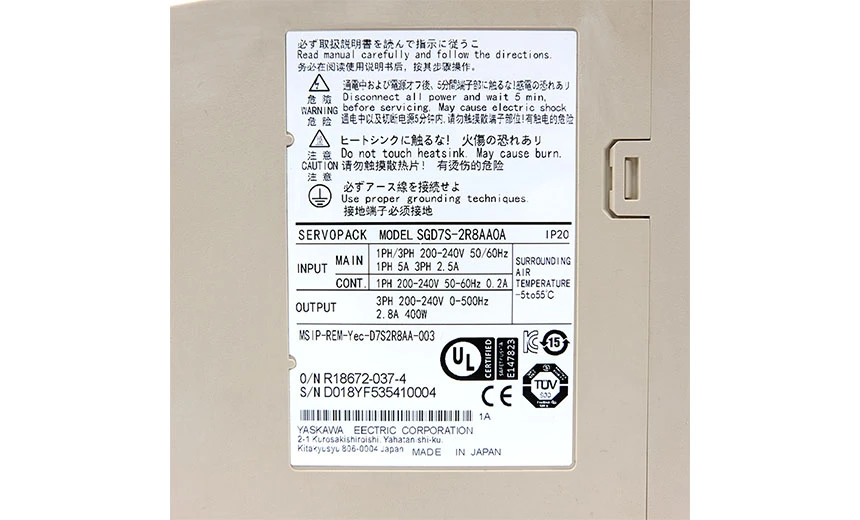

Input power: The driver module can accept single-phase or three-phase input power in the voltage range 200-240V and frequency 50/60Hz. Single-phase input rated current is 5A, three-phase input rated current is 2.5A, suitable for different power supply environment.
Output characteristics: The driver module offers single-phase and three-phase output options, single-phase output voltage range of 200-240V, frequency of 50-60Hz, rated current of 0.2A; Three-phase output voltage range is 200-240V, frequency range is 0-500Hz, rated current is 2.8A, rated power is 400W.
Protection grade: The driver module has IP20 protection grade, suitable for installation and use in general industrial environment.
Environmental adaptability: The drive module can work normally in the ambient temperature range of 5°C to 55°C, adapting to different working environments and temperature conditions.
Manufacturing Information: The drive module is manufactured by Yaskawa Electric Corporation in Kitakyushu, Japan. Products through strict quality control and testing, with reliable performance and excellent quality.
Other information: The driver module is equipped with MSIP-REM interface and other identifiers for easy installation and use. The product provides detailed manufacturer information and contact details.
In summary, Yaskawa drive module SGD7S-2R8AA0A is a reliable drive product with high performance, reliability and adaptability for a variety of industrial automation applications.
