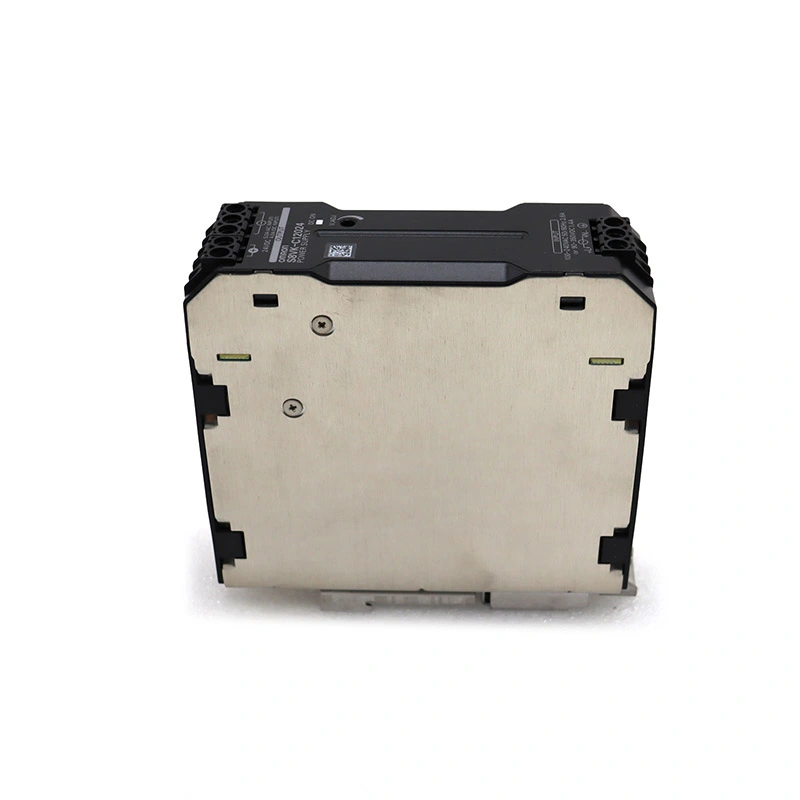

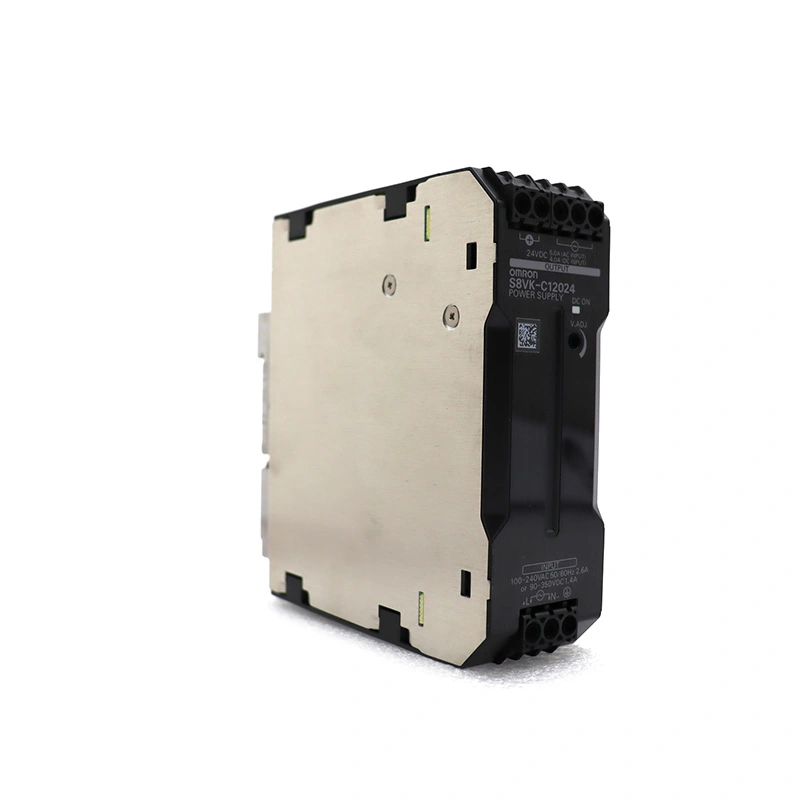

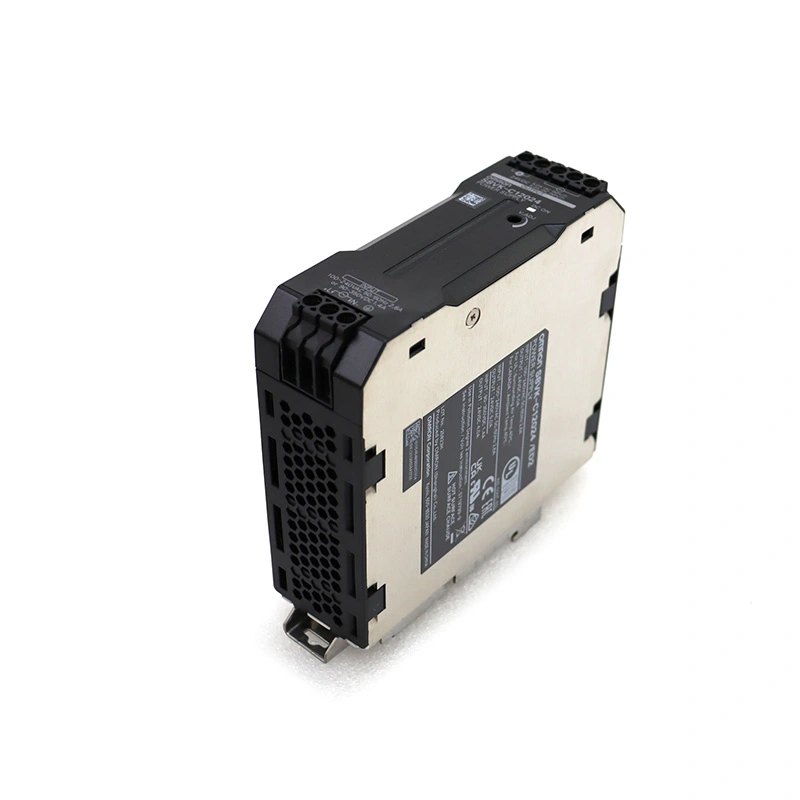

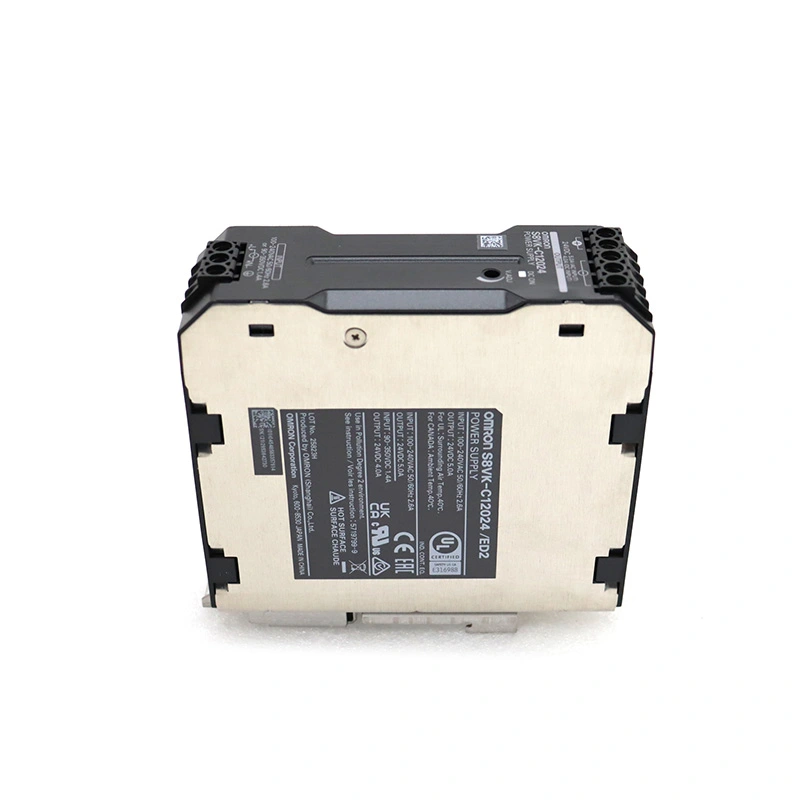

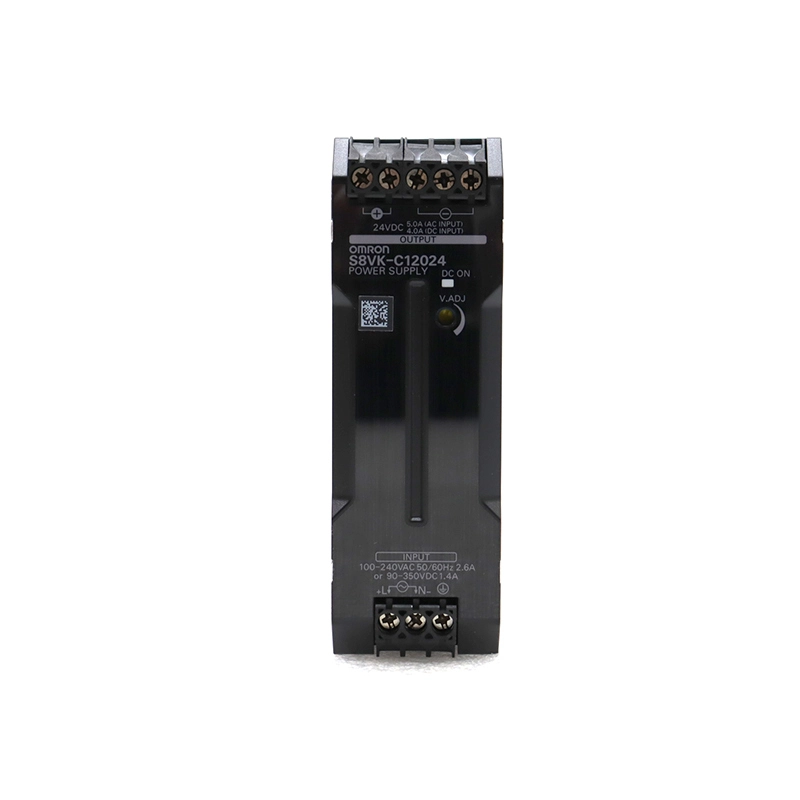

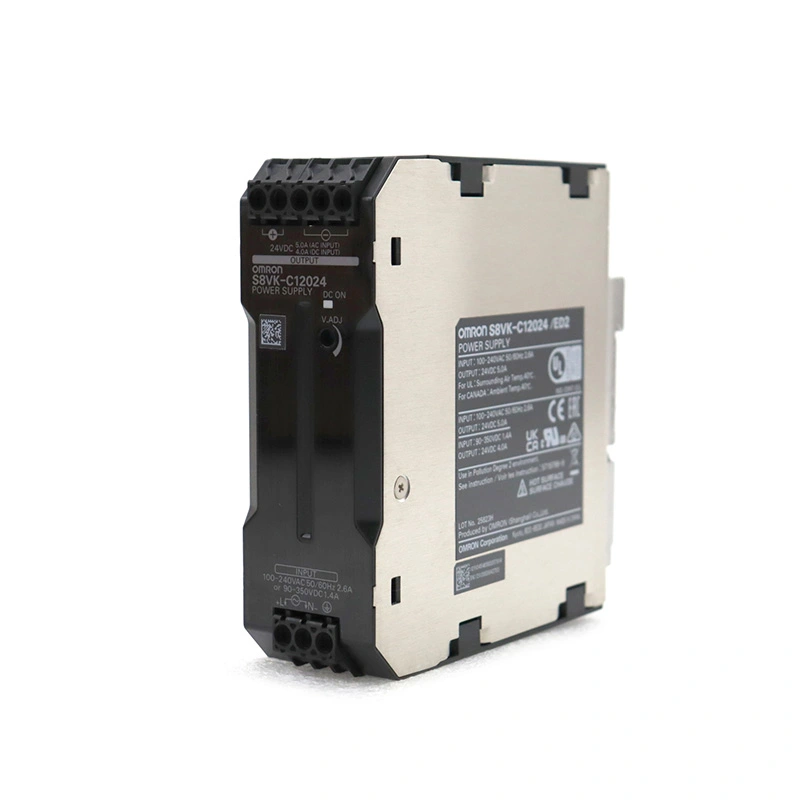

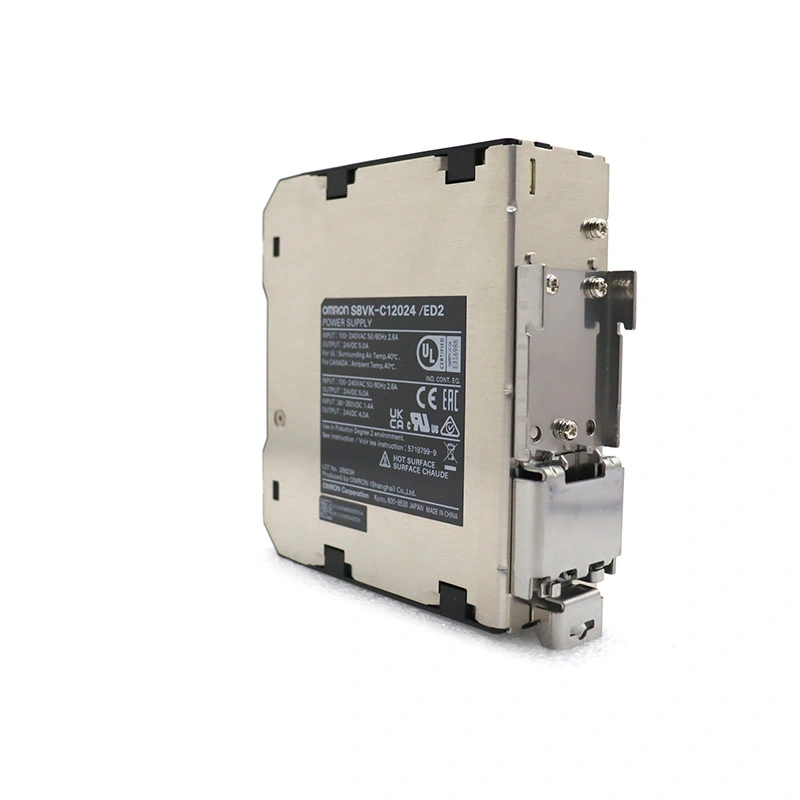

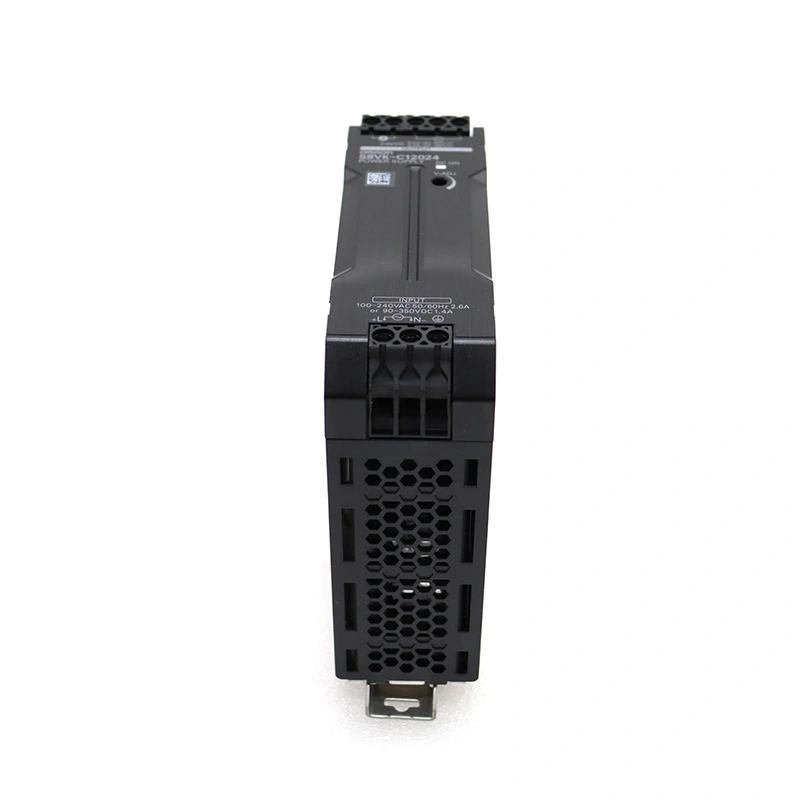

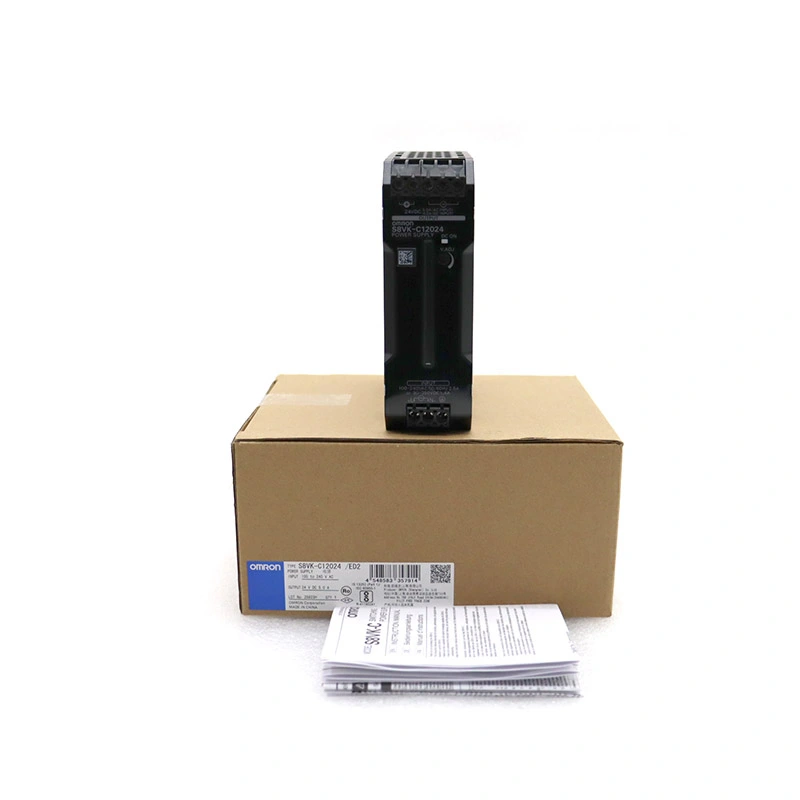

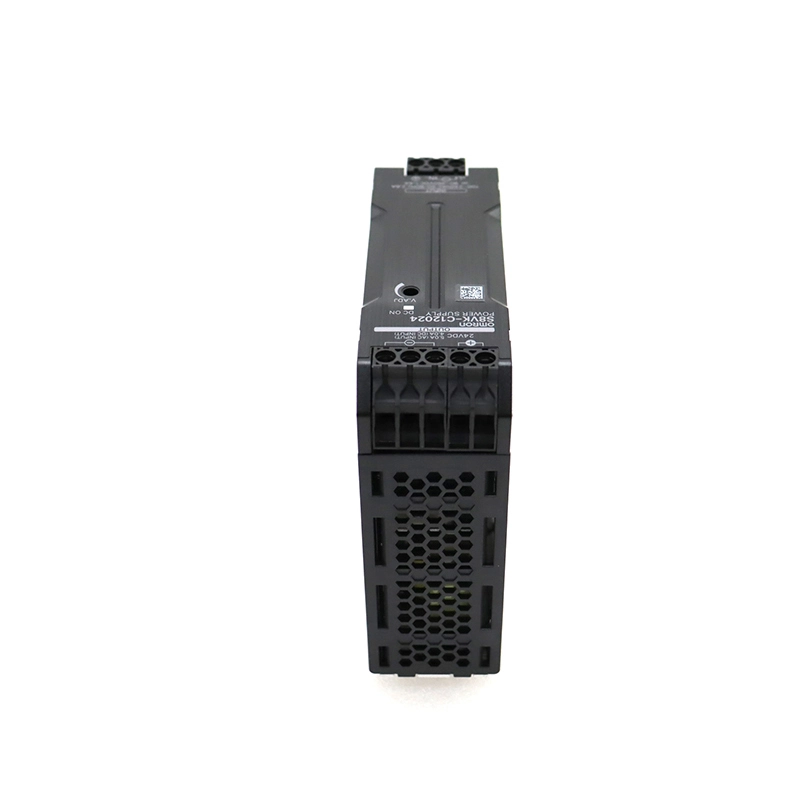

The S8VK-C12024 is a single-phase switching power supply from Omron, part of the S8VK-C series. This series of power supply is known for its high reliability, compact design and wide range of application scenarios.The S8VK-C12024 has a rated power of 120W, an output voltage of 24VDC, and an output current of 5A, which is suitable for a wide range of applications, such as industrial automation, machinery and equipment, IT equipment, and so on.The S8VK-C12024 is a single-phase switching power supply from Omron.
1. High Reliability
- Adopting high quality materials and design, it can operate stably in harsh environments, with an operating temperature range of -25℃ to 60℃.
- Comply with many international standards, such as RoHS, EN61204-3, EN55011 Class A, etc., to ensure product safety and environmental protection.
2. Compact design
- Compact size saves space in the disc cabinet, suitable for application scenarios with limited space.
- DIN rail mounting, easy to install, supports one-handed operation, saving installation time and cost.
3. Wide applicability
- Supports a wide range of input voltages (AC85V~264V, DC90V~350V), which is applicable to the power grid standards of different regions around the world.
- High vibration and shock resistance, suitable for high vibration scenarios in industrial environments.
4. Long Life and Low Maintenance
- High MTBF (Mean Time Between Failure) value ensures long-term stable operation and reduces maintenance requirements.
- Built-in overload protection and over-voltage protection to improve equipment safety.
1. Industrial automation
- Used for power supply of PLC, sensors, relays and other devices, suitable for factory automation production line.
2. Machinery equipment
- Provide stable power supply for machine tools, packaging equipment, printing equipment and so on.
3. IT and communication equipment
- Suitable for servers, network equipment and other scenarios that require high reliability power supply.
4. Other Fields
- Medical equipment, lighting systems, test instruments, etc.
The following are the main technical parameters of S8VK-C12024:
| Parameter | Value |
| Rated Power | 120W |
| Output Voltage | 24VDC |
| Output Current | 5A |
| Input Voltage Range (AC) | 85VAC～264VAC |
| Input Voltage Range (DC) | 90VDC~350VDC |
| Isolation Voltage | 3kV |
| Operating Temperature Range | -25°C to 60°C |
| Efficiency (typical) | 88% (AC230V input) |
| Mounting | DIN Rail Mounting |
| Dimensions (W×H×D) | 40mm × 125mm × 117mm |
| Weight | 580g |
| Compliance | RoHS, EN61204-3, EN55011 Class A, etc. |
The S8VK-C12024 is a high performance, high reliability switching power supply for a wide range of industrial and application scenarios. Its compact design, wide input voltage range and strong environmental adaptability make it an ideal power solution for many devices. For more detailed technical data or purchasing information, refer to the relevant datasheet or contact the supplier.
