The WTB12-3P2431 is a feature-rich, stable, durable and reliable photoelectric sensor with a wide range of applications and superior performance characteristics, making it ideal for industrial automation and control systems.
Brand: SICK
Model: WTB12-3P2431
Product size with packaging: 10*7*5cm
Weight: 0.5kg
Housing material: ABS plastic
Output current: ≤100mA
Power supply voltage: 10V DC... 30V DC
Product type: Sensor
Origin: Germany
SICK Photoelectric Sensor WTB12-3P2431 is a powerful and well-designed diffuse photoelectric sensor with the following features and benefits:
1. Background suppression function: WTB12-3P2431 adopts advanced background suppression technology, which can effectively eliminate background interference, ensure that only the target object is detected, and improve the accuracy and reliability of detection.
2. Wide detection range: This sensor has a maximum switching distance and sensing distance from 20 mm to 350 mm, which is suitable for detection needs in different distance ranges, providing users with more flexible choices.
3. LED light source: The use of visible red LED as a light source, with high brightness and stable light output, can produce clear spots under different environmental conditions, thus improving the accuracy and stability of detection.
4. Optimized electrical parameters: The WTB12-3P2431 has a low-power design with a current consumption of only 45 mA, as well as a fast response time (less than 0.5 ms) and a switching frequency of up to 1500 Hz, ensuring efficient operation of the sensor.
5. Rugged design: The sensor housing is made of metal material with IP66, IP67 and IP69K protection grades, which can resist water, oil, dust and high pressure cleaning, suitable for harsh industrial environments.
6. Easy installation and maintenance: WTB12-3P2431 is compact in size, light in weight, easy to install, and has good shock resistance and durability, reducing the cost and time of maintenance and replacement.
7. Multiple protection measures: the sensor has multiple protection circuits such as short circuit protection, overload current protection and reverse polarity protection to ensure the safety and reliability of the sensor during use.

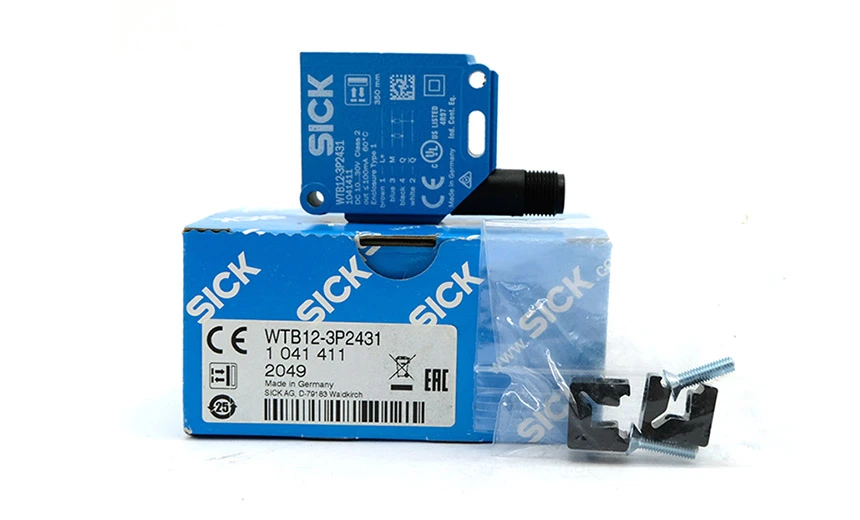

8. Scope of supply: including two clamping brackets and screws, convenient for users to install and fix.
Overall, the WTB12-3P2431 is a feature-rich, stable, durable and reliable photoelectric sensor with a wide range of applications and superior performance characteristics, making it ideal for industrial automation and control systems.

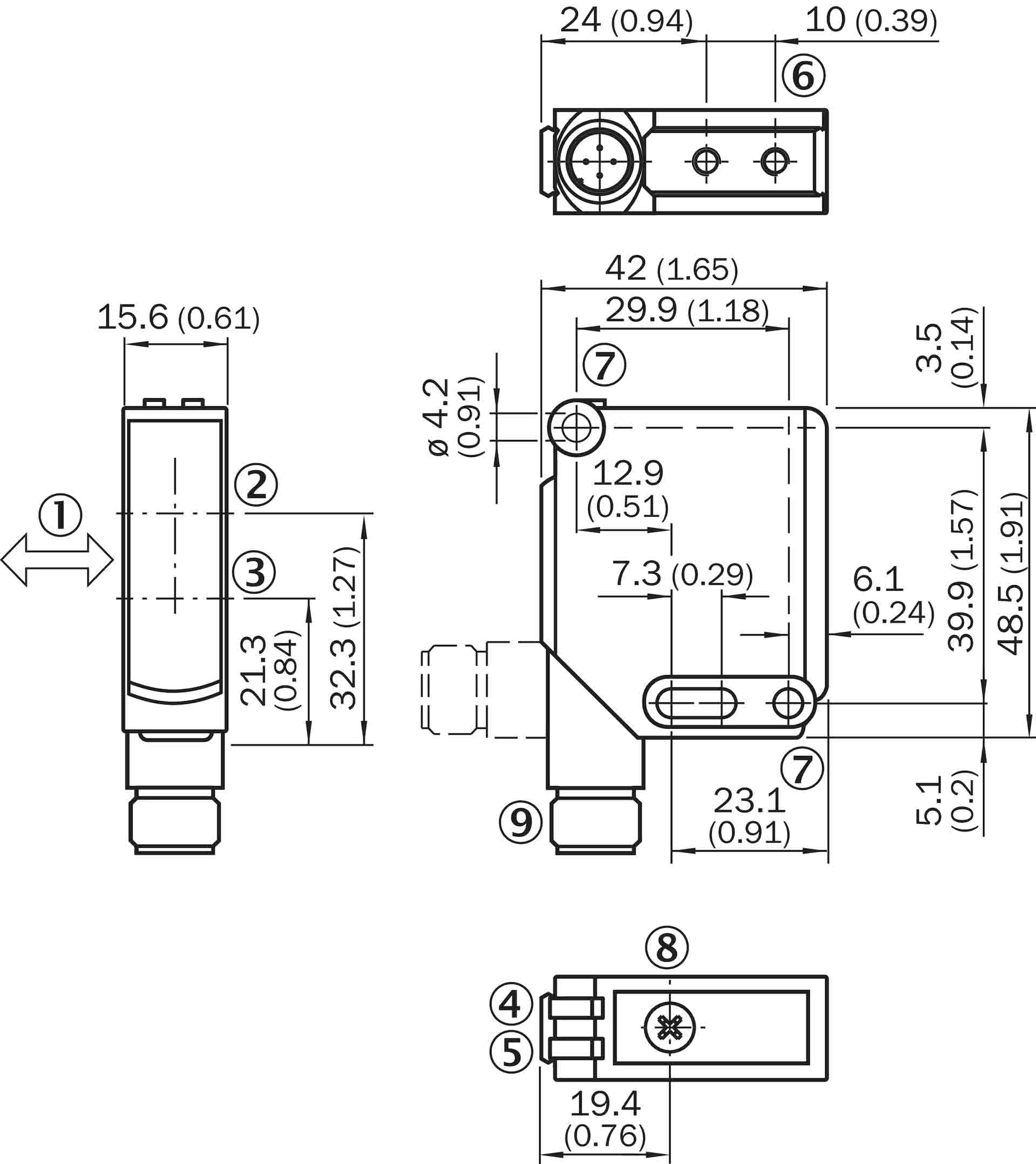

Dimensions WTB12-3, potentiometer
Size unit: mm
① The preferred direction of the object to be measured
② Optical axis, receiver
③ Optical axis, transmitter
④ Green LED indicator: power supply voltage activation
⑤ Yellow LED indicator: light reception status
⑥ Install thread M4, 4 mm deep
⑦ Mounting hole, Ø4.2mm
⑧ Trigger sensing distance setting: potentiometer
⑨ interface

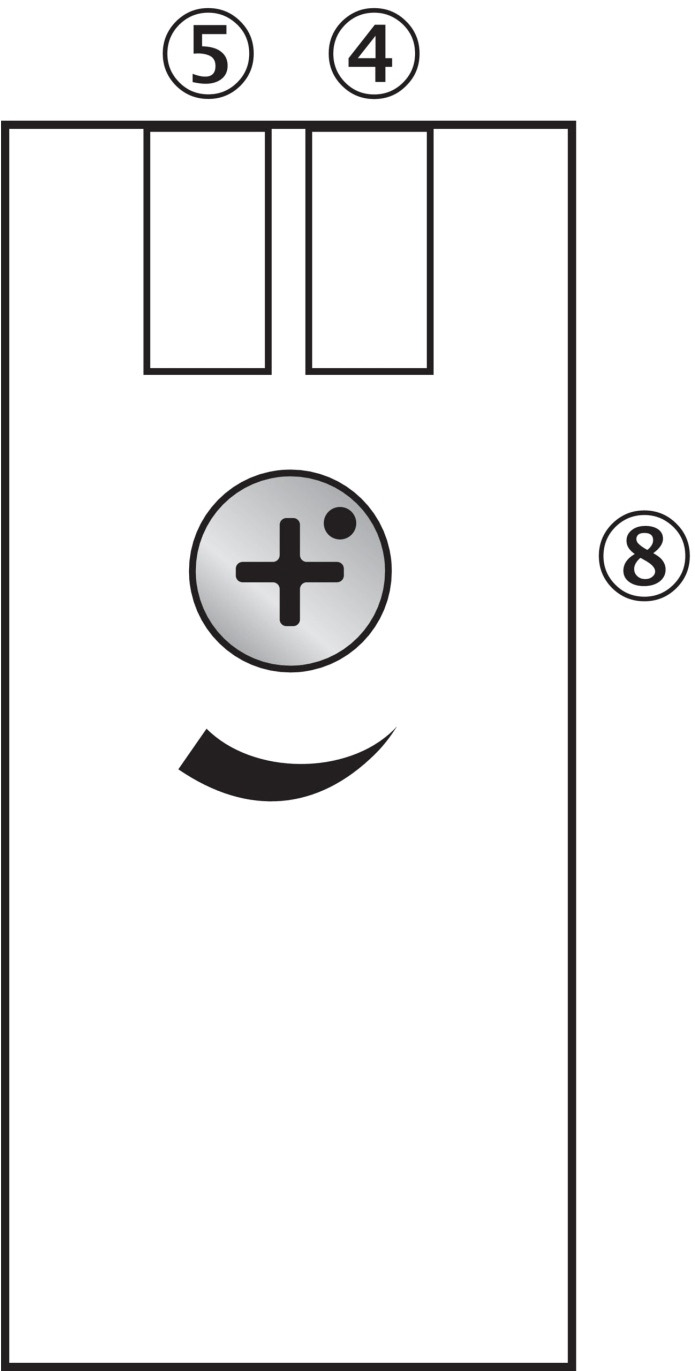

Adjustable WTB12-3, WTF12-3, Potentiometer
④ Green LED indicator: power supply voltage activation
⑤ Yellow LED indicator: light reception status
⑧ Trigger sensing distance setting: potentiometer

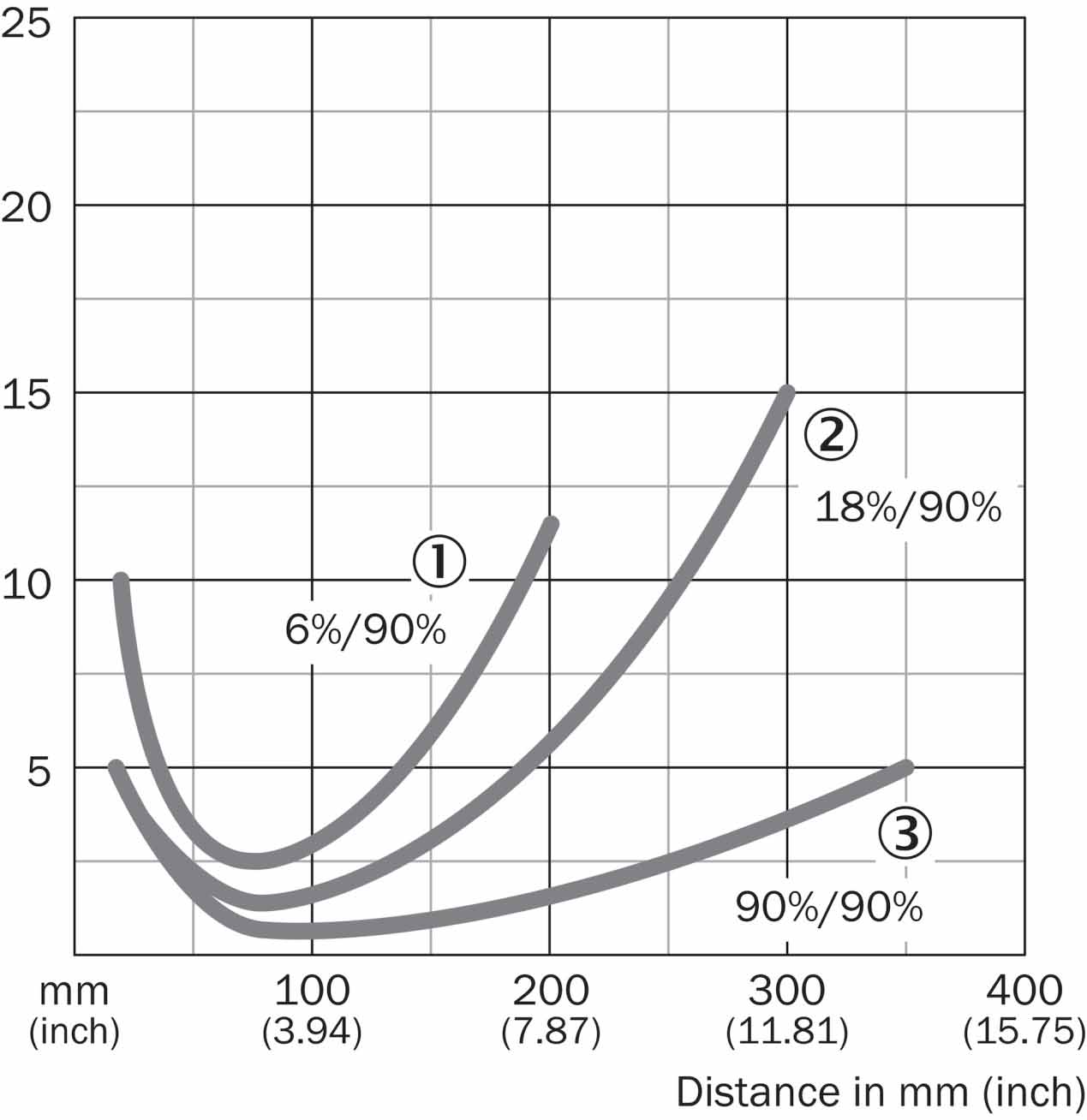

Characteristic curve WTB12-3, red light, 350 mm
① Trigger sensing distance, based on black, 6% diffuse reflection
② Trigger sensing distance, based on gray, 18% diffuse reflection
③ Trigger sensing distance, based on white, 90% diffuse reflection
