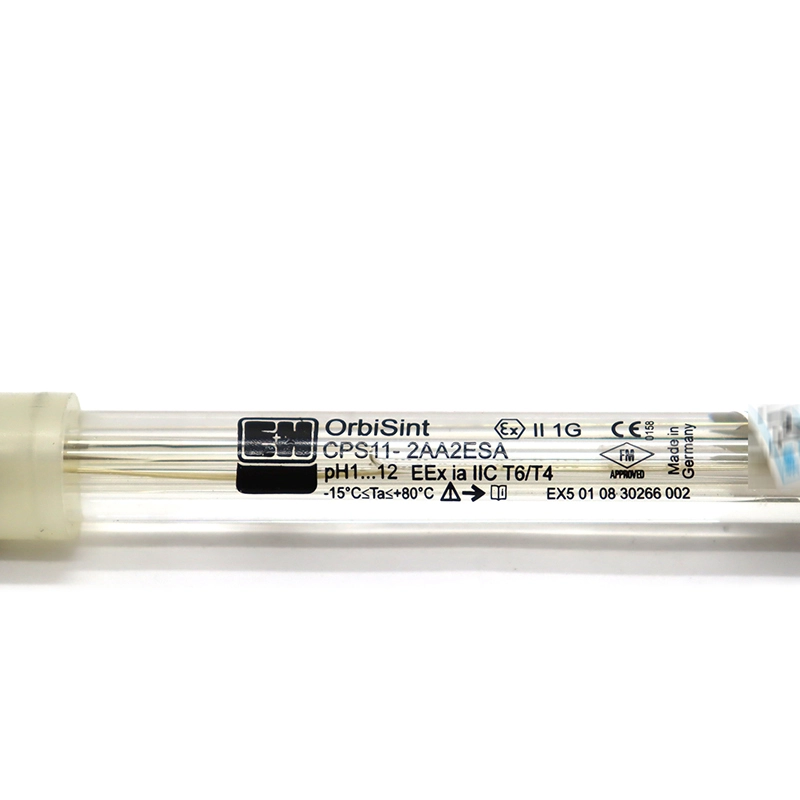

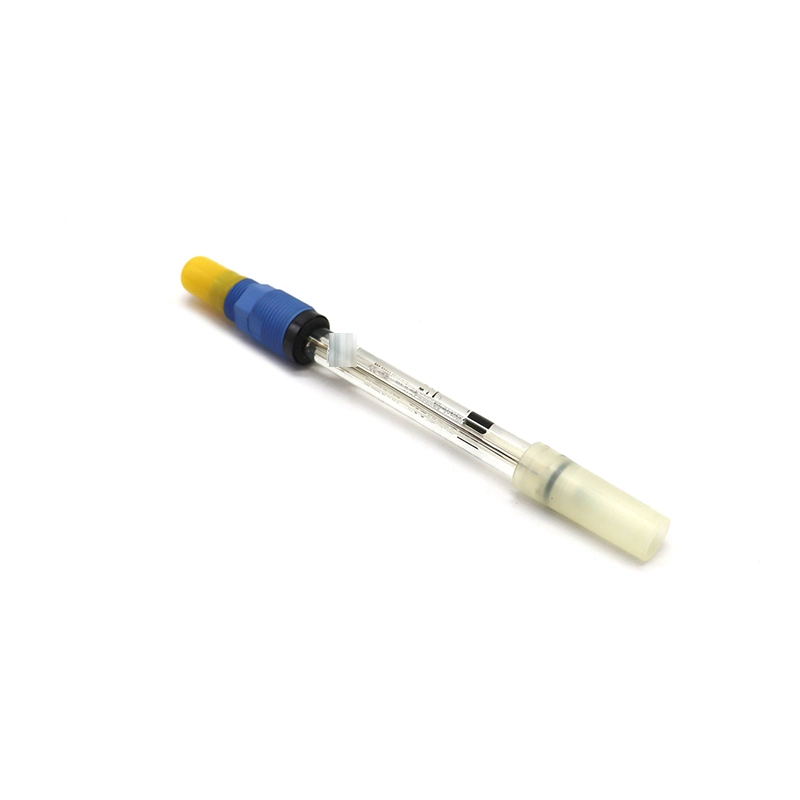

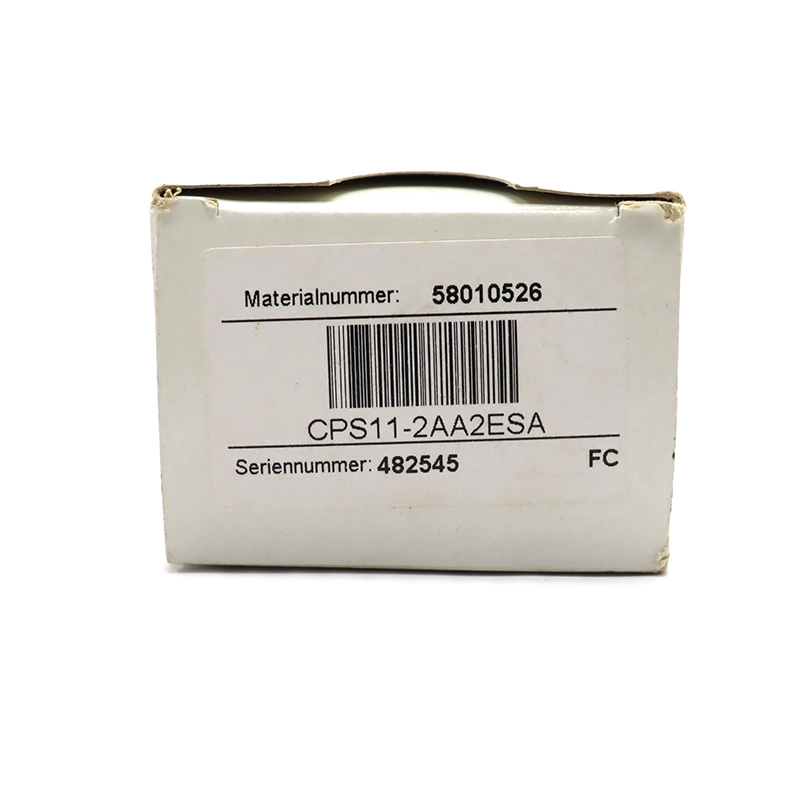

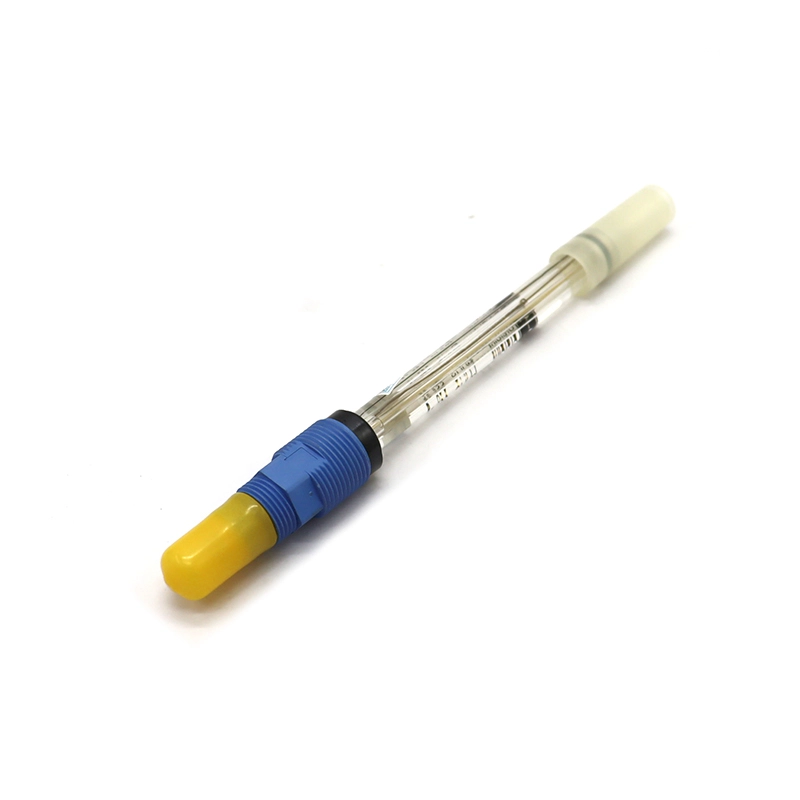

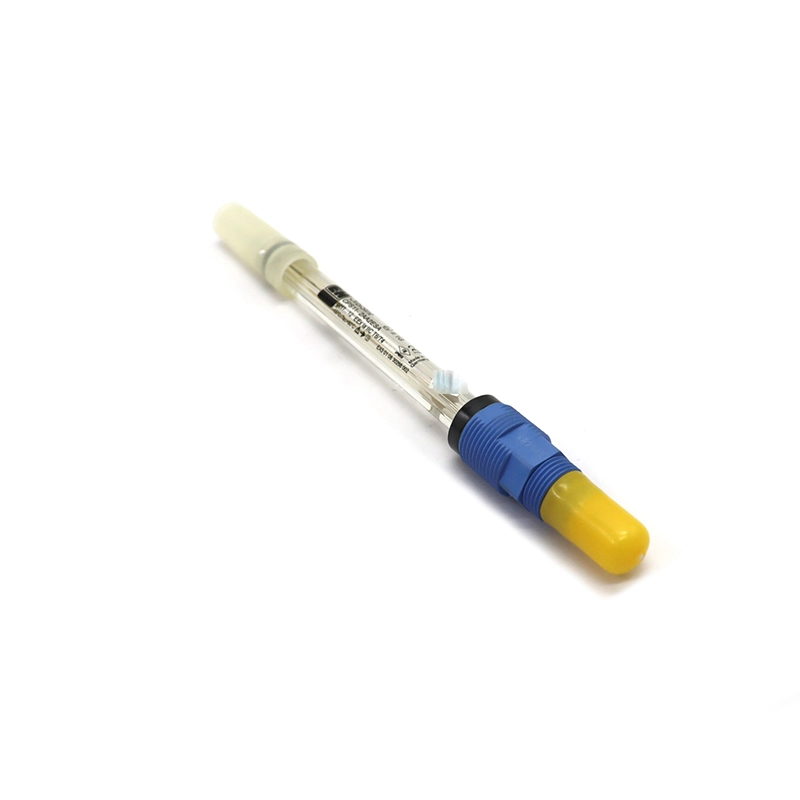

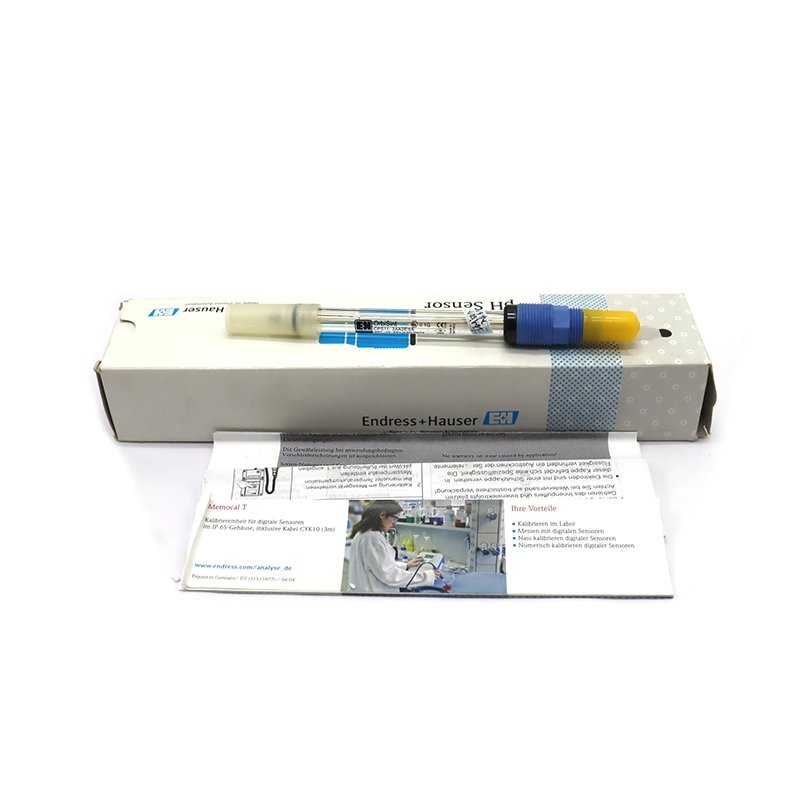

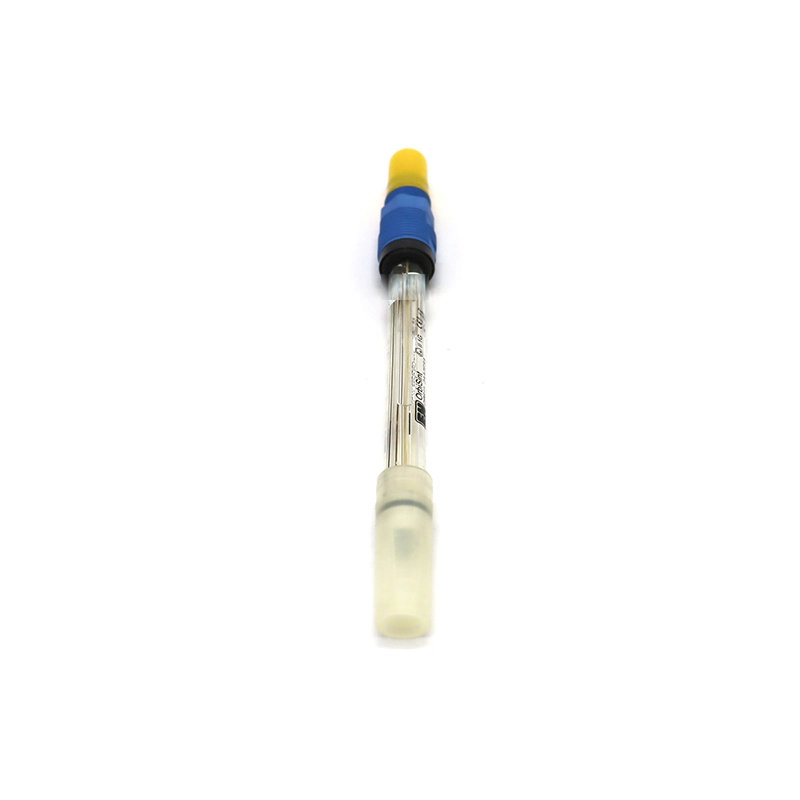

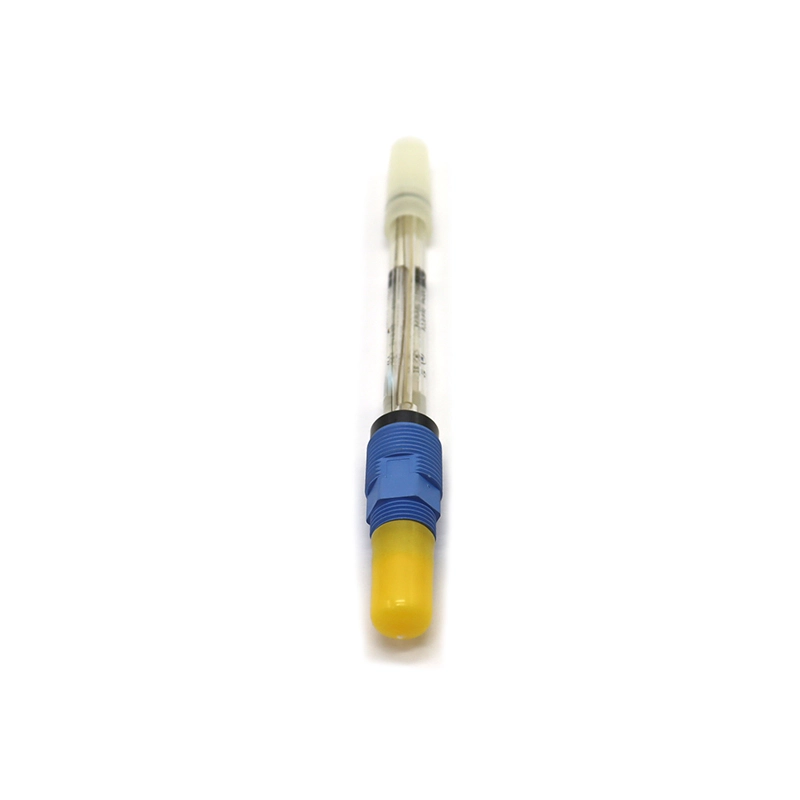

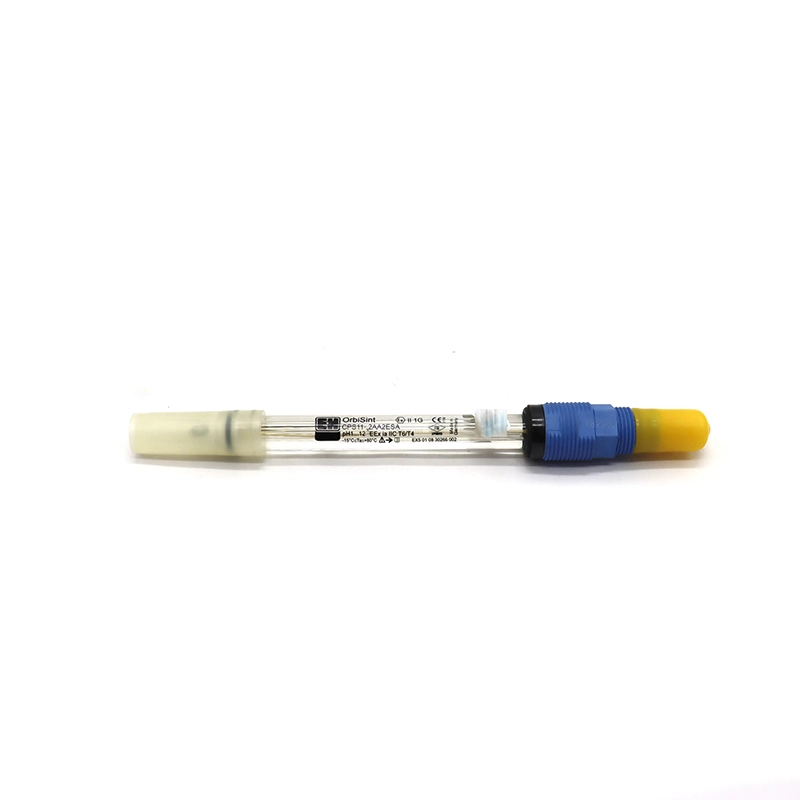

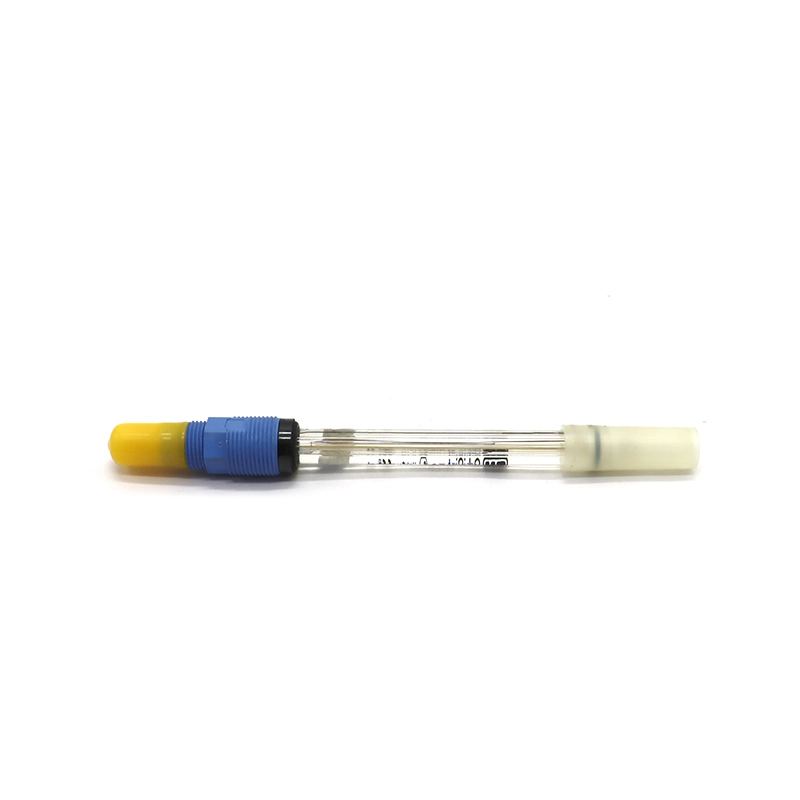

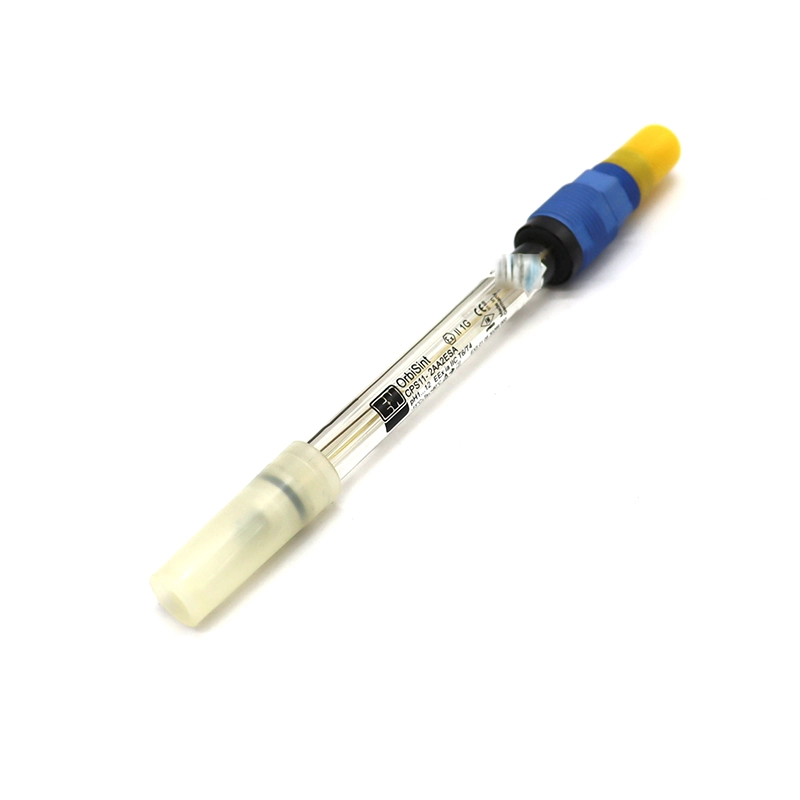

Endress+Hauser CPS11-2AA2ESA | Endress+Hauser Orbisint Analog pH Sensor

Analog pH electrode

Orbisint CPS11

Glass electrodes for standard applications

Orbisint CPS11 is the type * electrode used in process and environmental engineering. Reliable measurements are possible even when using in highly concentrated caustic solutions or in hazardous areas.

Designed for low maintenance and long service life, the sensor can be cost-effective.

advantage

The large cyclic PTFE diaphragm provides a robust electrode construction with low maintenance requirements

Biocompatibility certification

ZuiHigh application process pressure of 16 bar (232 psi)

The cross-bifurcated tube is used to connect the two-chamber reference system, which has a long electrode life and a long toxic diffusion path

Process glass can be used for the measurement of highly concentrated caustic solutions

Measuring principle: glass electrode

Apply standard applications and environments. * Monitoring, treatment does not change much.

Features very robust, heavy-duty version/high pressure, comprehensive potential match, flat membrane available.

Measuring range pH 0-14

Measurement of the Teflon ring septum principle gel compact electrode.

Design - All shaft lengths with temperature sensors

- * Gel technology.

- With antifouling PTFE diaphragm.

Material: Glass/PTFE

Size Diameter: 12 mm (0.46 in) shaft lengths: 120, 225, 360 and 425 mm

(4.68, 8.77, 14.04 and 16,57 inches)

The process temperature is high. 135°C（274°F）

The pressure in the process is high. 16 bar (230 lbs)

The temperature sensor can optionally be integrated with Pt100 or Pt1000

Explosion-proof certification is simple to operate the equipment, there is no necessary certification.

Connect the TOP68 connector

Angels protection class IP 68

Other certified biocompatibility verification compliant. USP (current version) of ISO10993-5 compliant.

There are 16 TÜV certified withstand voltage bars, which are divided into triple overpressure safety.
