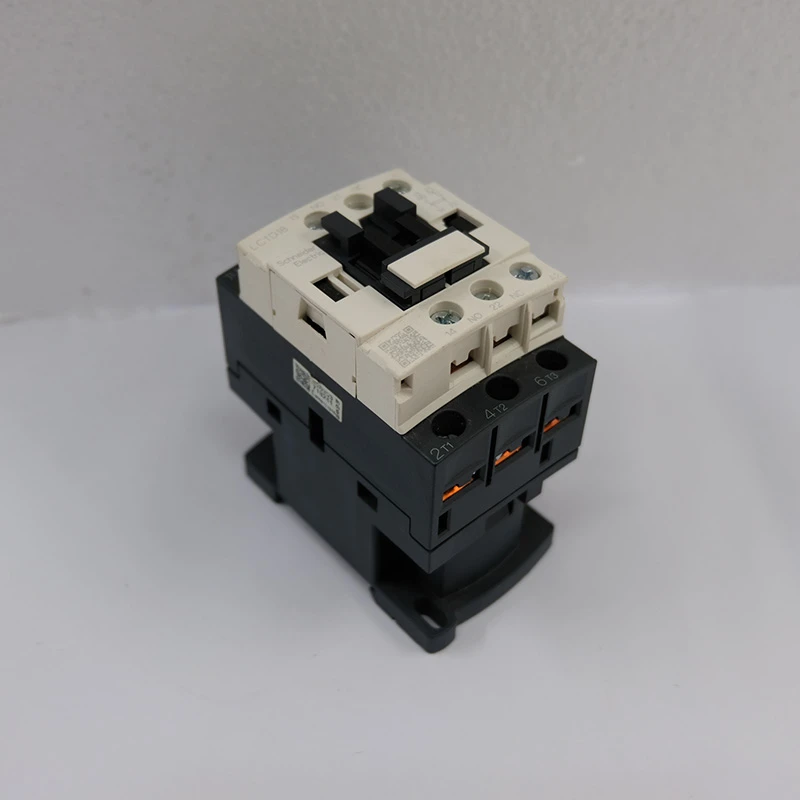

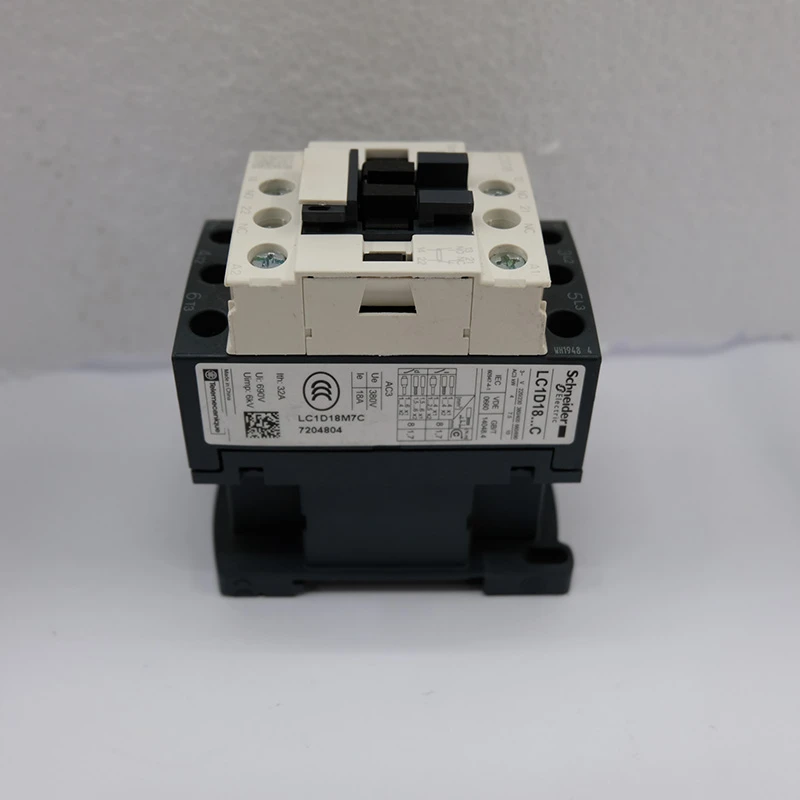

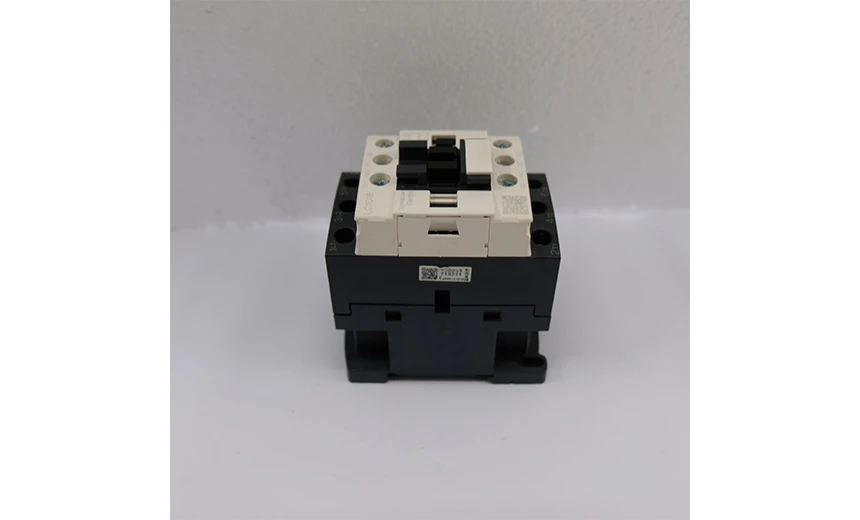

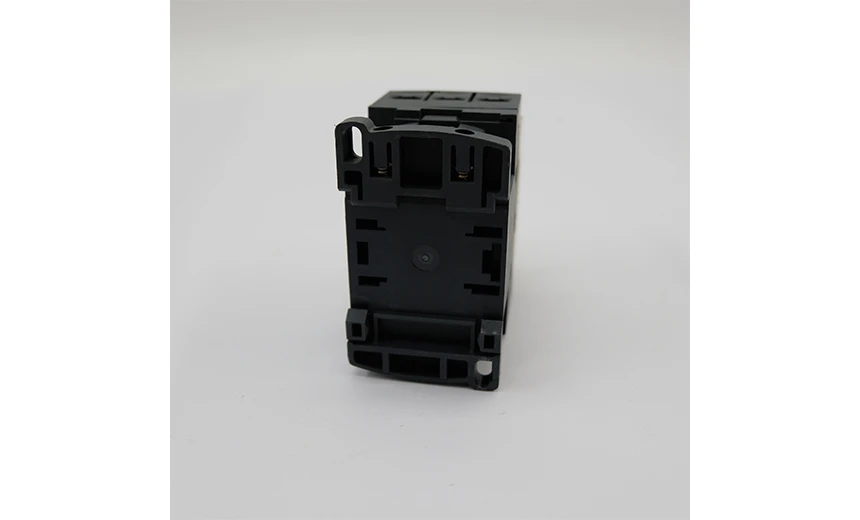

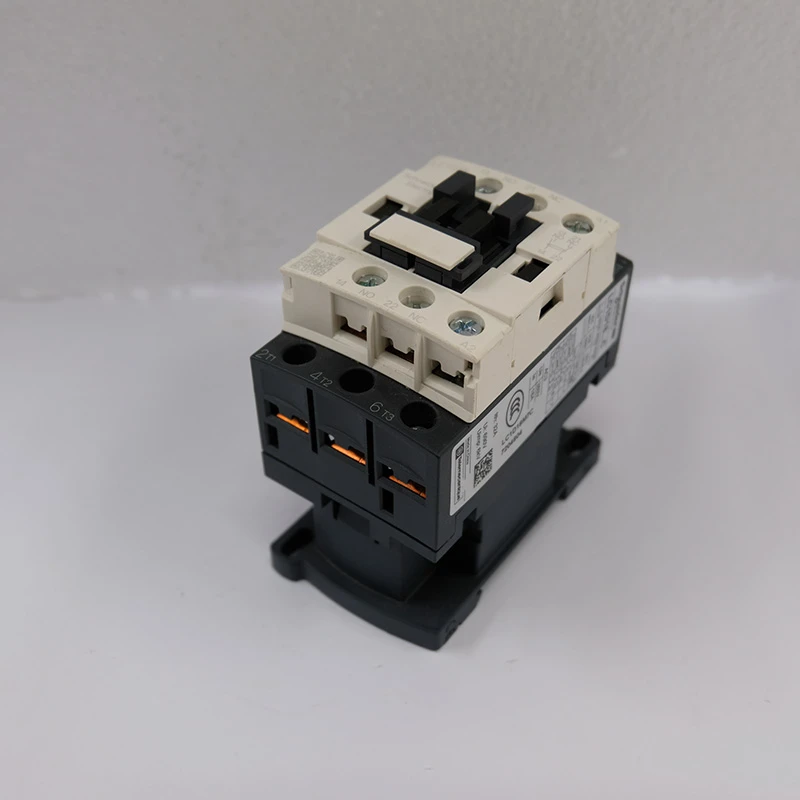

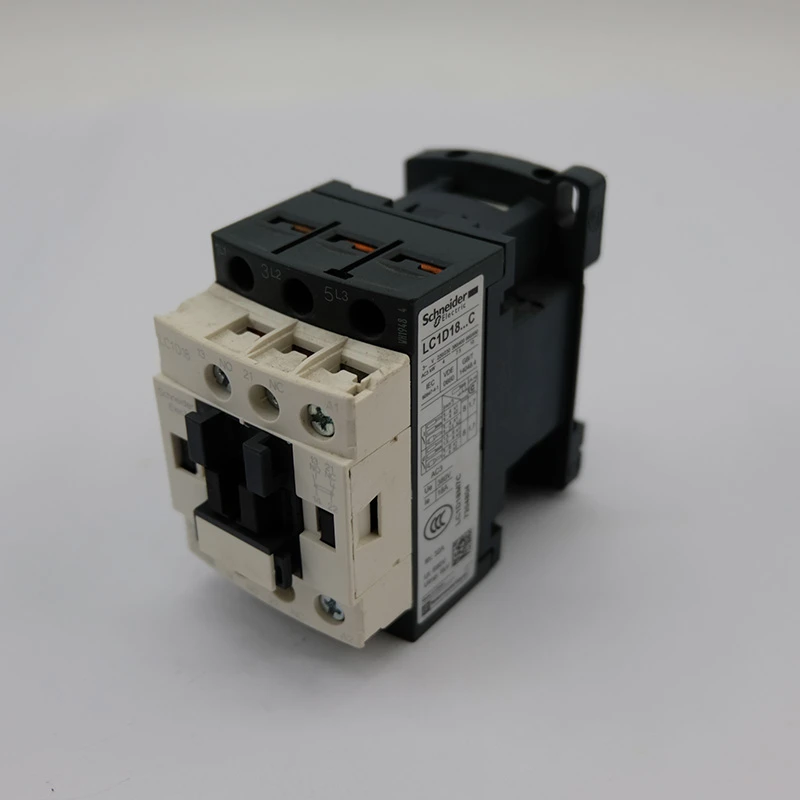

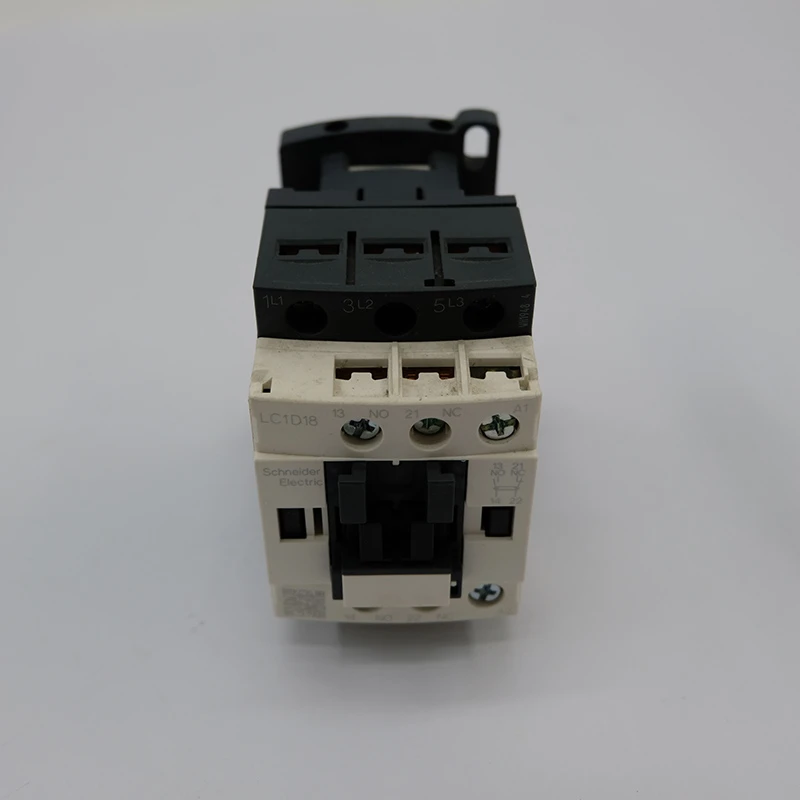

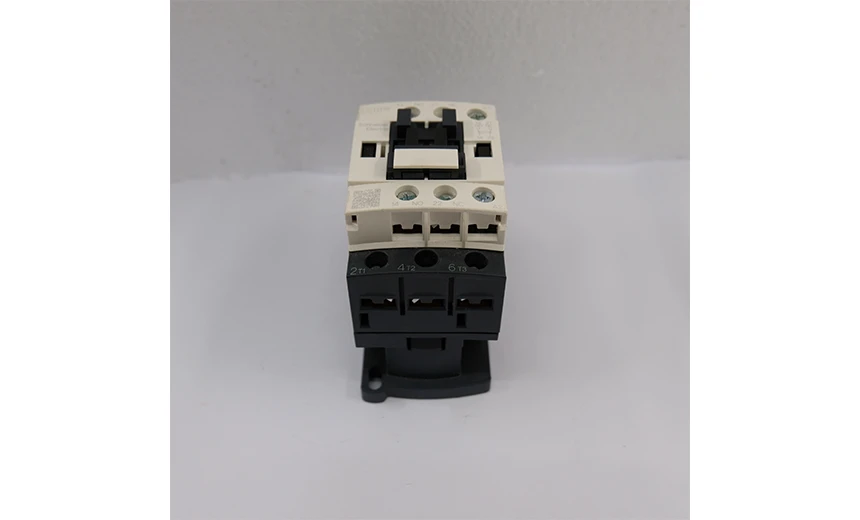

Schneider's LC1D18M7C is part of the TeSys Deca family of contactors with a wide range of applications and a number of outstanding technical features.
Model: LC1D18
Brand: Schneider
Size: 7.5*8.5*4.5cm
Weight: 0.5kg
Country of origin: France
Product series | TeSys Deca |
Product series | TeSys Deca |
Product type | contactor |
Product short name | LC1D |
Contactor application field | Applied to non inductive or micro inductive load, resistance furnace Applied to AC loads with power factor greater than or equal to 0.95 |
Category of use | AC-4 |
Number of poles | 3P |
Rated operating voltage [Ue] | Power supply circuit: <= 690 V AC 25... 400 Hz Power supply circuit: <= 225 V DC |
Rated operating current [Ie] | 32 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-1 for power supply circuit 18 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-3 for power supply circuit 18 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-3E for power supply circuit |
[Uc] control circuit voltage | 220 V AC 50/60 Hz |
Schneider's LC1D18M7C is part of the TeSys Deca family of contactors with a wide range of applications and a number of outstanding technical features. The following is a comprehensive introduction to the LC1D18M7C:
Product features:
1. Wide application: LC1D18M7C contactor is suitable for non-inductive or micro-inductive loads, resistance furnaces and AC loads with power factor greater than or equal to 0.95.
2. Multiple use categories: Support AC-1, AC-3, AC-3e and other use categories, suitable for different loads and working environments.
3. A variety of rated operating voltages and motor power: LC1D18M7C can handle loads under different rated voltages, such as 10kW, 7.5kW, 4kW, etc., to ensure that it is suitable for a variety of scenarios.
4. Auxiliary contact: It has 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, which can be used for safety loop (mirror contact).
5. Certification standards: LC1D18M7C contactor through IEC, CCC, CCS, RoHS, REACH and other certifications, in line with relevant international standards and environmental requirements.
Technical specifications:
1. Rated operating voltage and current: LC1D18M7C supports rated operating voltage of 690V AC and 225V DC, and rated operating current is 18A.
2. Auxiliary contact type: with 1 NO and 1 NC auxiliary contact, in accordance with IEC 60947-5-1 standard.
3. Control loop voltage: The control loop voltage is 220V AC 50/60 Hz, which meets the common control requirements.
4. Environmental adaptability: LC1D18M7C operates reliably in the operating temperature range of -40 to 60 degrees Celsius, and has shock and seismic resistance.
Installation and packaging:
1.LC1D18M7C contactor can be mounted by rail or bottom plate, easy to install.
2. Various packaging forms, providing single product packaging and multi-product packaging options, convenient transportation and storage.
Applications: LC1D18M7C contactors are suitable for a variety of industrial control scenarios, including but not limited to:
Motor control
Resistance furnace control
Pump control
Air conditioning control
Power systems and other fields.
In summary, Schneider's LC1D18M7C contacts have a wide range of applications, reliable performance and multiple certifications, and are an important part of industrial control systems to meet the needs of different scenarios.
