IFM AC1224 AS-Interface Power Supply | 30.5V 4A 110/230VAC DIN Rail

The IFM AC1224 is a DIN-rail mountable AS-Interface power supply delivering 30.5V DC at 4A output current with integrated data decoupling for reliable AS-i network power and communication.

Model Number:IFM AC1224

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

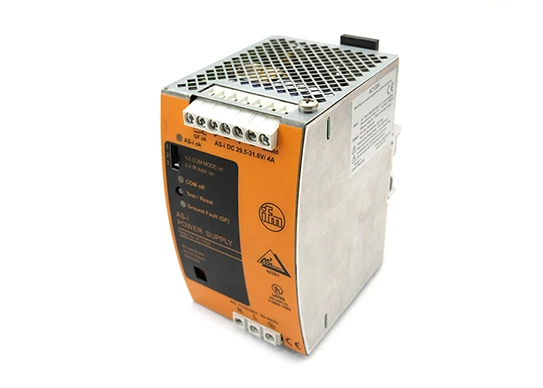

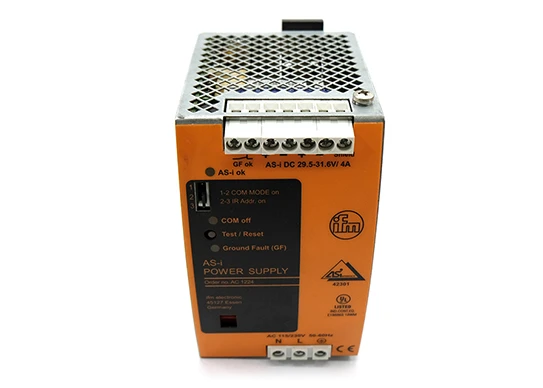

The IFM AC1224 is a single-phase AS-Interface power supply designed for industrial fieldbus networks, providing both power and data transmission over the same two-conductor yellow cable in AS-i systems. It supplies 30.5V DC nominal output with 4A current capacity (3A at 70°C), featuring electronic short-circuit and overload protection, plus ground fault detection indicated by a red LED. The green AS-i OK LED confirms nominal output voltage, ensuring quick diagnostics in automation setups.

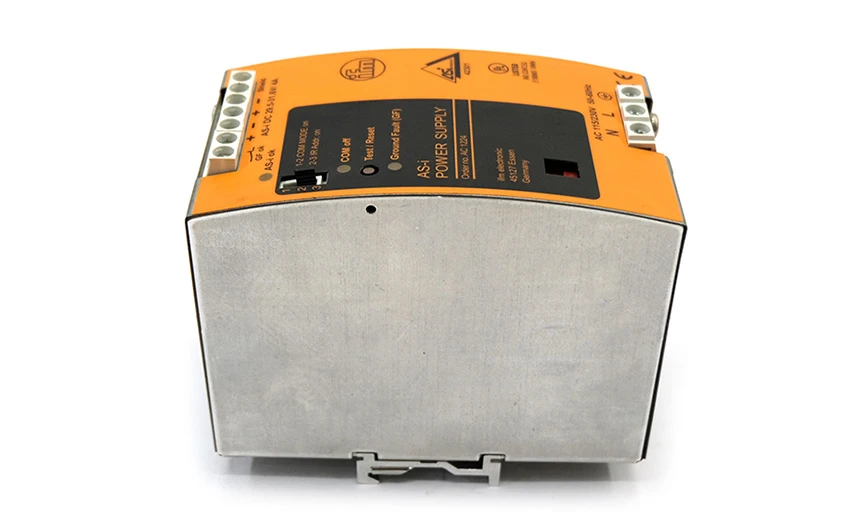

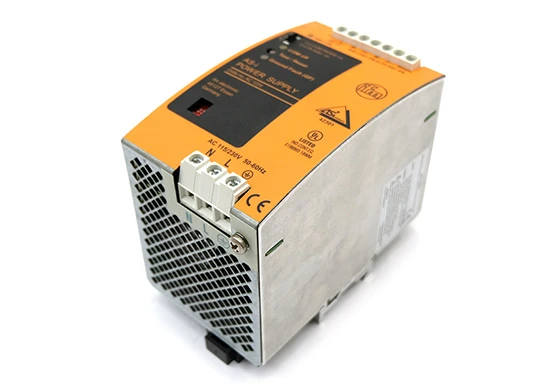

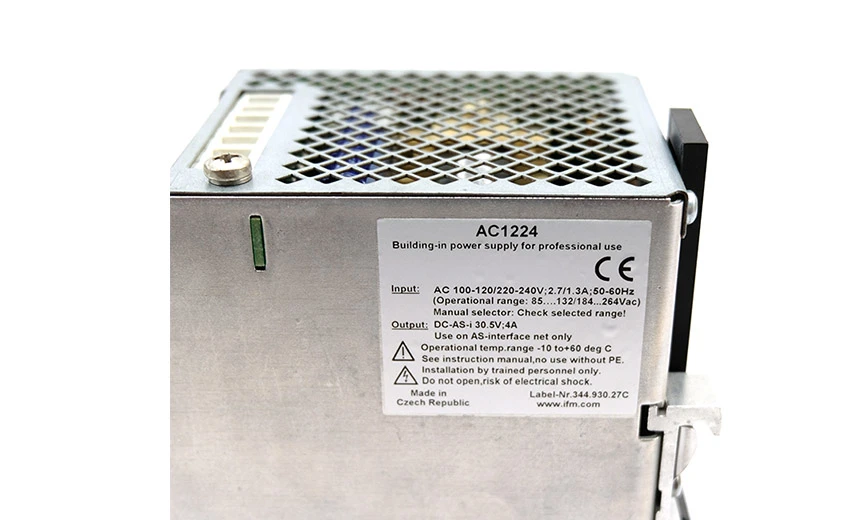

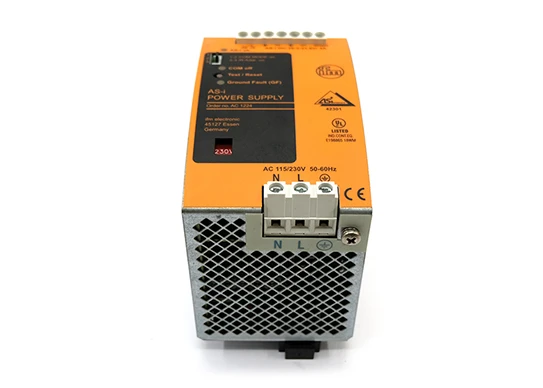

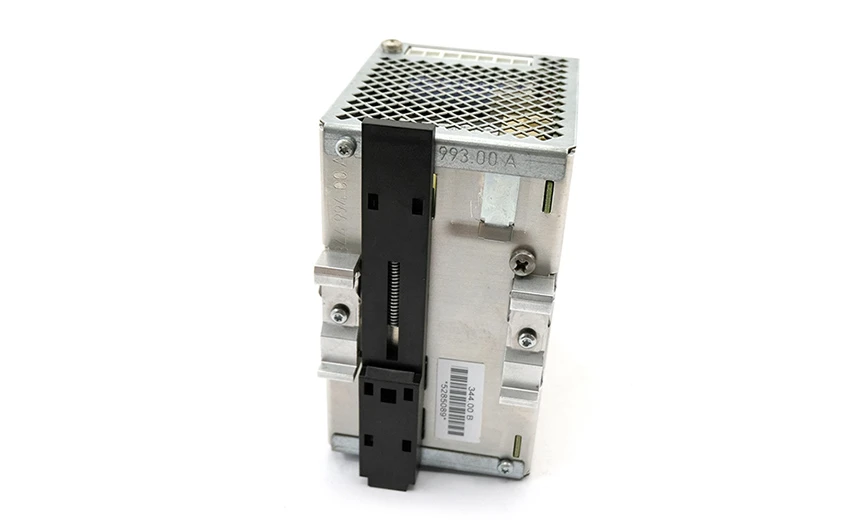

Universal input accepts 110/230VAC (85-132V/184-264V range, 47-63Hz), with 90% efficiency, low residual ripple (<50mV), and convection cooling without fans. DIN-rail mounting (73x124x107mm, 750g steel/aluminum housing) facilitates easy panel integration, while IP20 rating suits indoor control cabinets. Fully compliant with AS-i specifications (certificate 42301), it supports up to 62 slaves with IR addressing mode via jumper for commissioning.

Technical Specifications

Parameter	Specification
Model	AC1224
Type	AS-Interface power supply
Input Voltage AC	110/230V (85-132V / 184-264V)
Input Frequency	47-63 Hz
Output Voltage AS-i	30.5V DC
Output Current AS-i	4A (3A at 70°C)
Output Power	122W permanent
Residual Ripple	<50 mV
Efficiency	90%
Derating	3W/K (60-70°C)
Protection	Short-circuit, overload, ground fault
Ambient Temperature	-10°C to +70°C
Dimensions	124 x 73 x 107 mm
Weight	750g
Housing Material	Aluminum / galvanized steel sheet
Ingress Protection	IP20
Terminals	Up to 4 mm²
Approvals	CE, ASI, UKCA, cULus
