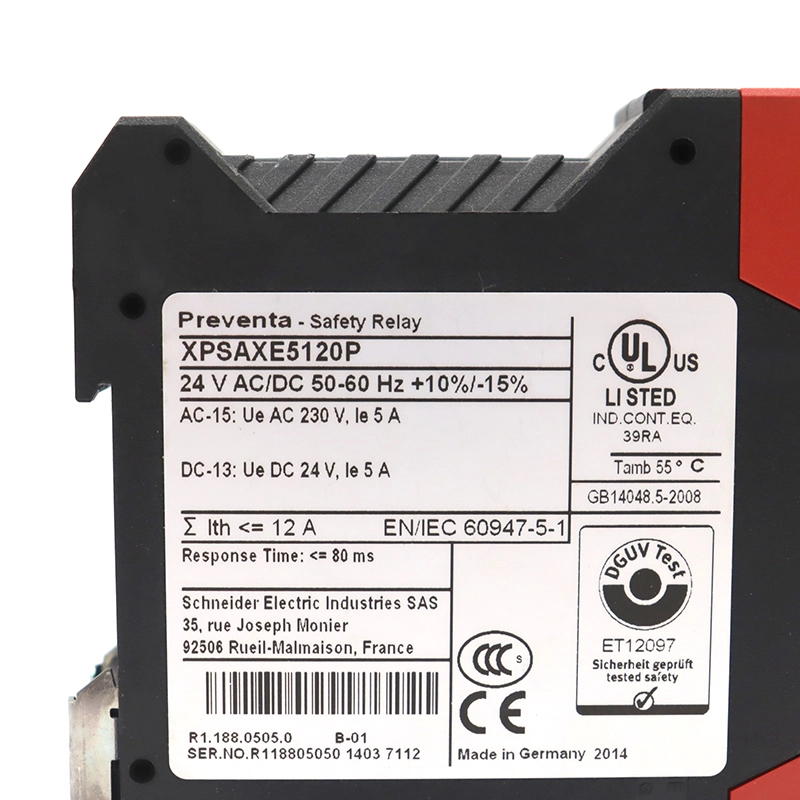

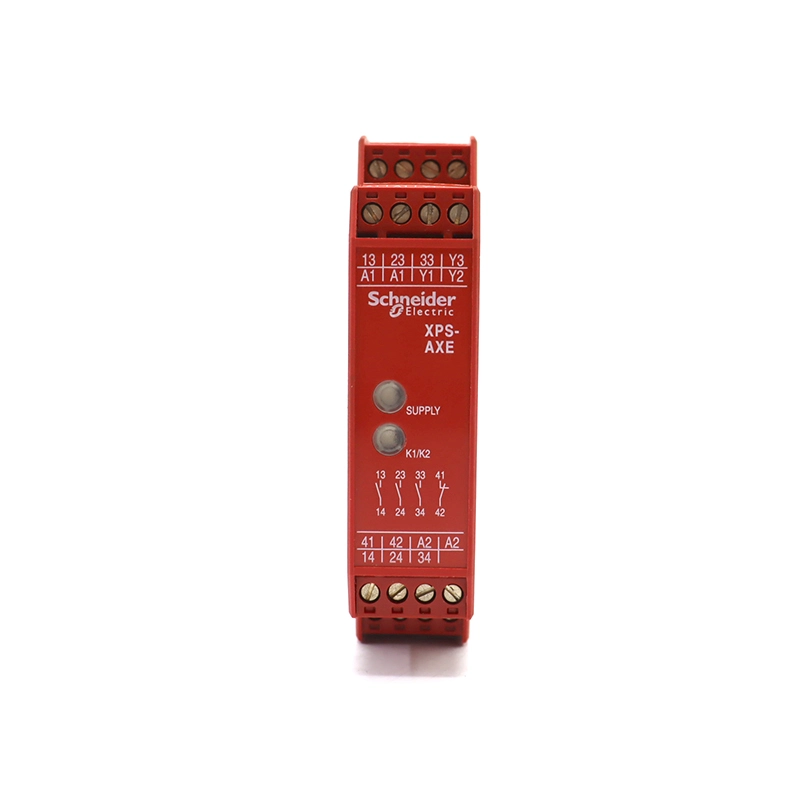

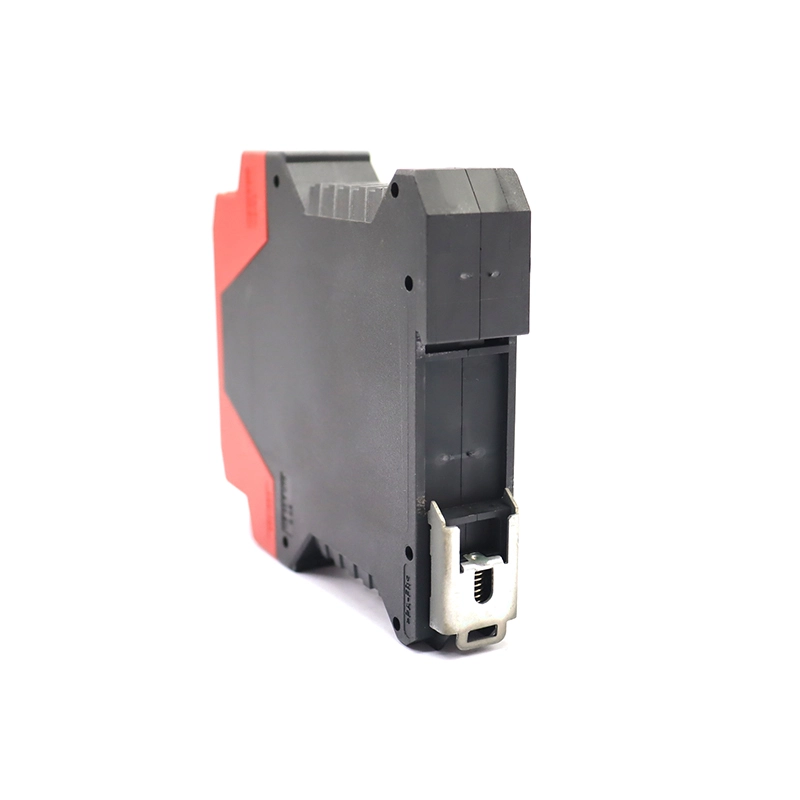

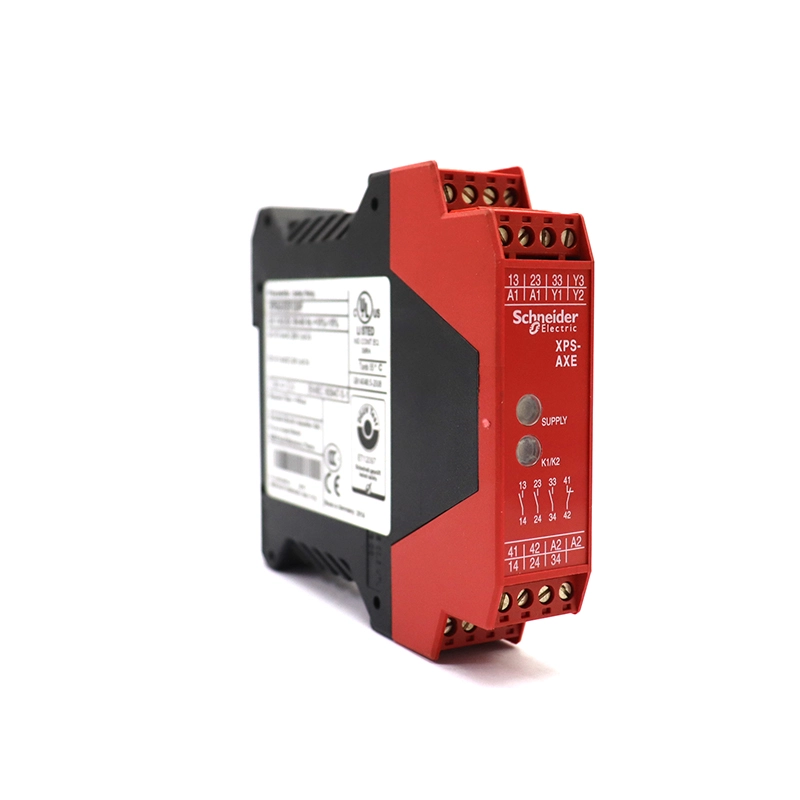

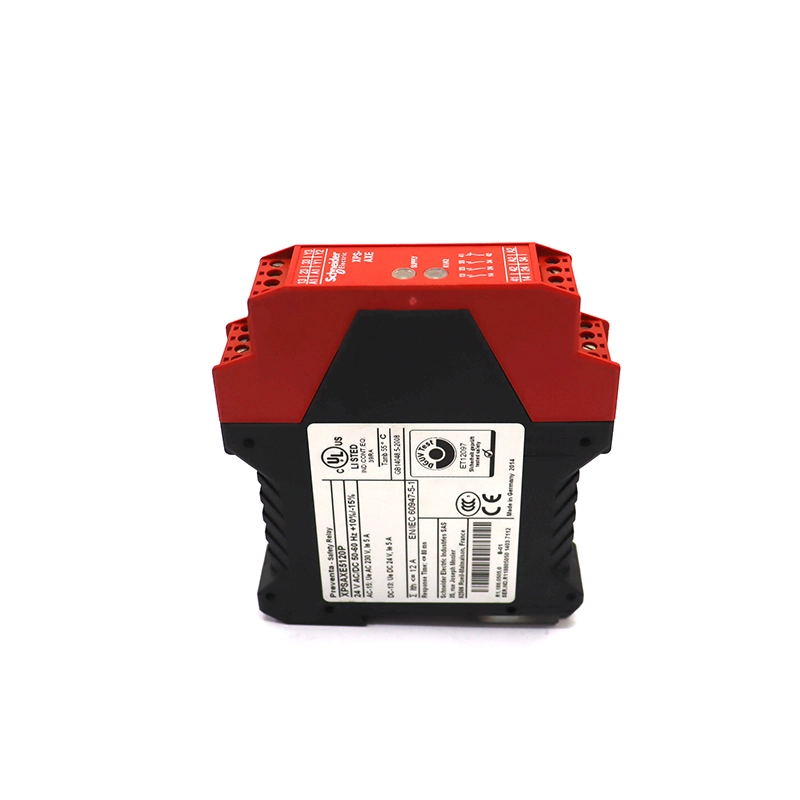

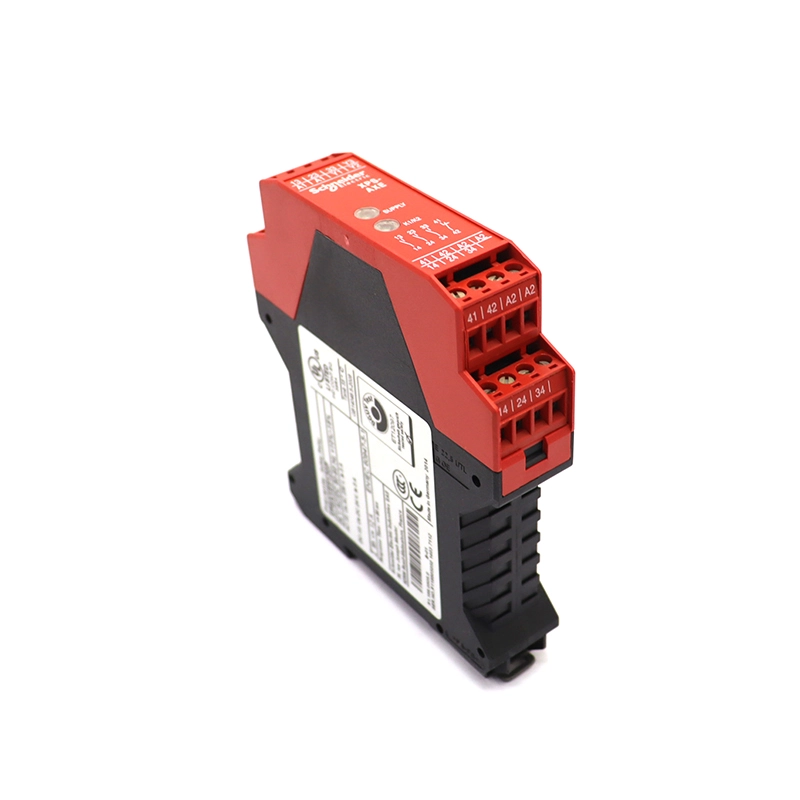

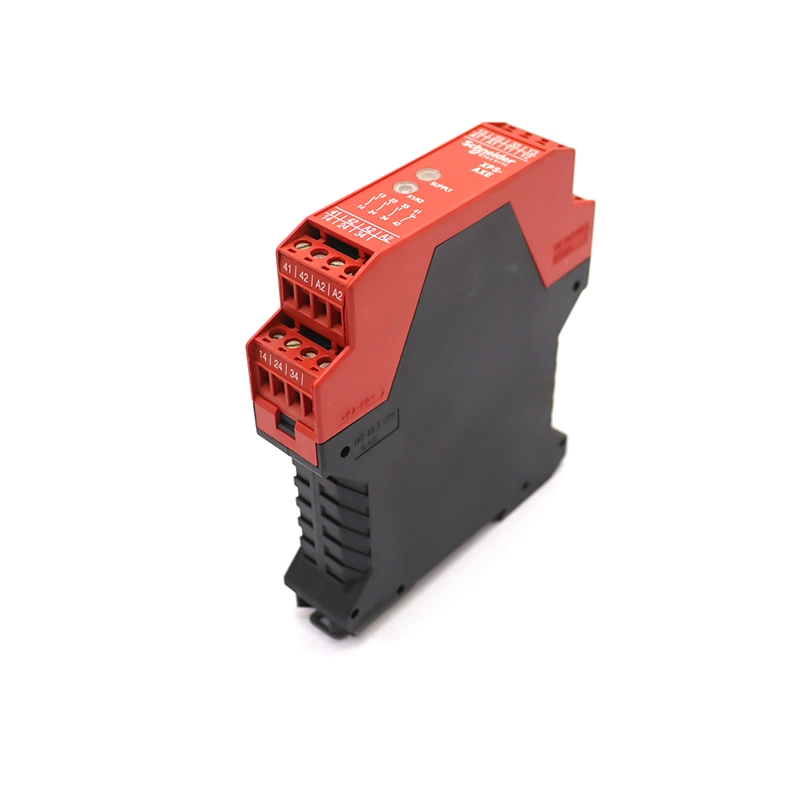

The XPSAXE5120P is a high-performance safety relay module from Schneider Electric's Preventa series, designed for industrial automation and machinery safety applications. The module ensures that equipment can be stopped quickly and safely in an emergency, protecting operators and equipment through multiple input and output relays.
Product Name: PSAXE5120P - Schneider Electric Safety Relay Module
Product Type:safety Relay Module
Brand Name: Schneider Electric
Main Features
1. Multi-channel input: Supports multiple input channels, suitable for a variety of safety equipment.
2. Multiple output relays: with multiple output relays for controlling machine stop or other safety actions.
3. Self-diagnostic function: Built-in self-diagnostic function, able to detect its own faults and provide alarm signals.
4. Power supply voltage: 24V DC
5. Response time: usually within tens of milliseconds
6. Installation: DIN rail mounting
7.Standard: ISO 13849-1, IEC 62061
Product Advantage
8.High safety: Comply with international safety standards to ensure the safety of equipment and personnel.
9. Versatility: Supports the connection of various safety devices, such as emergency stop button and safety door switch.
10. Reliability: Built-in self-diagnostic function can quickly detect faults and reduce downtime.
11. Modular design: can be used in combination with other safety modules to form a complex safety system.
12. Easy to install and maintain: compact design, easy to install in the control cabinet, and easy to maintain.
Application Areas
13.Industrial automation
14.Machinery Manufacturing
15.Packaging equipment
16.Logistics system
17.Robot control
18.Machining center
Technical parameters
19.Power supply voltage: 24V DC
20. Input channel: multi-channel input, the specific number depends on the model
21.Output relay: multi-output relay, the specific number depends on the model
22. Response time: usually within a few tens of milliseconds
23. Operating temperature range: -10°C to +55°C
24. Installation: DIN rail mounting
25.Certification: Comply with ISO 13849-1, IEC 62061 and other international safety standards.
Precautions
26. Correct installation: Make sure the module is installed in the proper location and follow the installation manual.
27. Regular Inspection: Check the working status of the module regularly to ensure its normal operation.
28. Follow standards: Follow the relevant international safety standards and norms during use.
29. Technical support: If you encounter problems, contact Schneider Electric's technical support team in time.
30. Environmental requirements: Ensure that the module works within the specified temperature and humidity ranges, and avoid the impact of extreme environments on its performance.
Summary
XPSAXE5120P is a high-performance, high-reliability safety relay module widely used in industrial and commercial environments that require high safety. Its multi-channel input and multi-output relays, self-diagnostic functions and design in accordance with international standards ensure the safety of equipment and personnel. With proper installation and regular maintenance, it can be maximized to provide reliable safety.
