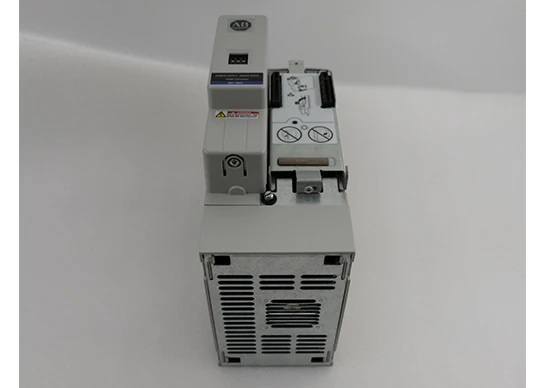

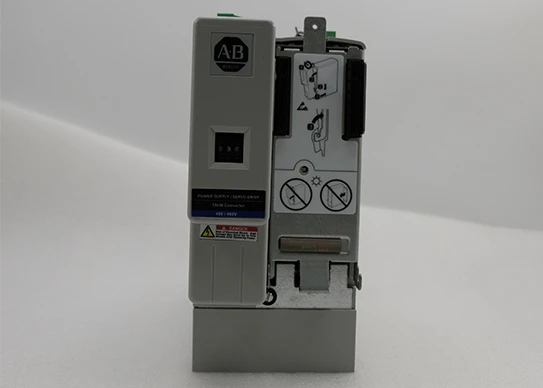

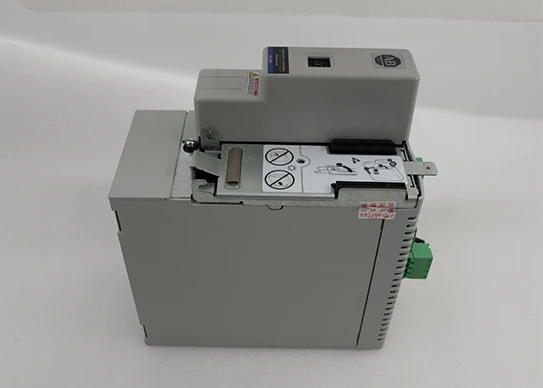

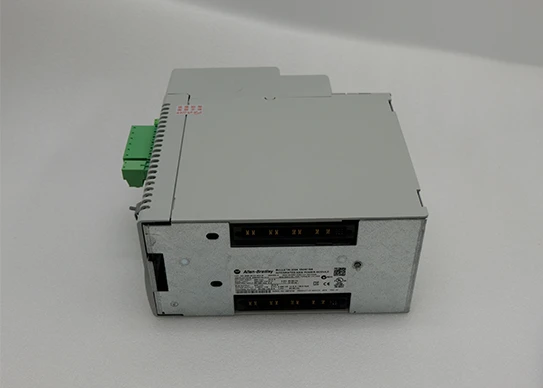

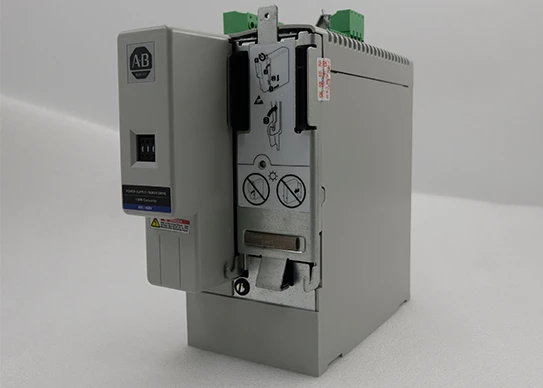

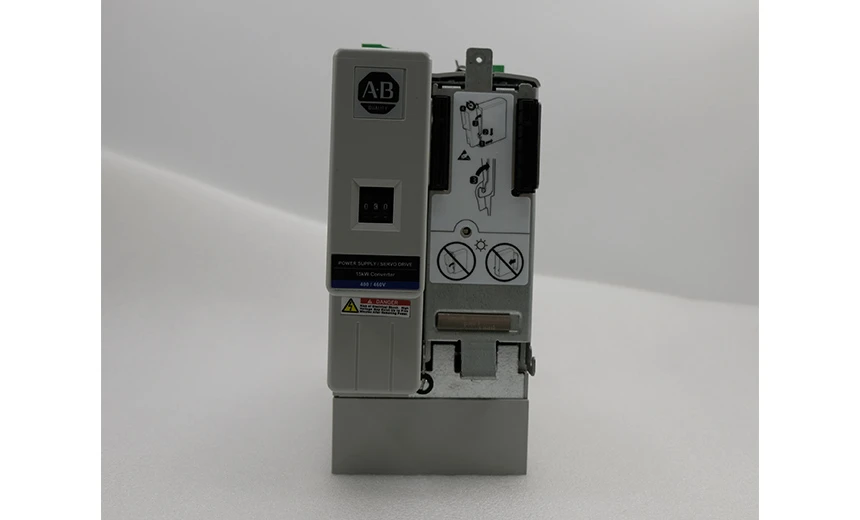

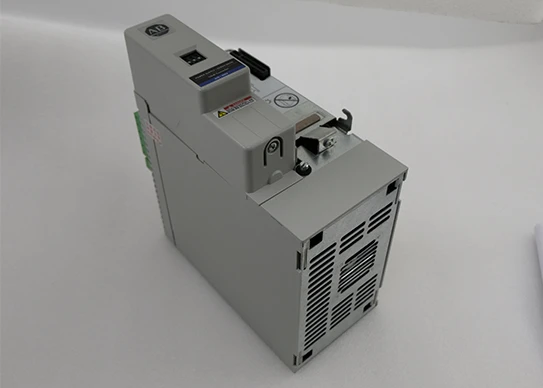

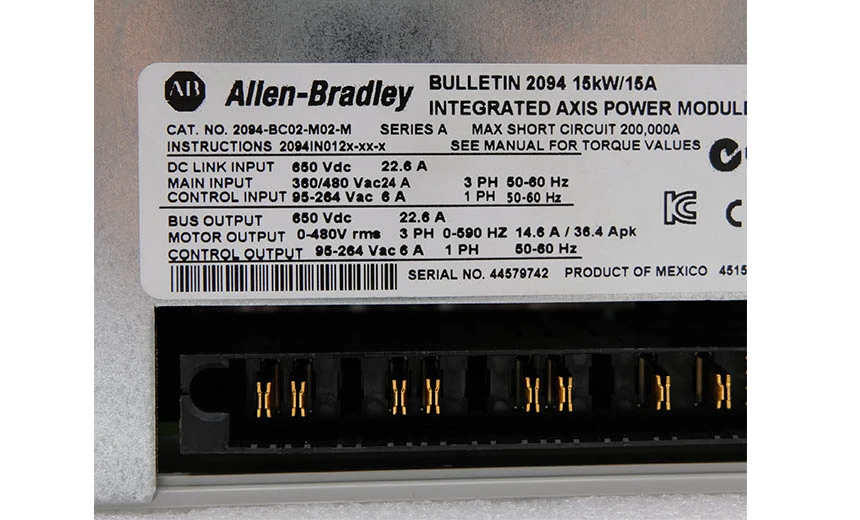

The 2094-BC02-M02-M is part of the Kinetix 6200/6500 family of modular multi-axis servo drives, serving as an integrated axis power module that combines both the converter (DC bus supply) and a single-axis inverter within one compact unit. It operates from a three-phase 360–480 V AC, 50/60 Hz input, with a converter power rating of 15 kW at 460 V and an inverter current rating of 15 A (0-peak), corresponding to roughly 10.3 A continuous RMS, suitable for medium-power servo motors in packaging, material handling, converting, and assembly applications.
This IAM forms the “front end” of a Kinetix 6200/6500 system, feeding the DC bus and providing one controlled axis, while additional axis modules (such as 2094-BMxx-M/S) can be added on the common bus for multi-axis configurations. The module integrates seamlessly into the Logix platform (ControlLogix / CompactLogix) using Integrated Motion over EtherNet/IP, simplifying configuration, programming, and diagnostics in Studio 5000/RSLogix 5000. It offers safety performance up to ISO 13849 PLe in supported configurations, along with built-in DC bus, shunt circuitry, and protective functions (overcurrent, overvoltage, undervoltage, overtemperature).
Typical specifications include nominal bus voltage around 650 V DC, built-in internal shunt resistor with defined continuous and peak power ratings for dynamic braking, and specified ride-through time during line loss to maintain control briefly during power dips. Mechanical design is optimized for panel or cabinet mounting with other Kinetix 6000/6200/6500 modules on a shared mounting structure, providing compact size and simplified wiring for OEM machine builders.
