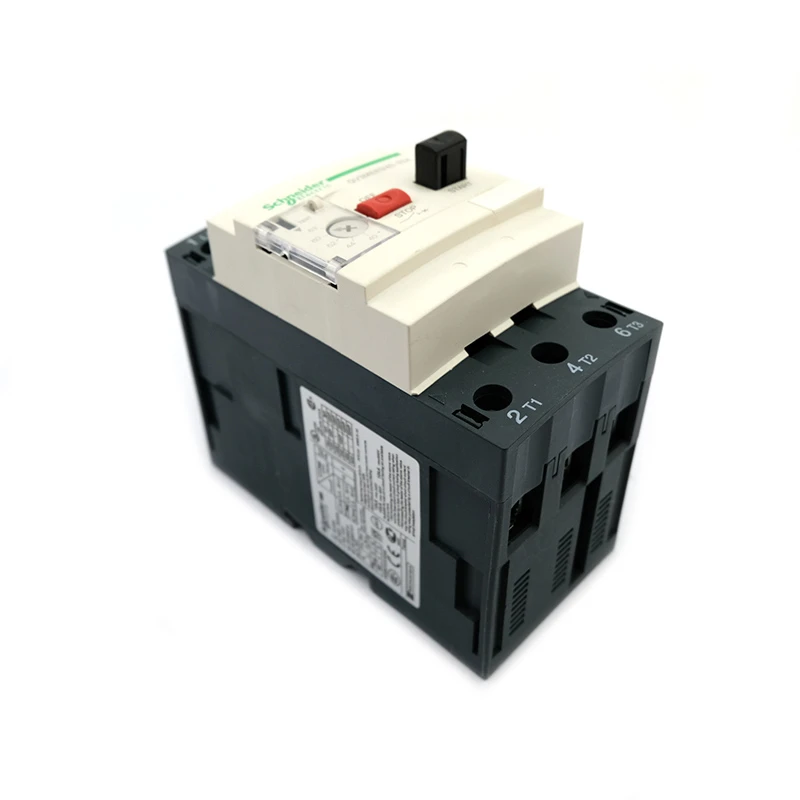

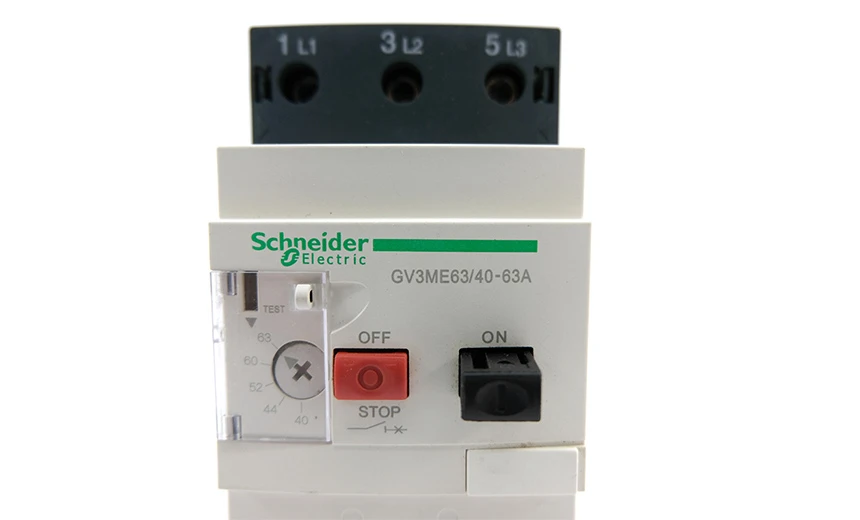

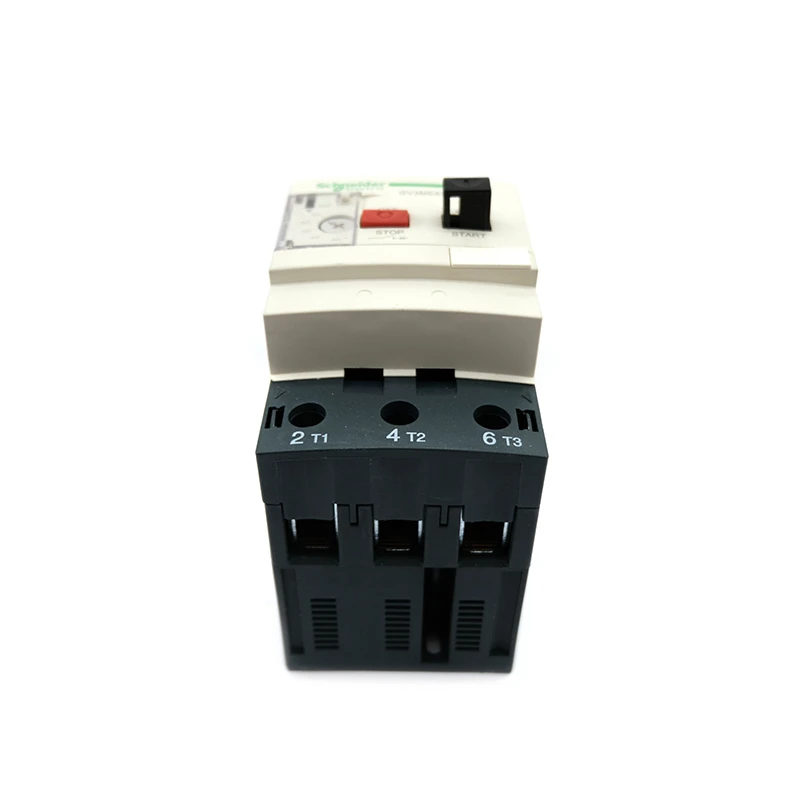

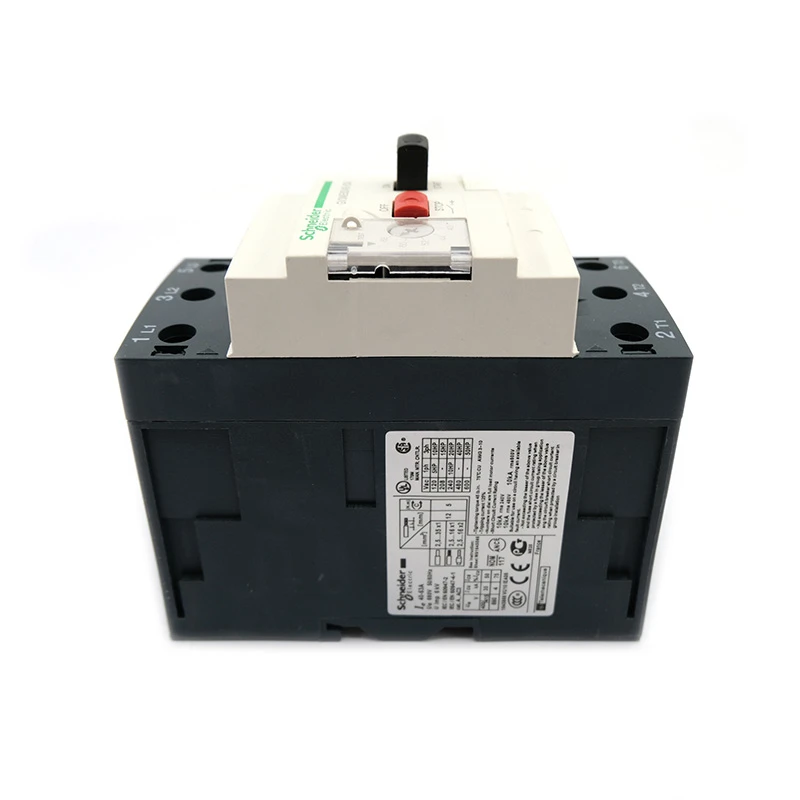

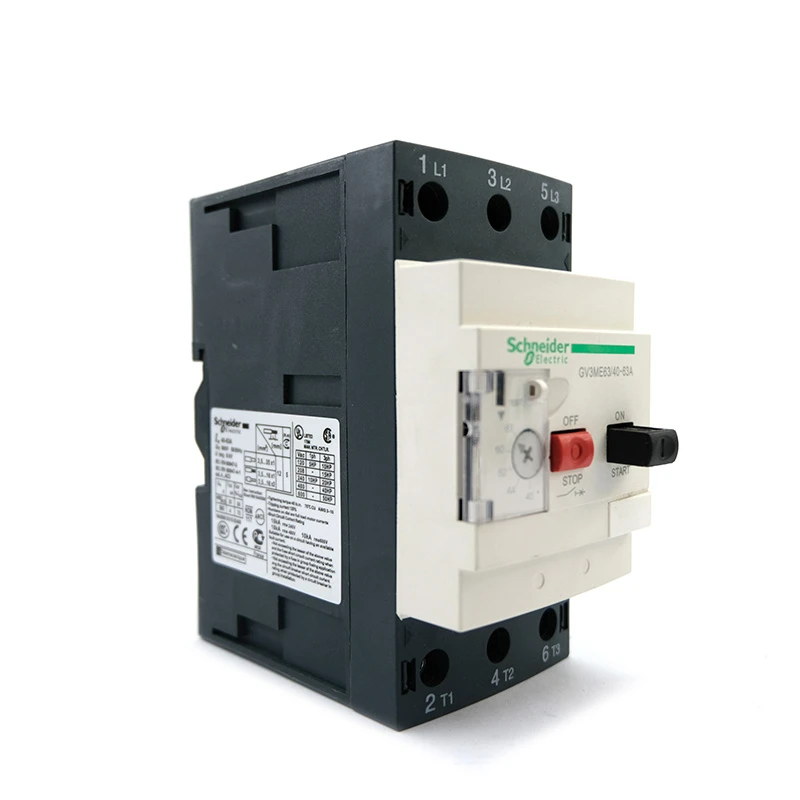

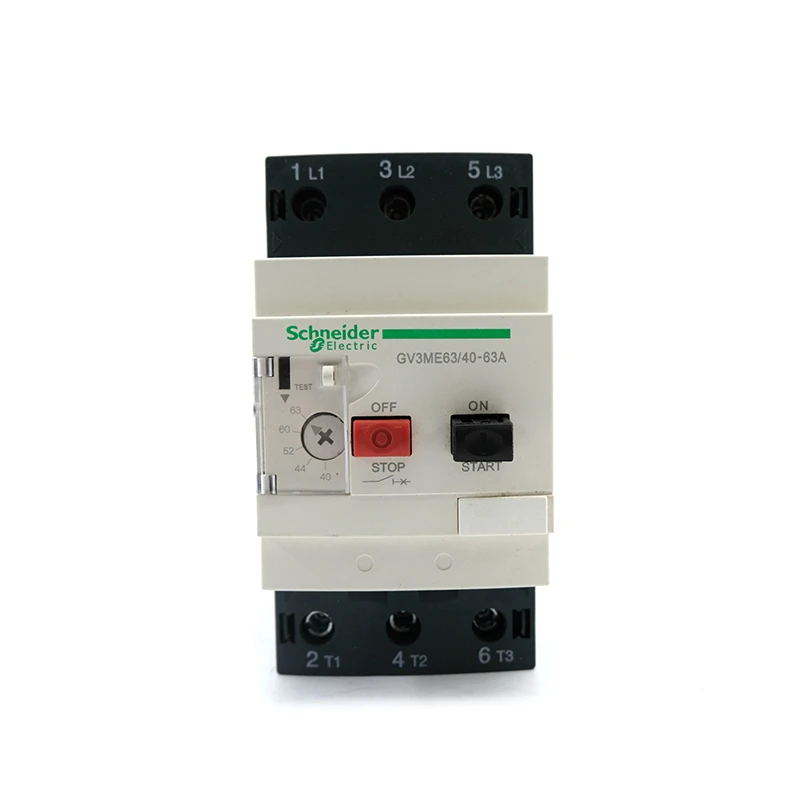

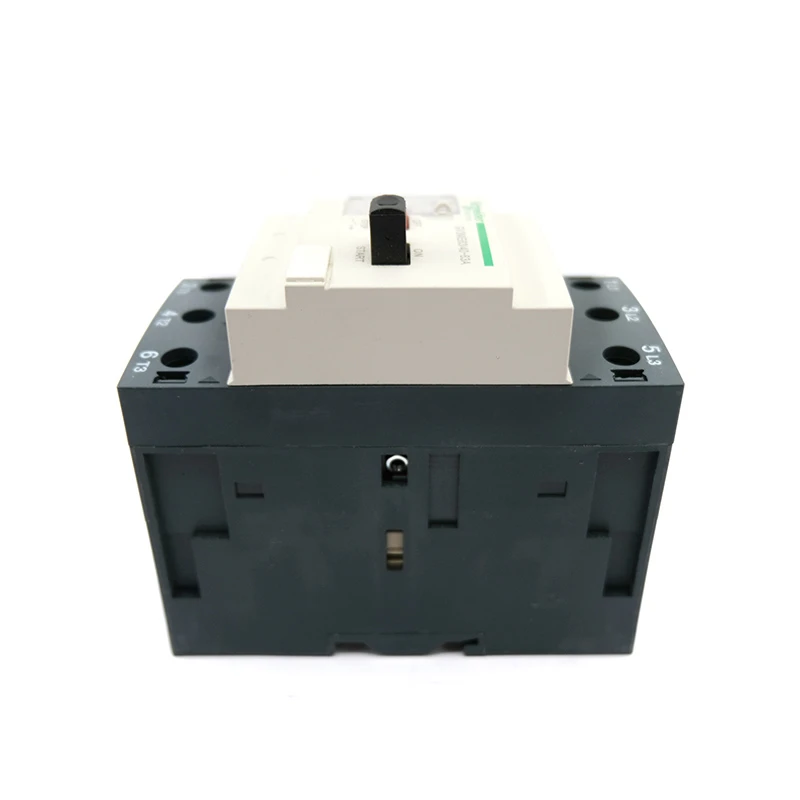

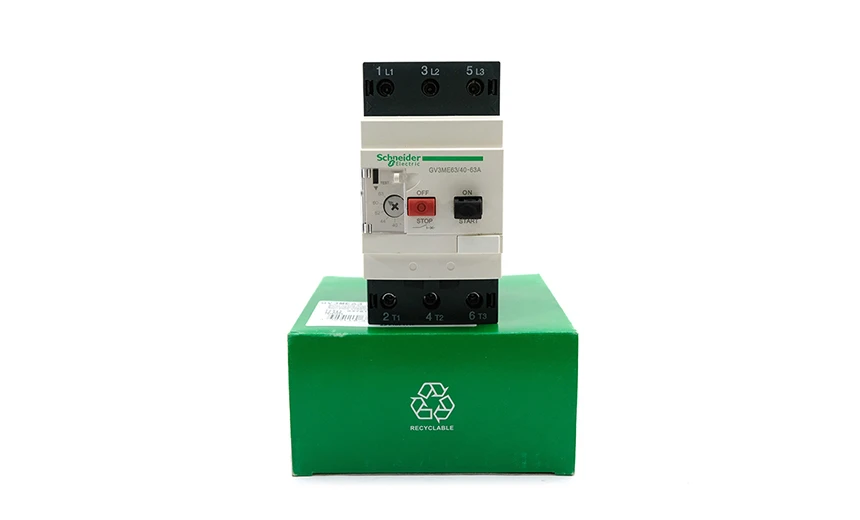

The GV3ME63 is Schneider Electric's thermal overload relay, part of the GV3 family, designed to protect electric motors from failures such as overload and short circuits.
Model: GV3ME63
Brand: Schneider
Size: 13.5*12.5*7cm
Weight: 0.8kg
Country of origin: France

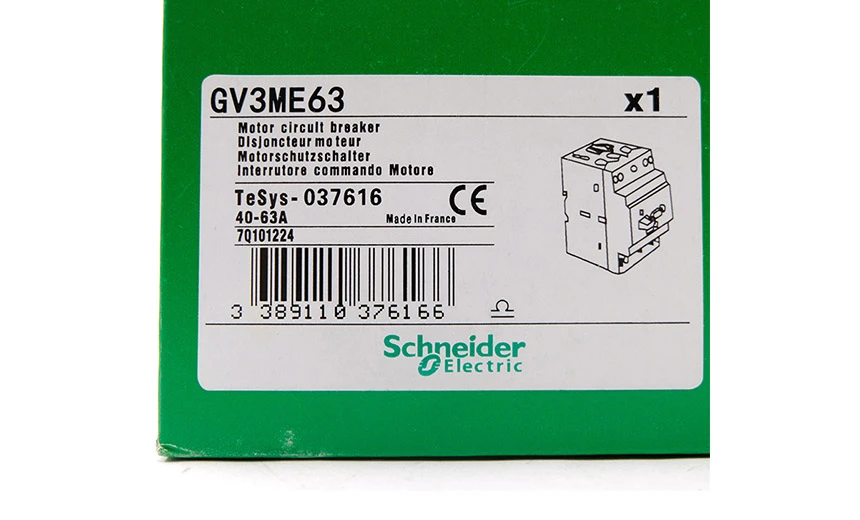

Product Series: TeSys-037616
Product type: Motor circuit breaker
Product short name: GV3ME
Application: Motor protection
Release type: thermo-magnetic
The GV3ME63 is Schneider Electric's thermal overload relay, part of the GV3 family, designed to protect electric motors from failures such as overload and short circuits. The following is a detailed description of GV3ME63:
Product features:
1. Overload protection: The GV3ME63 is designed to monitor the current of the motor and disconnect the circuit when the current exceeds the rated range to prevent damage to the motor due to overload.
2. Short circuit protection: In addition to overload protection, GV3ME63 is also able to quickly respond to short circuit faults and quickly cut off the circuit to protect the motor from damage.
3. Manual and automatic reset: The relay supports manual and automatic reset functions, and users can choose the appropriate reset mode according to actual needs.
4. Wide adjustment range: GV3ME63 has a wide adjustment range, which can be adjusted according to the rated current of the motor to meet the needs of different motors.
Technical specifications:
1. Rated current range: GV3ME63 is suitable for motors with rated current from 0.1A to 65A.
2. Working voltage: The thermal overload relay is suitable for AC circuits with working voltage of 220V to 690V.
3. Relay type: GV3ME63 is a thermal overload relay that realizes overload and short circuit protection through the current of the motor.
4. Reset mode: Support manual and automatic reset, can be set as required.
5. Reliability: As a product of Schneider Electric, GV3ME63 has high reliability and stability, and can run stably for a long time.
Application: GV3ME63 is widely used in various industrial scenarios, especially for applications requiring overload and short circuit protection of motors, such as:
Industrial production line
Pump system
Manufacturing equipment
Ventilation system
Conveyor belt system, etc.
Installation and maintenance:
1. The GV3ME63 is easy to install and can be used with the motor by connecting the circuit and adjusting the parameters.
2. Easy maintenance, regularly check the working status and connection of the relay to ensure its normal operation.
Overall, the GV3ME63 is a powerful and reliable thermal overload relay suitable for overload and short circuit protection of motors in a variety of industrial scenarios, providing users with a reliable motor protection solution.
