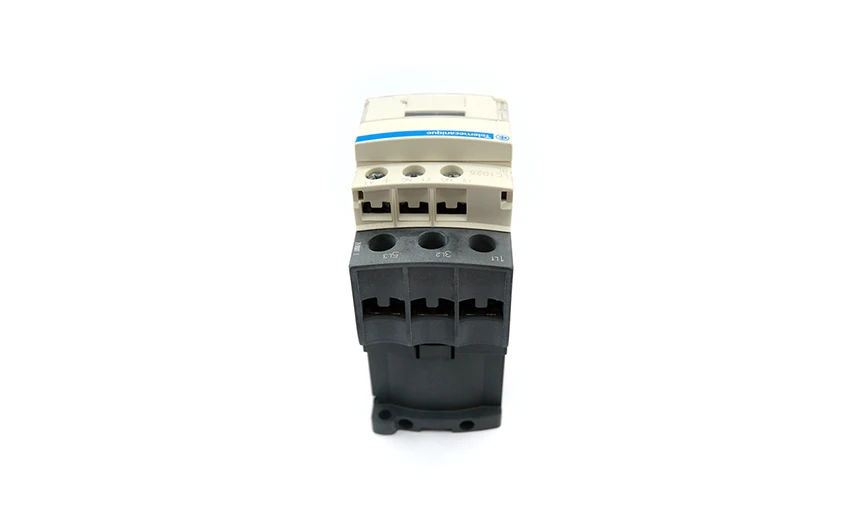

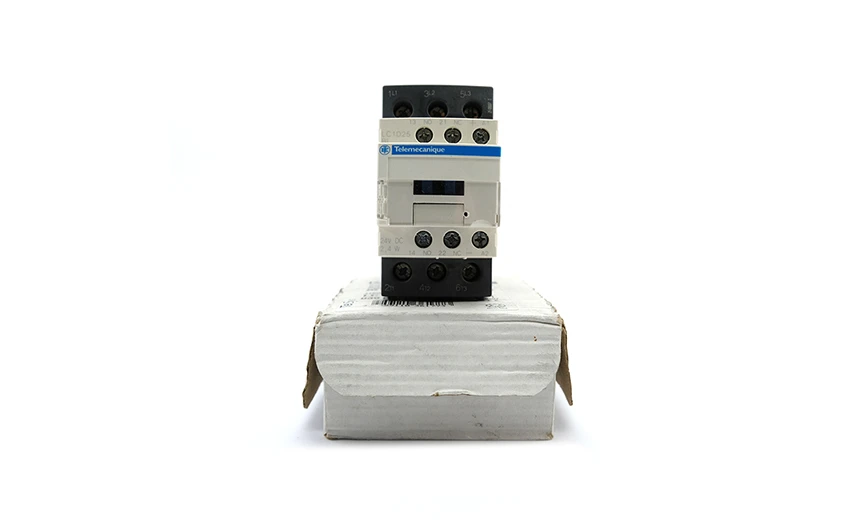

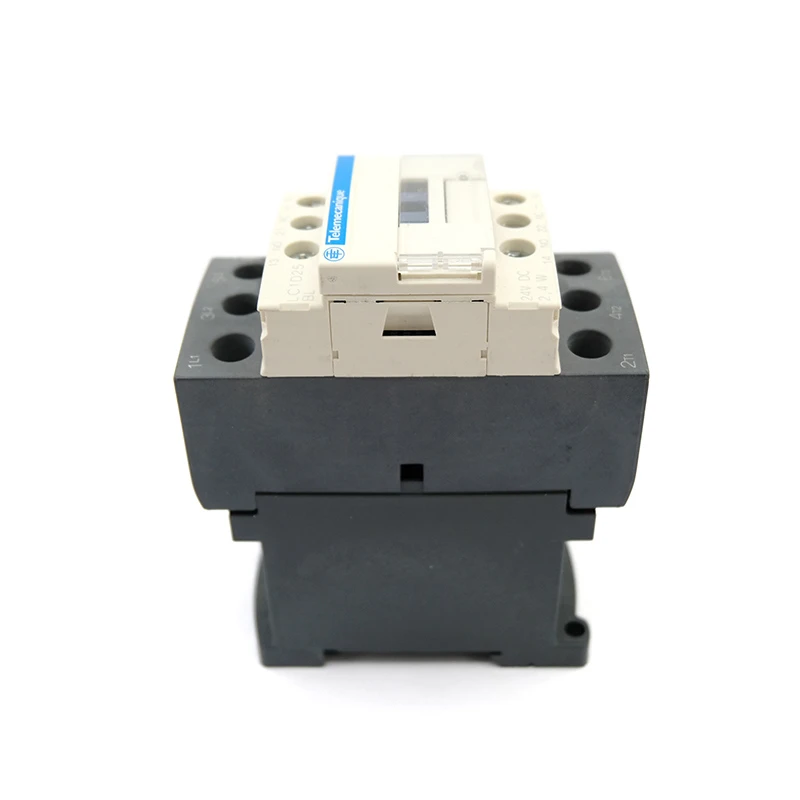

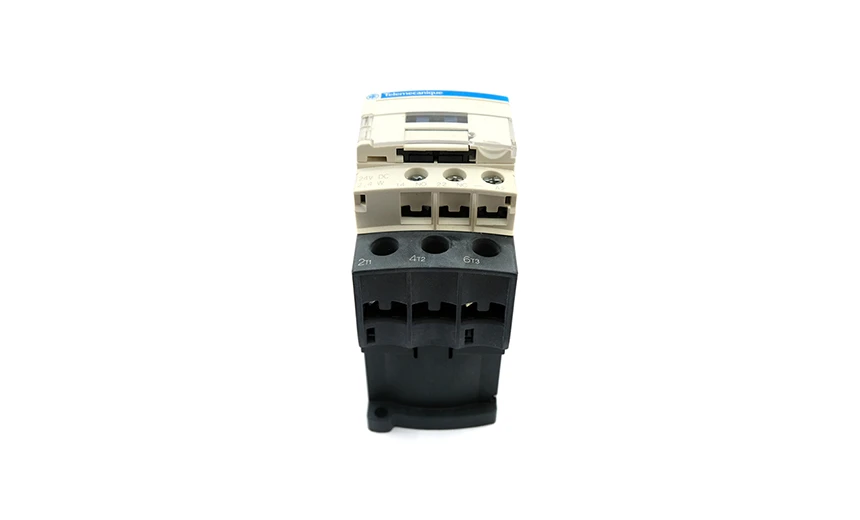

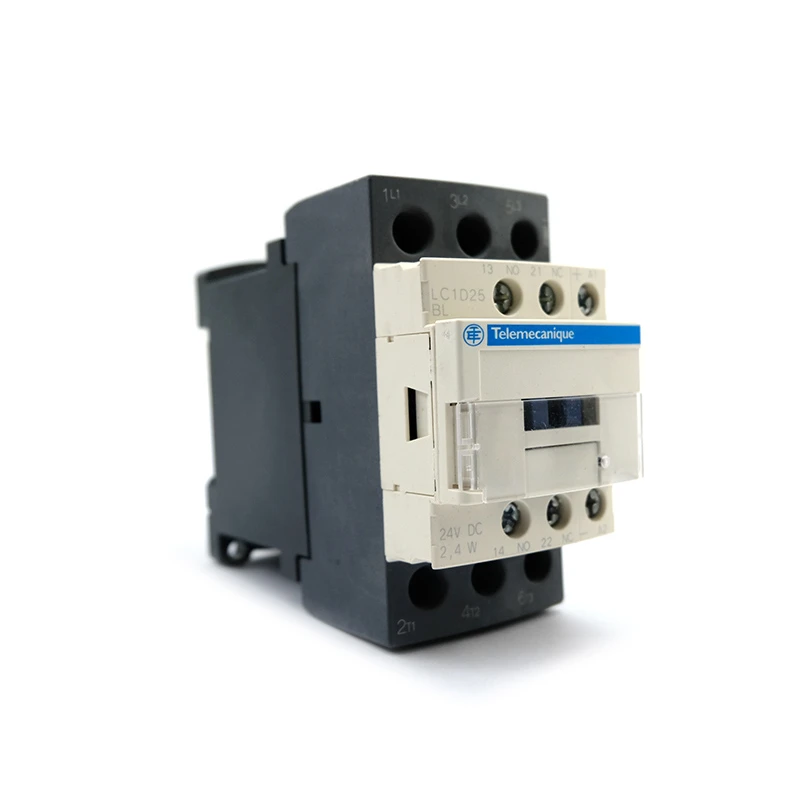

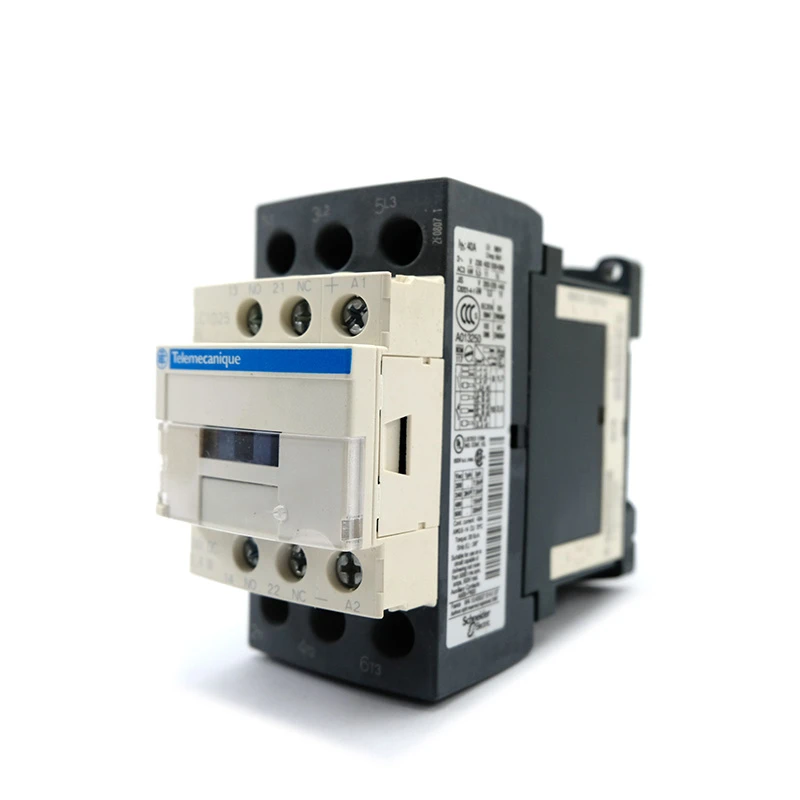

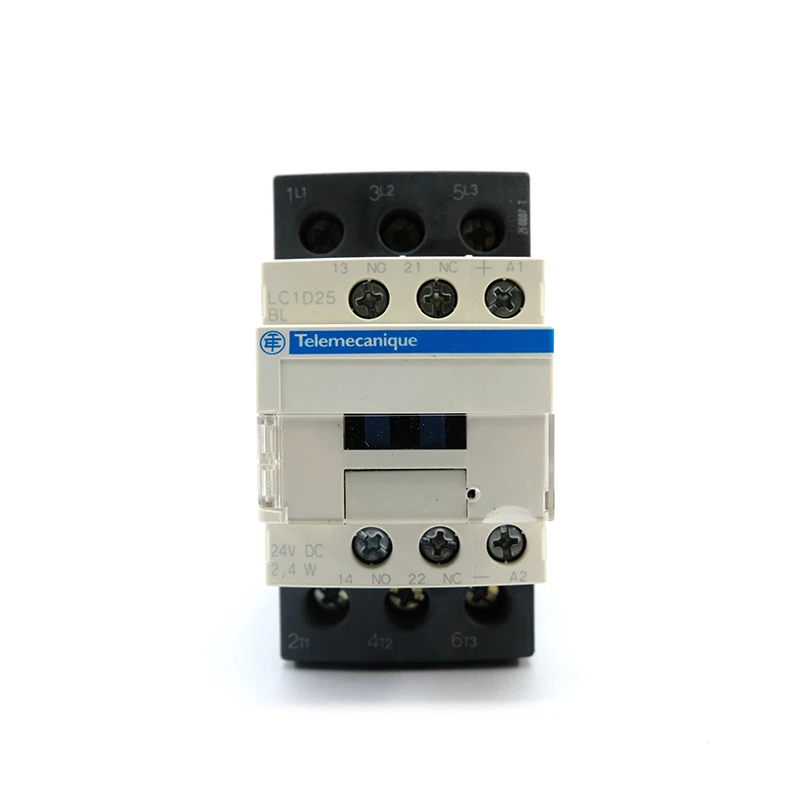

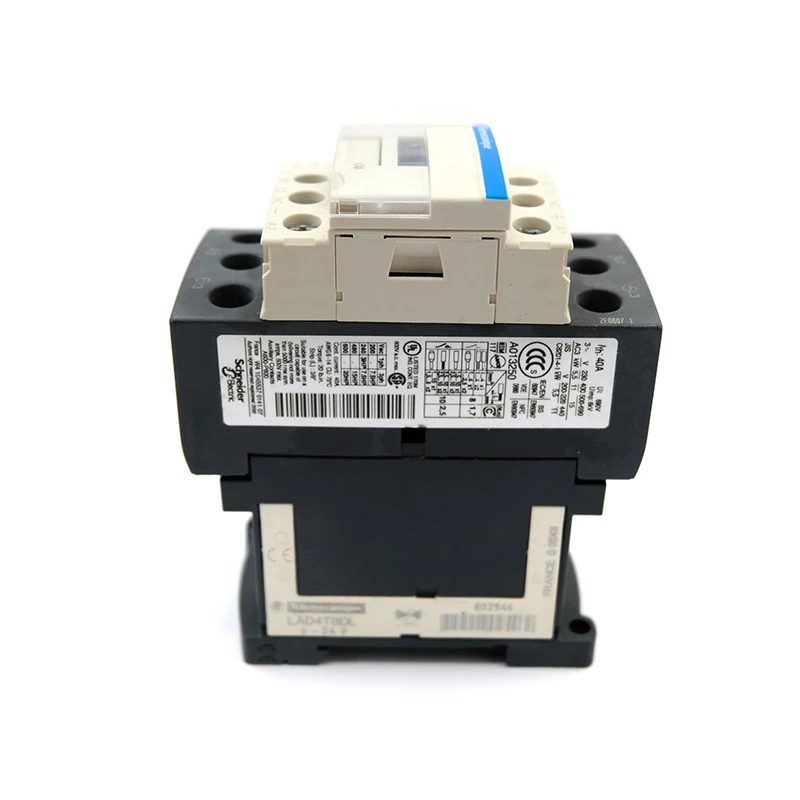

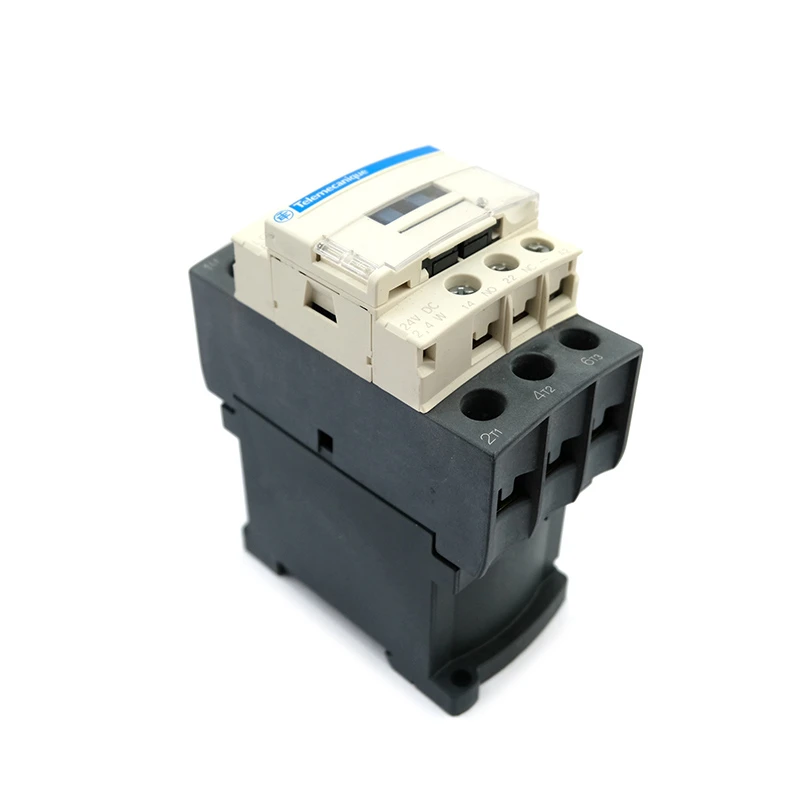

The Schneider TeSys Deca contactor LC1D25BL is a contactor for AC loads with a power factor of 0.95 or greater, especially for non-inductive or micro-inductive loads and resistance furnaces.

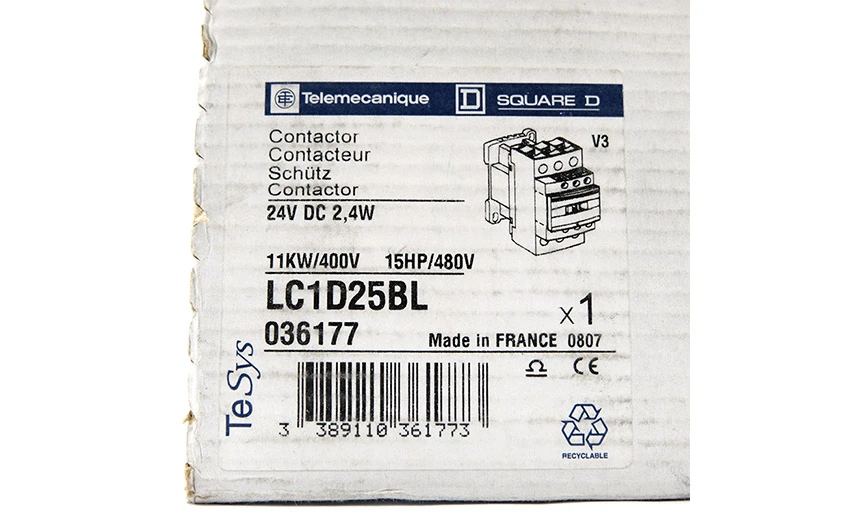

Model: LC1D25BL
Brand: Schneider
Size: 11*9*5cm
Weight: 0.6kg
Country of origin: France
Product series | TeSys Deca |
Product type | contactor |
Product short name | LC1D |
Contactor application field | Applied to AC loads with power factor greater than or equal to 0.95 Applied to non inductive or micro inductive load, resistance furnace |
Category of use | AC-4 |
Number of poles | 3P |
Rated operating voltage [Ue] | Power supply circuit: <= 690 V AC 25... 400 Hz Power supply circuit: <= 300 V DC |
Rated operating current [Ie] | 25 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-3 for power supply circuit 40 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-1 for power supply circuit 25 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-3E for power supply circuit |
[Uc] control circuit voltage | 24 V DC |
The Schneider TeSys Deca contactor LC1D25BL is a contactor for AC loads with a power factor of 0.95 or greater, especially for non-inductive or micro-inductive loads and resistance furnaces. It has a variety of use categories, including AC-4, AC-3, AC-1 and AC-3e, to meet the needs of different loads.
The main specifications are as follows:
Product line: TeSys Deca
Product type: contactor
Product short name: LC1D
Pole number: 3P
Rated operating voltage: up to 690 V AC and 300 V DC
Rated operating current: up to 40 A (AC-1), 25 A (AC-3), 40 A (AC-3e)
Control loop voltage: 24 V DC
Protection cover: attached
Auxiliary contact type: 1 NO + 1 NC
LC1D25BL contactors also have the following features:
A surge suppression module with built-in bidirectional peak current limiting diodes helps protect the circuit from voltage surges.
The control loop features DC low power consumption and can operate at lower voltages.
Reliable action time and time constant ensure fast response and stability of the contactor.
Conform to a number of international standards and certifications, including CSA, UL, CCC, etc., to ensure product quality and safety.
Durability in harsh environments, including earthquake resistance, impact resistance, fire resistance and other properties, suitable for various industrial scenarios.
The LC1D25BL contactor can be installed on the bottom plate or on the guide rail in a flexible manner, which is suitable for different installation requirements. Its compact size design makes it easy to install and arrange even when space is limited.
