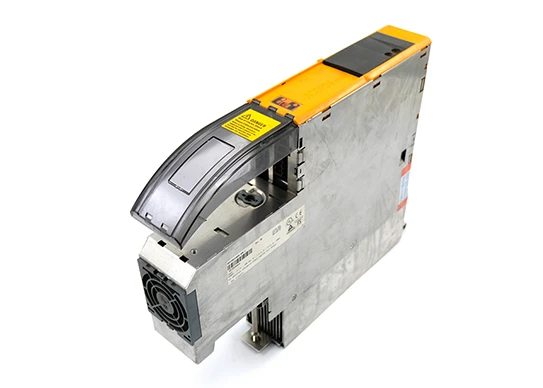

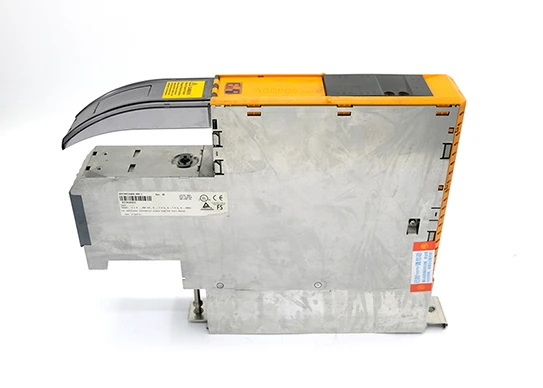

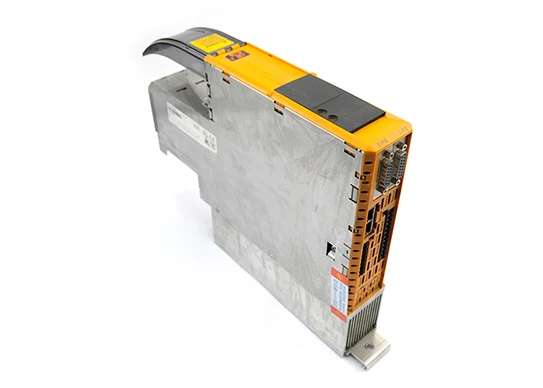

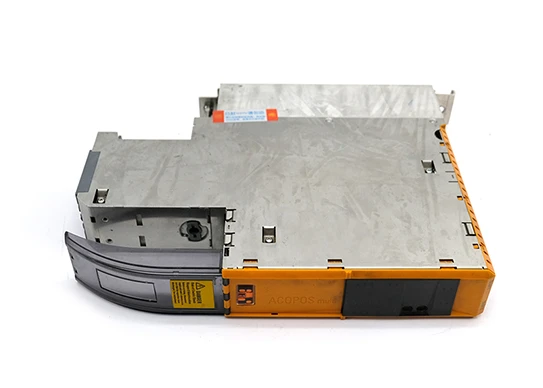

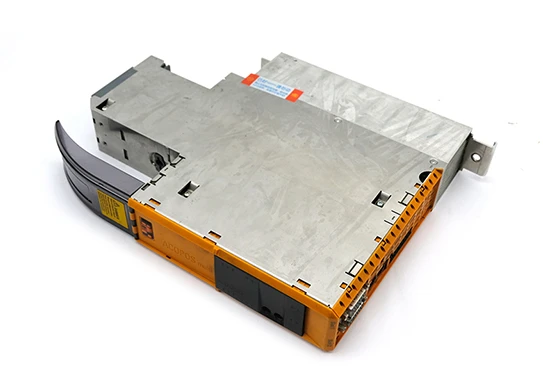

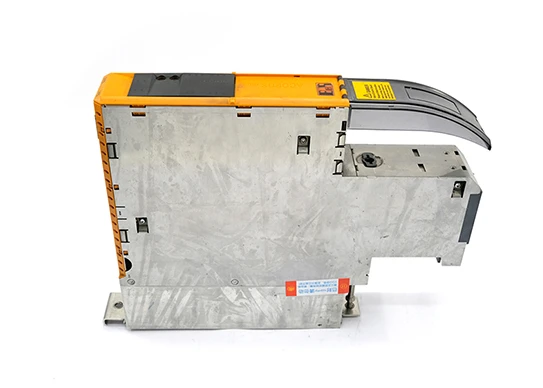

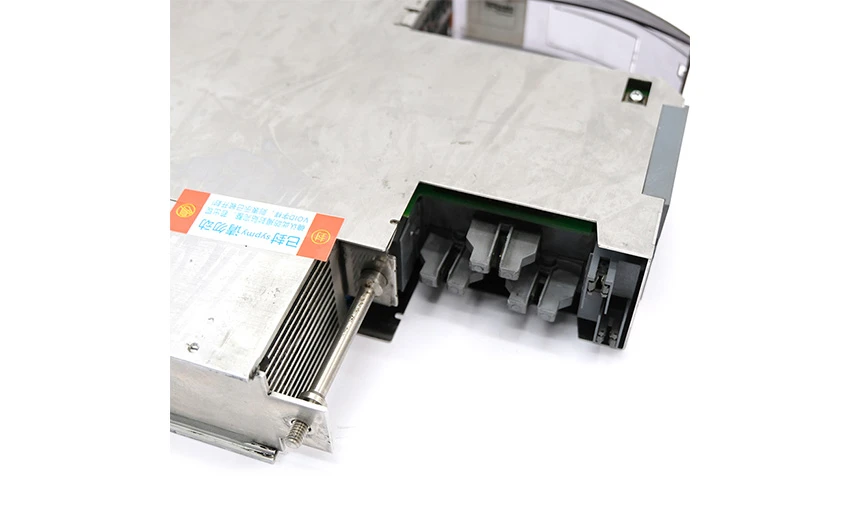

B&r 8BVI0055HWD0.000-1 is a high-performance integrated servo drive module with a wide range of functions and features designed to provide a reliable motion control solution for industrial automation applications.
Brand: B&R
Model: 8BVI0055HWD0.000-1
Product size: 34.5*26*5.5cm
Weight: 2.95kg
Product type: Drive
Place of origin: Austria
Key features and functions
Integrated design
Integrated stop and safe stop: Built-in uncontrolled stop and safe stop functions ensure the safe operation of the equipment.
Motor holding brake and temperature sensor connection: Support motor holding brake and temperature sensor connection, improve the stability and safety of the system.
The slot ADAPTS to the power
Slot support: 2 slots for the ACOPOSmulti plug-in module, providing flexible system configuration options.
Dual independent power inverters: One module contains two fully independent power inverters for 2-axis drive applications.
Electrical parameters and protection functions
DC bus connection: Rated 750VDC DC bus voltage, supports a maximum continuous power consumption of 11.19 kW.
Protection function: overload protection, short circuit and ground fault protection, to ensure the safe operation of the system.
Motor connection and control

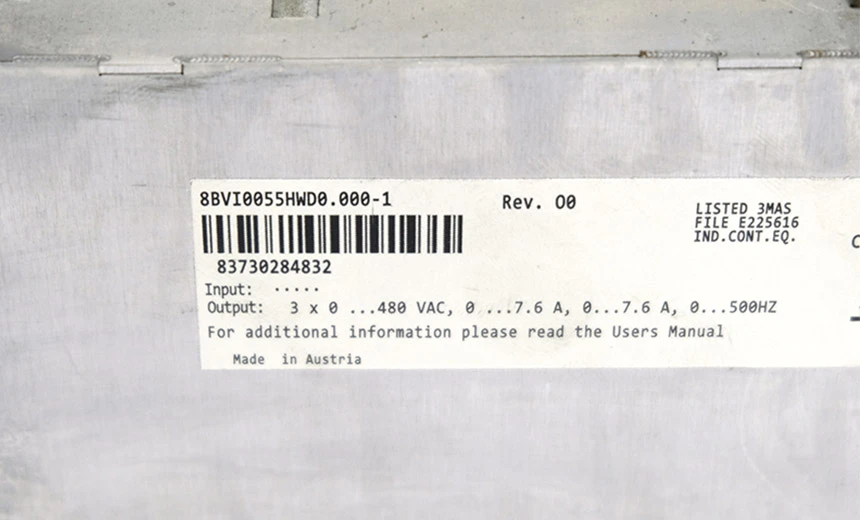

Motor connections: Two motor connections are supported, each with a continuous power of 5.5 kW and a continuous current of 7.6 Aeff.
Motor continuous current derating: According to different switching frequency and installation altitude, the continuous current derating is realized to ensure the stability of the system.
Input/output and communication interfaces

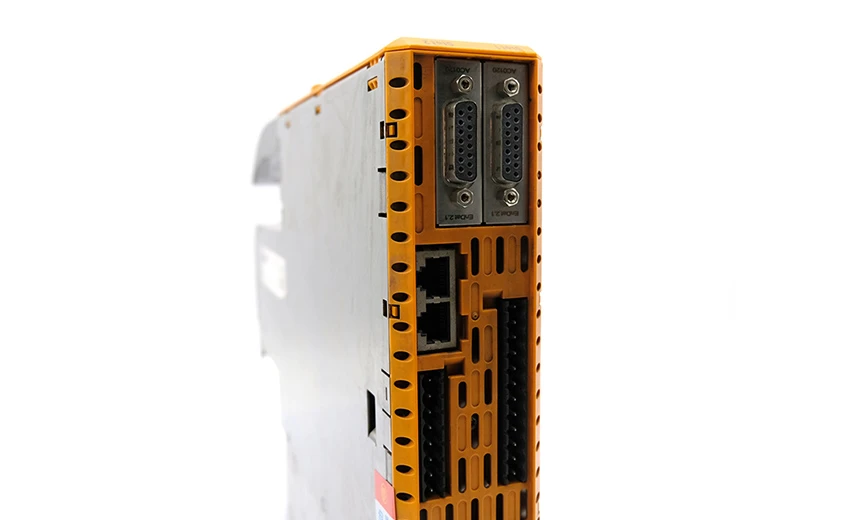

Input/output interface: Supports four enable inputs and two trigger inputs, providing electrical isolation and adaptive input voltage ranges.
Communication interface: complies with UL, CE and UKCA certification standards, supports dynamic node allocation (DNA) function.
Environmental adaptability and mechanical properties
Installation direction: Vertical suspension and horizontal installation but not horizontal installation.
Operating temperature range: normal operation in 5°C to 40°C, up to 55°C, suitable for a variety of working environments.
Mechanical dimensions: width 53mm, height 317mm, depth 263mm, weight about 2.9kg, ideal for compact installation space.
The B&R 8BVI0055HWD0.000-1 module is a powerful and stable servo drive for industrial automation applications that require efficient and reliable motion control.
