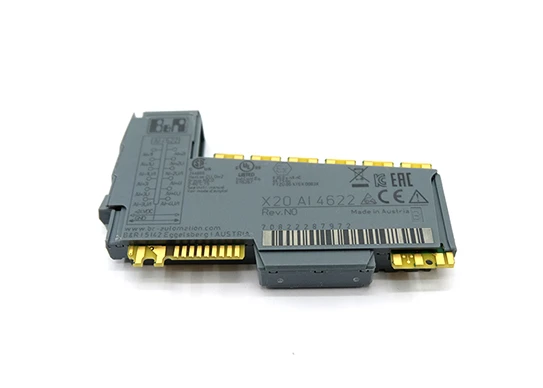

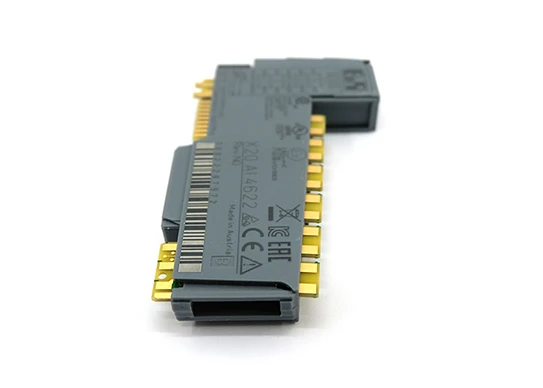

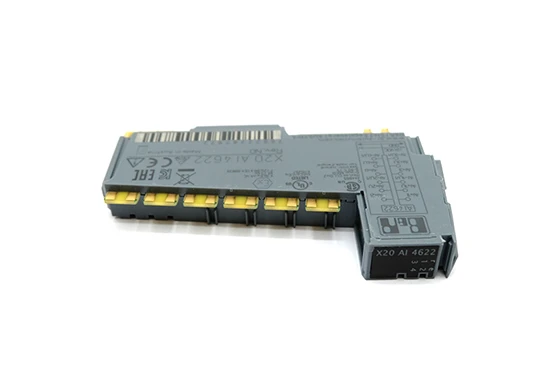

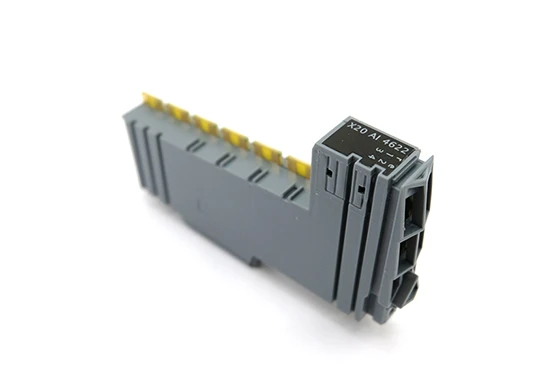

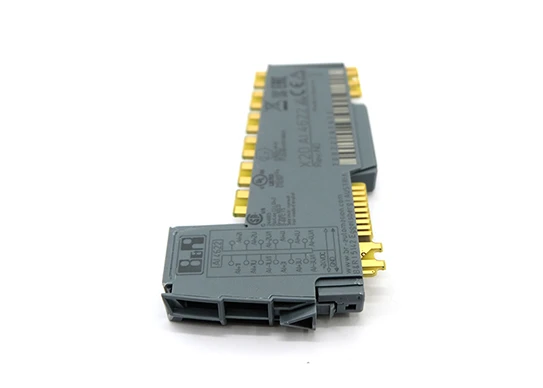

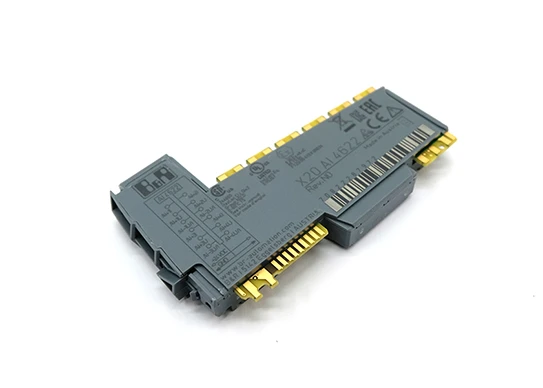

The B&R X20AI4622 is a high-performance analog input module that provides a 4-channel analog input capability that supports ±10 V or 0 to 20 mA/4 to 20 mA signal inputs for a variety of industrial control and data acquisition applications.
Brand: B&R
Model: X20AI4622
Packing size: 10*6*2.5cm Weight: 0.5kg
Product type: IO module Rated voltage: 230V Power: 230kw Speed response frequency: 23KHz
Place of origin: Austria
Key features and functions
Number of channels: The device has 4 analog input channels to monitor multiple signal sources simultaneously.
Signal input types: Support a variety of input types, including ±10 V or 0 to 20 mA/4 to 20 mA, flexible to meet the needs of different signal sources.
Digital converter resolution: with 13-bit converter resolution, it can realize high-precision analog signal acquisition and conversion.
Configure the input filter: The input filter can be configured by software to filter out noise and improve signal quality.
Electrical parameters and protection functions
Input protection: with connection protection for the power supply voltage, to ensure the safety of the input signal and equipment.
Electrical isolation: 500 Veff electrical isolation between the channel and the bus ensures system stability and safety.
Channel isolation: Isolation between channels to avoid interference and cross-influence.
Environmental adaptability and mechanical properties
Installation direction: Applicable to various installation scenarios.
Operating temperature range: horizontal installation, operating temperature range is -25°C to 60°C; When installed vertically, the operating temperature range is -25°C to 50°C.
Mechanical size: The size of the equipment meets the standard, easy to install and wire.
B&r X20AI4622 Analog input module is a powerful, stable and reliable equipment, suitable for industrial control systems to collect and process analog signals, providing users with efficient and accurate data acquisition solutions.
