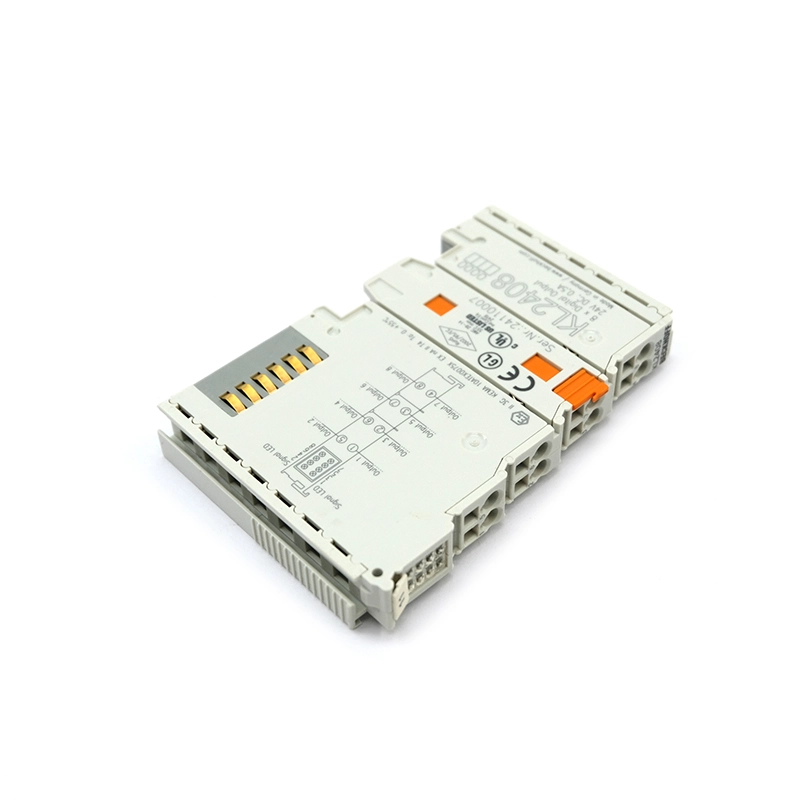

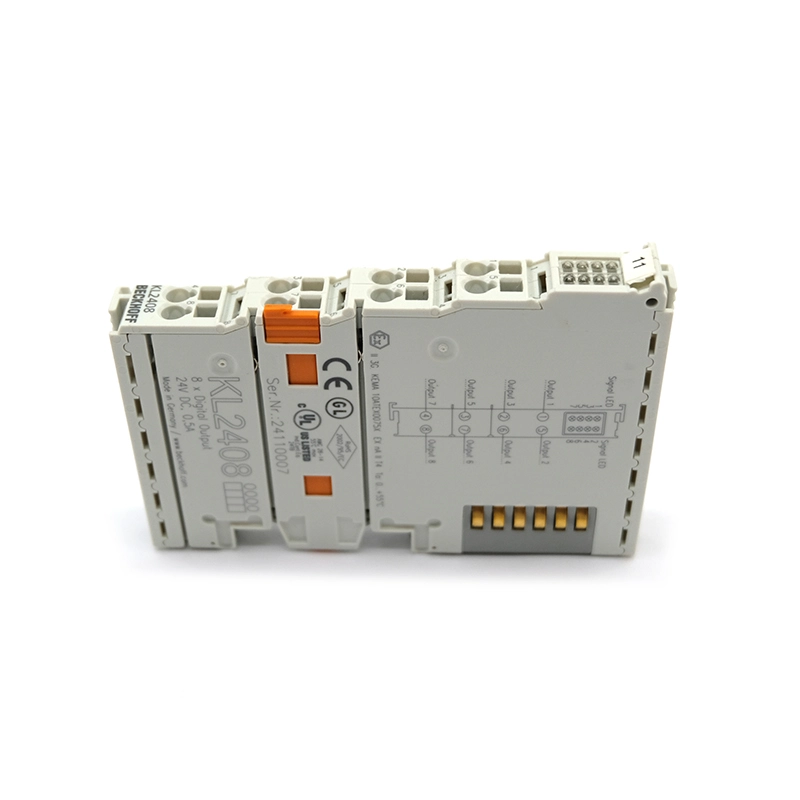

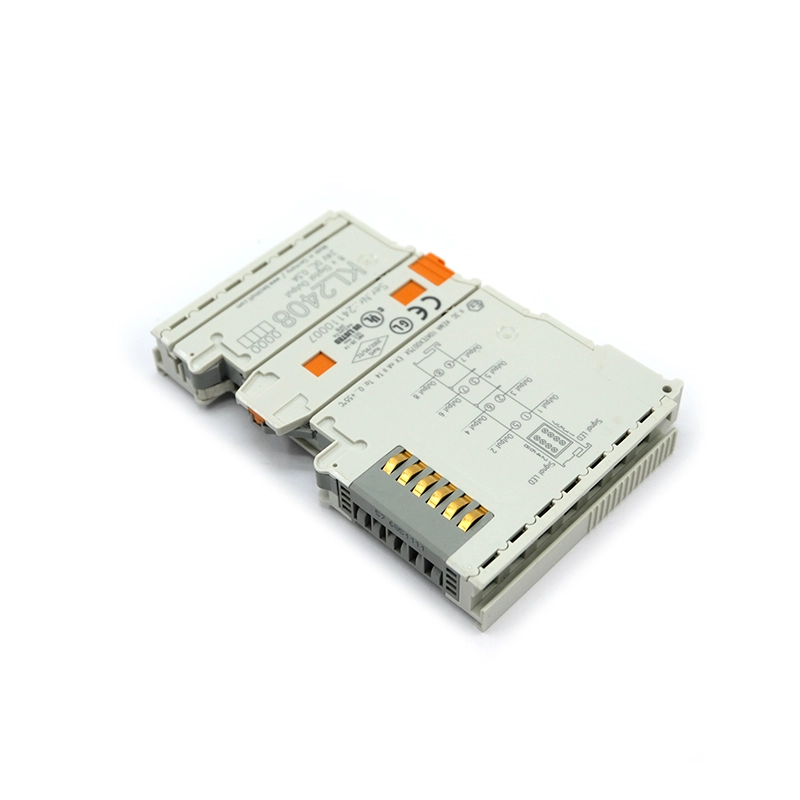

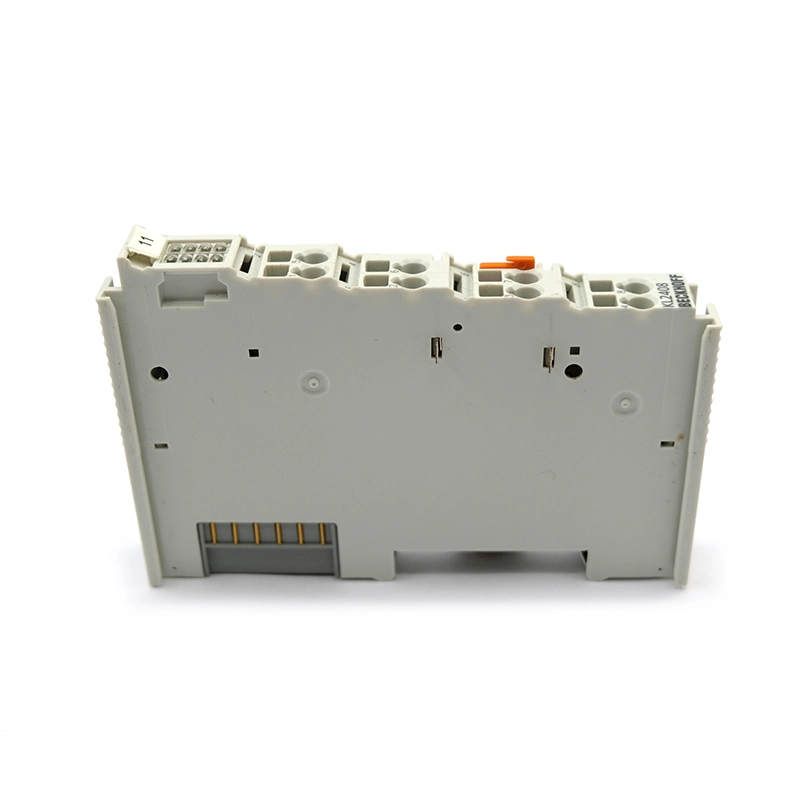

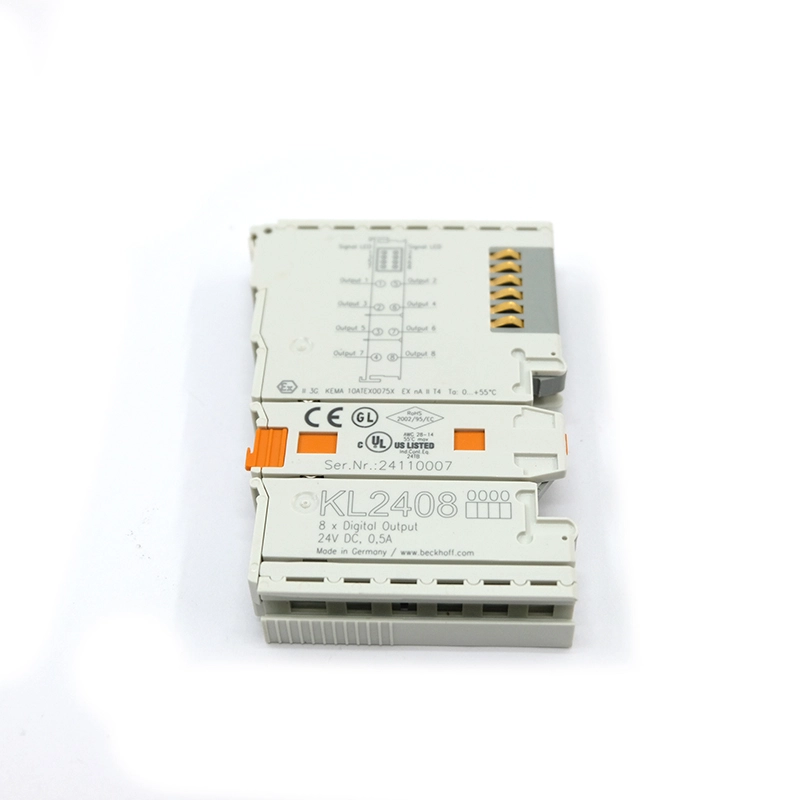

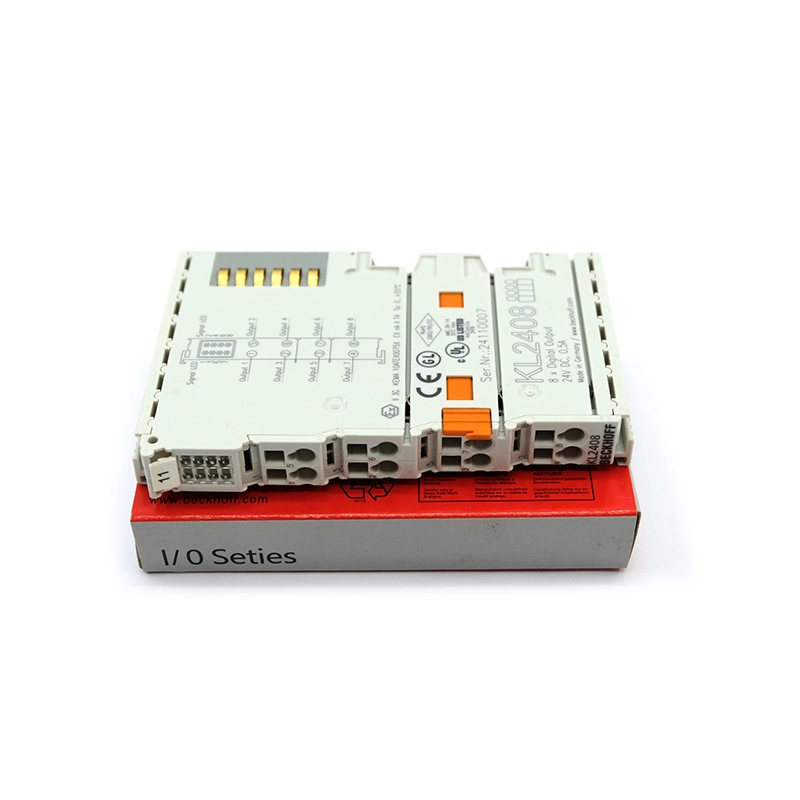

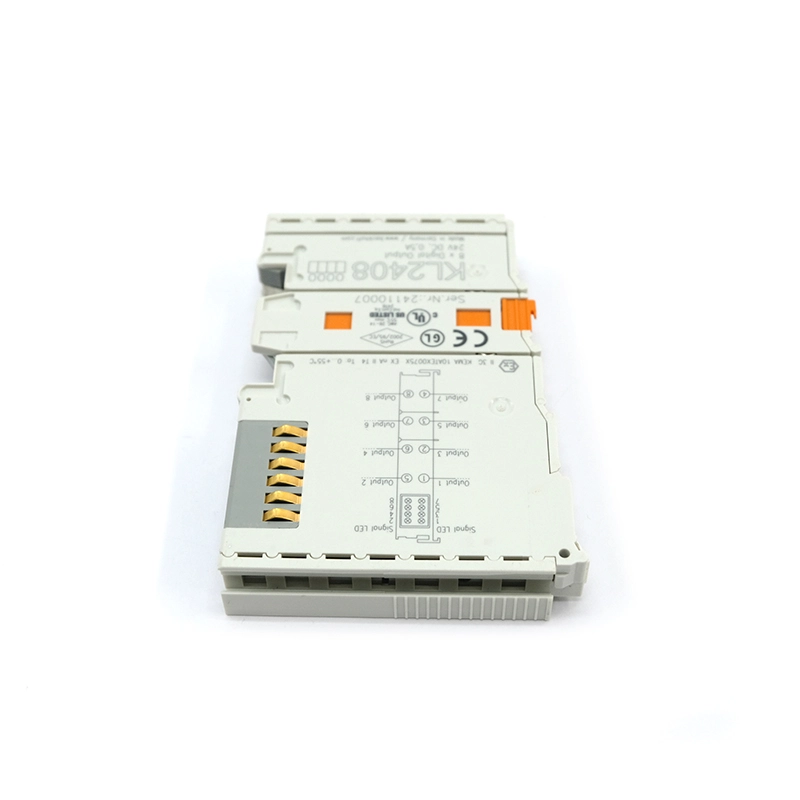

The KL2408 is an EtherCAT terminal from Beckhoff Automation. EtherCAT terminals from Beckhoff are used in a wide range of industrial automation applications and are characterized by high performance and flexibility. Detailed information about the KL2408 is given below
Dimensions: 15 x 100 x 70 mm (W x H x D)
Weight: approx. 70 g
Operating temperature range: -25°C to +60°C
Approvals: Conforms to various international standards and approvals, such as CE, UL, etc.
Basic Parameters
1. Product name: EtherCAT Terminals
2. Model: KL2408
3. Function: 8-channel digital output terminal
4. Output voltage: 24V DC
5. Output current: Max. 0.5A per channel
6.Connection: via EtherCAT bus
Features
1. High density: A single module provides 8 digital output channels, saving space in the control cabinet.
2. High performance: Supports fast EtherCAT communication to ensure efficient data transmission and real-time control.
3. Flexibility: Modular design for easy expansion and maintenance.
4. Reliability: Short-circuit protection and overload protection to ensure the safe operation of the equipment.
5. Easy to install: DIN rail mounting for quick installation and replacement.
Application Scenarios
1. Industrial automation control system
2.Machinery manufacturing
3.Process control
4.Electrical control cabinet
5.Other industrial applications requiring digital output control
Connectivity and Configuration
1. Connection: To the host controller via the EtherCAT bus
2. Configuration tool: Configuration and programming with Beckhoff's TwinCAT software.

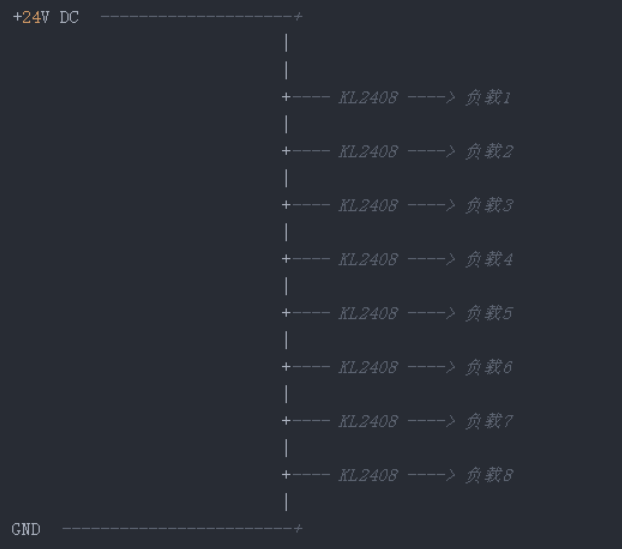

Typical wiring diagram
