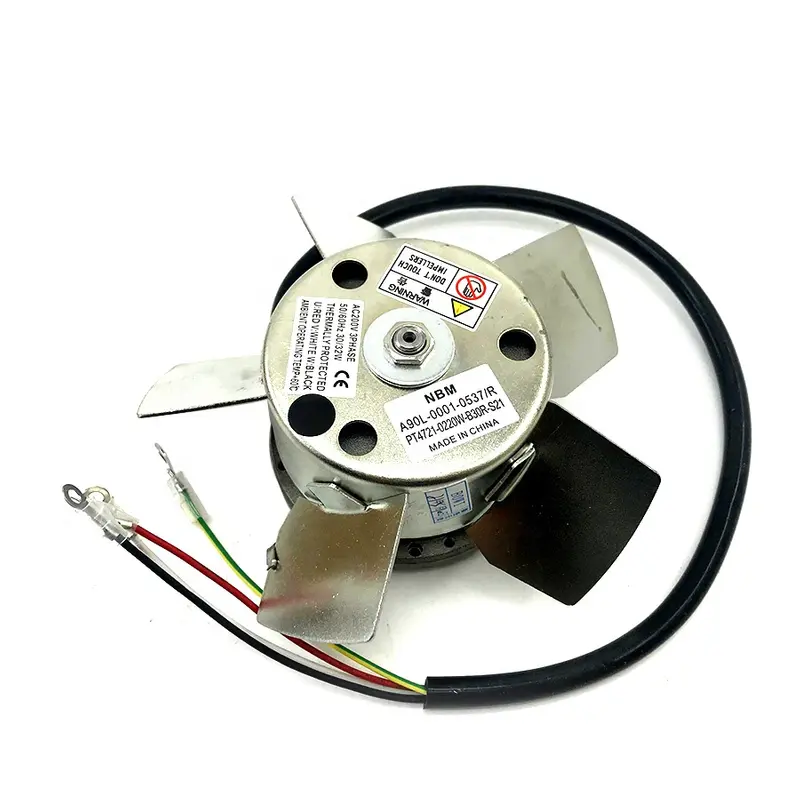

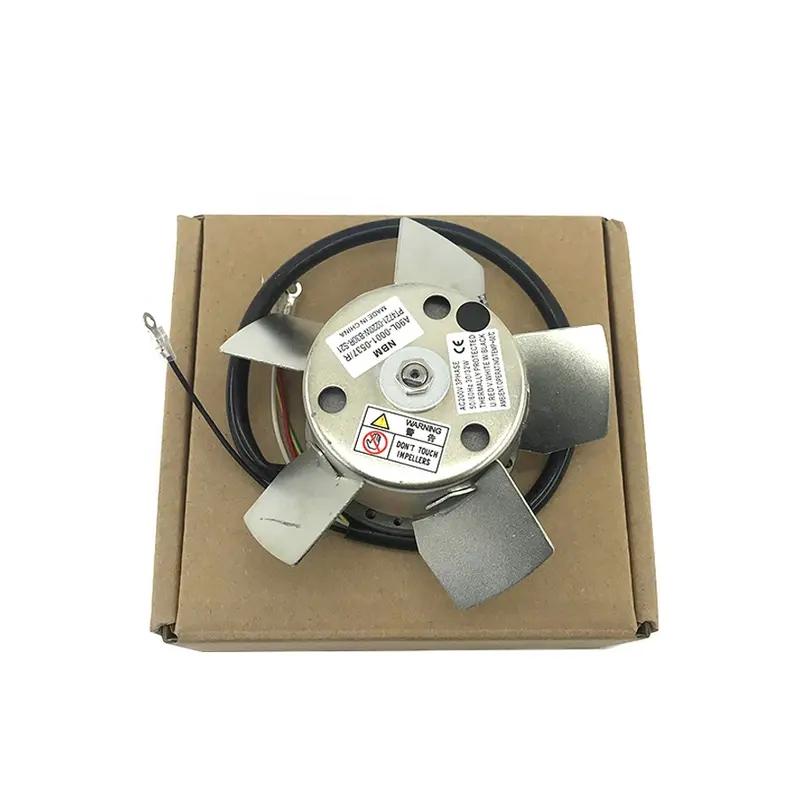

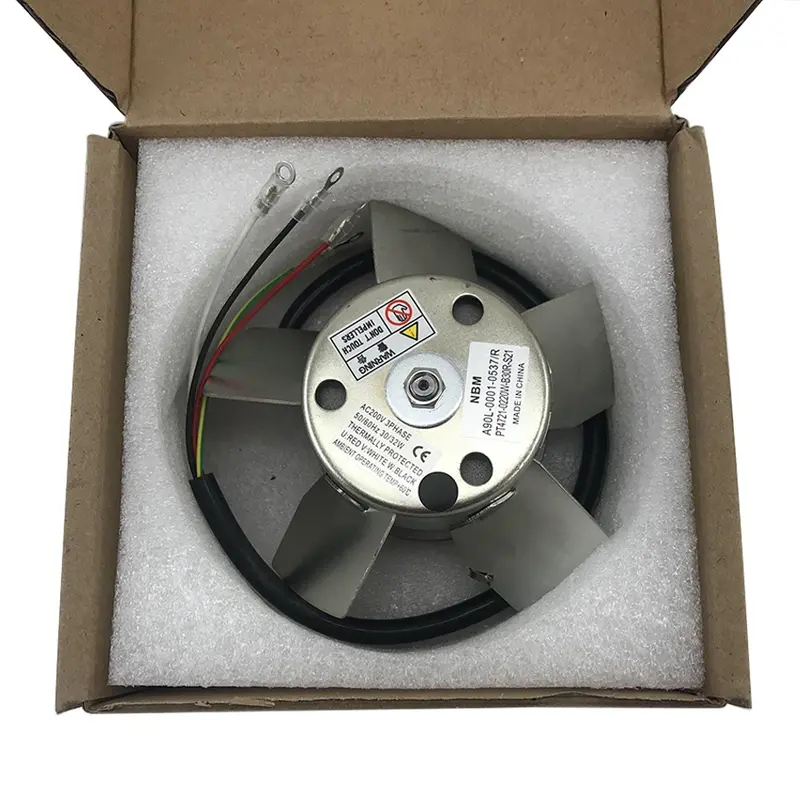

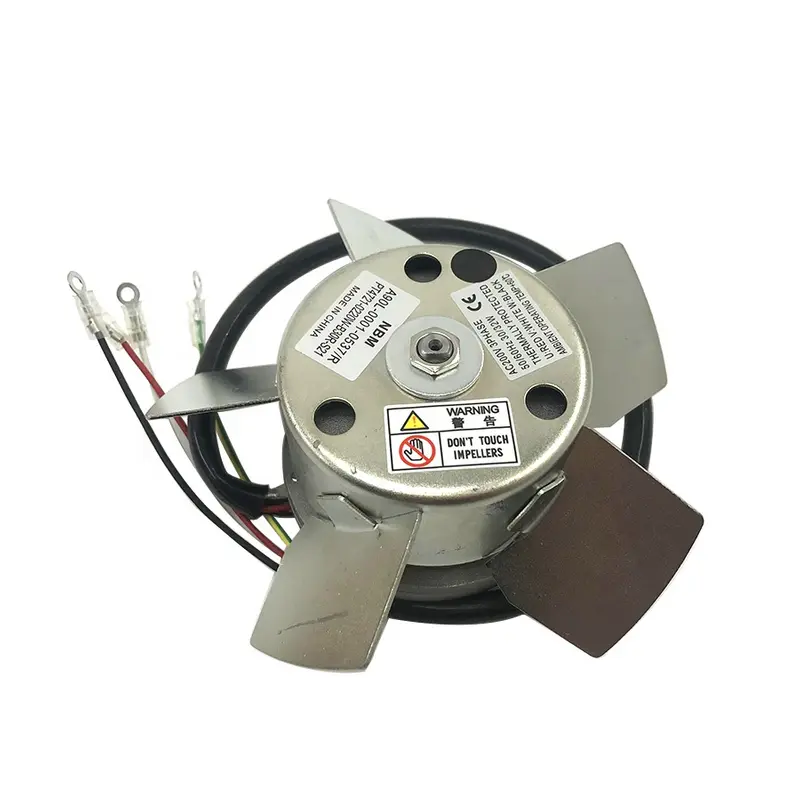

The A90L‑0001‑0537 fan unit is designed as a dedicated cooling‑fan motor for Fanuc‑series built‑in AC spindles and robot forearm or axis assemblies, where it mounts on the rear of the motor‑housing fan duct and circulates air over the windings and internal electronics. It helps prevent overheating during heavy‑cutting, high‑speed milling, or continuous‑duty robot motion by pulling ambient air through the motor cavity and expelling warm air, extending motor life and reducing thermal‑fault alarms. Many listings identify compatible variants such as A90L‑0001‑0537/R, A90L‑0001‑0537/RL, A90L‑0001‑0537/FM2, A90L‑0001‑0537/RM2, which all share the same 200 VAC 3‑phase base but may differ in cable length or connector style.

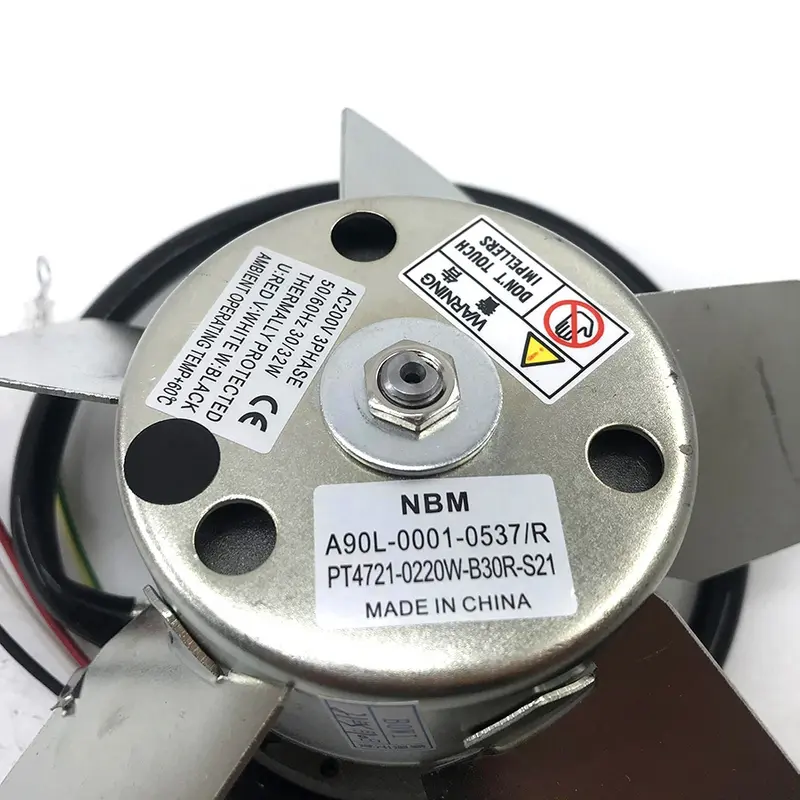

Technically, the A90L‑0001‑0537 is a 3‑phase AC fan motor that runs at a fixed speed (typically around 1500 rpm, matching the 200 VAC line‑frequency) and draws low current (about 0.1–0.3 A per phase, depending on the specific variant and impeller size). It is often manufactured by or to the design of Minebea (Mitsumi Electric / Minebea‑style PT‑series fan motors), such as PT4721‑0220W‑B30R‑S21/S22/S24, and is sold as a direct‑fit replacement for the original spindle‑motor cooling fan on Fanuc‑equipped machining centers, turning lathes, and Fanuc robots. The fan is powered directly from the spindle‑motor 3‑phase bus, so it runs whenever the spindle or robot axis is energized, and it is rated for continuous‑duty industrial use with kan‑fan‑type housings and metallic impellers for robust airflow and vibration resistance.

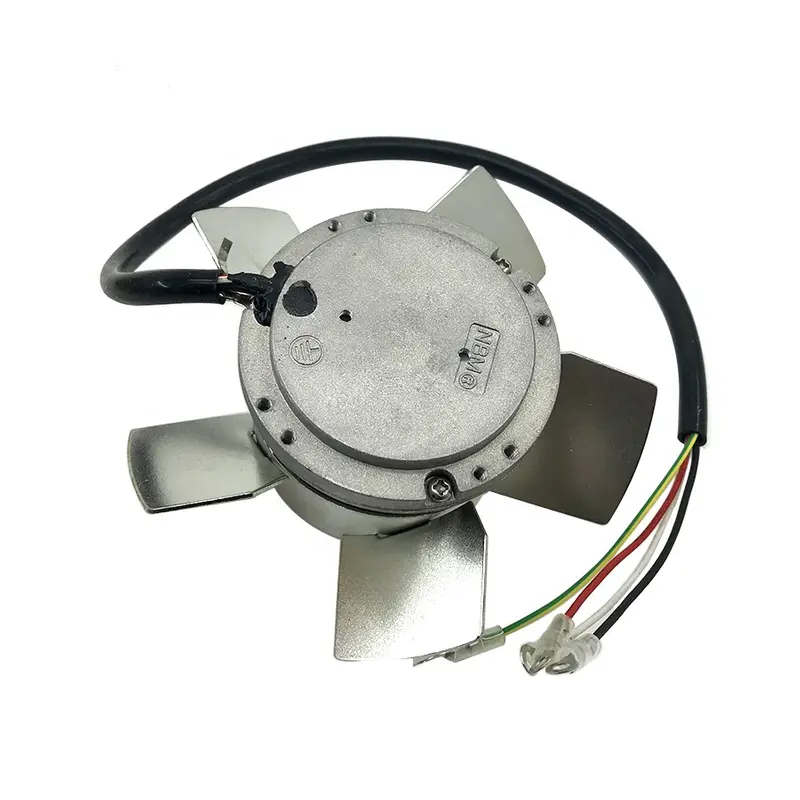

Mechanically, the A90L‑0001‑0537‑class fan units are compact axial‑type fan assemblies with a square or rectangular flange (often around 135 mm side or similar) and an integral 3‑phase wiring harness that terminates either in bare leads or a Fanuc‑style plug. The assembly weighs roughly 0.5–1.0 kg, depending on the frame and motor, and is built for vibration‑resistant mounting in tight‑space spindle heads or robot arms. Installation is plug‑and‑play in most cases: unbolt the failed fan from the spindle‑motor housing, align the new A90L‑0001‑0537 fan‑motor flange to the same bolt pattern, secure it with the supplied hardware, and reconnect the 3‑phase wires or matching connector to the spindle‑fan terminal block; no software or parameter changes are required.
