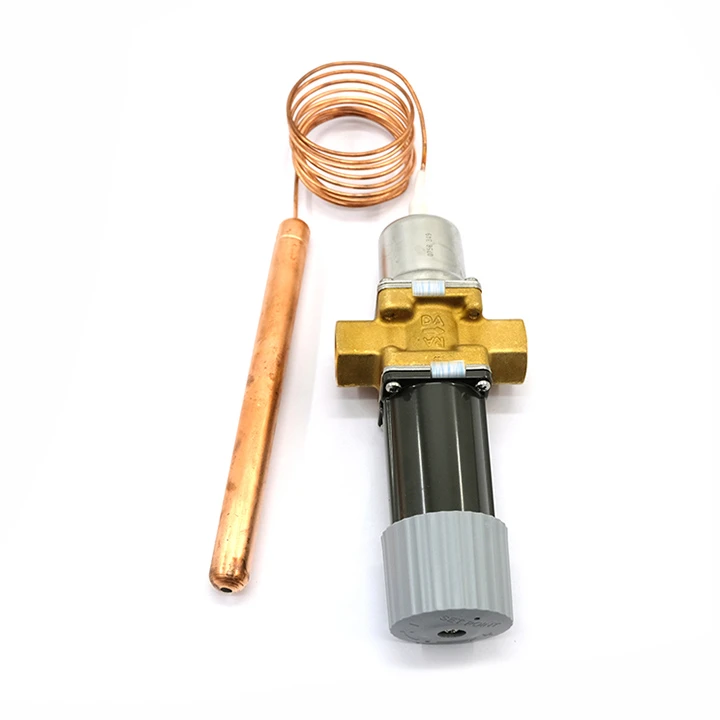

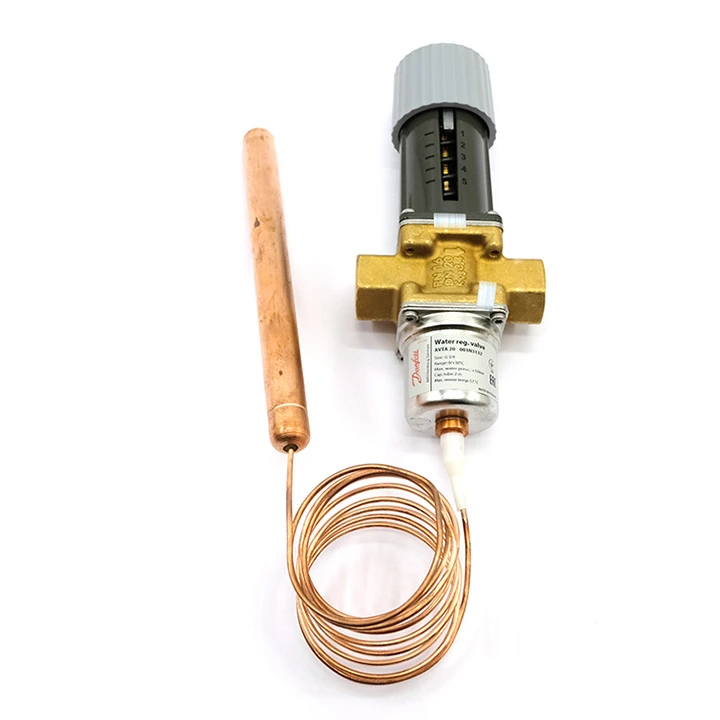

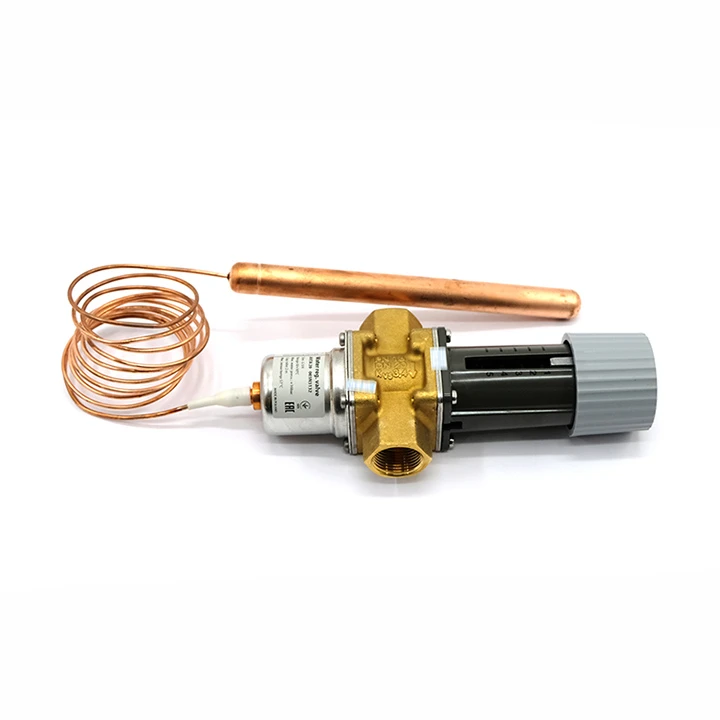

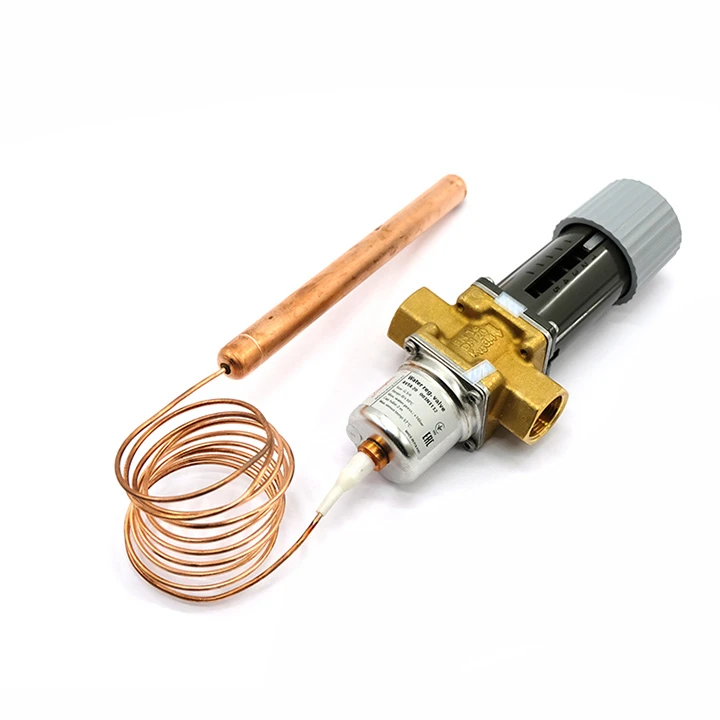

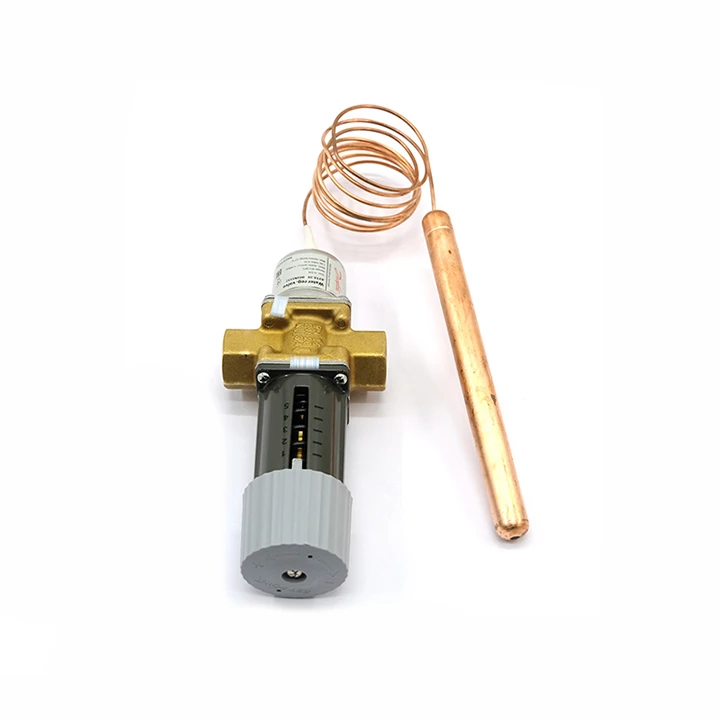

AVTA is a self-excited temperature control valve that can be used to control temperature in cooling water applications.
Self excited - no external power required
Accurate temperature control
Resistant to dirt and dirt
Not sensitive to pressure
Brand: Danfoss
Size: 8*14*38.5cm
Weight: 1.76kg
Type: Temperature control valve

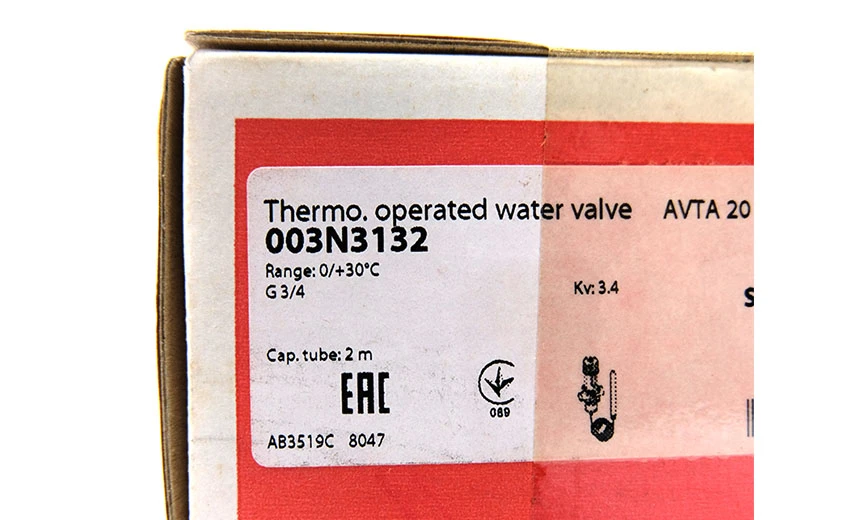

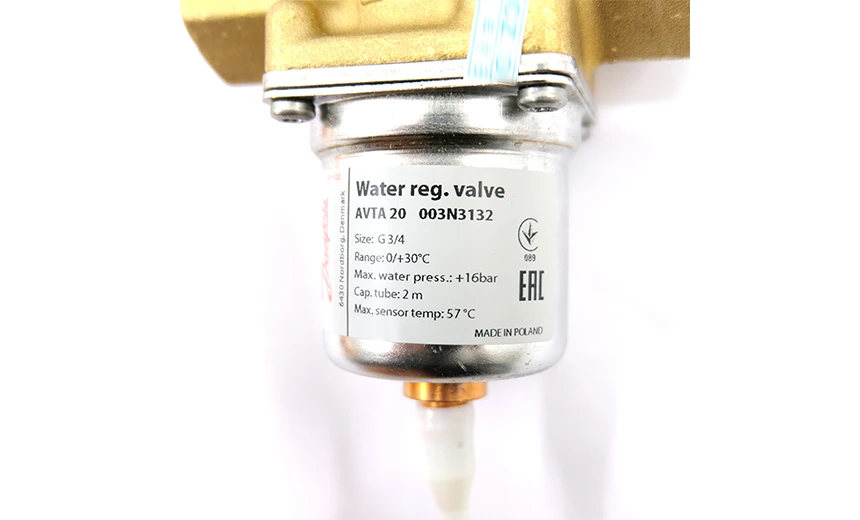

Model: AVTA 20 003N3132
Open configuration: Opens when the sensor temperature rises
Max Sensor temperature [°C] | 57 °C |
Max Sensor temperature [°F] | 134.6 °F |
Maximum test pressure (bar) Pe | 25 bar |
Maximum test pressure | 362.6 psig |
Maximum working pressure [bar] | 16 bar |
Maximum working pressure [psig] | 232 psig |

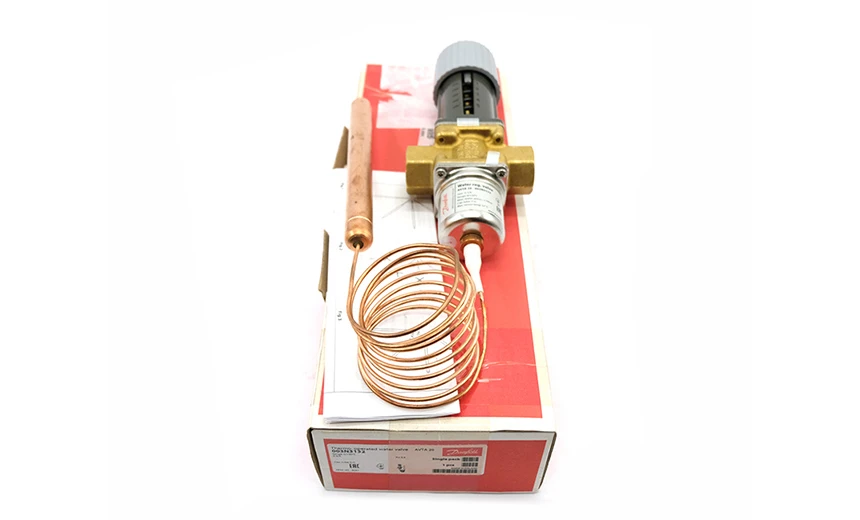

Quantity per packet | 10 pc |
Capillary box size [inch] | 3/4 |
Capillary stuffing box type | G |
Capillary seal standard | ISO 228-1 |
Capillary seal, inside/outside | inside |
Capillary length [mm] | 2000 mm |
Capillary length friction [inch] | 78 3/4 in |
Orifice size [mm] | 20 mm |
Orifice size content [in] | 4/5 in |
Flow direction indicator | with one-way arrow embossing |
Temperature range [°C] [Min] | 0 °C |
Temperature range [°C] [Max] | 30 °C |
Temperature range [°F] [Max] | 86 °F |
Temperature range [°F] [Min] | 32 °F |
Connect internal/external threads | Inside |
Connection size [in] | 3/4 |
Connection standard | ISO 228-1 |
Connection type | G |
Valve body material | Brass |
Product Description:
◆ Temperature control water valve according to the set value of the valve and the temperature of the packet, adjust the water flow in proportion
◆ Danfoss thermostatic water valves include a range of products for cooling and heating applications
◆ AVTA does not require additional power supply or compressed air, and can operate on its own
◆ AVTA constantly adjusts the flow value according to the need, so it is particularly suitable for temperature control
◆ If the required temperature is maintained constant, there is no need to consume excessive cooling water of the refrigeration system and hot water or steam of the heating system
Product features:
◆ Not affected by impurities
◆ Not affected by water pressure
◆ No power required - self-start
◆ Open the warm packet when the temperature rises
◆ Differential pressure: 0-10bar
◆ Greater working pressure: 16bar
◆ Greater test pressure: 25bar
◆ Sensor greater pressure: 25bar
◆ Stainless steel models available
◆ The opening of AVTA is not affected by pressure drop
◆ The adjustment range is defined as the value when the valve begins to open
