The IC693MDL645F / IC200MDL640 module functions as a power‑distribution and discrete‑input module in GE Fanuc / Emerson 90‑30 Series PLC systems, where it supplies conditioned 24 VDC field power and interfaces pushbuttons, limit switches, proximity sensors, and other 24‑VDC input devices to the CPU and I/O backplane. The unit is designed for installation in 5‑slot or 10‑slot Series 90‑30 baseplates, and it is often used as a logic‑input module with positive or negative logic support, compatible with both sourcing and sinking field‑device wiring. This makes it suitable for a wide range of industrial‑automation applications such as machine‑tool control, conveyor systems, and packaging lines that use 90‑30 PLCs for process logic.

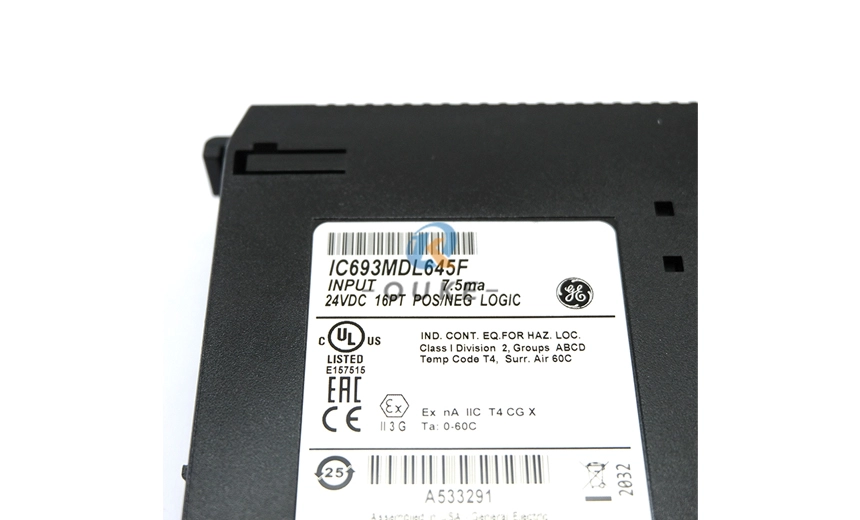

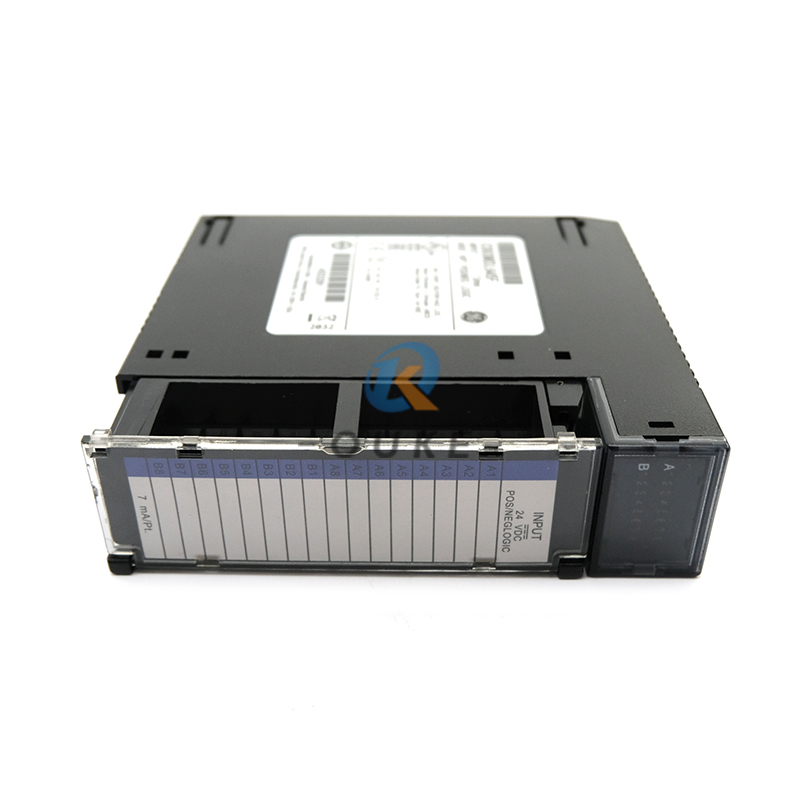

Technically, the IC693MDL645F is a 16‑point 24 VDC positive/negative logic input module with an operating voltage range of 0–30 VDC (nominal 24 VDC), drawing only a few milliamps per point and consuming modest backplane current (around ~80 mA at 5 V when all inputs are active, plus ~125 mA at 24 V from the isolated 24‑VDC bus or user‑supplied power). The module supports two logic modes (sourcing and sinking), enabling flexible wiring configurations for mixed field‑device types without requiring external relay conversion. Each input channel has a dedicated front‑panel LED for status indication, and the module is rated for fast on/off response times (around 7 ms typical), which is adequate for most discrete‑logic applications. The IC200MDL640 Versamax‑series counterpart shares similar 24 VDC, 0–30 VDC input range, 16 inputs in 2 groups, and 10 kΩ input impedance, with group‑to‑group isolation up to 250 VAC continuous and 1500 VAC withstand for 1 minute.

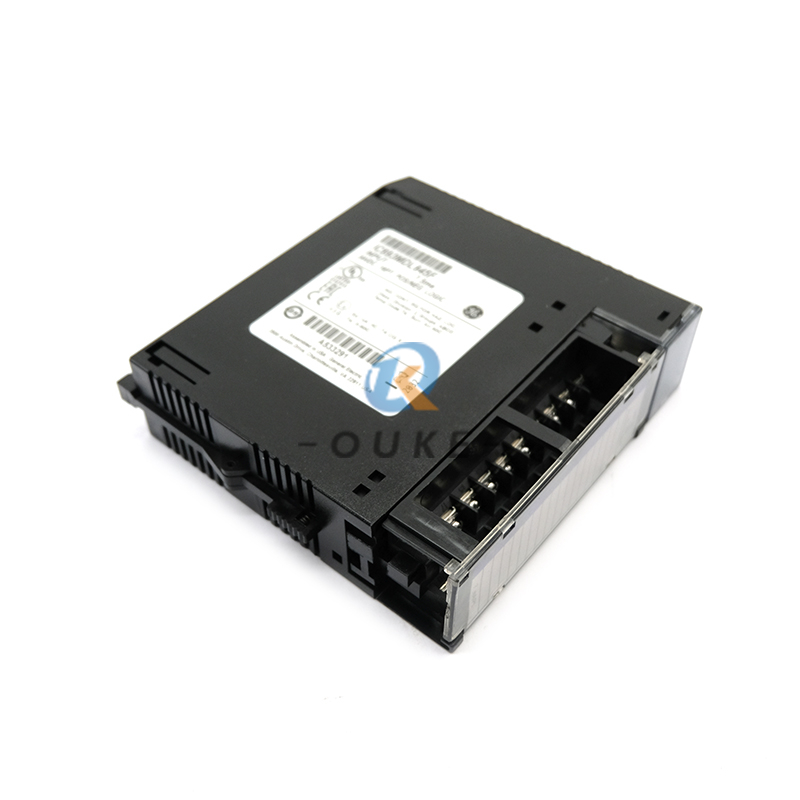

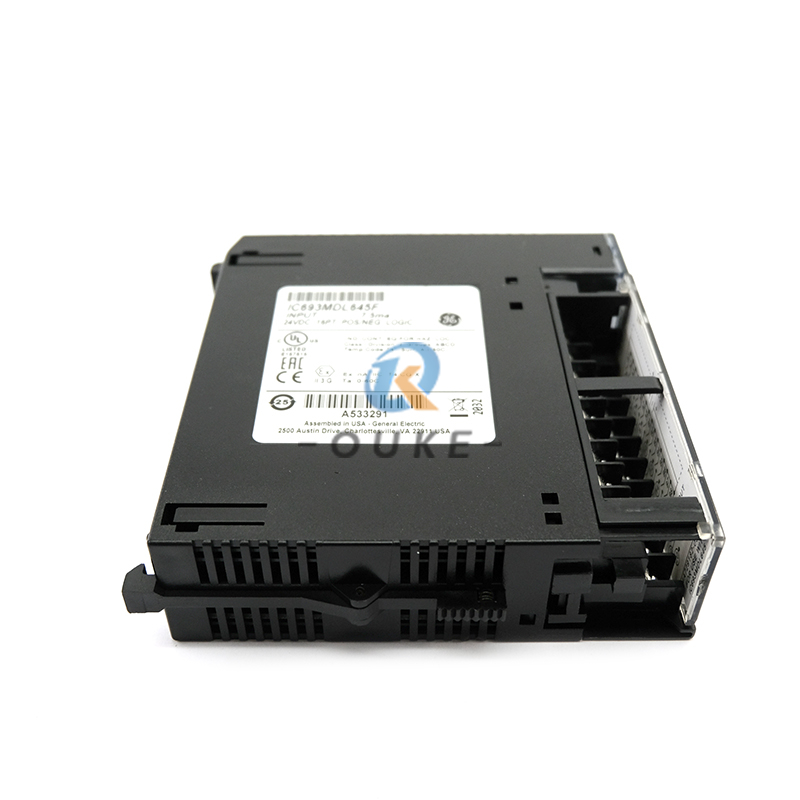

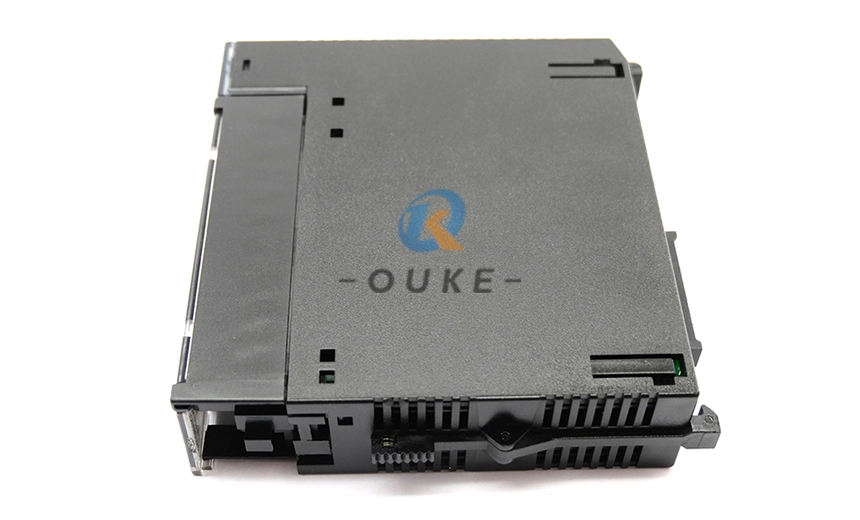

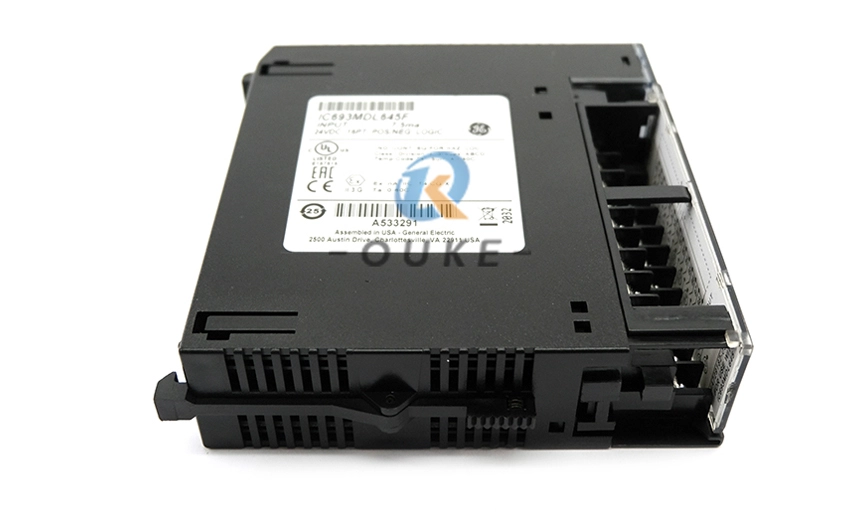

Physically, the IC693MDL645F / IC200MDL640‑style module is a compact PLC‑slot unit that mounts directly on the Series 90‑30 backplane, with a standard DIN‑rail‑compatible housing and quick‑disconnect terminals for field‑device wiring. The module is robustly constructed to withstand vibration and temperature swings typical in factory‑floor PLC cabinets, and its small footprint (≈17×17×7 cm) and lightweight (≈0.6 kg) make it easy to install or replace without cabinet‑rework. DUKE lists this item with in‑stock availability, 12‑month warranty for new units, 3‑month warranty for used modules, and 3–5‑day delivery, which is suitable for emergency PLC‑power or I/O replacements in continuous‑operation plants.
