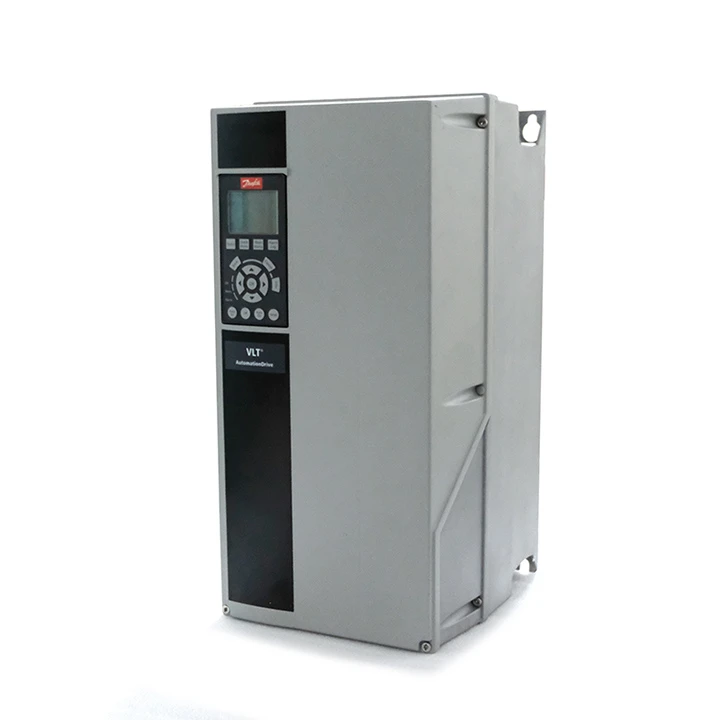

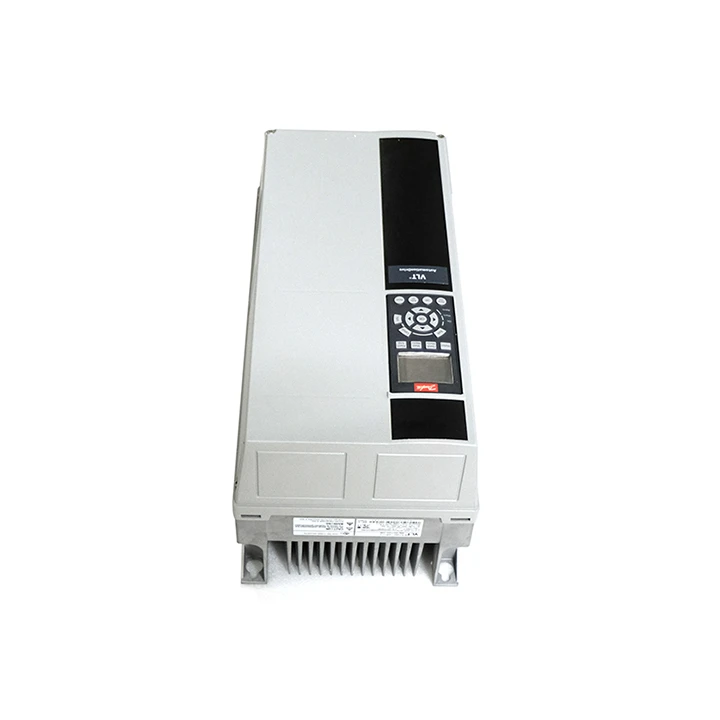

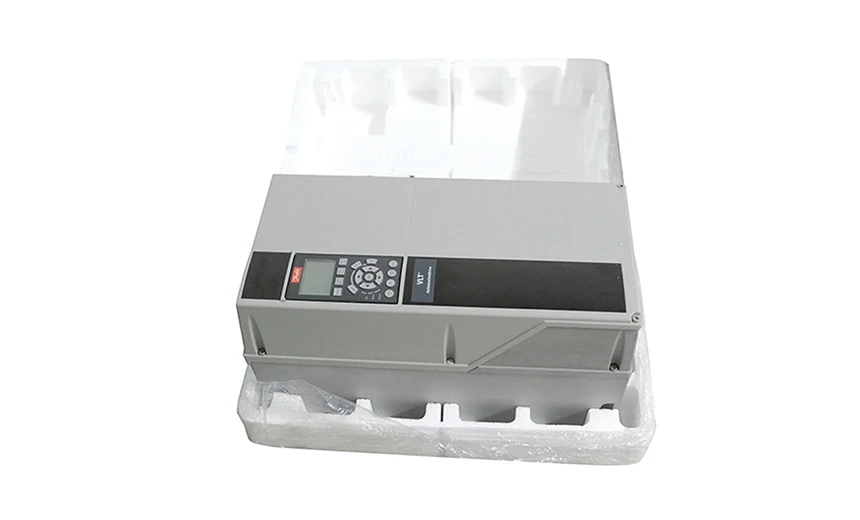

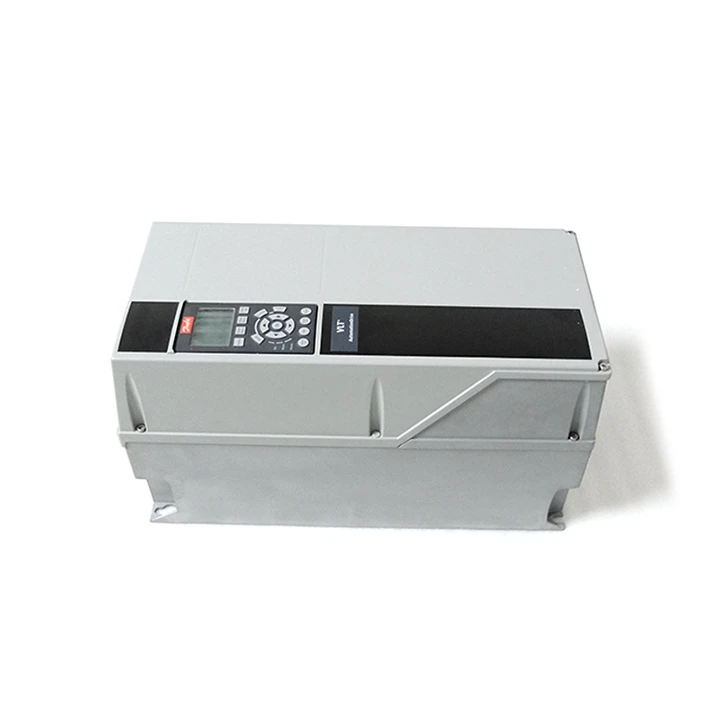

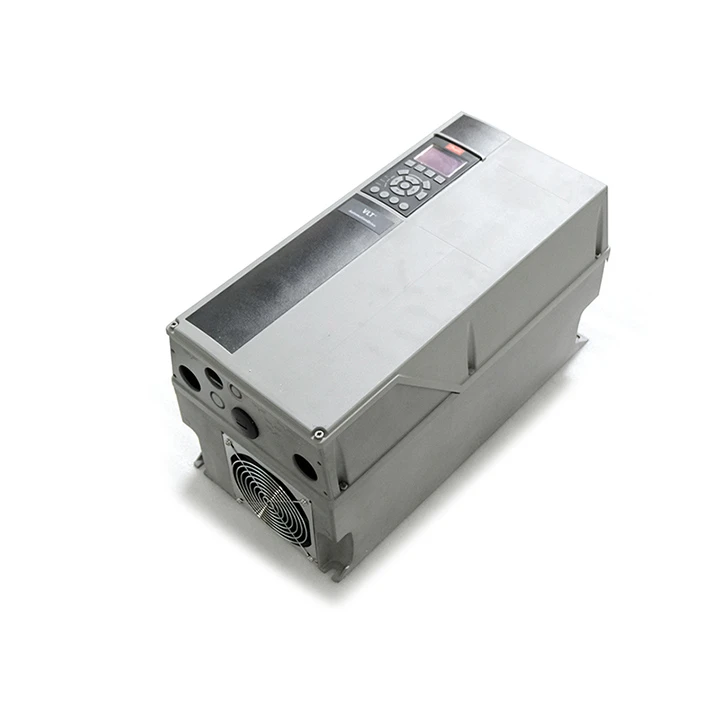

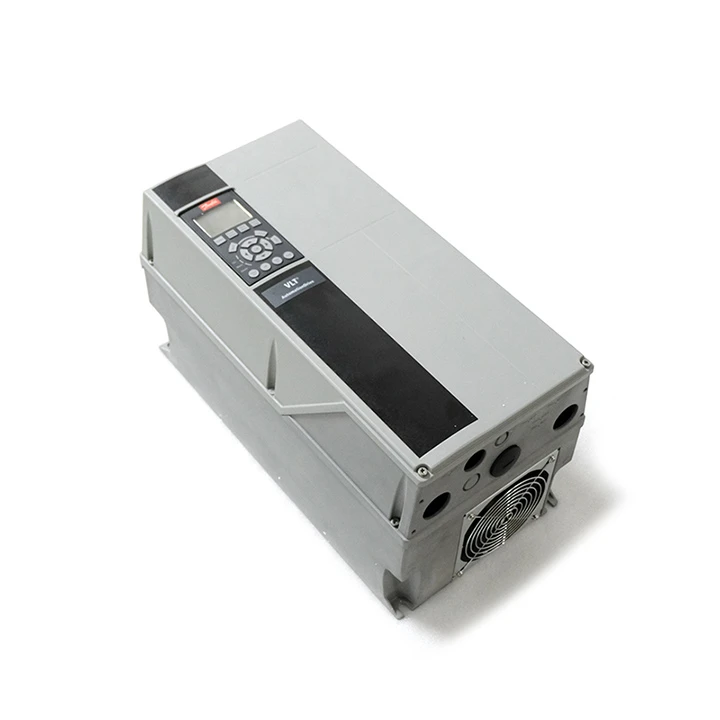

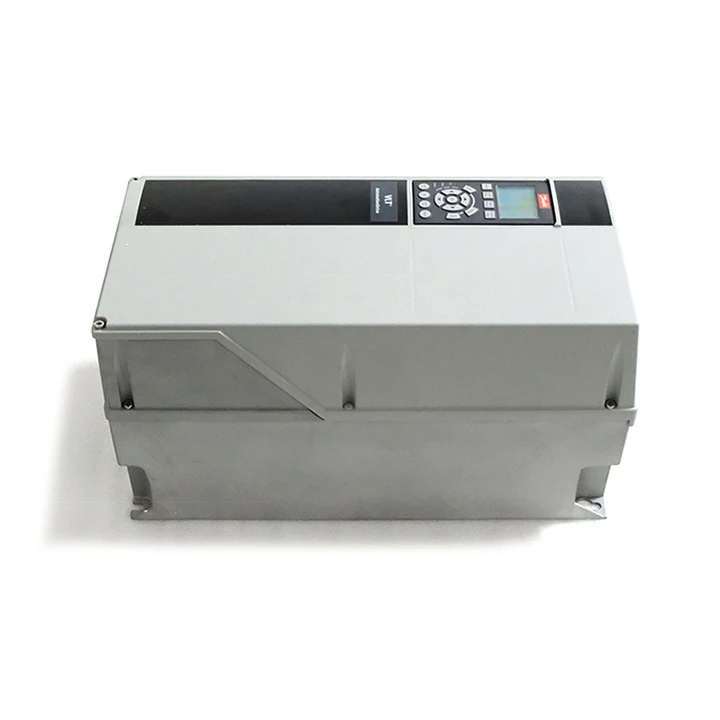

Name: Danfoss 131B4974 | Danfoss FC-302 Frequency Converter
Brand: Dongguan Ouke Automation Equipment Co., Ltd.

Brand: Danfoss

Size: 54*33*33cm

Weight: 21.9kg

Type: Inverter

VLT® AUTOMATIONDRIVE FC 300 SERIES

Product view (Switch)	GLBL	Global (standard)
Product category	FC-	VLT® AutomationDrive FC-
series	302	302
Rated power	P15K	(P15K) 15 KW / 20 HP
phase	T	Three phase
Main supply voltage	5	380 - 500 VAC
chassis	E21	IP21 / Type 1
Radio-frequency interference filter	H1	(H1) Class A1/B RFI (C1)
Brake - Stop safely	X	No brake chopper
LCP	G	Graphical local control panel
Coated PCB	X	Uncoated PCB
Main power option	X	No main power option is available
Adjustment A	X	Standard cable inlet
Adjustment B	X	unadjusted
Software version	SXXX	Latest version standard standard
Software language pack	X	Standard language pack
A option	AX	There is no A option
B Option	BK	MCB-101 General Purpose I/O
C0 Option MCO	CX	None C0 option
C1 Options	X	No C1 option is available
C Optional software	XX	No software option
D Option	D0	MCB-107 24V DC backup power supply
Frame size	B1	B1

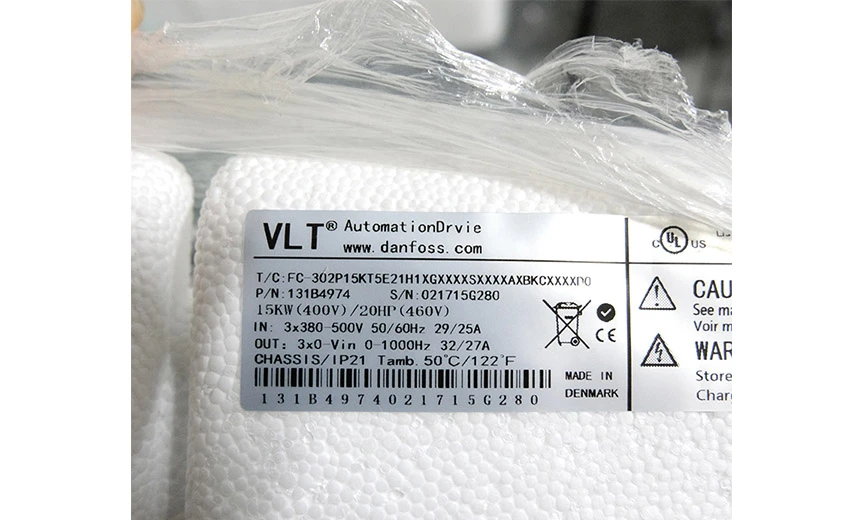

Type code Part 1		FC-302P15KT5E21H1XGX
Type code Part 2		XXXSXXXXAXBKCXXXXD0

1. Programmability: This inverter has a high degree of programmability, and users can flexibly configure and customize it according to specific application requirements to achieve personalized control strategies.

2. Multiple communication interfaces: FC-302P15KT5E21H1XGXXXXSXXXXAXBKCXXXXD0 frequency converter is equipped with a variety of communication interface, such as Modbus, Profibus, Ethernet, etc., with all kinds of industrial network and seamless integration control system, realize high-efficient and exchange of information and remote monitoring.

3. Advanced fault diagnosis: The inverter has advanced fault diagnosis function, which can monitor the operating status of the system in real time, find and report potential problems in a timely manner, helping to reduce downtime and improve production efficiency.

4. Energy-saving function: Danvers inverter adopts advanced energy-saving technology to minimize energy consumption, reduce production costs and achieve sustainable development by dynamically adjusting motor speed and current.

5. Easy installation and maintenance: The inverter adopts a modular design, with a simple installation and maintenance process, users can quickly and easily install, configure and maintain, reducing the training cost of operators and maintenance workload.

6. Comprehensive application support: Danvers provides comprehensive application support and technical services, including technical consulting, training courses, technical documents, etc., to ensure that users can give full play to the performance advantages of the inverter to achieve the best application results.

To sum up, FC-302P15KT5E21H1XGXXXXSXXXXAXBKCXXXXD0 inverter is a powerful, flexible electrical control equipment, has advanced technical features and comprehensive application support, can meet the needs of a variety of industrial applications, to provide users with reliable and efficient solutions.
