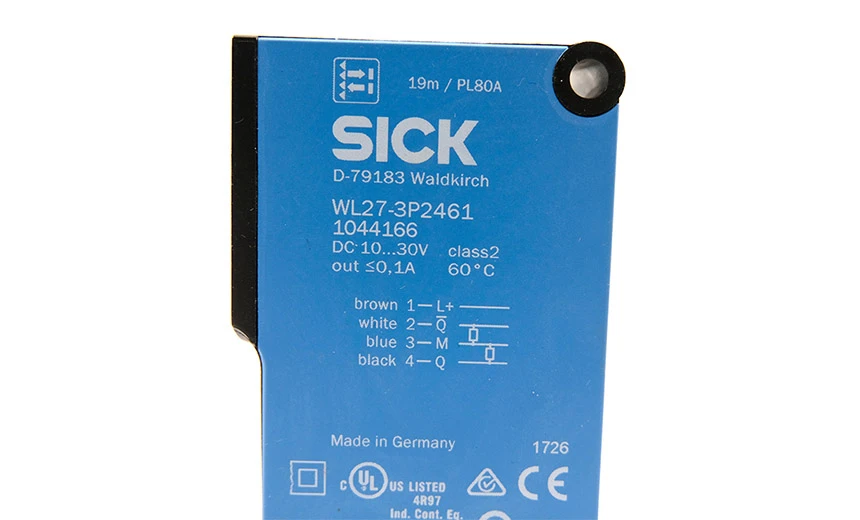

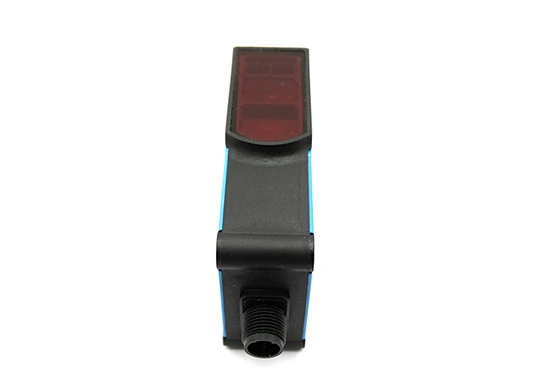

Name: SICK WL27-3P2461 | SICK Mirror-Reflecting Photoelectric Sensor
Brand: Dongguan Ouke Automation Equipment Co., Ltd.

Brand: SICK

Model: WL27-3P2461

Product weight: 100g

Packing size: 10*6*5cm

Housing material: ABS plastic

Product type: Sensor

Origin: Germany

The SICK WL27-3P2461 is a high performance mirror-reflecting photoelectric sensor with a dual-lens operating principle, measuring 24.6 mm x 80.6 mm x 54 mm and a square housing shape, ideal for automation applications in a variety of industrial environments. It has a wide range of applications, the maximum switching distance can reach 19 meters, the sensing distance is between 0.1 meters and 14 meters, and the focal length is about 0.6°, which can meet the detection needs in different scenarios.

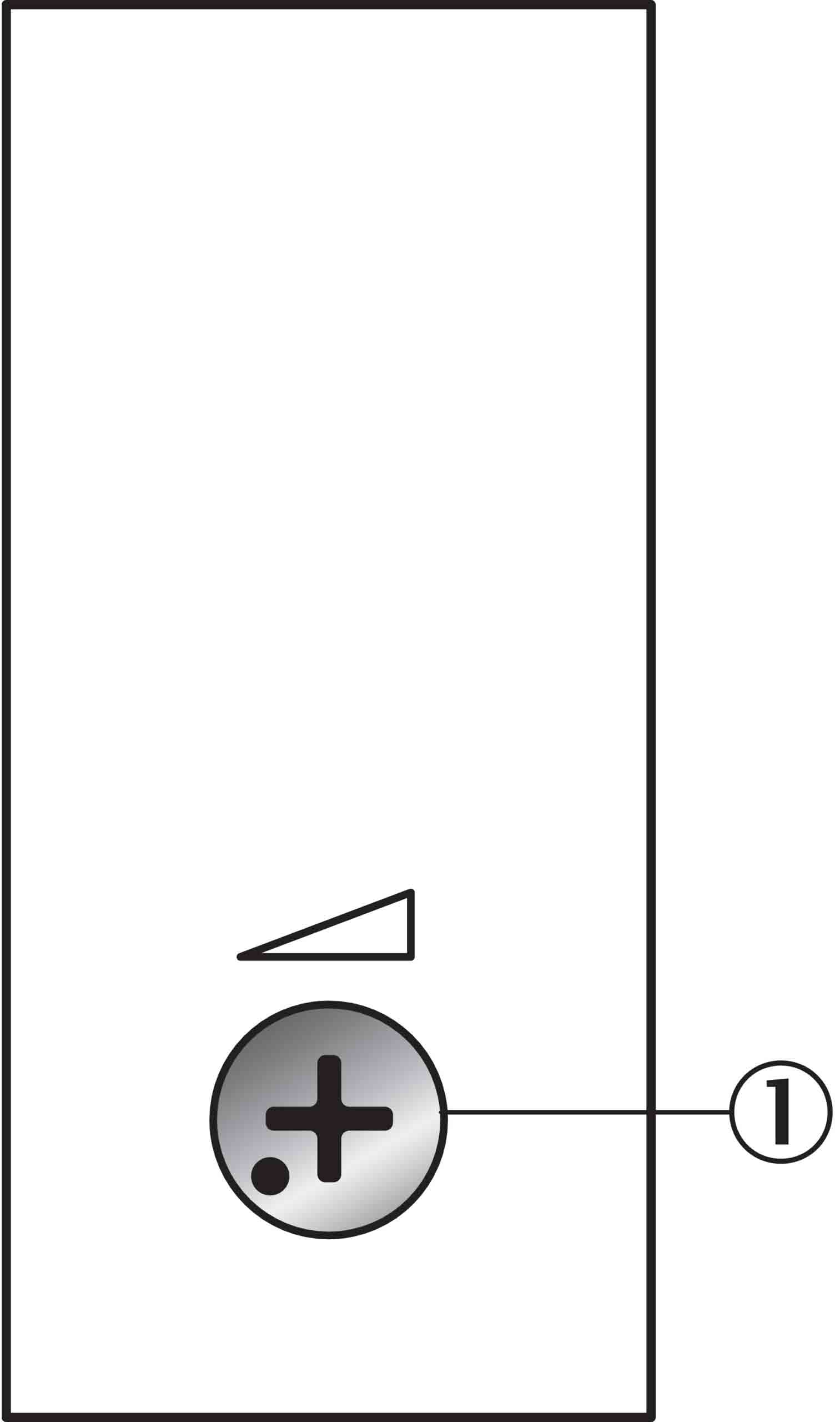

The light source uses Pink-LED visible red light, the spot size is about 60 mm in diameter when the distance is 6 meters, and the emitter scattering Angle is about 0.6°, which ensures the high-precision detection of the sensor. Potentiometer is used to set, easy to operate, suitable for various working environments.

In terms of mechanical/electronic parameters, the working voltage range of WL27-3P2461 is 10V DC to 30V DC, the current consumption is only 30mA, the switching output is PNP, the switching function is the compensation amount, the response time is less than 500 microseconds, the switching frequency is 1000Hz, and it has excellent signal transmission speed and stability. The housing is made of plastic ABS material, with IP69K housing protection grade, suitable for harsh working environments, operating ambient temperature range from -40°C to +60°C, able to work stably in extreme conditions.

In terms of safety technical parameters, the WL27-3P2461 has a MTTFD of up to 1622 years and a DCavg of 0%, indicating that it has excellent safety performance and reliability. Overall, the SICK WL27-3P2461 is an excellent and adaptable photoelectric sensor for a wide range of applications in industrial automation and control systems.
