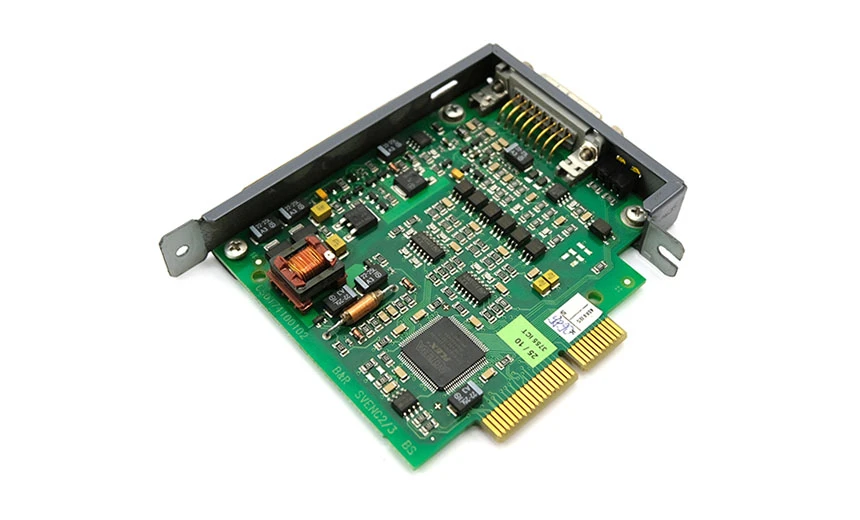

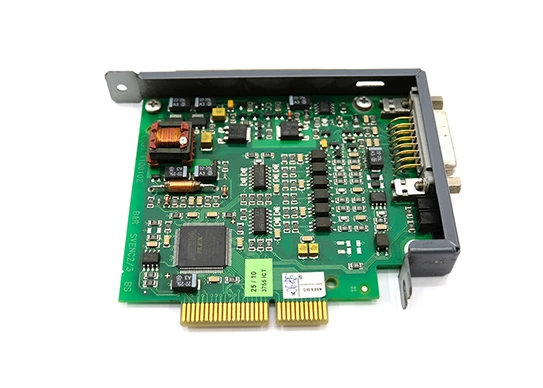

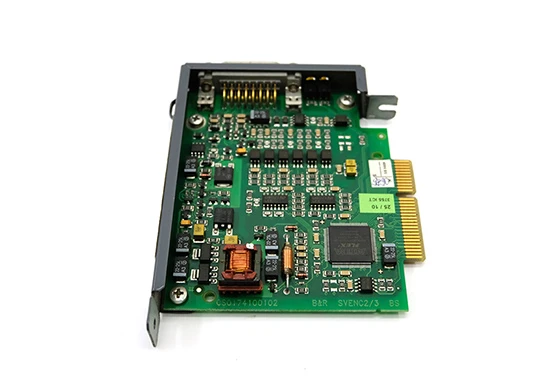

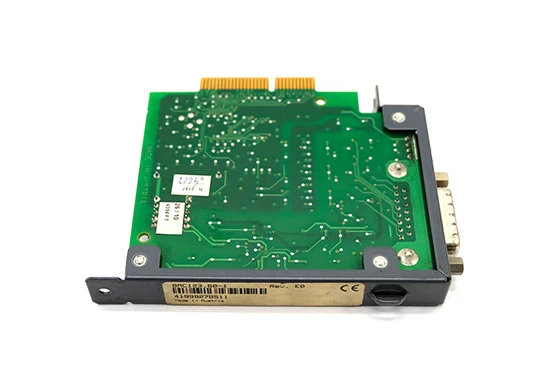

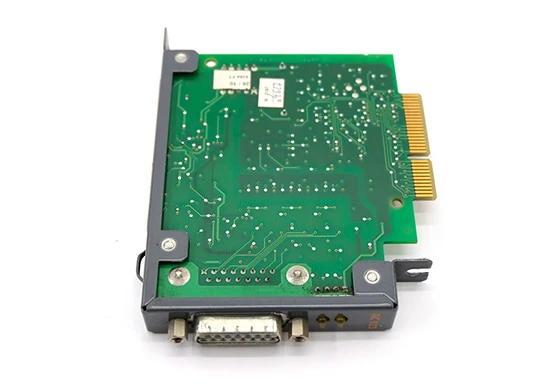

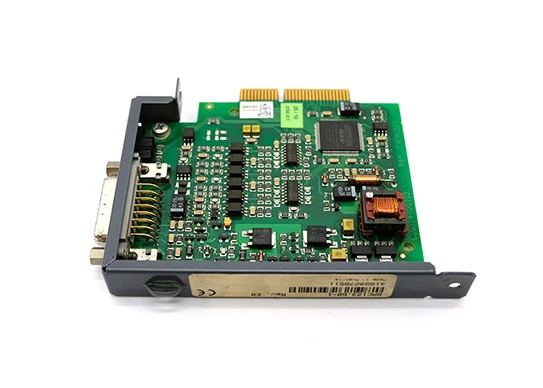

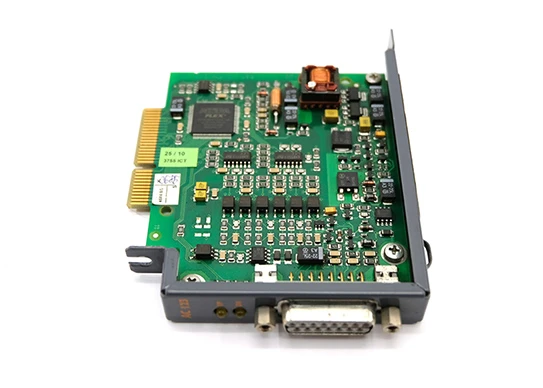

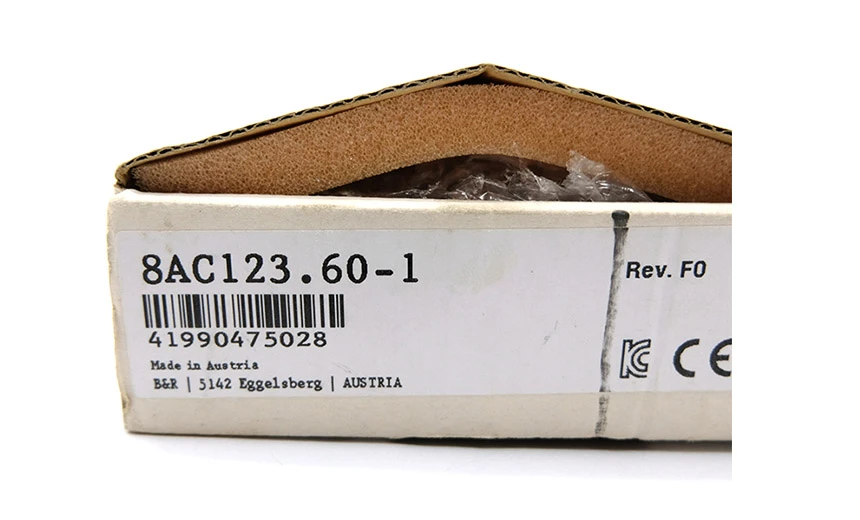

B&r 8AC123.60-1 is an incremental encoder and SSI absolute encoder interface module designed for installation in ACOPOS servo drives. This module is designed to monitor and process encoder input signals to ensure the stability and high performance of the servo system.
Brand: B&R
Model: 8AC123.60-1
Packing size: 17*12*3.5cm
Weight: 0.5kg

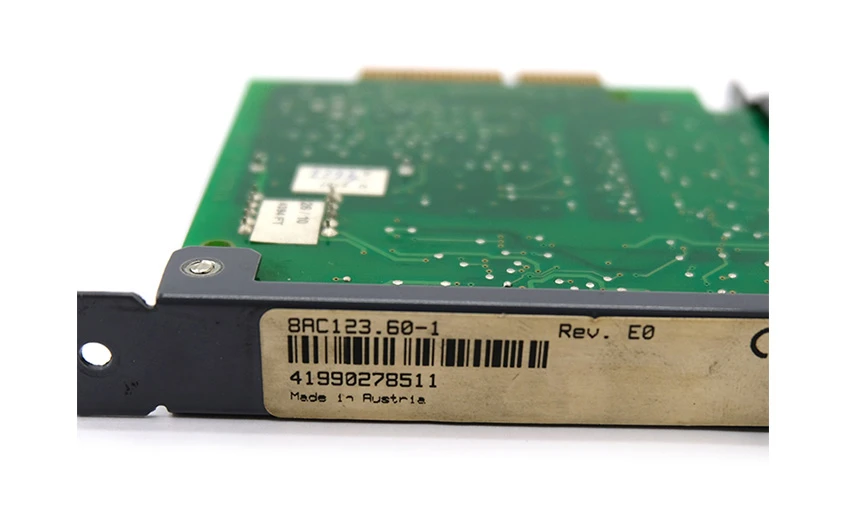

Place of origin: Austria
Module characteristic
Module type: ACOPOS plug-in module, suitable for installation in a specific slot of the ACOPOS servo drive.
Encoder interface: Supports 1 encoder input, differential signal transmission, can connect the incremental encoder and SSI absolute encoder.
Status indicator: with up/down LED indicator, easy for users to monitor the status and fault diagnosis.
Electrical isolation: The encoder and ACOPOS are electrically isolated to improve system stability and safety.
Encoder power supply: internal power supply, power supply voltage can be selected 5V or 15V, to meet the needs of different types of encoders.
Signal compensation: For 5V encoder voltage supply, has 2 induction lines to compensate for voltage drop up to 2V.
Encoder parameter
Incremental encoder: Supports up to 32 bit counter sizes, up to 200kHz input frequency, can evaluate 4 input signals.
SSI absolute encoder: Supports gray and binary encoding, up to 200 kbit/s baud rate, up to 31 bits.
Environmental adaptability
Operating temperature range: 5°C to 40°C, up to 55°C, can adapt to a variety of working environments.
Ambient humidity: 5% to 85% relative humidity during operation and 5% to 95% relative humidity during storage, suitable for use under various humidity conditions.
Electrical parameter
Encoder input: minimum differential voltage 2.5V, maximum 6V, with overload protection function.
SSI clock output: min differential voltage 2.5V, Max 5V.
SSI data input: min differential voltage 2.5V, Max 6V.
Certification and assurance
Certification: Through CE, UKCA and UL certification, to ensure the quality and safety of products.
The B&R 8AC123.60-1 module is a powerful and stable encoder interface module for a wide range of industrial automation applications to meet the needs of users for precision control and reliability.
