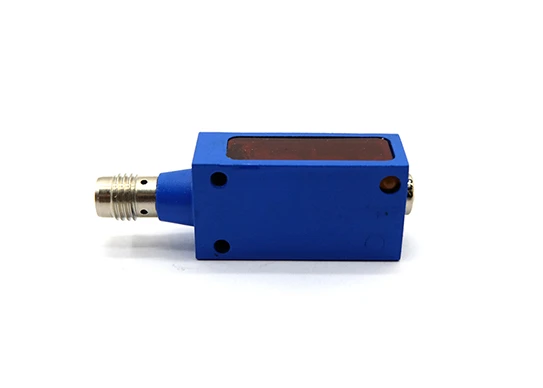

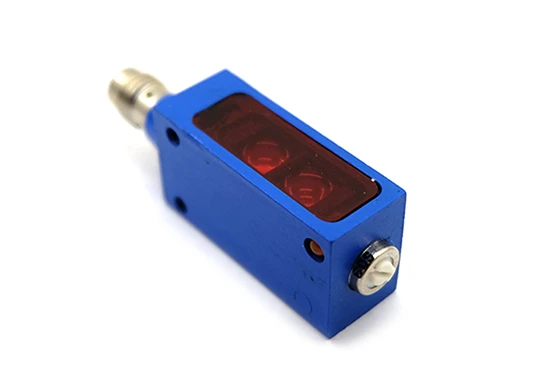

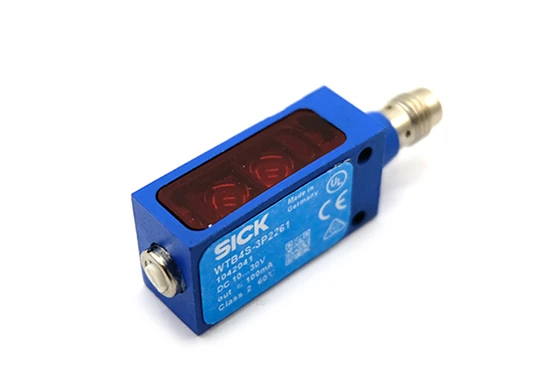

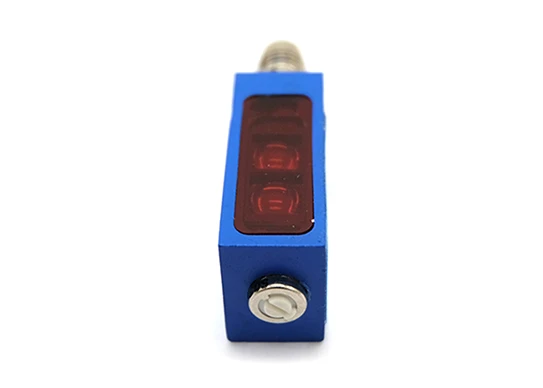

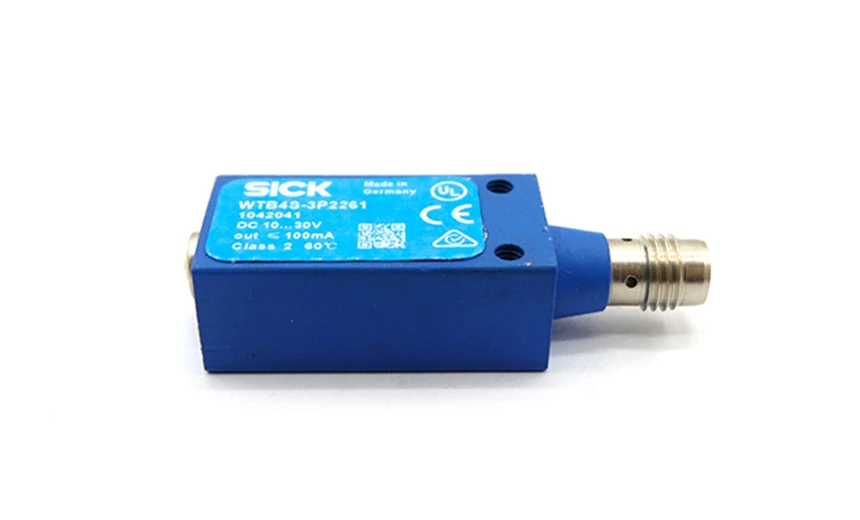

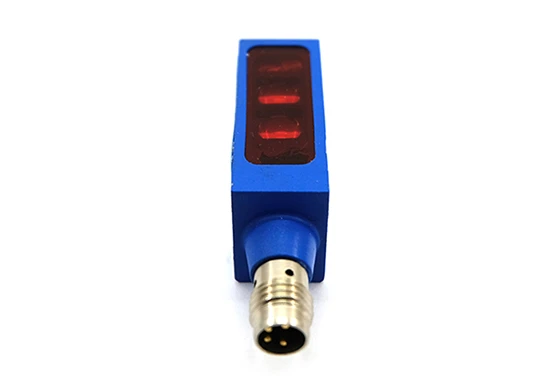

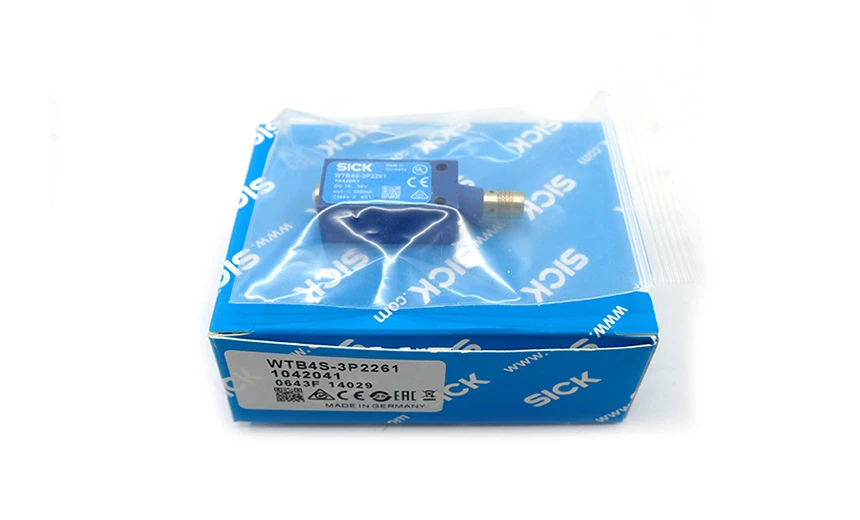

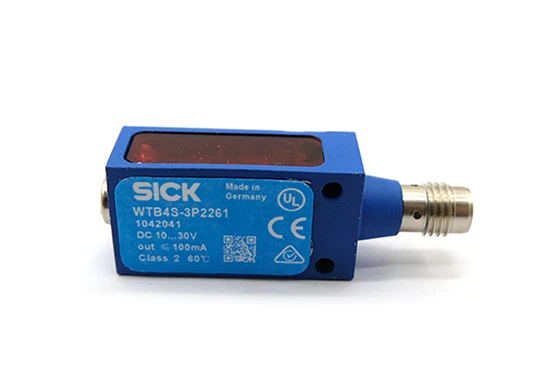

The SICK photoelectric sensor WTB4S-3P2261 is unique not only in design, but also in terms of performance and functionality, suitable for a variety of industrial automation and control systems in the application needs.
Brand: SICK
Model: WTB4S-3P2261
Weight: 0.5kg
Product size with packaging: 7.6*10*3.4cm
Housing material: ABS plastic
Output current: ≤100mA
Supply voltage: 10V DC... 30V DC
Product type: Sensor
Origin: Germany
SICK photoelectric sensor WTB4S-3P2261 is unique among many photoelectric sensors, mainly reflected in the following aspects:
1. Background suppression function: This sensor adopts background suppression function, which can effectively eliminate the interference of background light on the detection result. This means that even in complex working environments, such as scenes with strong light, the sensor can accurately identify the target object without being affected by the background.
2. Multiple working distance options: The WTB4S-3P2261 has a wide range of working distances ranging from 4 mm to 180 mm. This flexibility allows it to adapt to a variety of detection requirements in different distance ranges, so as to meet the needs of different application scenarios.
3. Pink-led light source: The sensor uses a visible red Pink-LED light source, with high brightness and long life characteristics. This light source can produce clear and bright spots at a longer distance, thus improving the accuracy and reliability of detection.
4. Compact design: WTB4S-3P2261 adopts square thin structure design, small size and easy installation. Easy to deploy, even when space is limited, for a variety of application scenarios.
5. High performance indicators: The sensor has highly optimized electrical parameters, such as low power consumption, high response speed, high switching frequency, etc., to ensure the stability and reliability of the sensor in the working process.
Overall, the SICK photoelectric sensor WTB4S-3P2261 is unique not only in design, but also in terms of performance and functionality, suitable for a variety of industrial automation and control systems in the application needs.

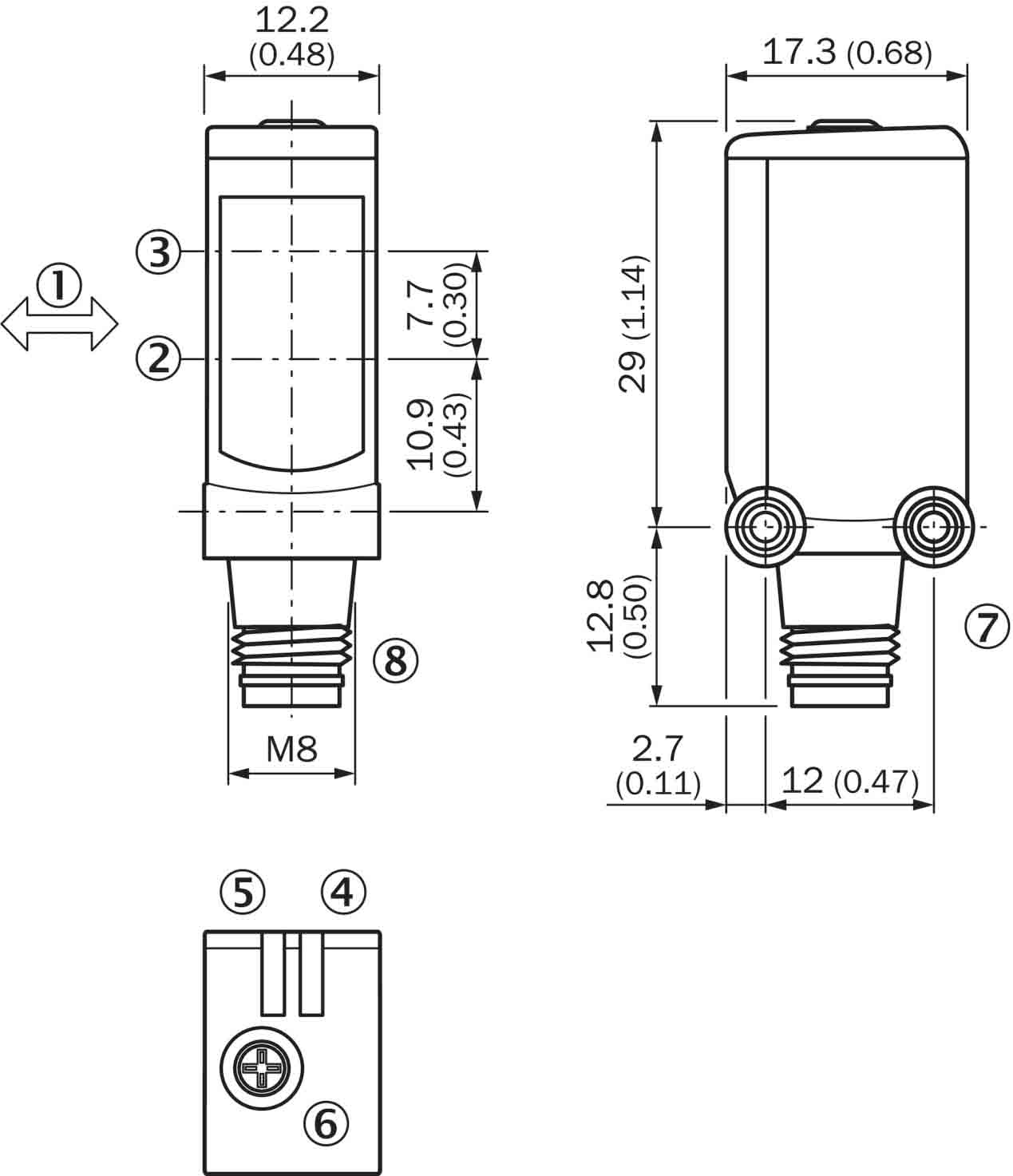

Dimensions WTB4S-3, potentiometer
Size unit: mm
① The preferred direction of the object to be measured
② Optical axis, receiver
③ Optical axis, transmitter
④ Green LED indicator: power supply voltage activation
⑤ Yellow LED indicator: light reception status
⑥ Potentiometer
⑦ Installation thread M3
⑧ Interface

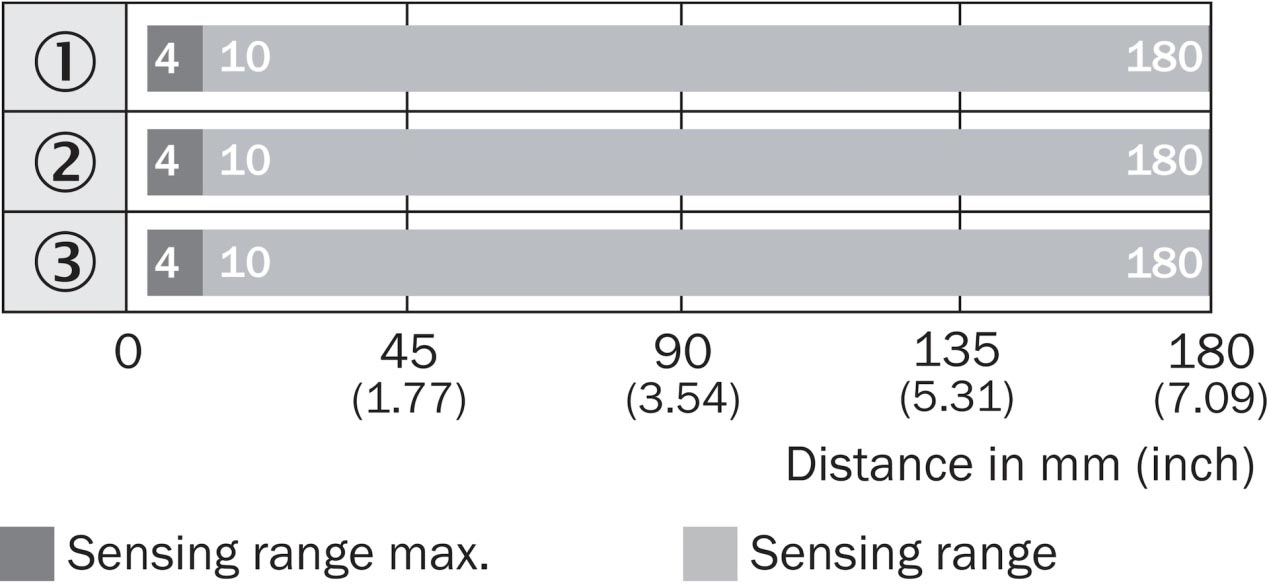

Trigger sensing distance chart WTB4S-3, 180 mm
① Trigger sensing distance, based on black, 6% diffuse reflection
② Trigger sensing distance, based on gray, 18% diffuse reflection
③ Trigger sensing distance, based on white, 90% diffuse reflection
