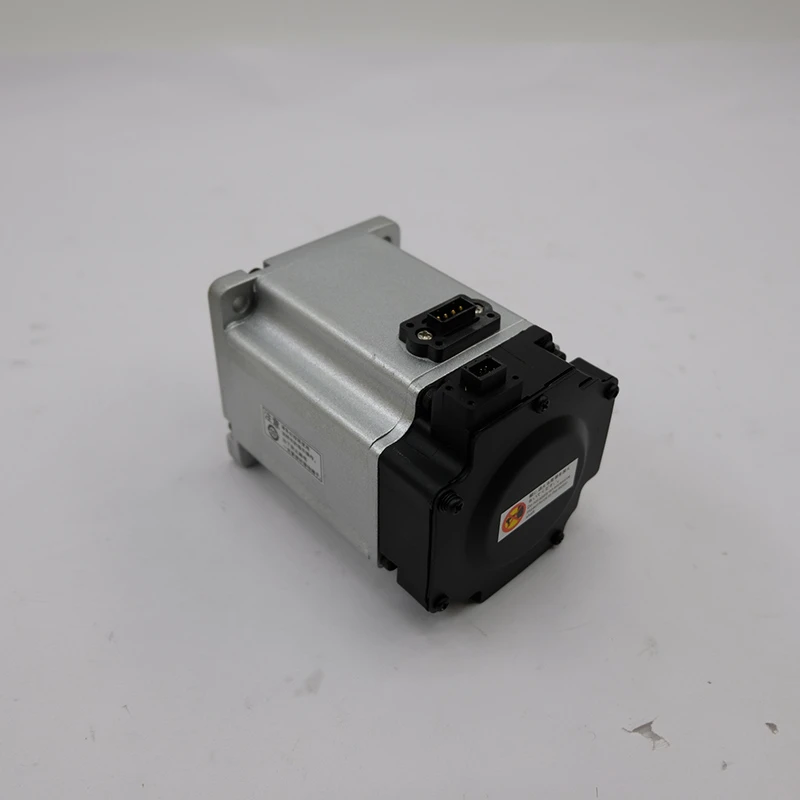

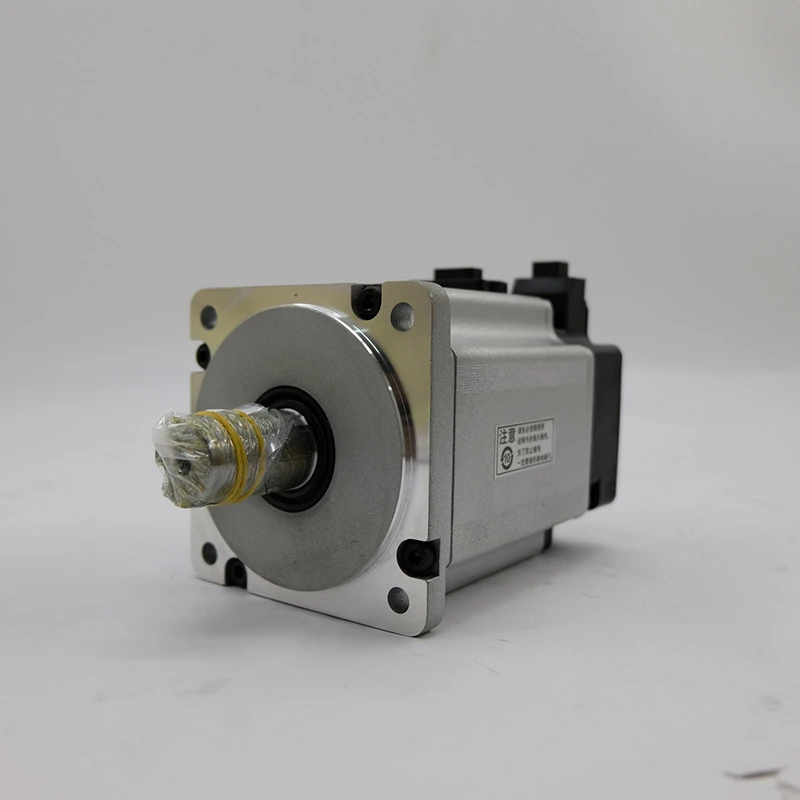

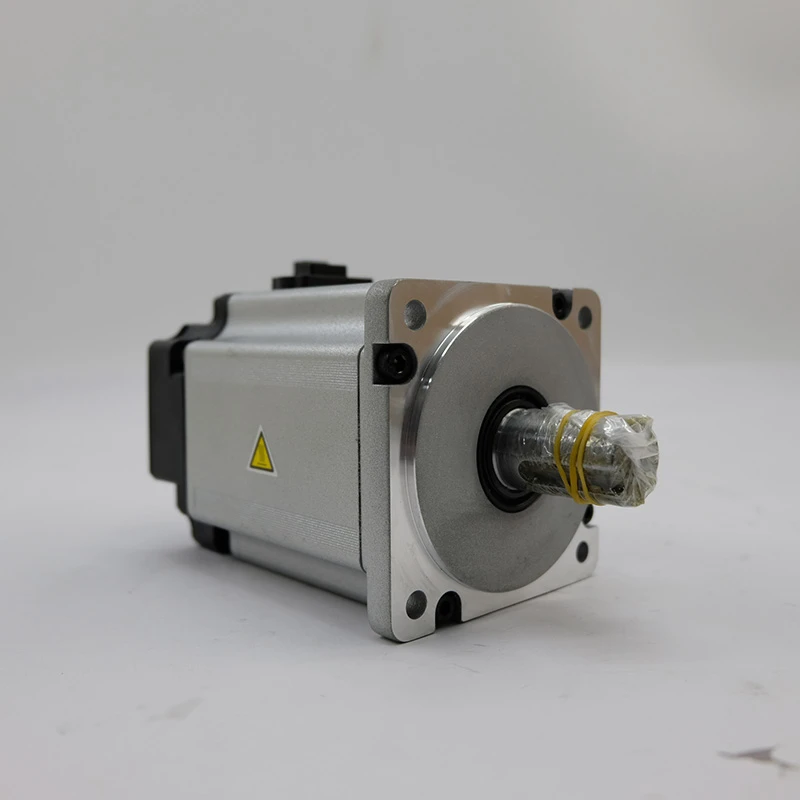

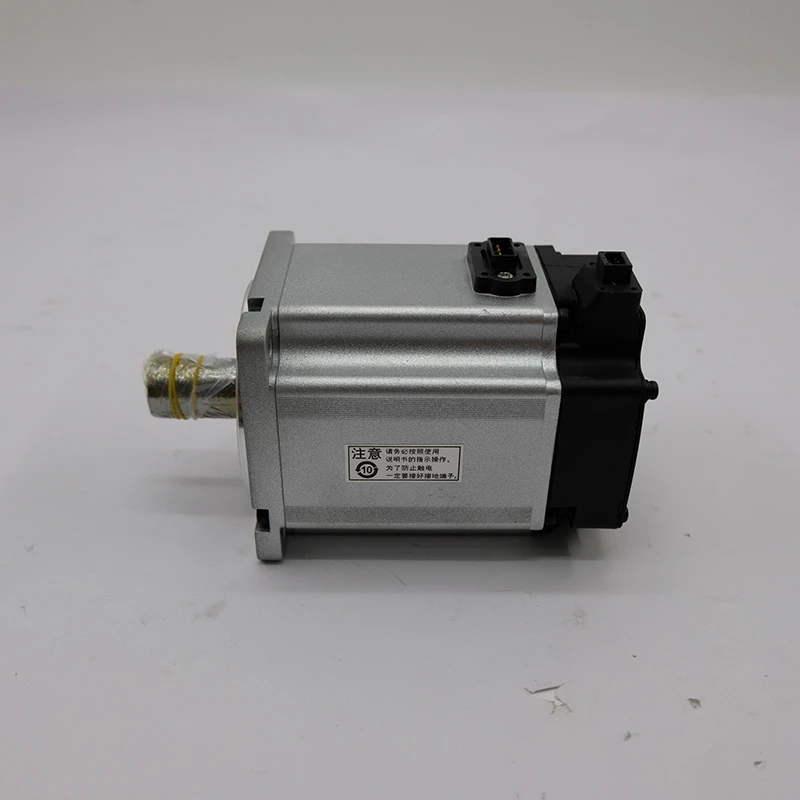

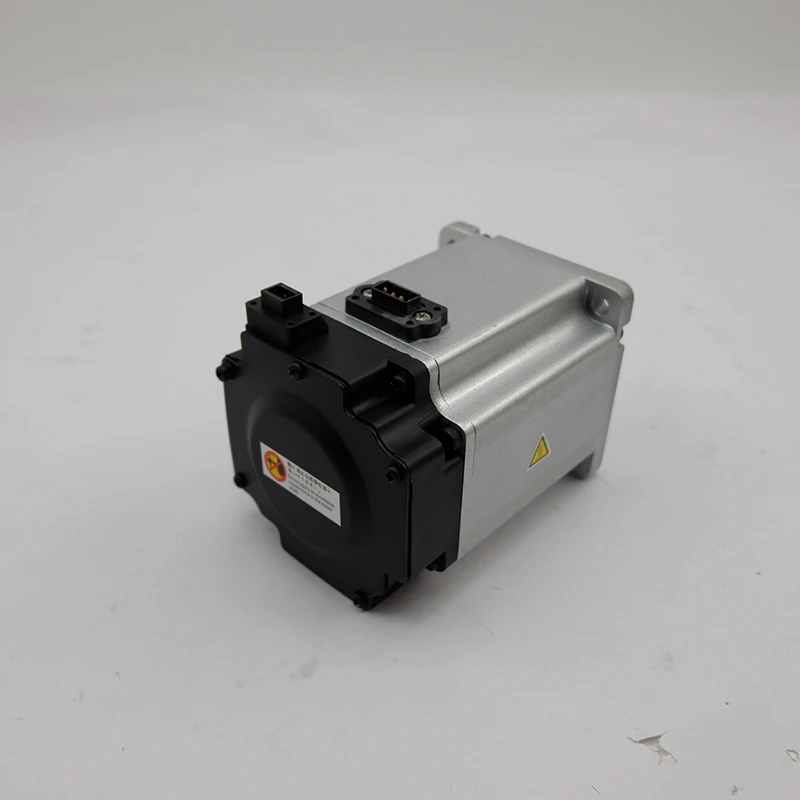

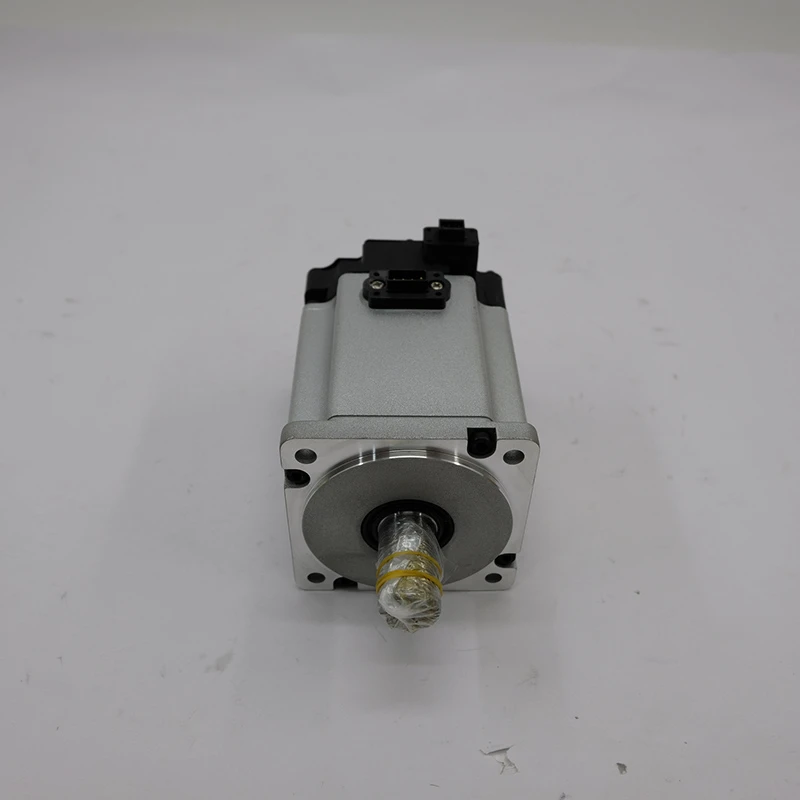

R88M-K75030H-S2 is a high-performance and highly reliable AC servo motor with excellent performance and stable operation characteristics, which can be widely used in the field of industrial automation to provide users with reliable motion control solutions.
Model: R88M-K75030H-S2
Brand: Omron
Size: 15*29*12 cm
Weight: 2.7kg
Applicable motor: SLVD7NS
Product line: GoldSoloTwitter
Protection level: IP67
Installation method: Substrate installation
Accessory Name: Servo driver
Category: Pulse encoder input unit
Application: Industrial field
Function: Automatic control
Ambient temperature and humidity: 0 ~ 55°C, below 90%RH (no condensation)
Use and storage environment: non-corrosive gas
Vibration resistance: 10 ~ 60Hz, acceleration below 5.88m/s2 (non-continuous operation at resonance point)
Voltage resistance: AC1,500V for 1 minute at 50/60Hz between the power terminal, 4 power terminal and FG terminal
EMC Directives: EN 55011, EN 61000-6-2, IEC 61800-3
Low voltage Directive: EN 61800-5-1
UL standard: UL508C *4
The R88M-K75030H-S2 is Omron's AC servo motor with high performance and stability for a wide range of industrial automation applications. The following is a detailed introduction of the servo motor, which is different from the introduction of the previous model:
1. High torque density: The R88M-K75030H-S2 has excellent torque density and can provide greater torque output in a compact size, suitable for applications with limited space.
2. High speed response: The servo motor adopts advanced control algorithm and high speed response sensor technology, which can achieve fast and accurate speed adjustment to meet the needs of high-speed motion control.
3. High resolution encoder: Equipped with high resolution encoder, provides more accurate position feedback and control, to ensure the high precision motion control of the system.
4. Low inertia design: lightweight design and optimized inertia distribution are used to make the motor have lower inertia and inertia, and improve the response speed and control accuracy of the system.
5. High reliability: with high-quality bearing and sealing structure, effectively reduce mechanical wear and failure rate, to ensure long-term stable operation of equipment.
6. Intelligent protection function: built-in a variety of protection functions, such as overload protection, overcurrent protection, overvoltage protection, etc., effectively protect the motor and system from damage.
7. Widely used: suitable for a variety of high-demand industrial automation applications, such as machining, automated production lines, robots and other fields, to provide reliable motion control solutions.
8. Flexible configuration: You can select different parameters such as power, speed, and voltage according to actual requirements to meet the requirements of different application scenarios.
In summary, R88M-K75030H-S2 is a high-performance and highly reliable AC servo motor with excellent performance and stable operation characteristics, which can be widely used in the field of industrial automation to provide users with reliable motion control solutions.
