The Pilz 750004 is a high performance relay specially designed for use in industrial automation. With a reliable operating voltage of 24V and an output frequency of 100Hz, it is CE certified and belongs to the EK family of the Pilz brand.
Brand: PILZ Pilz
Model: 750004
Product size: 2*1.8*1.6cm
Net weight: 0.5kg
Origin: Germany
Product Type: Relay safety module
Series: EK
Mode: Half duplex
System function: logic control
Power supply: direct current
Working voltage: 24V
Output frequency: 100Hz
Product certification: CE certification
In terms of technical parameters, the relay is equipped with an advanced EtherCAT terminal module that can support up to 65,534 connection points, data transfer rates of up to 100 Mbaud, and has 2 RJ45 bus interfaces for flexible connection configurations. In addition, it features 4.2GB addressable I/O contacts for a wide range of control and monitoring applications.
This relay uses Ethernet/EtherCAT cable as the data transmission medium, requiring the use of shielded cables to ensure stable and reliable communication. In terms of current consumption, the current consumption of the supply bus (US) is 70 mA, while the current consumption of the external load (UP) depends on the specific load situation.

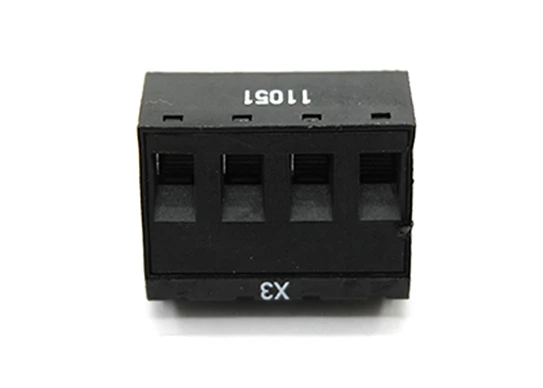

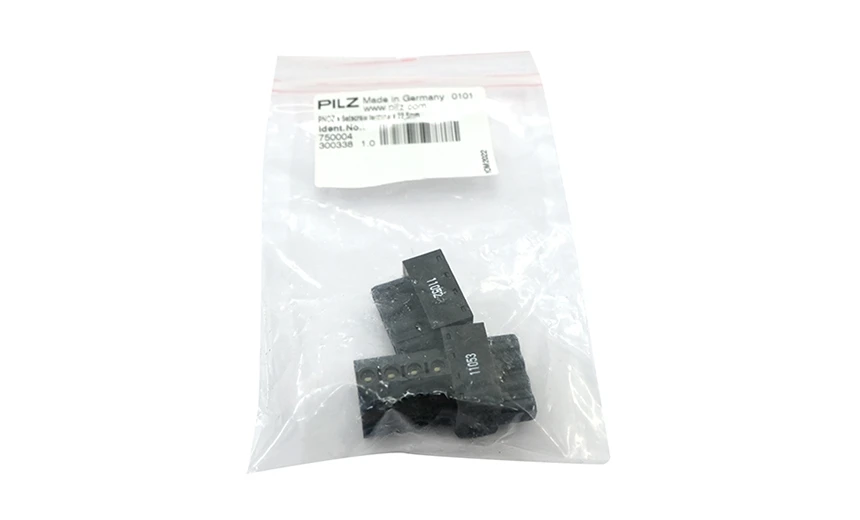

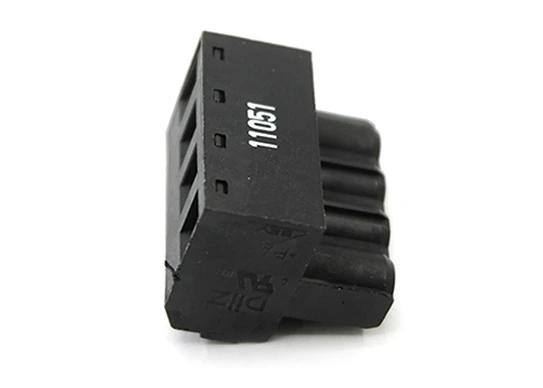

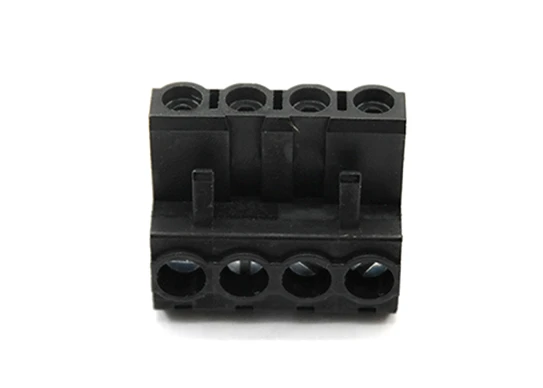

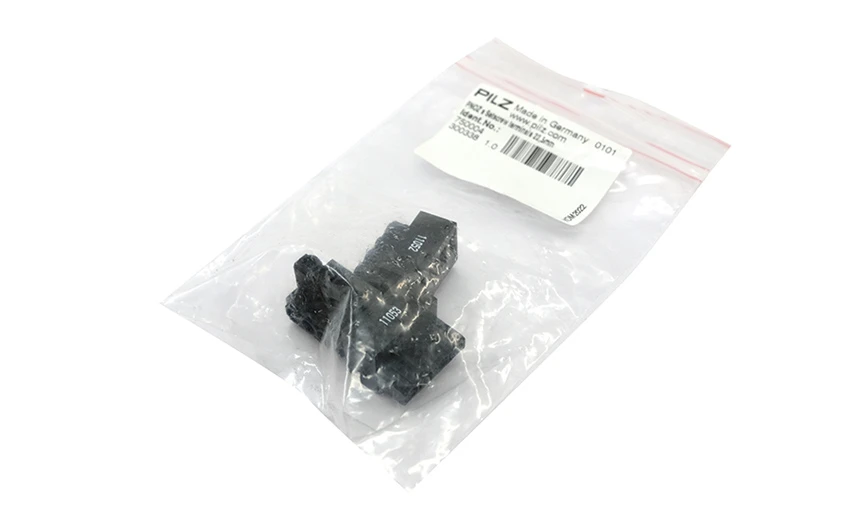

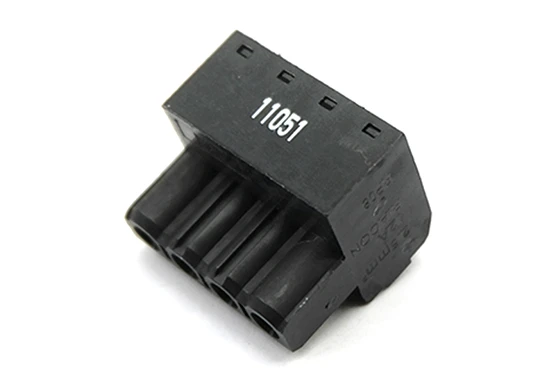

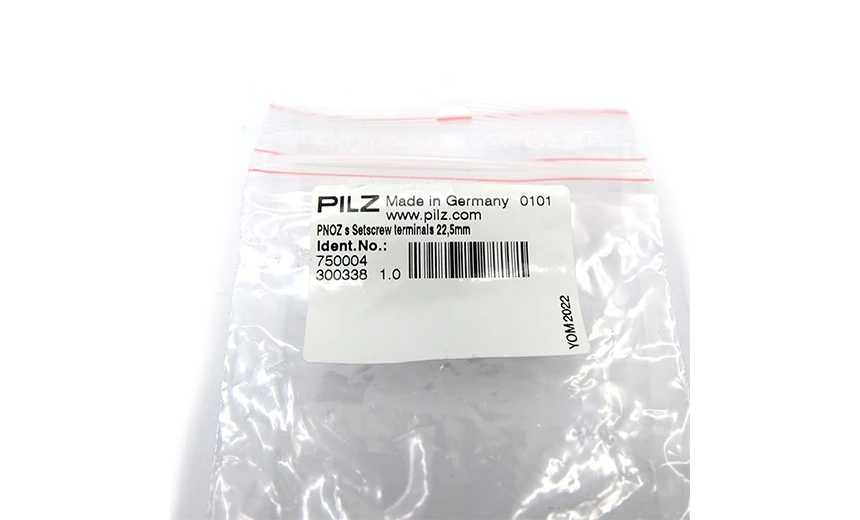

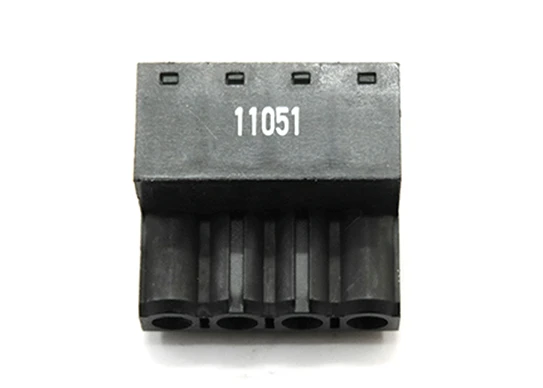

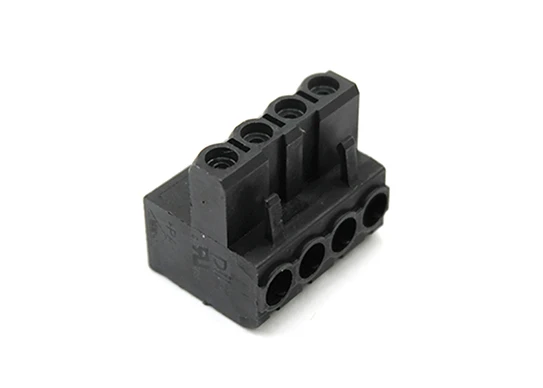

In terms of commercial data, the Pilz 750004 has a clear material number 750004 and is packaged with a set of spare plugable terminals using 4-pin internal thread technology, each piece.
Environmentally, the relay complies with the requirements of the RoHS Directive, does not contain any SVHC substances, and meets the WEEE classification standard.
In summary, the Pilz 750004 relay has excellent performance and reliability, suitable for control and monitoring tasks in industrial automation systems, and is a reliable industrial electrical equipment.
