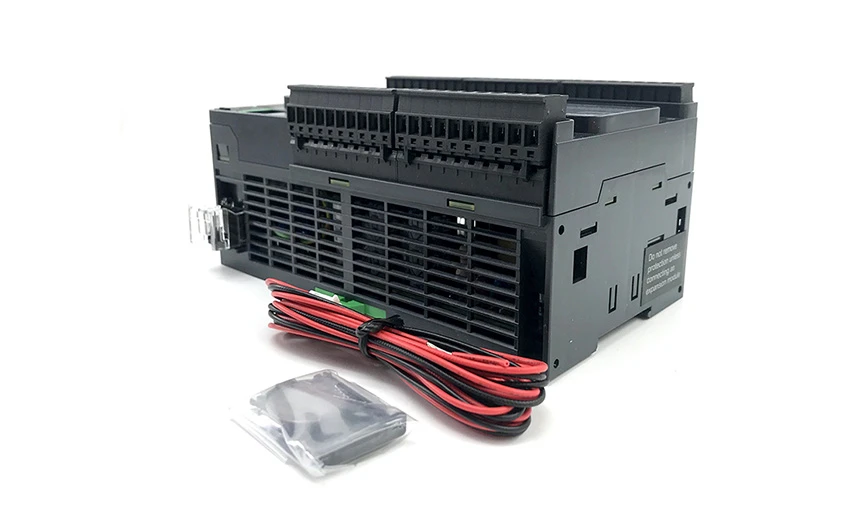

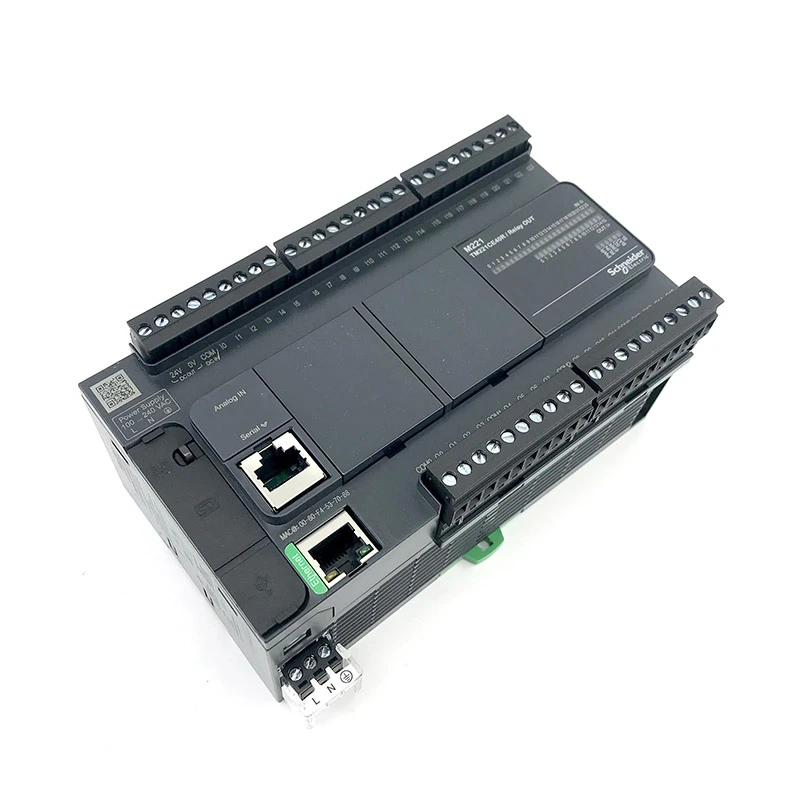

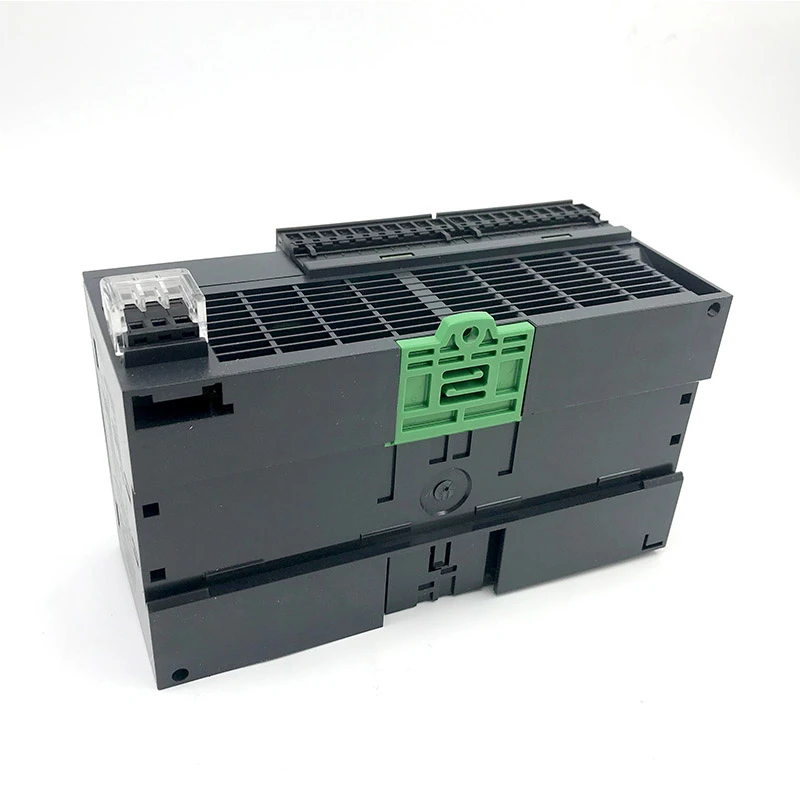

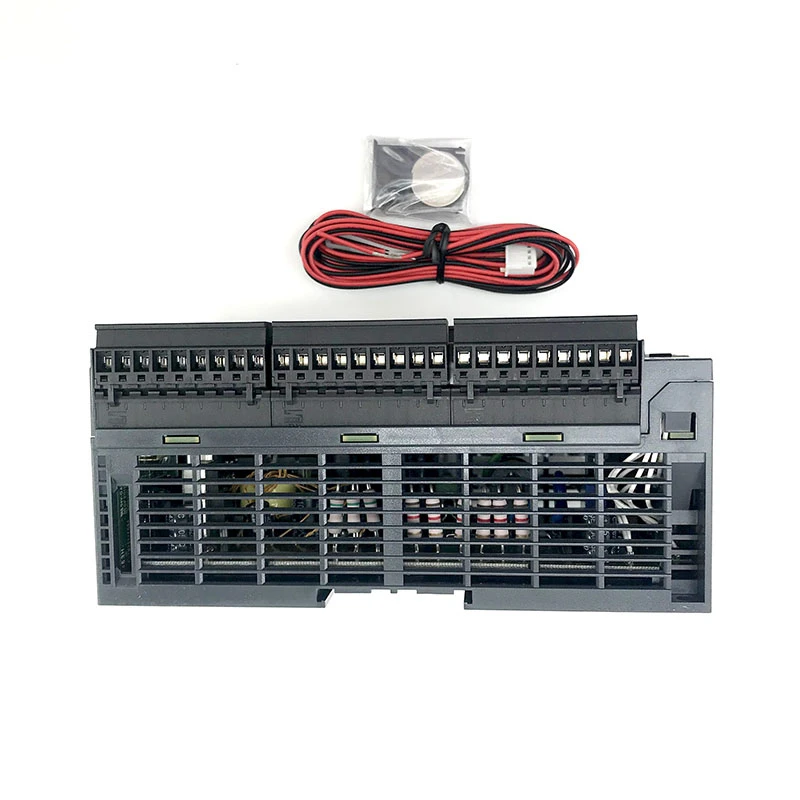

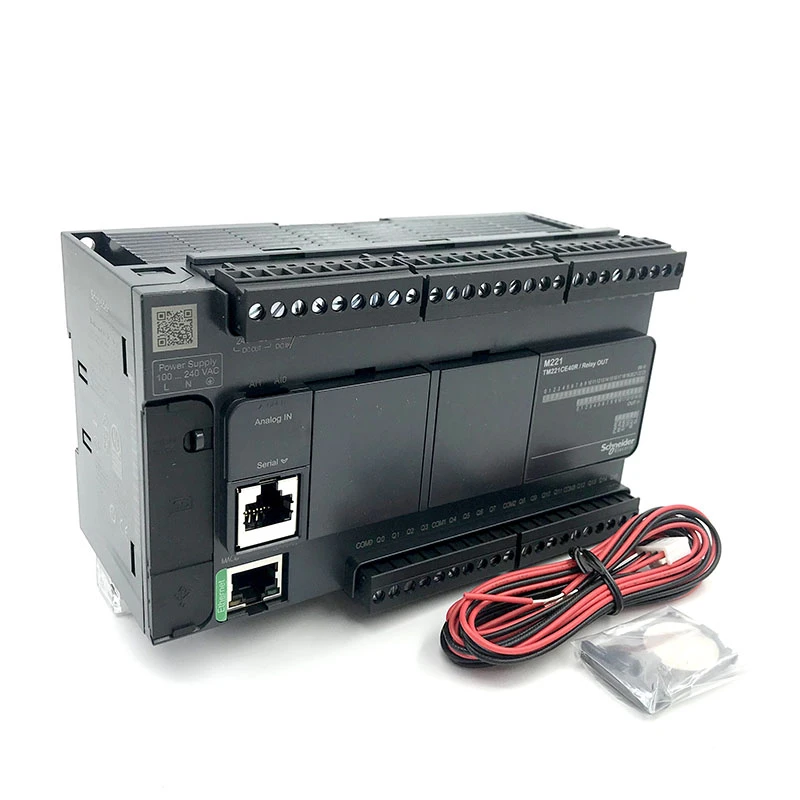

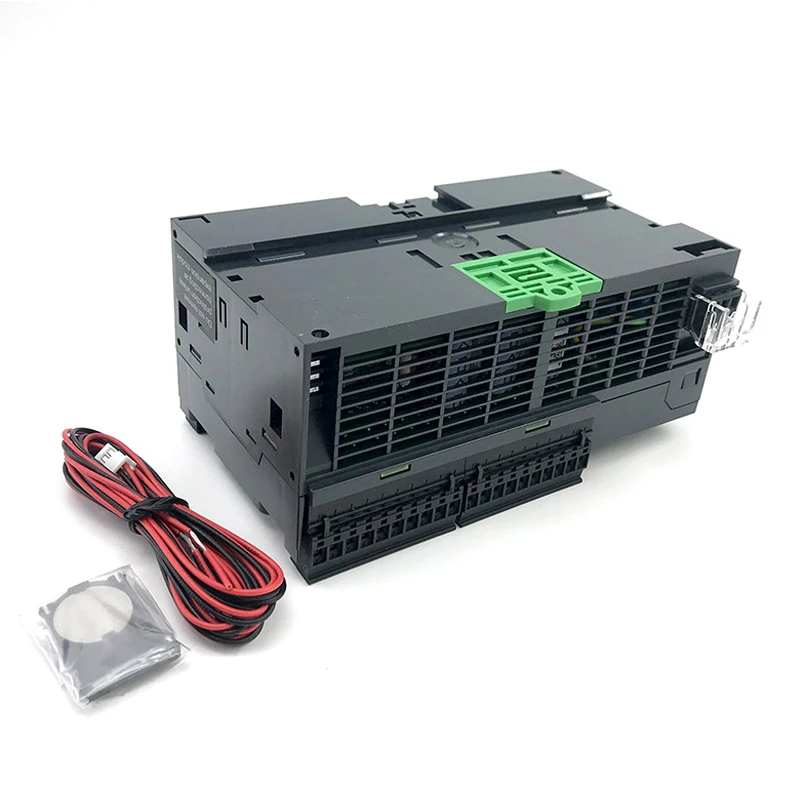

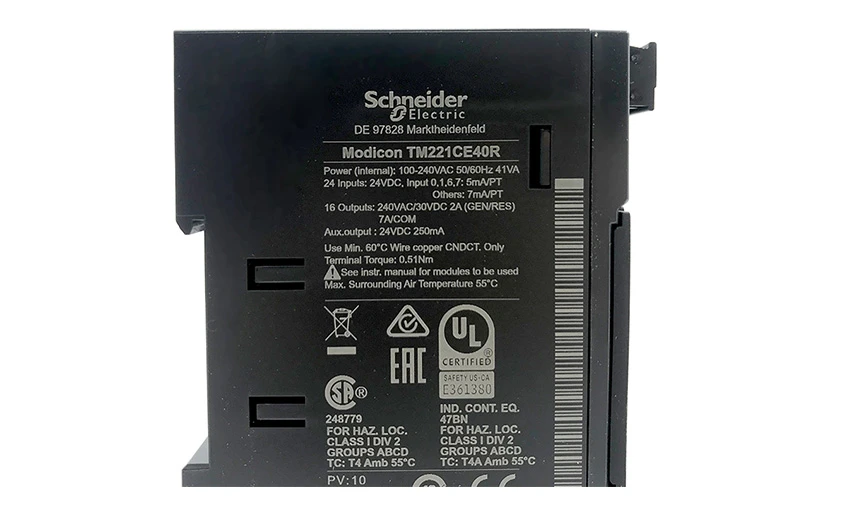

The Schneider Programmable Controller TM221CE40R belongs to the Modicon M221 family and is a high-performance programmable controller for automated control systems.
Model: TM221CE40R
Brand: Schneider
Size: 21*15*11cm
Weight: 0.82kg
Country of origin: France
Product series | Modicon M221 |
Product type | Programmable controller |
Rated supply voltage [Us] | 100... 240 V AC |
Discrete quantity Number of inputs | 24, the discrete input conforms to IEC 61131-2 type 1 |
Analog quantity Number of inputs | 2 in... Top 0... 10 V |
Solid state output type | Relay normally on |
Discrete quantity output quantity | 16 relay |
Discrete output voltage | 5... 125 V DC 5... 250 V AC |
Discrete output current | 2 A |
The Schneider Programmable Controller TM221CE40R belongs to the Modicon M221 family and is a high-performance programmable controller for automated control systems. The following is a summary of the main information and functions of the controller:
Product family: The Modicon M221 series is an advanced programmable controller product family from Schneider Electric that offers high flexibility and superior performance.
Product type: TM221CE40R is a programmable controller used for logic control, data processing and communication functions in automated control systems.
Rated supply voltage [Us] : The controller's rated supply voltage ranges from 100 to 240 V AC and is suitable for different regional power supply standards.
Number of discrete input: TM221CE40R has 24 discrete input, according to IEC 61131-2 Type 1 standard.
Number of analog inputs: The controller has 2 analog input channels ranging from 0 to 10 V.
Solid state output type: The output type is relay normally on.
Number of discrete outputs: The TM221CE40R has 16 relay outputs.
Discrete output voltage and current: Output voltage ranges from 5 to 125 V DC and 5 to 250 V AC with output current of 2 A.
Additional information:
Supports 40 discrete I/O numbers.
Supports I/O expansion modules for seven local I/O systems and 14 remote I/O systems.
The supply voltage ranges from 85 to 264 V and the grid frequency is 50/60 Hz.
The maximum instantaneous peak current is 40 A.
The maximum power consumption is 70 VA.
Supports USB, serial link, Ethernet and other communication modes.
Supports communication services such as Modbus TCP client and server, and Ethernet /IP converter.
Have a variety of environmental features, including anti-static discharge, anti-electromagnetic interference, anti-vibration and anti-shock.
In summary, the Schneider Programmable controller TM221CE40R is a powerful and stable controller suitable for various applications in the field of industrial automation, such as production line control, mechanical equipment control, process control, etc. Its flexible input/output configuration, rich communication interfaces and reliable environmental adaptability make it ideal for automated control systems.
