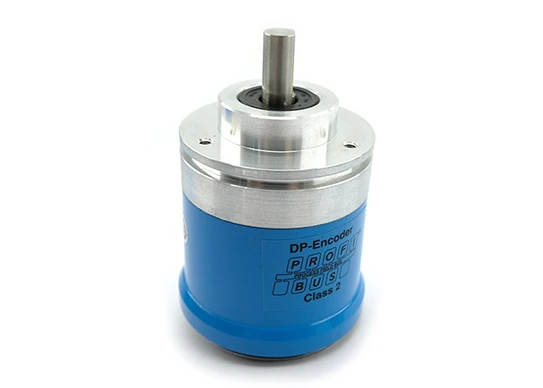

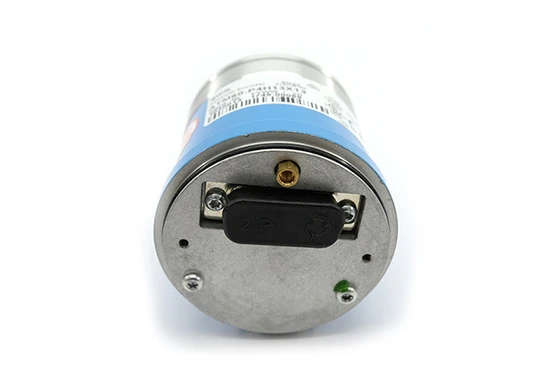

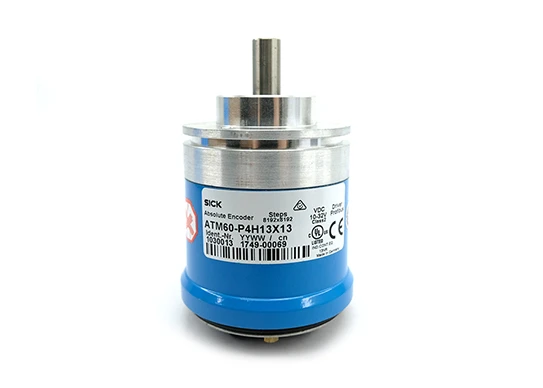

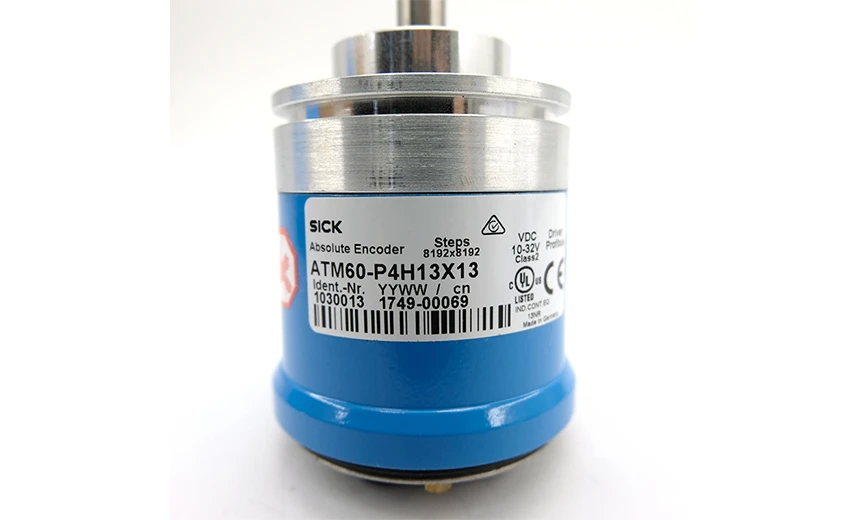

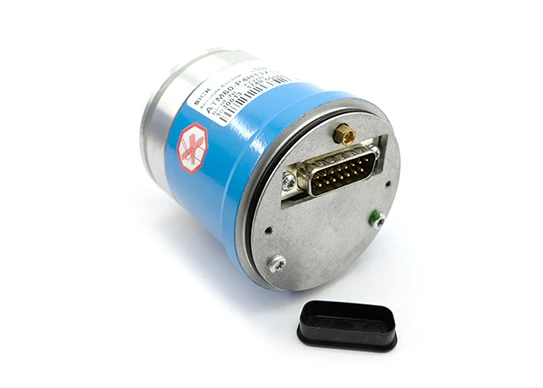

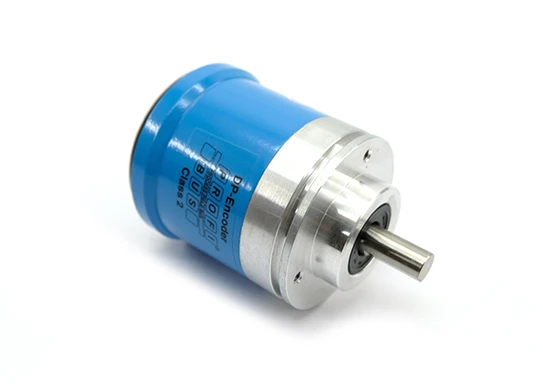

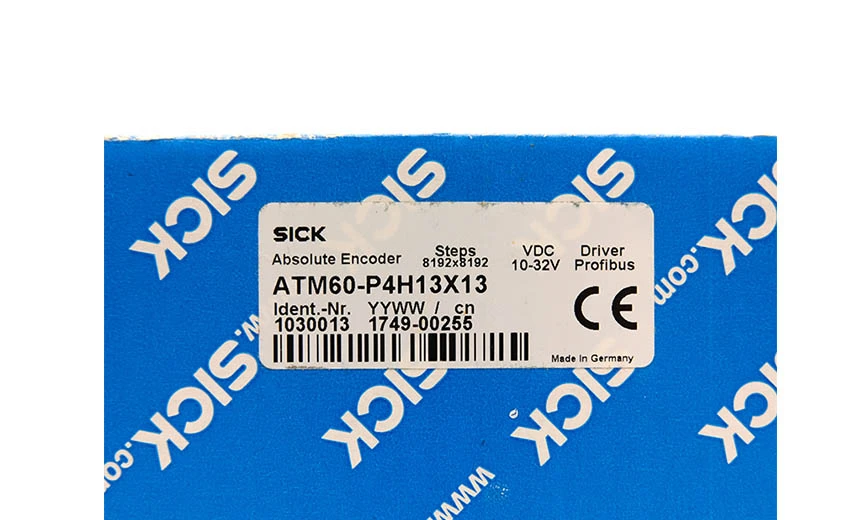

The SICK absolute encoder ATM60-P4H13X13 features high resolution, high precision and flexible communication, making it suitable for industrial applications requiring accurate position measurement and reliable communication.
Brand: SICK
Model: ATM60-P4H13X13
Series: ATM60
Packing product size: 18*13.5*9cm Shaft diameter: 10mm Linear bearing: 19mm
Housing material: die-cast aluminum
Weight: 0.6 kg
Supply voltage: 10... 32V
Product type: Absolute value encoder
Origin: Germany
SICK Absolute encoder ATM60-P4H13X13 is a high performance absolute encoder with the following outstanding features and performance:
Performance characteristics:
Maximum resolution: 8,192 (13 bits) of steps and turns per turn, resulting in extremely high resolution.
Measuring step distance: Each step distance is only 0.043°, ensuring accurate position measurement.
Error limit: High precision design, error limit is ±0.25°, repeat standard deviation is 0.1°, in line with DIN ISO standards, to ensure reliable measurement accuracy.
Interface and communication:

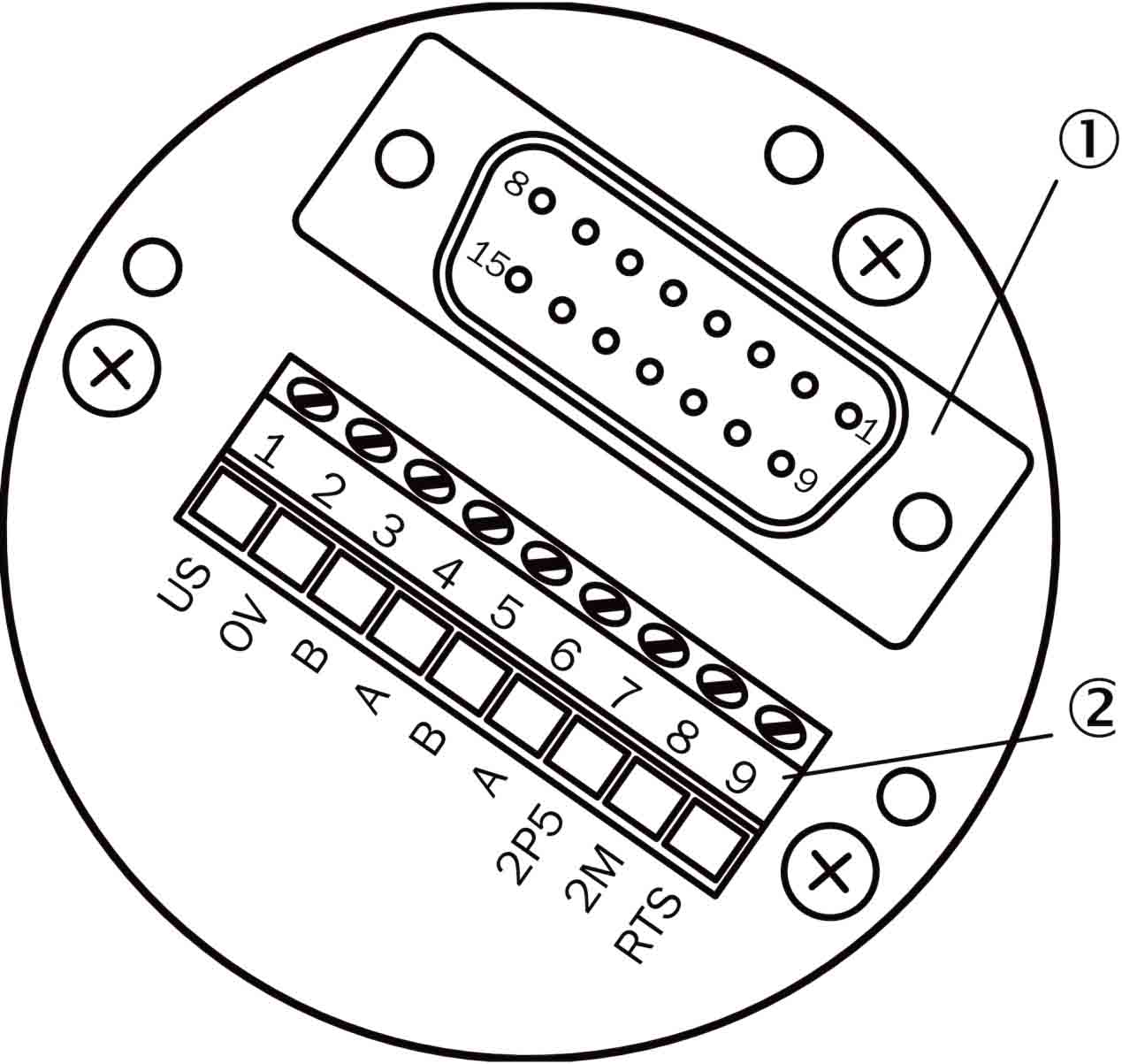

Communication interface: Supports PROFIBUS DP communication interface, data protocol is configured for the encoder, and address Settings range from 0 to 127.
Data transmission rate: Automatically detects data transmission rates ranging from 9.6 kBaud to 12 MBaud, meeting communication requirements in different application scenarios.
Status information display: Provides running and bus activity status information, convenient for users to monitor the device status in real time.
Electrical parameters:
Supply voltage: Range from 10 to 32V, power consumption below 2W, with very low energy consumption.
Polarity reverse protection: built-in polarity reverse protection function to ensure the safe operation of the equipment.
MTTFd: The design life is up to 150 years, in accordance with EN ISO 13849-1, to ensure the reliability and stability of the equipment.
Mechanical parameters:
Mechanical specifications: solid shaft, clamping flange design, shaft diameter of 10mm, bearing diameter of 19mm, with small volume and weight.
Material: The shaft and flange are made of stainless steel and aluminum, and the shell is made of die-cast aluminum to ensure the durability and stability of the equipment.
Environmental parameters:
Protection level: Supports different IP protection levels. The IP protection level can be IP67, IP43, or IP66 based on the installation requirements.
Operating temperature range: from -20°C to +85°C, suitable for a variety of harsh working environments.
The SICK absolute encoder ATM60-P4H13X13 features high resolution, high precision and flexible communication, making it suitable for industrial applications requiring accurate position measurement and reliable communication.

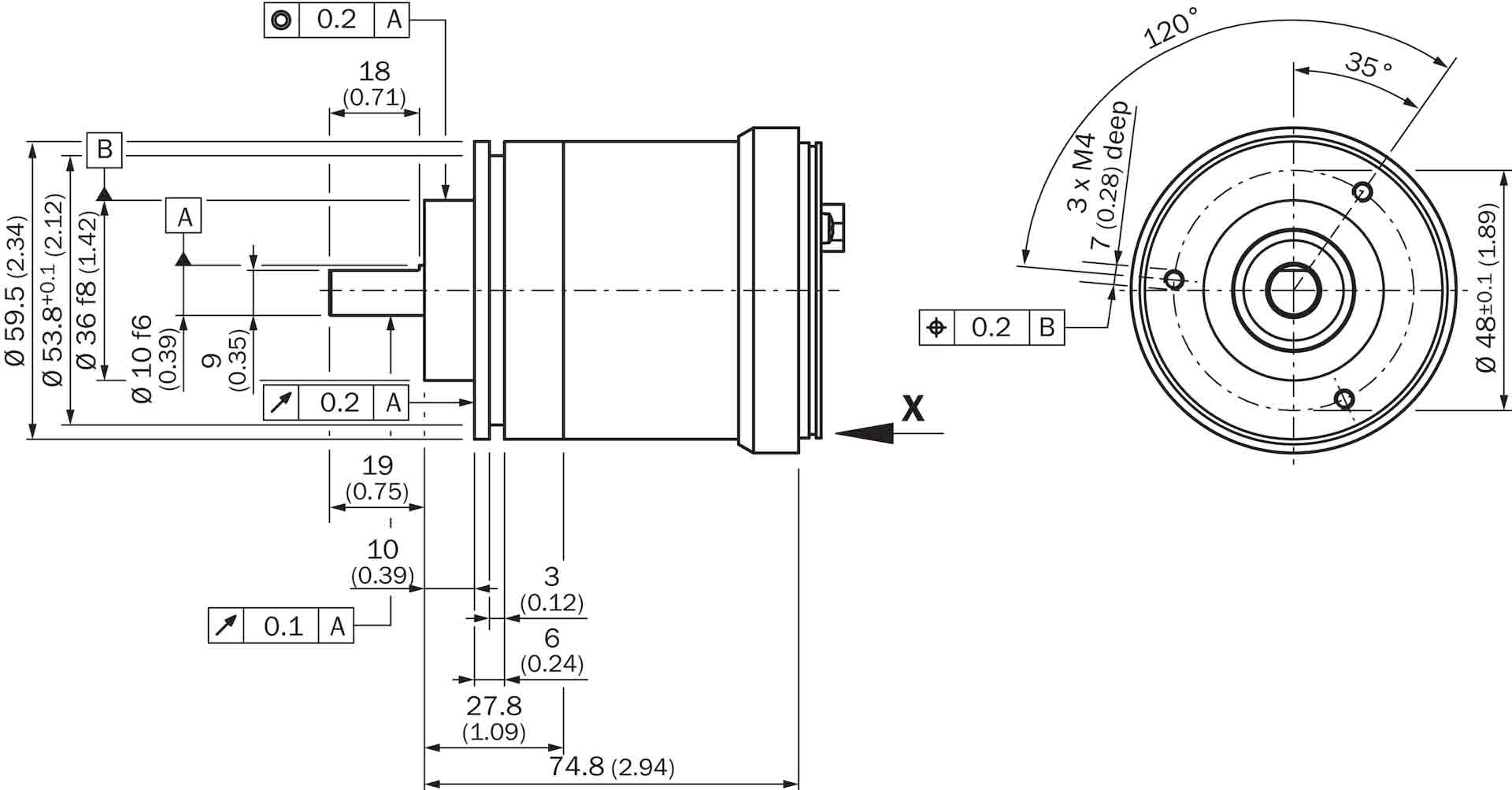

(Size)
(Angle distribution diagram)
