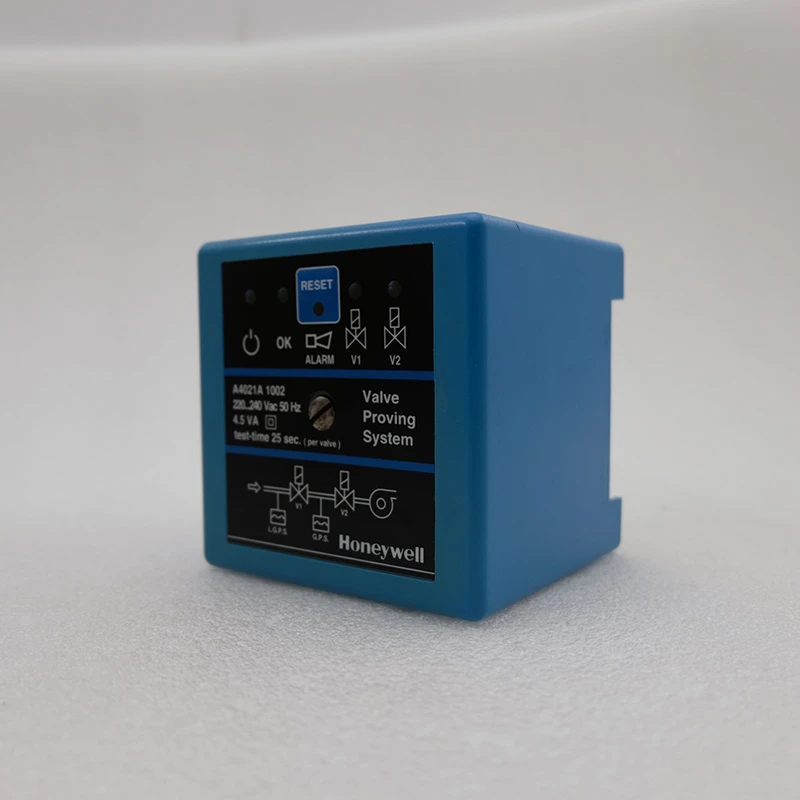

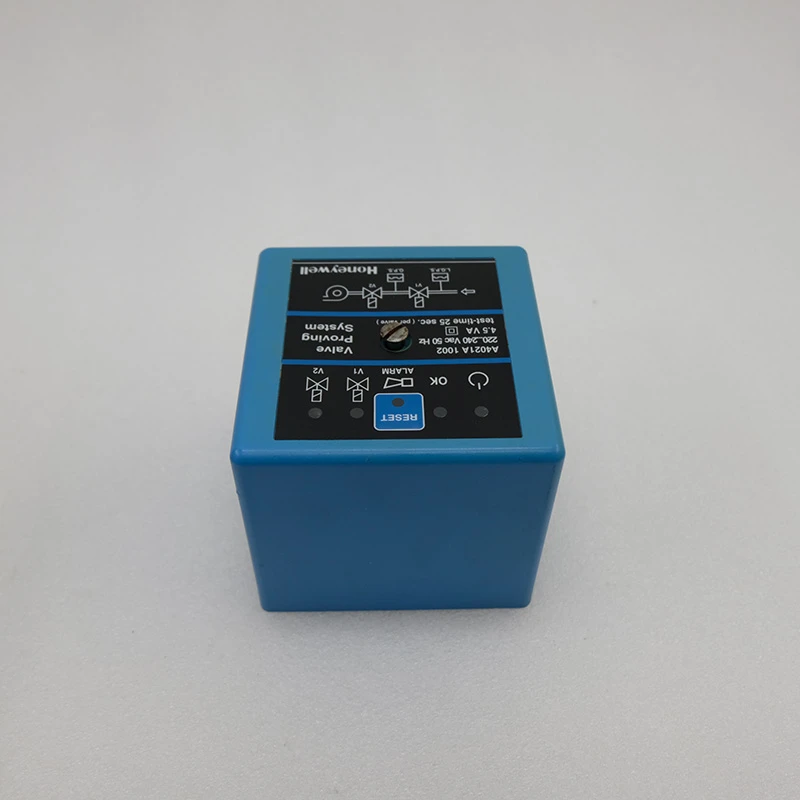

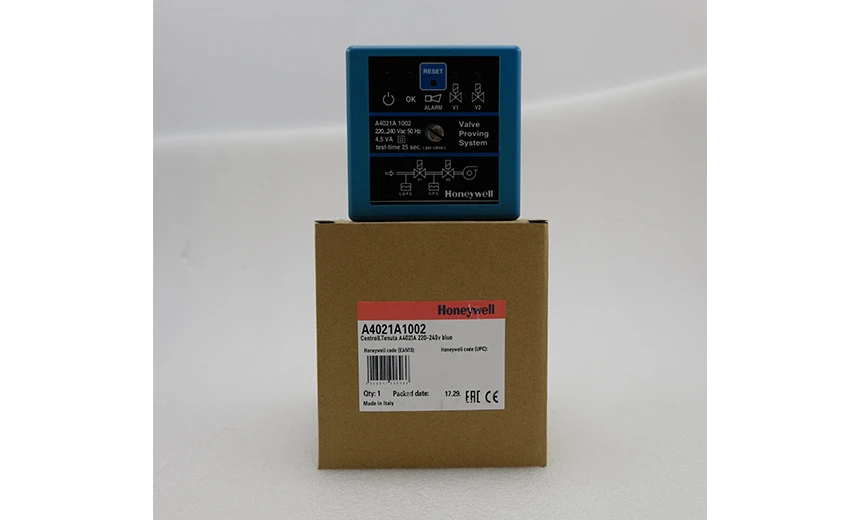

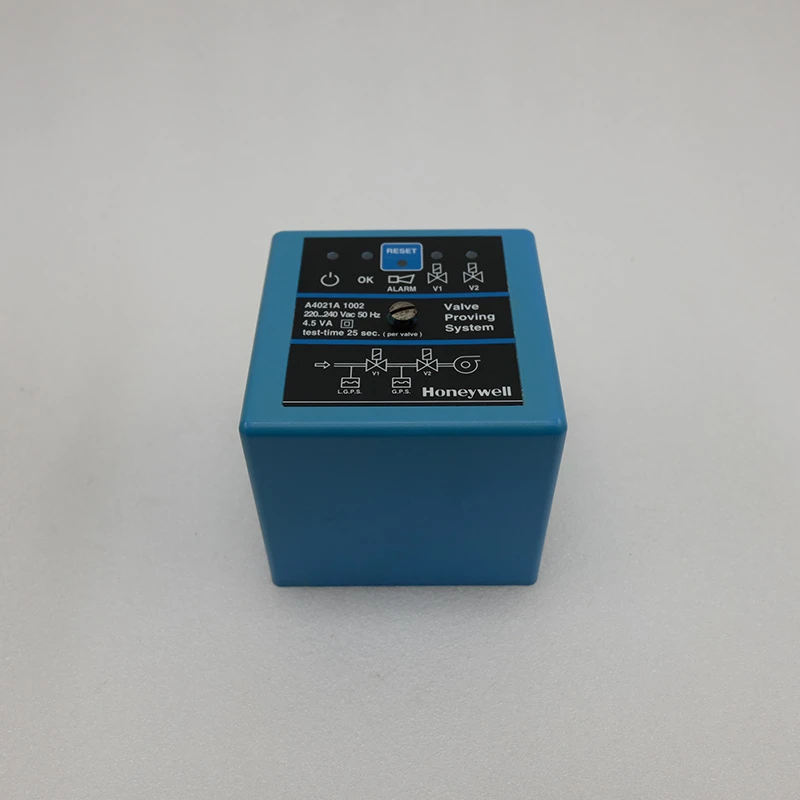

Honeywell A4021A1002 | Honeywell ICT Electronic Leak Controller

Brand: Honeywell

Model: A4021A1002

Product type: Leak detector

Weight: 0.65kg

Product size with packaging: 14*12.7*12.5cm

Power supply: 100V/220V

Origin: USA

The Honeywell A4021A1002 is a microprocessor-based gas valve Bank leak detection device (VPS) designed to ensure the safe operation of gas heating equipment. The following is a detailed introduction to it:

Product Overview:

Function: A4021A1002 Measures the pressure change between two valves through the test program to judge the sealing condition of the valve, and automatically closes the valve to ensure the safety of the gas system.

Applications: Mainly used for gas burners or other high-power gas heating equipment, in line with the requirements of European standard EN676, especially for more than 1200KW gas heating equipment.

Features:

Microprocessor technology: The use of advanced microprocessor technology to achieve efficient and accurate detection and control.

Based on 7800 series combustion control technology: it has the functions of dynamic relay detection, startup detection and self-diagnostic inspection to ensure the reliability and stability of the system.

Detection is not constrained by gas type and pressure: rely on supply gas pressure detection, non-volatile self-locking.

Flexible detection: It can be detected before, after or before the gas heating equipment starts, to meet the requirements of different scenarios.

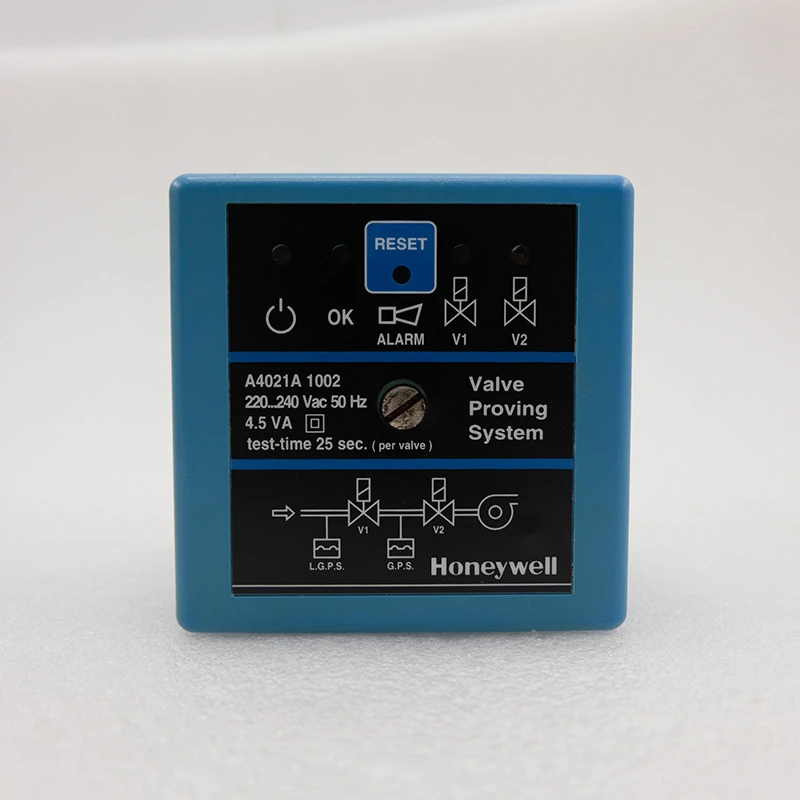

Clear indication: through the 5 leds clearly indicate the detection status and abnormal conditions, convenient for users to deal with in time.

Specification:

Base size: 97x97mm, height: 105mm (including base)

Test time: 25 seconds per valve

Power consumption: Max. 5VA

Ambient temperature: -10°C to 60°C

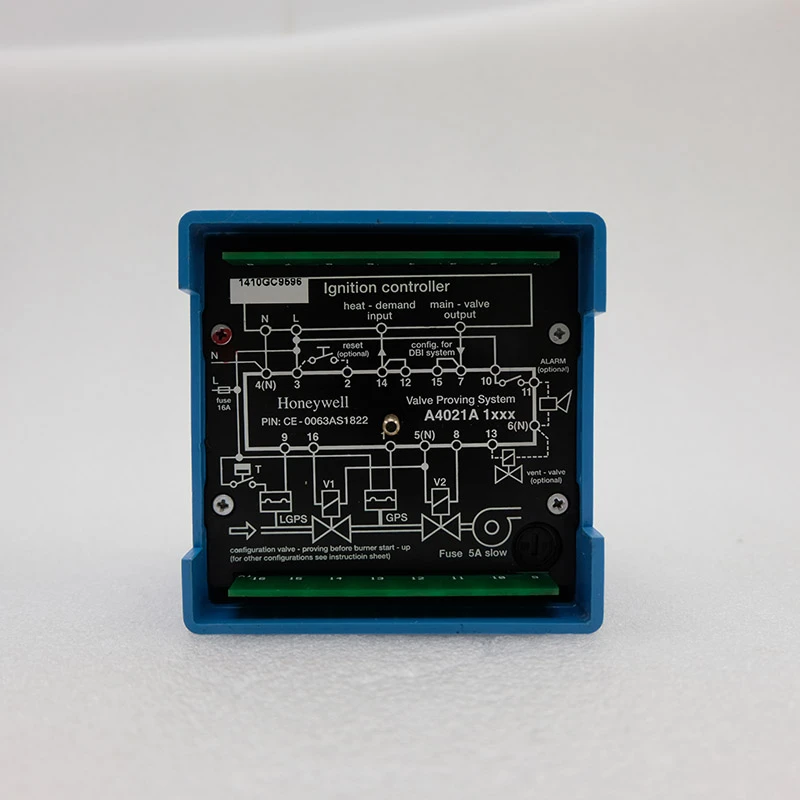

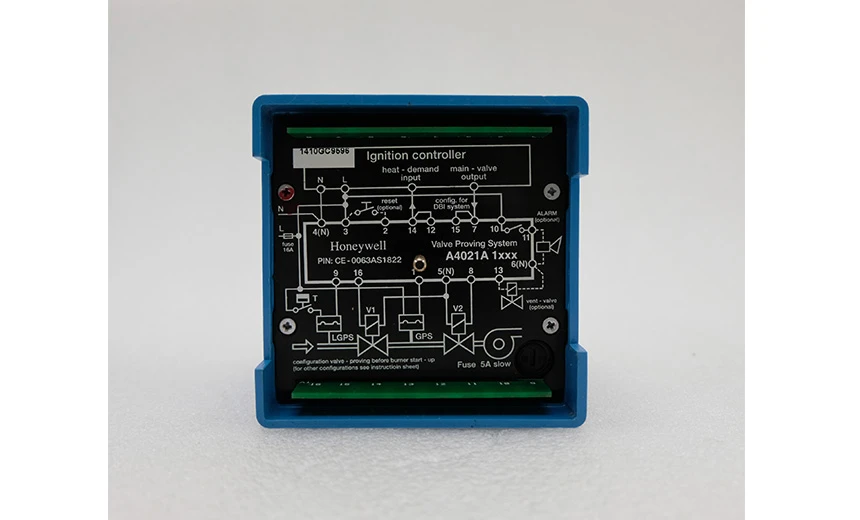

Electrical connection: Four cable conduits that meet the requirements of PG11 are installed on the base

Protection level: IP40

Product advantages:

Efficient and reliable: Advanced microprocessor technology and combustion control technology based on 7800 series ensure the efficient and reliable operation of the system.

Compatibility: can be used with Honeywell 7800 series, Satronic series and other company combustion safety controllers, suitable for different brands of gas systems.

Safety guarantee: Once the valve leakage is found, the start of the combustion process will be interrupted, and an alarm will be issued to ensure the safe operation of the gas equipment.

To sum up, Honeywell A4021A1002 has advanced technology and reliable performance, which is an excellent product in the gas system safety guarantee.

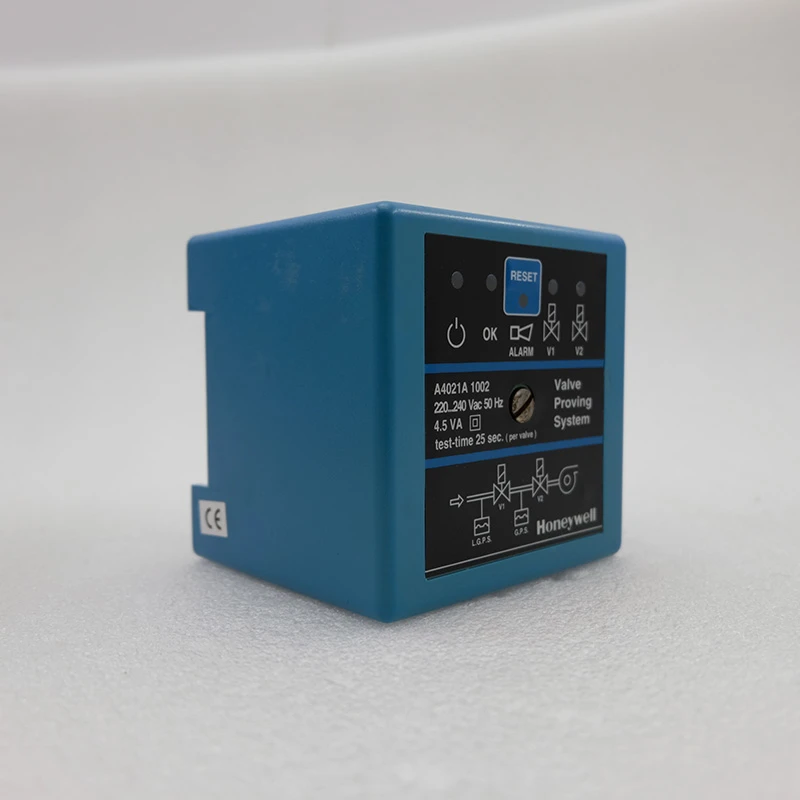

Details of Honeywell A4021A1002 | Honeywell ICT Electronic Leak Controller
