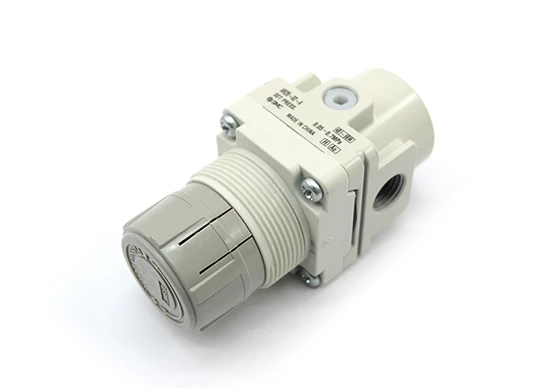

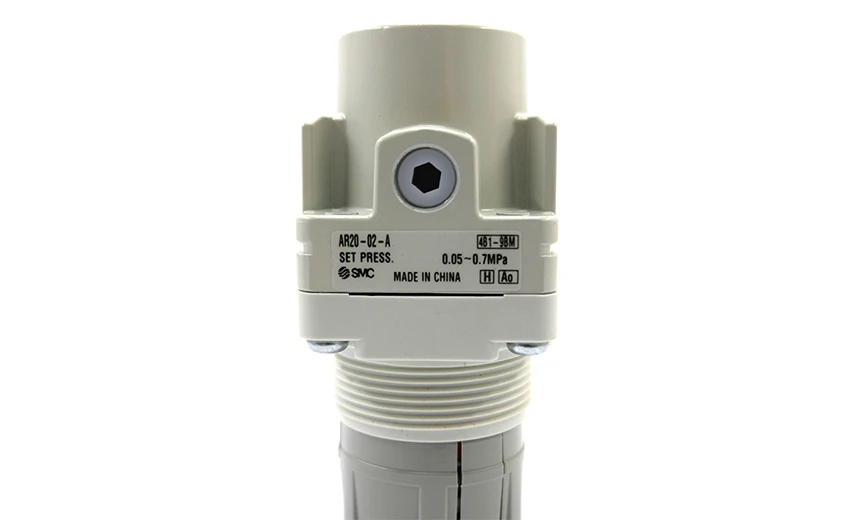

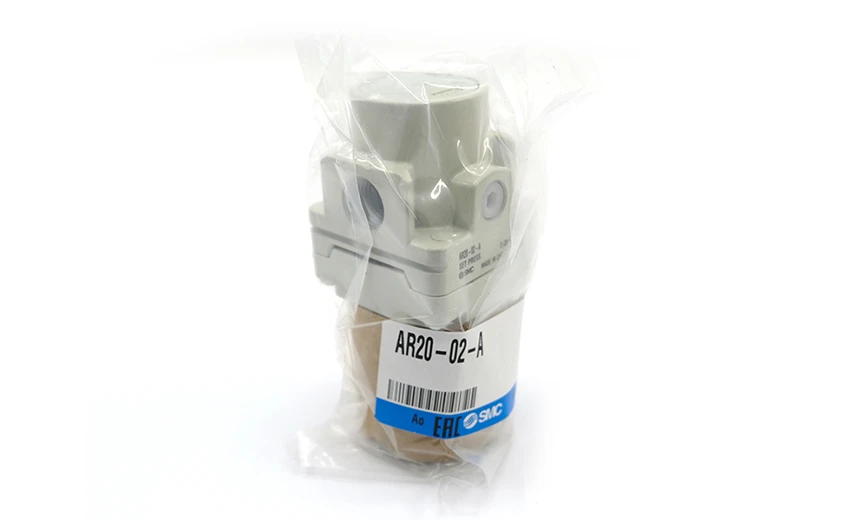

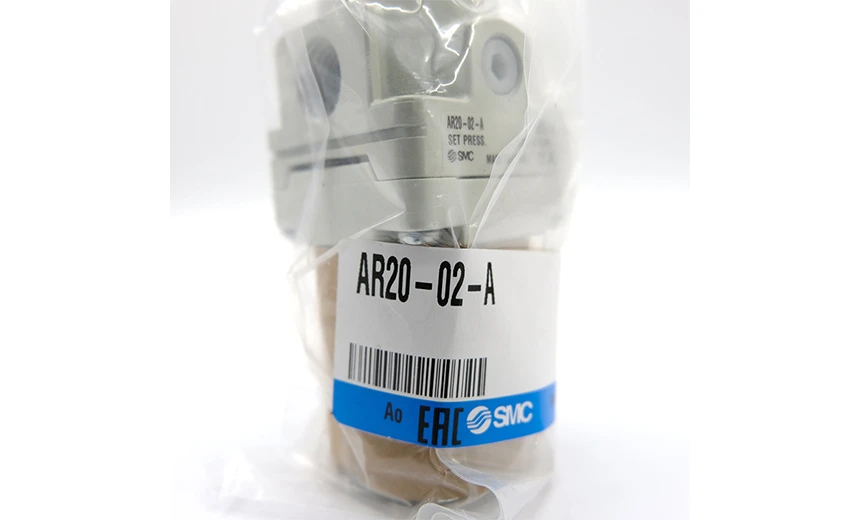

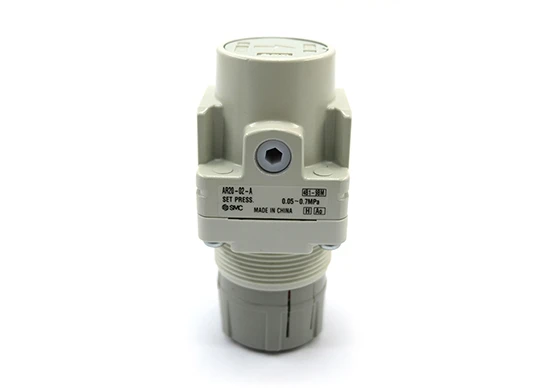

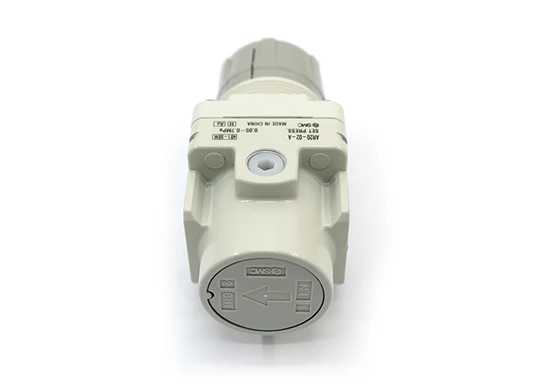

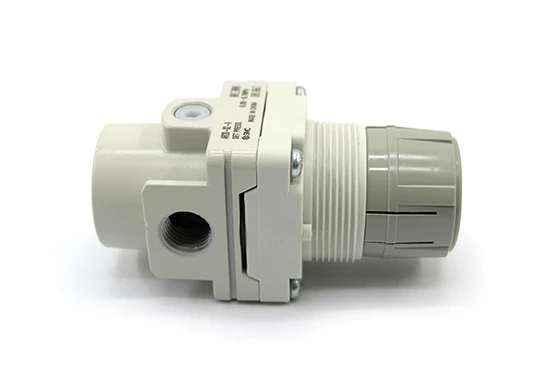

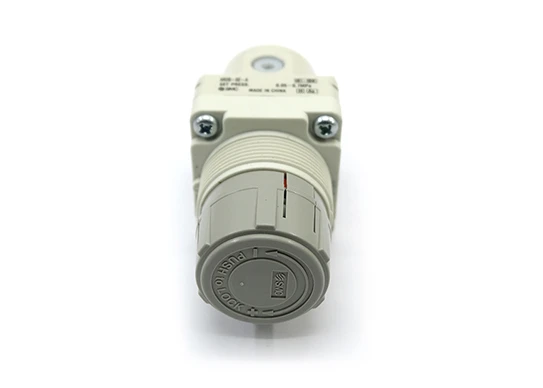

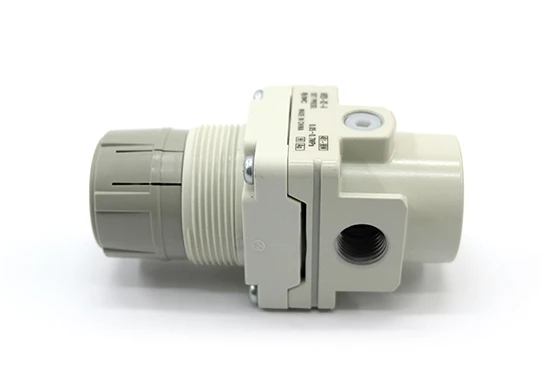

SMC pressure reducing valve AR20-02-A has precise pressure control, stable performance, durable structure and a wide range of applications, suitable for a variety of pneumatic control systems, to provide users with a reliable pressure regulation solution.
Brand: SMC
Model: AR20-02-A
Suitable for high pressure, medium temperature: -5 to +60℃
Operating pressure (bar) : 10
Product size: 9.5*4.5*4cm
Use: By adjusting the knob, quickly and accurately adjust the output gas pressure to provide the required output pressure
Weight: 0.5kg
Product Type: Precision pressure reducing valve
Origin: Japan
SMC's AR10-AR40-A series modular pressure reducing valves are energy saving pressure reducing valves with excellent performance and reliable functionality. The following is a detailed introduction to SMC pressure reducing valve AR20-02-A:
Main body size: the main body size of the pressure reducing valve is 20, which belongs to the assembly size.
Type of thread: Metric thread (M5)/Rc two thread types are available to suit different installation requirements.
Nozzle caliber: The valve has a nozzle caliber of 02, equivalent to 1/4 inch, and is suitable for standard pneumatic system connections.
Quasi-standard: Support 0.05 ~ 0.7MPa setting standards, and X406 model 0.05 ~ 0.4MPa setting. In addition, the pressure reducing valve belongs to the overflow type, the flow direction is left → right, the hand wheel is downward, and the unit of the product label and pressure gauge is expressed as MPa.
Other features:
Series: AR series.
With reverse flow function: the pressure reducing valve has no reverse flow function.
Pressure gauge mounting Angle: there is no specific pressure gauge mounting Angle.
Pressure gauge connection diameter: Gauge connection diameter is 1/8 inch.
Using fluids: Suitable for air fluids.
Using fluid temperature: can work in the temperature range of -5℃ to 60℃.
Pressure test pressure: with a pressure test pressure of 1.5MPa.
Maximum operating pressure: the maximum operating pressure is 1MPa.
Structure: overflow type structure, can effectively adjust the flow and pressure to ensure the stable operation of the system.
In summary, SMC pressure reducing valve AR20-02-A has precise pressure control, stable performance, durable structure and a wide range of applications, suitable for a variety of pneumatic control systems, to provide users with a reliable pressure regulation solution.
