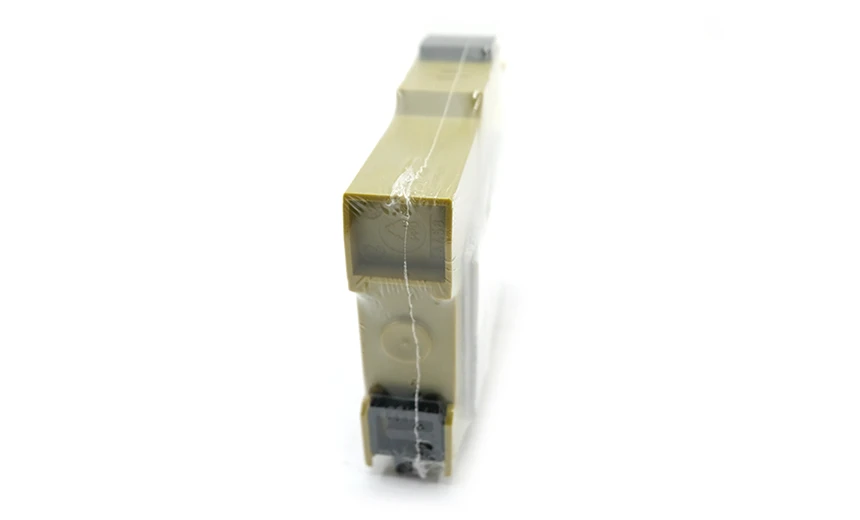

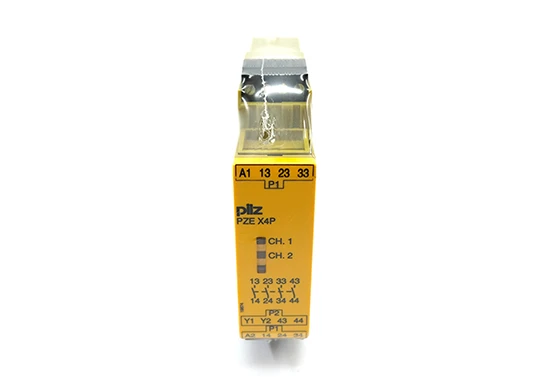

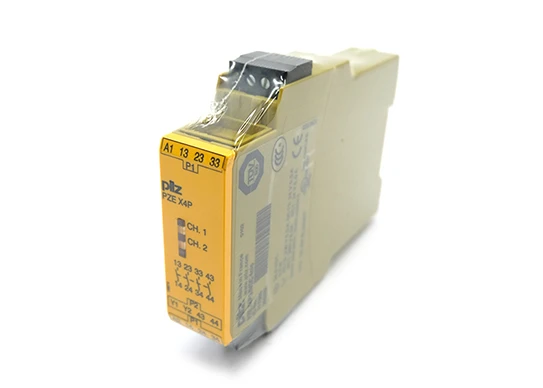

The Pilz 777585 is a configurable contact expansion module designed to provide secure digital inputs and outputs and to connect with safety-related control elements.
Brand: PILZ Pilz
Model: 777585
Product size: 12*9.5*2.2cm
Net weight: 180g
Origin: Germany

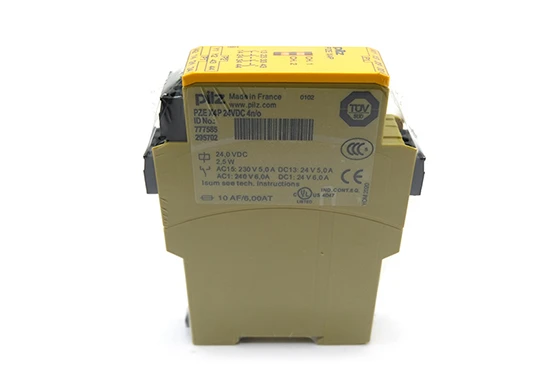

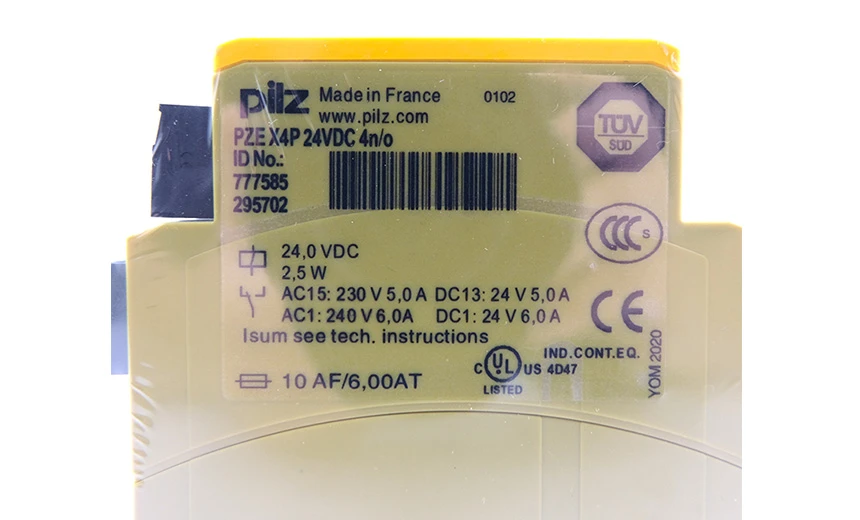

Supply voltage (V) : 24 V
Power supply voltage type U1: DC
Power consumption DC: 2.5W
Use category AC/DC1 standard: EN 60947-4-1
AC1 Safety control voltage: 240V
AC1 Safety control maximum current: 6A
DC1 Safety control voltage: 24V
DC1 Maximum current of safety control: 6A
Use category AC15/DC13 standard: EN 60947-5-1
AC15 safety control voltage: 230V
AC15 safety control maximum current: 5A
DC13 safety control voltage: 24V
Safety contact: AC, UL standard: 240 VAC G.U. (same polarity)
Safety contact: Guide load: R300
Relay contact material: AgCuNi
Other contact specifications for relays: + 0.2µm Au
The Pilz 777585 is a configurable contact expansion module designed to provide secure digital inputs and outputs and to connect with safety-related control elements. It has the following main features and technical specifications:
Technical data
Electrical data: Power supply voltage is 24V DC, power consumption is 2.5W, suitable for DC power supply.
Input channel: The module has one input channel for single-channel connection.
Output channel: Provides four N/O (normally open) relay outputs for controlling external devices.
Relay output: compliant with AC/DC1 and AC15/DC13 standards, can control voltage up to 240V AC or 230V AC, and current up to 6A.
Safety contact material: AgCuNi material, with good electrical conductivity and durability.
Environmental data
Working temperature: can work normally in -10°C environment, suitable for various industrial environments.
Humidity requirements: The maximum allowable humidity at 40°C is 93% r.h. to ensure the reliability of the equipment in high humidity environment.EMC standards: comply with the relevant electromagnetic compatibility standards such as EN 60947-5-1, EN 61000-6-2 and EN 61326-3-1 to ensure the stability of the equipment in electromagnetic environment.
Mechanical data
Installation flexibility: It can be installed anywhere for easy connection and integration with other devices.
Shell material: The front plate is made of ABS UL 94 V0 material, which has good heat and wear resistance.
Terminal connection: Screw terminal connection to ensure stable and reliable connection.
Environmental and Business data
Compliance: Meets environmental standards such as RoHS and REACh, but may contain some SVHC substances such as lead.
WEEE classification: According to the classification in August 2018, WEEE belongs to 5 devices (feed size <50cm).
Business information: including Harmonized System Code, UNSPSC, EAN code, etc., to facilitate product identification and management.
In summary, Pilz 777585 has excellent electrical performance, stable environmental adaptability and in line with relevant standards, is an important part of the industrial safety control system, high reliability, easy operation, suitable for a variety of industrial scenarios.
