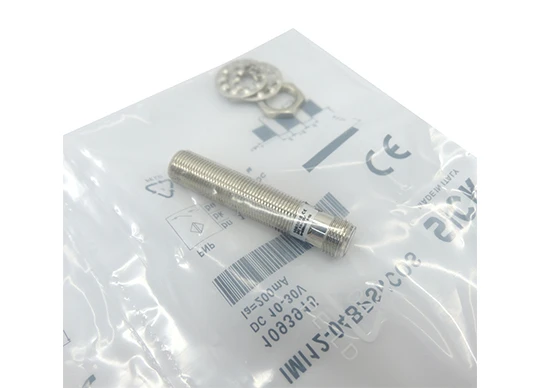

The inductive proximity sensor IMI12-04BPSNC0S is a high-performance sensor with excellent stability, reliability and adaptability for automation and control systems in a variety of industrial environments.
Brand: SICK

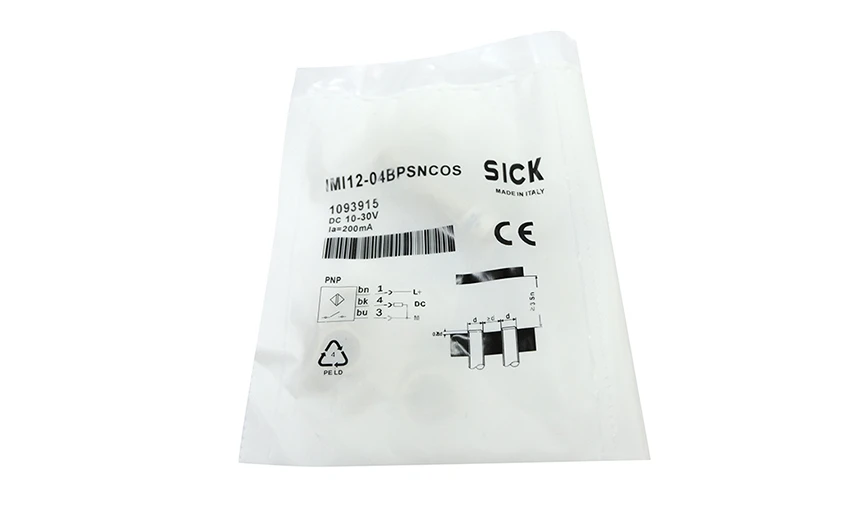

Model: IMI12-04BPSNCOS
Product size :12*16*1cm plastic bag
Weight: 0.5kg
Thread size: M12 x 1
Housing material: Brass/Stainless steel V2A(depends on model)
Product type: Sensor
Origin: Germany
The inductive proximity sensor IMI12-04BPSNC0S is a high-performance sensor with excellent stability, reliability and adaptability for automation and control systems in a variety of industrial environments. The design has been carefully optimized with a metric design and M12 x 1 thread size for easy installation, while the small size of 12 mm in diameter is suitable for a variety of compact Spaces.
With a trigger sensing distance of up to 4 mm and a safe connection distance of 3.24 mm, the sensor can accurately detect target objects on high-speed production lines, ensuring the stability and safety of the production process. The switching frequency of 75 Hz guarantees fast signal transmission and response time, making it excellent in efficient production environments.
IMI12-04BPSNC0S adopts PNP output, and has the output function of normally open contact, which is suitable for the scene that needs to trigger detection or switch control of objects. Its electrical specifications are stable and reliable, and the DC 3-wire power supply ensures stability under various working conditions. In addition, the housing is protected up to IP68 and IP69K, making it suitable for sanitary and humid environments as well as harsh service conditions.
In terms of mechanical and electronic parameters, IMI12-04BPSNC0S has a wide range of supply voltage, low residual ripple, small voltage drop, adjustable hysteresis, and good stability and responsiveness. Its operating environment temperature range from -25°C to +75°C, strong adaptability, high reliability.
In addition, the IMI12-04BPSNC0S has up to 1,892 years of MTTFD and zero percent DCavg, indicating its excellent safety technical performance and high reliability, which can maintain stable performance during long-term use. Overall, the SICK inductive proximity sensor IMI12-04BPSNC0S is a high performance, reliable and adaptable sensor product for a wide range of industrial automation and control system applications.

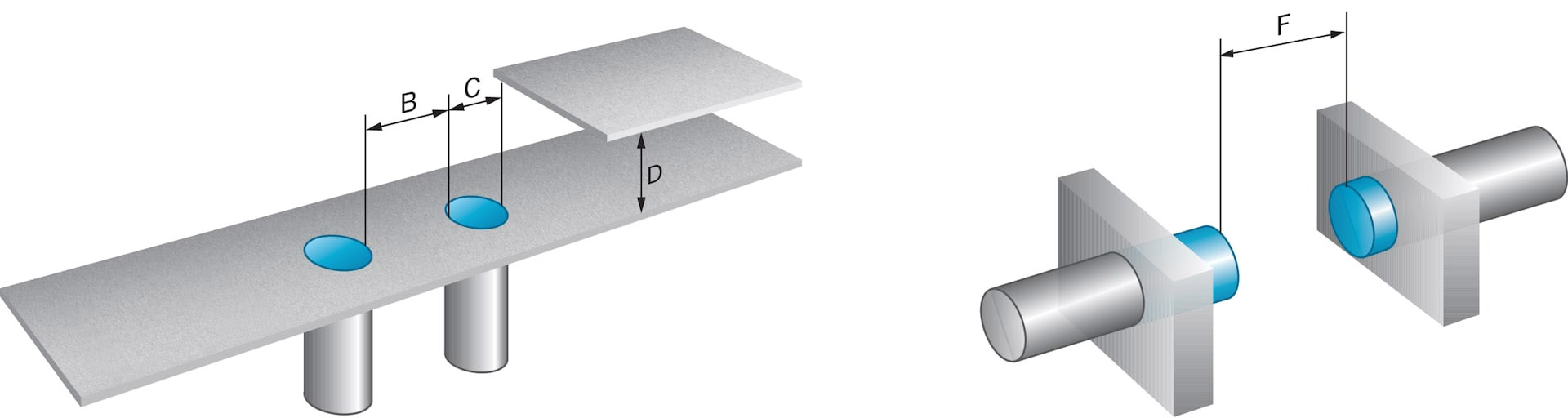

(Installation guide Flush installation)

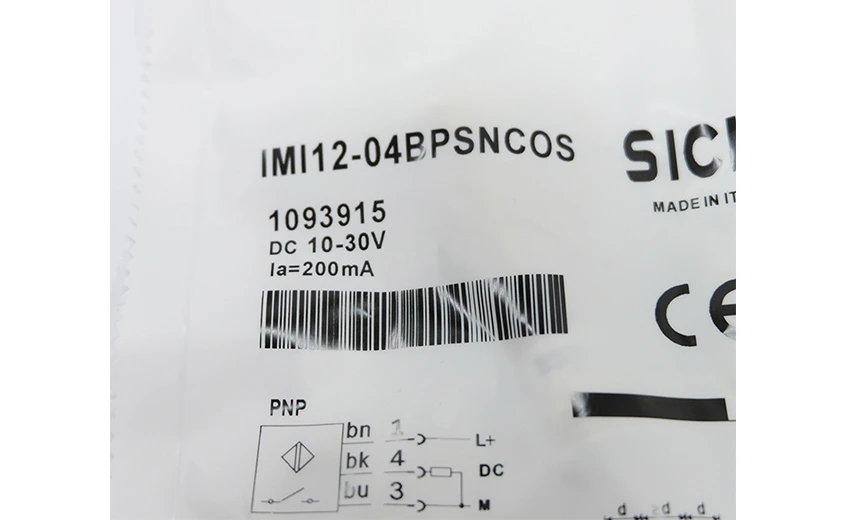

(Wiring diagram Cd-007)

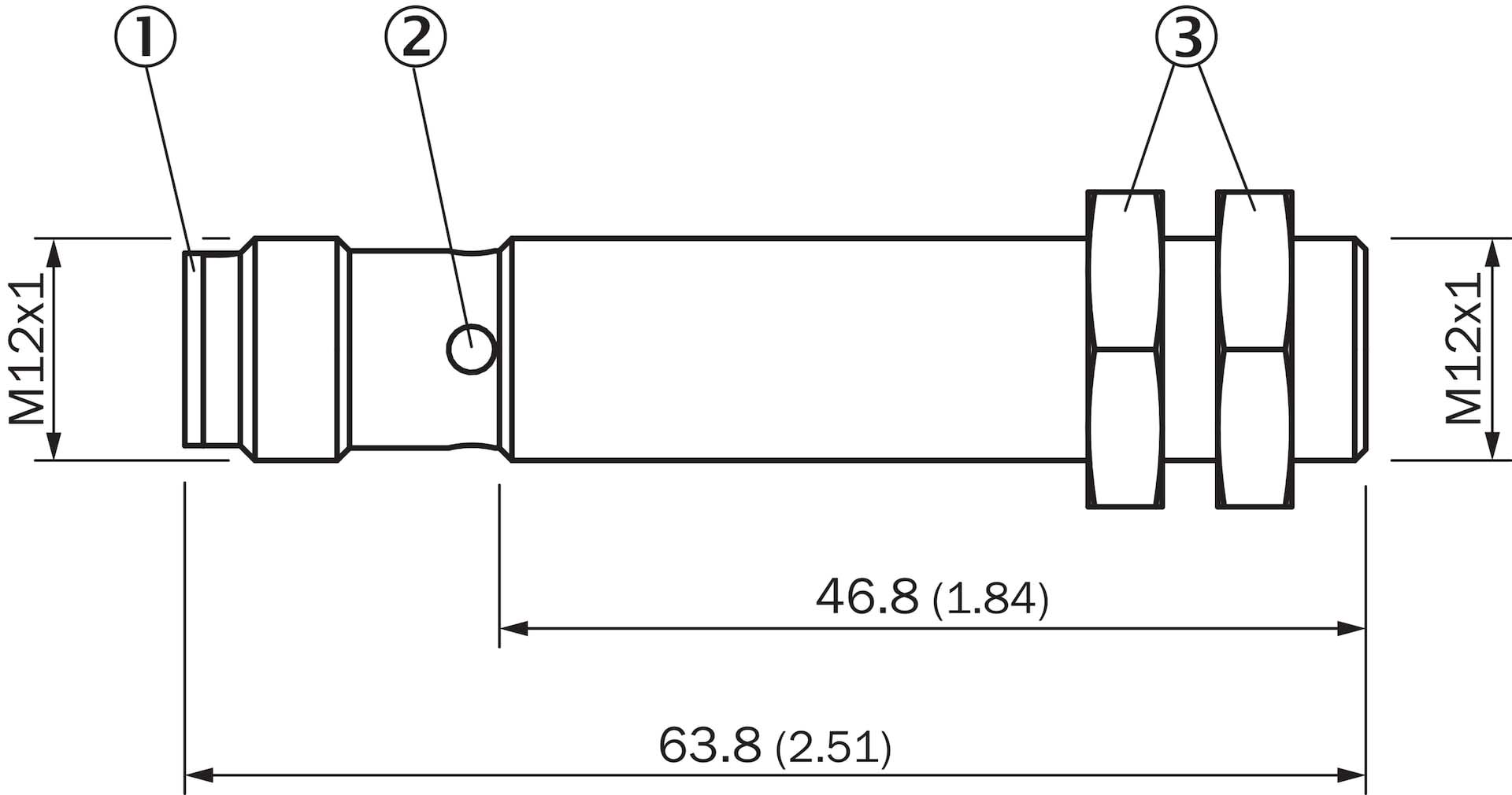

Dimensions diagram IM12 Inox, flush
Size unit: mm
① Interface
② LED indicator
③ Fixing nut (2x); SW 17, stainless steel V4A
