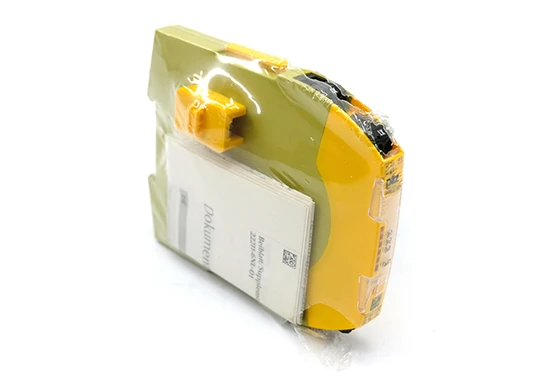

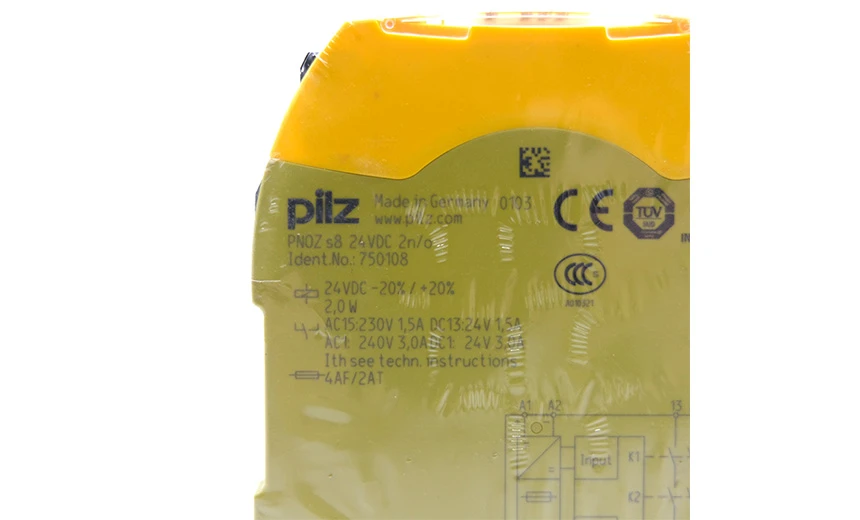

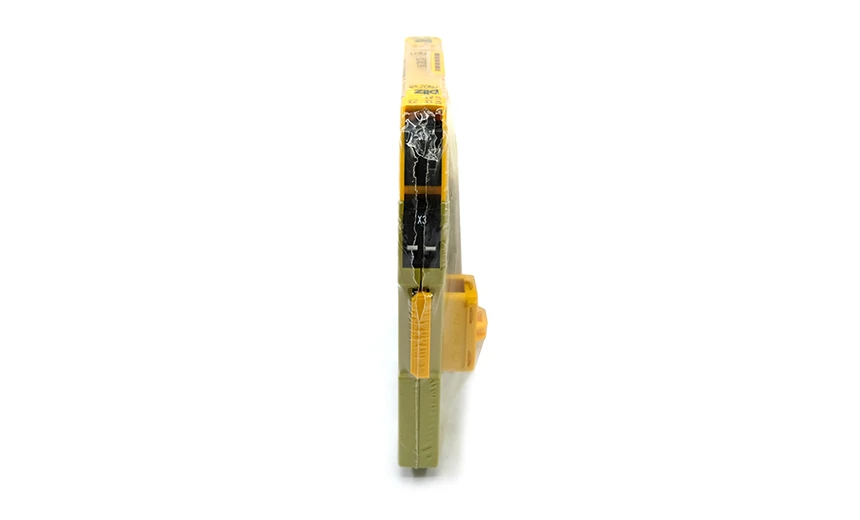

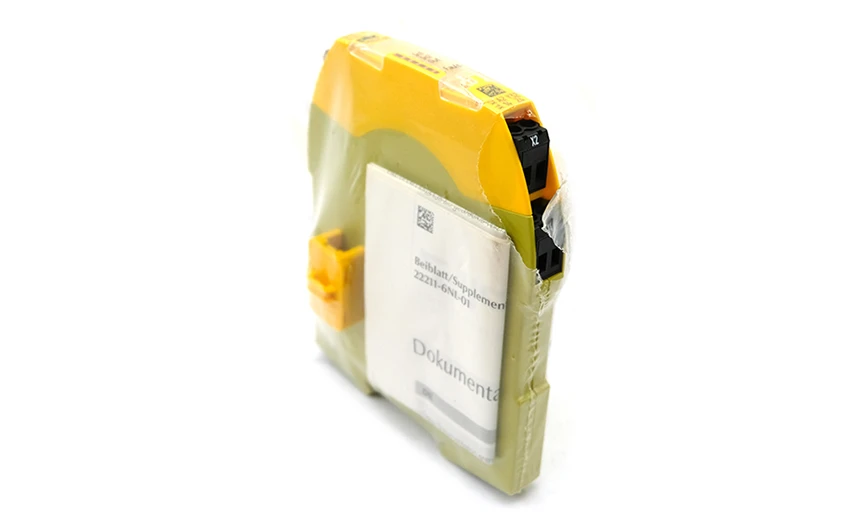

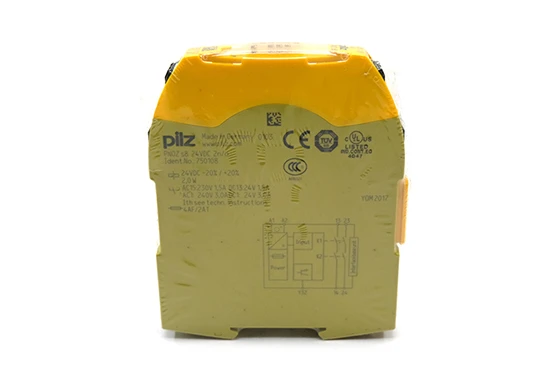

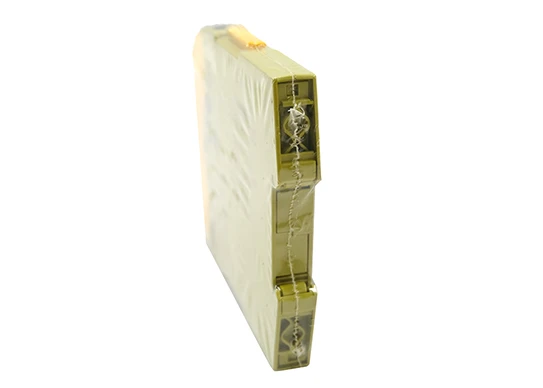

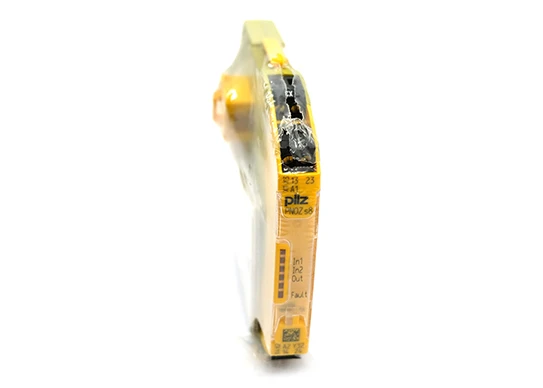

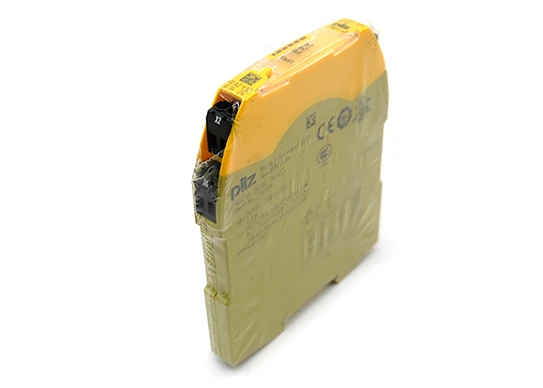

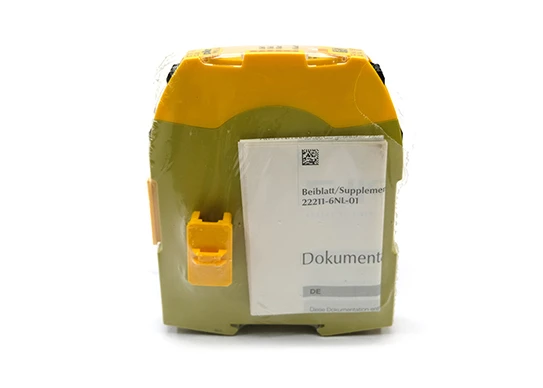

The Pilz 750108 is a powerful PNOZsigma contact expansion module designed for safety-related connection of control elements. It has two normally open contacts (2 N/O) and a semiconductor output. Part of the PNOZsigma series, the module is 12.5mm wide and features pluggable screw terminal connections for quick installation and maintenance.
Brand: PILZ Pilz
Model: 750108
Product size: 10*12*3 with accessories
Net weight: 115g
Product type: Relay
Power supply: direct current
Origin: Germany
Supply voltage (V) : 24V
Power supply voltage type U1: DC
Power consumption DC: 2W
In terms of technical parameters, the module has passed a number of certifications, including CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasia), TUV, etc. Its electrical data show that the power consumption is 2W, one input and one semiconductor output, and the relay outputs for safety control include AC/DC1 and AC15/DC13 standards for 240V AC and 24V DC voltages, respectively, with maximum currents of 3A and 1.5A.
In terms of environment, the Pilz 750108 has a wide range of applicability, operating at ambient temperatures from -10°C to 55°C, with a humidity rating of 93% r.h. at 40°C and no condensation allowed. It meets the requirements of the RoHS Directive, but may contain SVHC substances such as lead and lead oxide.
The mechanical data shows that the installation position of the module can be selected, the housing material is PC, the connection terminal is screw terminal, supports pluggable wiring, and allows the use of 24-12 AWG wire.
Overall, the Pilz 750108 is a fully functional, safe and reliable contact expansion module for a variety of industrial scenarios, providing a stable and effective solution for security control systems.
