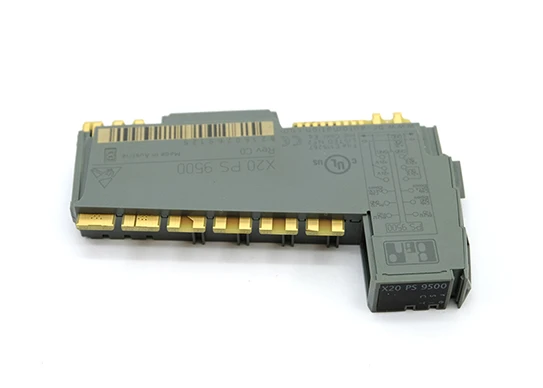

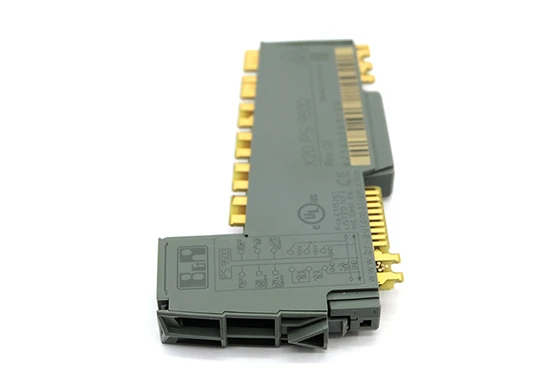

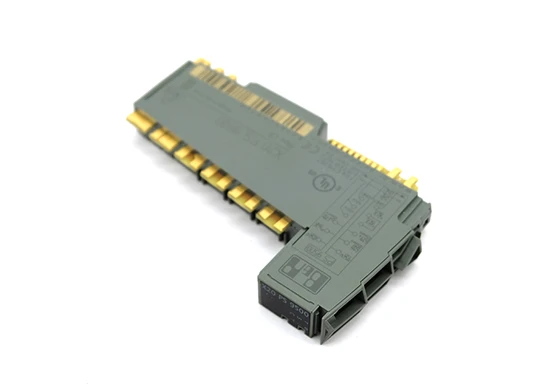

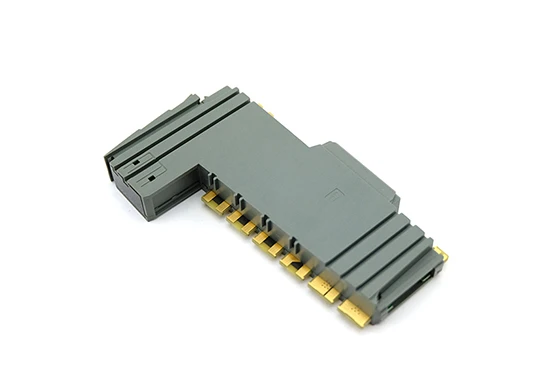

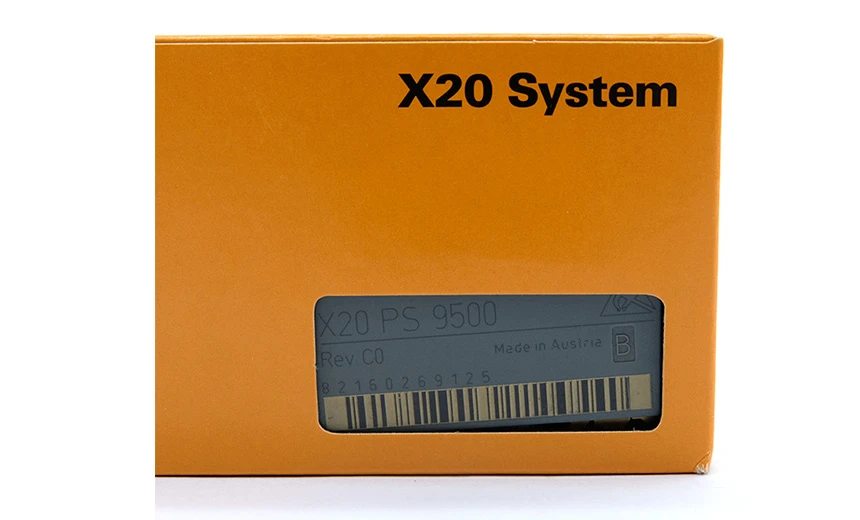

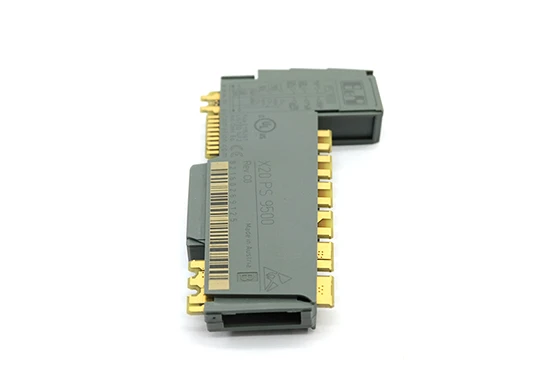

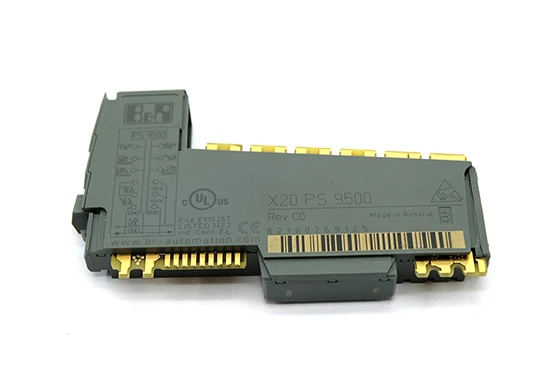

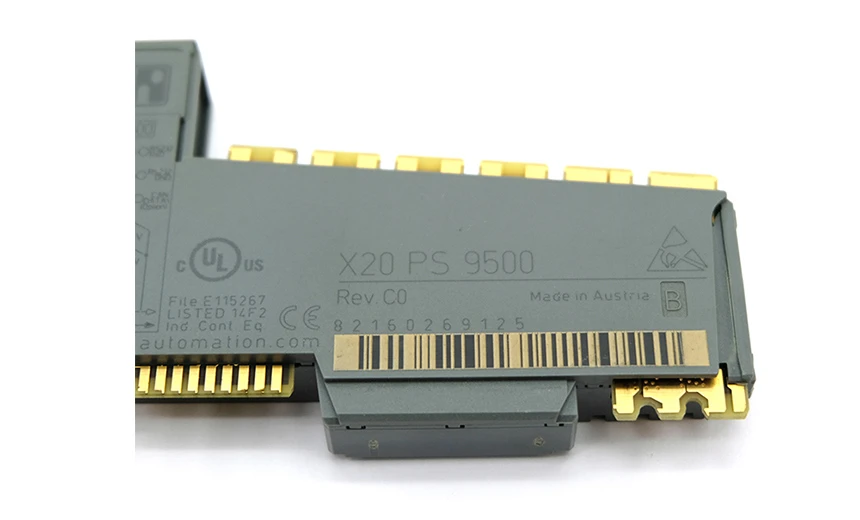

The B&R X20PS9500 is a high-performance power module for industrial automation systems designed to provide reliable 24VDC power for Compact or Fieldbus cpus, X2X Link networks, and internal I/O power supplies. The module has a variety of advanced functions and design features to ensure system stability, safety and flexibility.
Brand: B&R
Model: X20PS9500
Product type: IO module Operating voltage: 24V
Product size with packaging: 10*6*1.5cm Weight: 0.5kg
Place of origin: Austria
Functional features:
1. Multiple power functions: The X20PS9500 power module provides power to Compact or Fieldbus cpus, X2X Link networks, and internal I/O devices, making it the core power solution for industrial automation systems.
2. Electrical isolation: The module has the electrical isolation function between the supply and the CPU/X2X Link power supply, which can prevent the mutual interference between the circuits to ensure the stability and safety of the system.
3. Redundant operation support: The X20PS9500 supports the redundant operation of CPU/X2X Link power supply. Users can achieve redundancy by operating multiple supply modules at the same time to improve system reliability and stability.
4. Flexible interface options: The module is equipped with 1 RS232 interface and 1 CAN bus interface, users CAN configure RS232 as an online interface according to needs, and CAN bus is used for data transmission, providing flexible connection options.
5. Status indicator and diagnosis function: X20PS9500 is equipped with LED status indicator and software diagnosis function, which can help users to monitor the running status, error status and load of the module, discover and solve problems in time, and ensure the stability and reliability of the system.
6. High performance and stability: The module has excellent electrical performance, high reliability, to ensure the long-term stable operation of the system. It supports horizontal and vertical mounting directions and performs well in a variety of industrial environments.
Electrical performance:
Input voltage: 24VDC -15% / +20%
Maximum input current: 0.7A
Maximum transfer rate of the RS232 interface: 115.2 kbit/s
Maximum transfer rate of the CAN bus interface: 1 Mbit/s
Electrical isolation: The CPU/X2X Link power supply is isolated from the CPU/X2X Link supply. The I/O power supply is not isolated from the I/O supply
Environmental adaptability:
Suitable for horizontal and vertical installation
Suitable for installation environments from 0 to 2000 m above sea level, and reduces the ambient temperature by 0.5°C for every 100 m increase over 2000 m
IP20 protection level
Temperature range: Operating -25°C to 60°C (horizontal installation) /-25°C to 50°C (vertical installation); Storage and transport -40°C to 85°C
Relative humidity range: 5% to 95% (non-condensing) for handling, storage and transport
Mechanical characteristics:
Meet the standard size of 12.5+0.2mm for easy installation and wiring
You need to order one 12-pin terminal block X20TB12, one Compact CPU base X20BB22 or X20BB27, and one Fieldbus CPU base X20BB3x/4x
The B&R X20PS9500 power module is a high-performance, highly reliable industrial power solution for a wide range of automation control systems, providing users with a stable, secure and flexible power supply.
