Schneider HMIDT351 HMI Panel – Harmony GTU 7″ WVGA

The Schneider HMIDT351 is an advanced touchscreen panel from the Harmony GTU (Magelis) series with a 7-inch color TFT LCD display (800×480 WVGA, 262K colors) and 12-24V DC power. It provides intuitive interfaces for monitoring, data control, and communication in demanding industrial applications.

Model Number:Schneider HMIDT351 HMI Panel

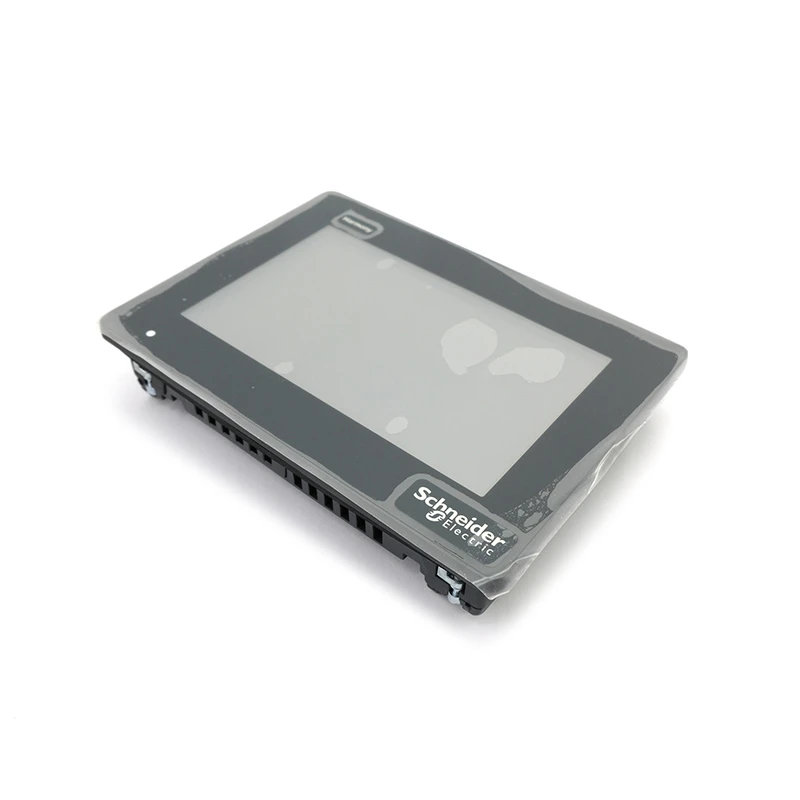

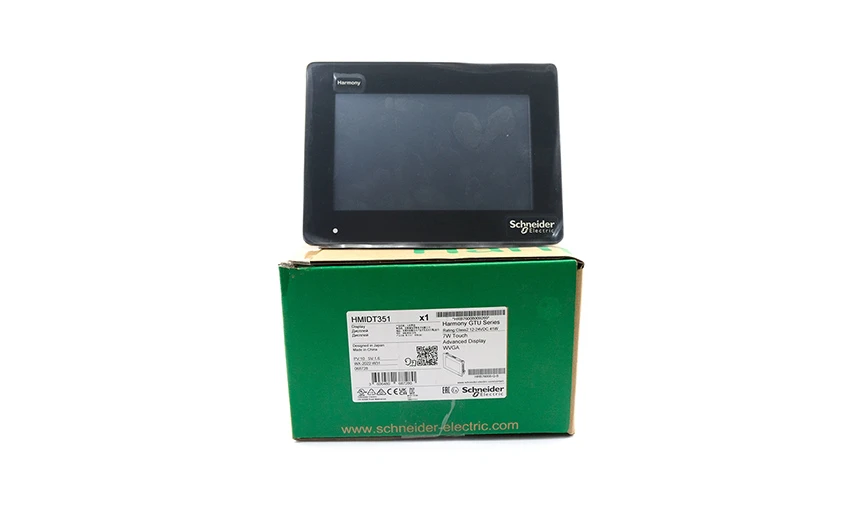

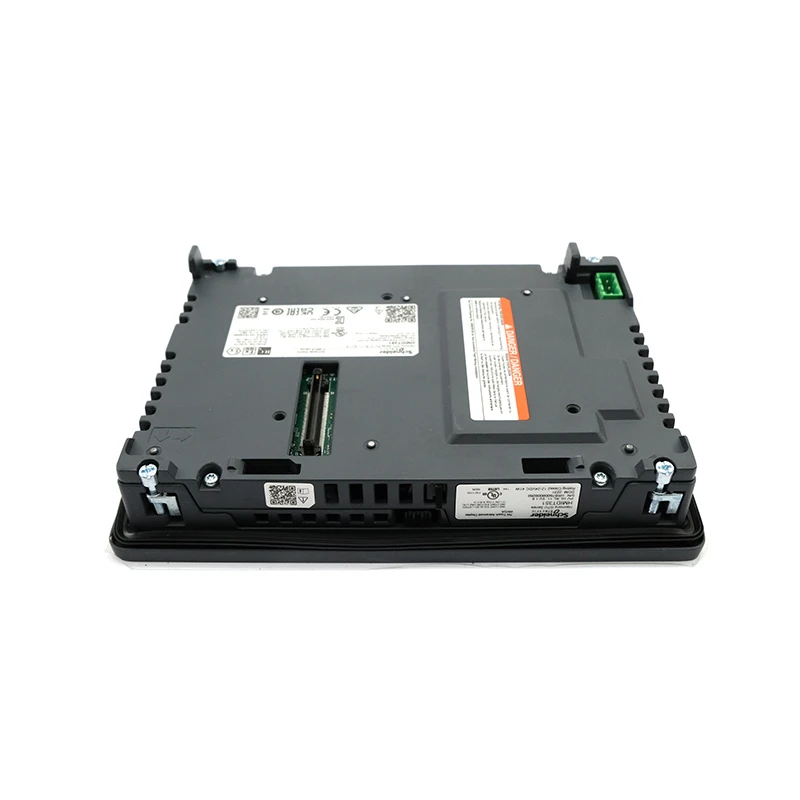

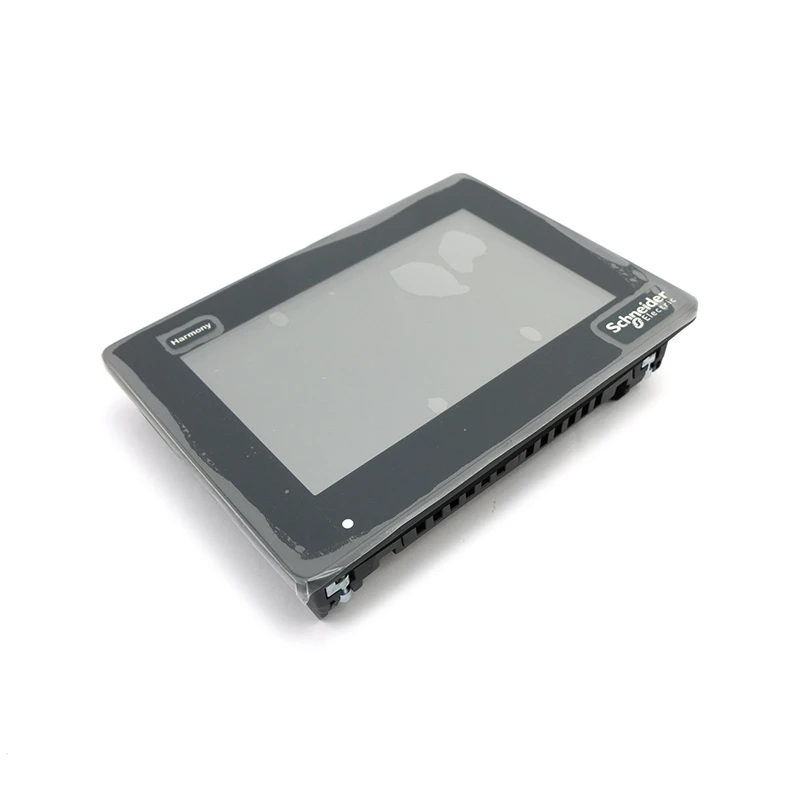

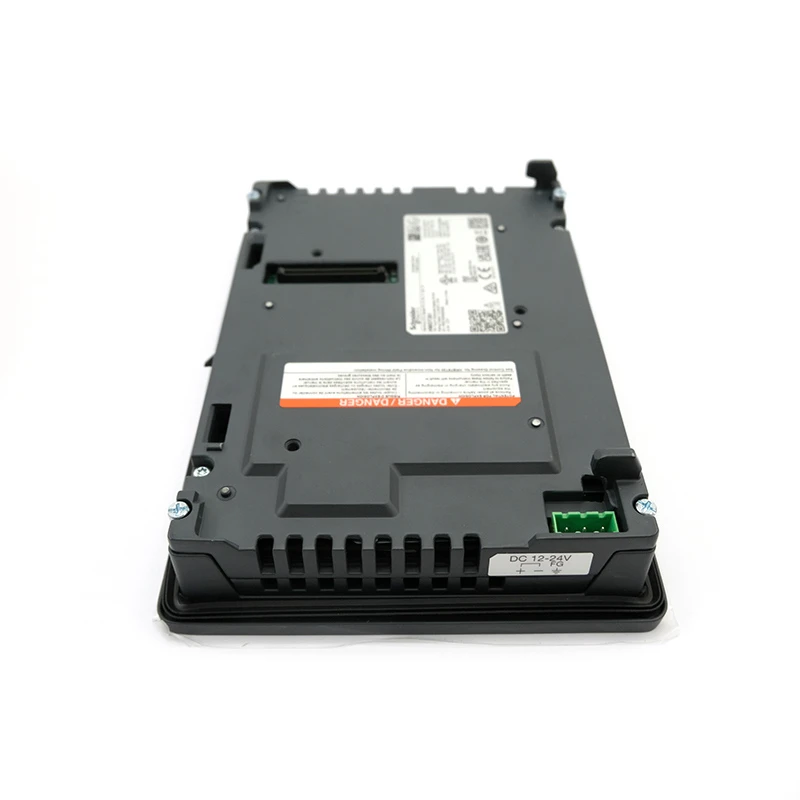

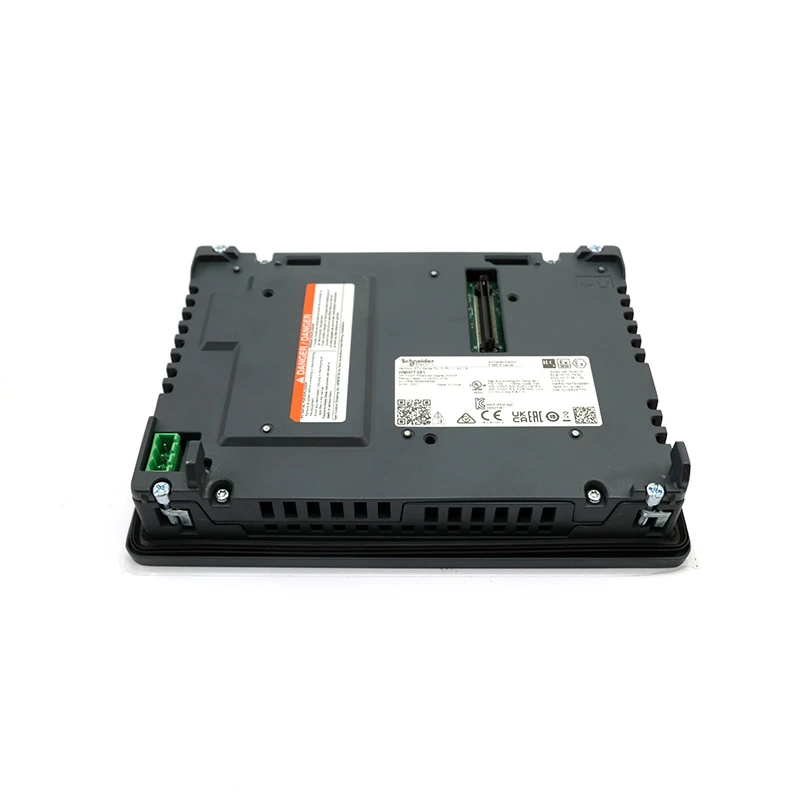

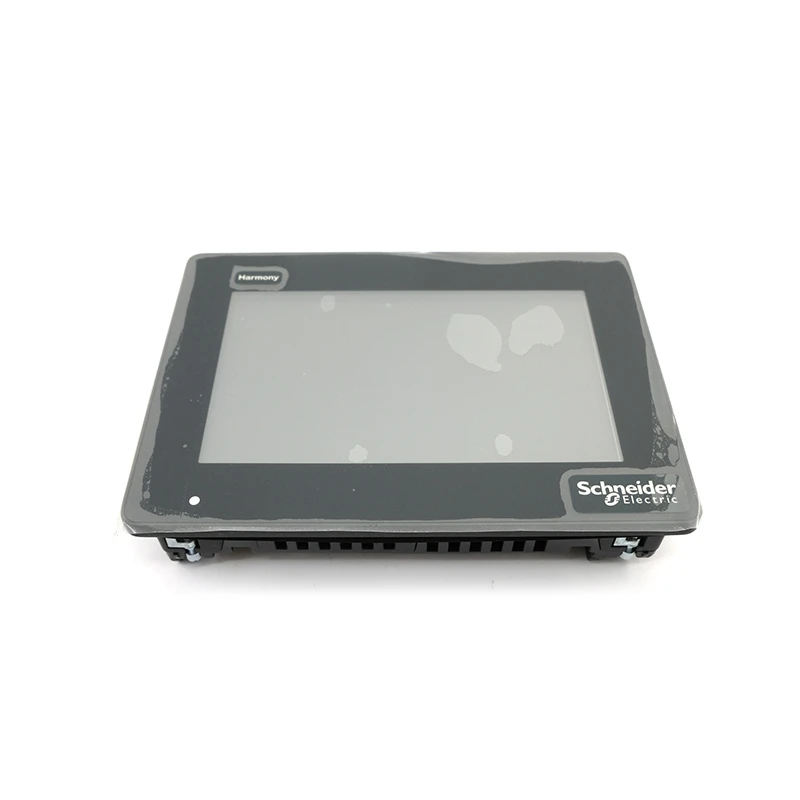

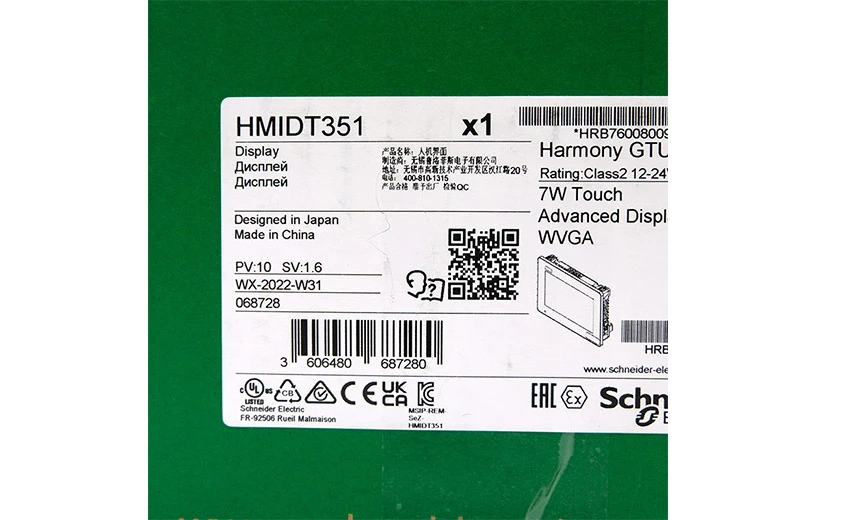

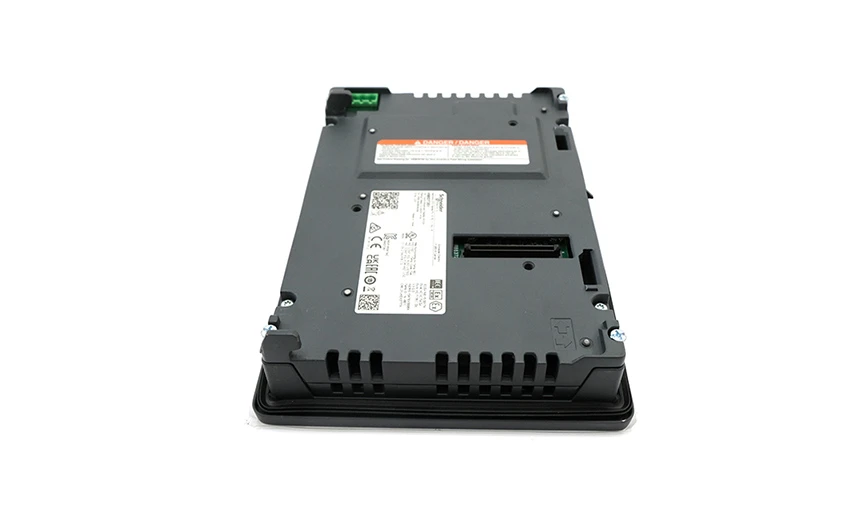

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

Product Description

Platform Compatibility and Uses

The HMIDT351 serves as a universal HMI for industrial control, hazardous locations, and marine setups, displaying text, graphics, synoptics, and configuring data via dual LAN/communication ports. Compatible with automation systems for high-performance monitoring of machinery, processes, and SCADA. Removable storage and smartphone-like UI boost usability.

Technical Implementation

Analog resistive single-touch screen (1024×1024 resolution) on 800×480 pixel WVGA display supports 262K colors for vivid visuals, powered by 12-24V DC (10.8-28.8V limits) with 6.5W consumption and 30A inrush. Backlight lasts 50,000 hours; natural convection cooling handles intensive operations.

Physical Characteristics and Installation

Panel cutout 190x135mm fits indoor panels, with IP66/67/NEMA 4X front protection, 0-60°C operation (-20-60°C storage), 147m/s² shock, and 9.8m/s² vibration resistance. Dimensions 203.6×148.6x36mm at 1.2kg ensure compact mounting.

Key Specifications

Parameter	Specification
Catalog Number	HMIDT351
Platform	Harmony GTU (Magelis)
Display Size	7 inch
Resolution	800 x 480 WVGA
Display Type	Color TFT LCD, 262K colors
Touch Type	Single-touch analog resistive
Supply Voltage	12-24 V DC (10.8-28.8V)
Power Consumption	6.5 W
Operating Temp	0-60 °C
IP Rating	IP66/IP67 front (NEMA 4X)
Dimensions (WxHxD)	203.6 x 148.6 x 36 mm
Weight	1.2 kg
