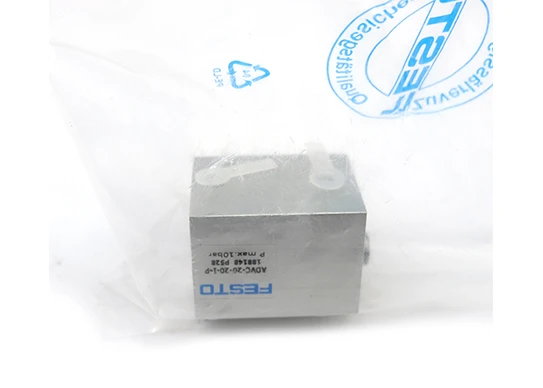

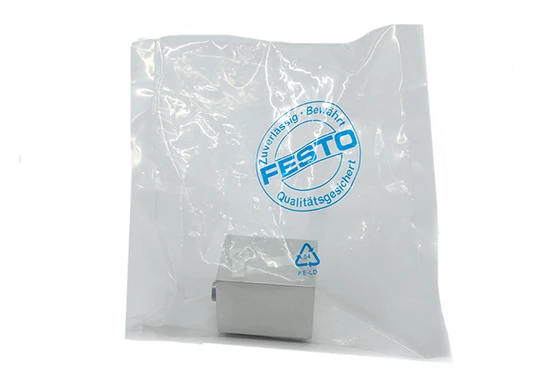

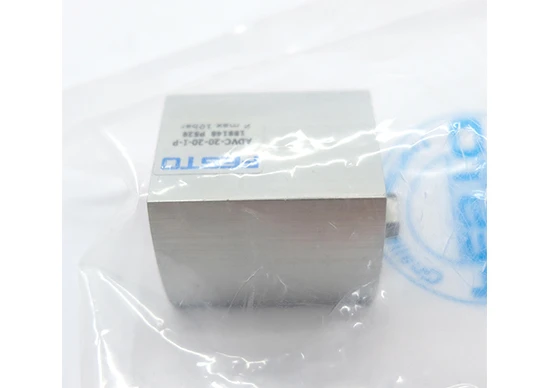

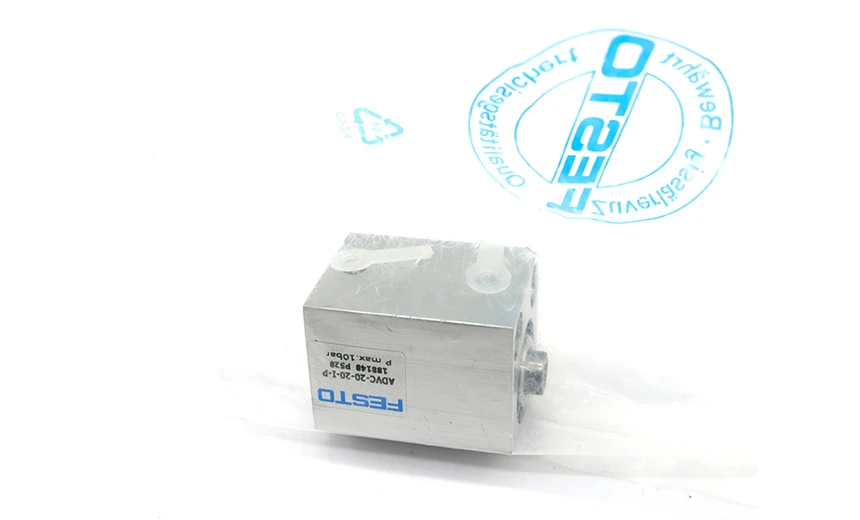

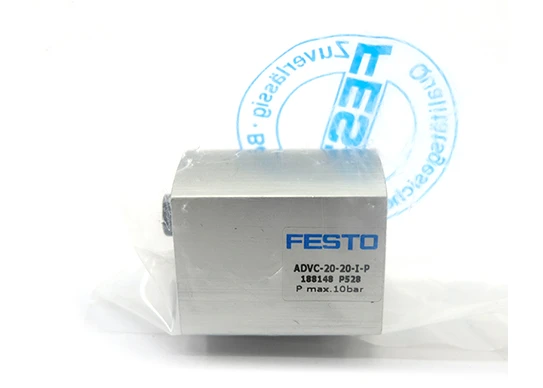

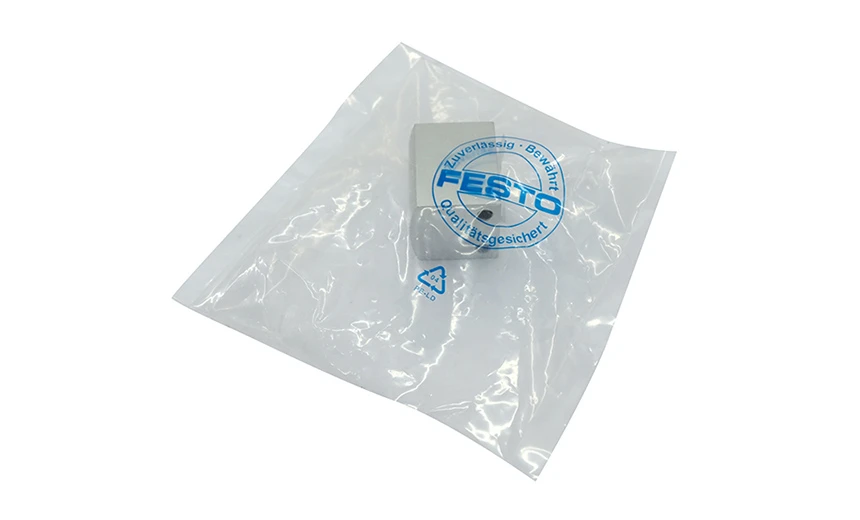

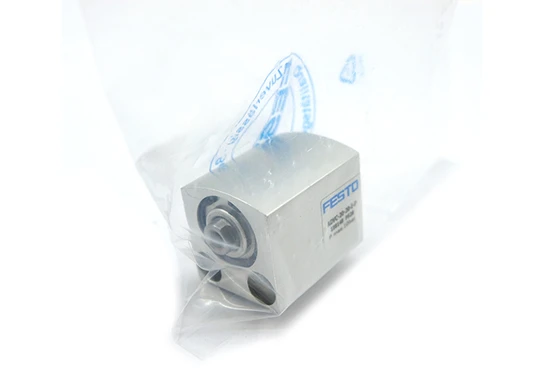

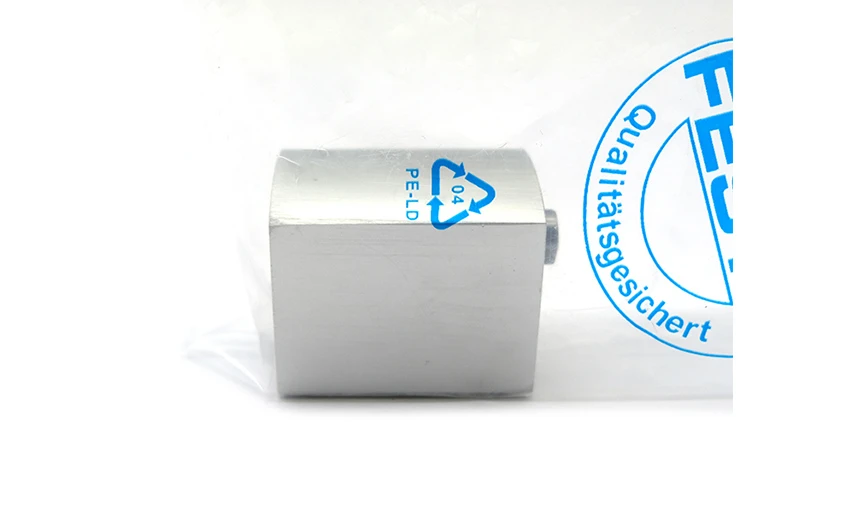

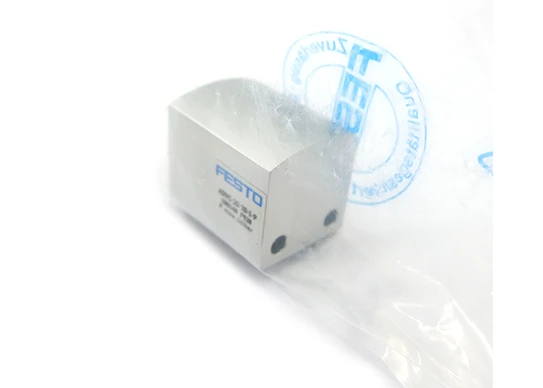

The ADVC‑20‑20‑I‑P is a double‑acting short‑stroke cylinder from Festo’s ADVC series, optimized for minimal installation space and rapid response. It uses a compact pneumatic design with 20 mm stroke and 20 mm piston diameter, providing high force‑to‑size ratio for clamping retainers, work‑piece stops, and small‑motion actuators in tight‑space layouts. The cylinder is commonly used in assembly lines, packaging machines, and CNC work‑holding devices where short, reliable strokes are required without bulky components.
Technically, the ADVC‑20‑20‑I‑P operates at a working pressure range of 0.1–1 MPa (1–10 bar, 14.5–145 psi), with a theoretical force of about 189 N (advance) and 141 N (return) at 0.6 MPa (6 bar), which is sufficient for light‑ to medium‑duty pneumatic tasks. The cylinder features elastic cushioning rings or pads at both ends for smooth deceleration and reduced impact noise, and its M5 pneumatic connections and double‑acting mode simplify integration into standard compressed‑air systems. The piston‑rod‑end is typically threaded (female thread) for easy linkage or tool‑attachment.
Mechanically, the cylinder is built with an anodized refined aluminum‑alloy shell and a high‑alloy‑steel piston rod, sealed with NBR and TPE‑U(PU) seals for durability and wear resistance in industrial environments. It operates reliably within an ambient temperature range of –20 °C to +80 °C and is rated for use with clean, dry compressed air per ISO 8573‑1. The compact dimensions (≈3.5×4.5×3 cm) and a light weight of about 114 g (per Festo datasheet) make it easy to mount in any orientation and suitable for high‑cycle applications such as clamping fixtures and palletizing modules.
