The SICK laser distance sensor DT35-B15251 has the advantages of high precision, strong stability and wide adaptability, which is suitable for various applications in the field of industrial automation requiring distance measurement.
Brand: SICK
Model: DT35-B15251
Product size with packaging: 10*6*5cm
Housing material: Plastic (ABS/PC)
Weight: 0.5kg
Product type: Sensor
Origin: Germany
The SICK Laser Distance Sensor DT35-B15251 is a high performance laser sensor with the following outstanding features and performance:
Mechanical/electronic parameters:
Power supply voltage: can work in the voltage range of DC 12V to 30V, strong adaptability.
Residual ripple: as low as ≤ 5 Vss to ensure stable power output.
Power consumption: low to ≤ 1.7W, can effectively save energy.
Initialization time: Fast initialization, ≤ 500 ms.
Housing material: ABS/PC plastic, lightweight and durable, suitable for a variety of environments.
Shell protection grade: Support IP65 and IP67 grades, suitable for different industrial environments.
Safety technical parameters:
MTTFD: The design life is up to 101 years, to ensure the reliability and stability of the equipment.
Features:
Measuring range: Large measuring range, from 50mm to 12,000mm, suitable for a variety of different measuring requirements.
Resolution: up to 0.1mm, providing accurate measurement results.
Accuracy: The typical error is only ±10mm, to ensure high precision measurement results.
Response time: Adjustable response time, from 2.5ms to 96.5ms, can adapt to different application scenarios.
Switching frequency: Adjustable switching frequency, ranging from 6Hz to 333Hz, to meet the requirements of different scenarios.
Light source: Red laser light source with visible red light, according to IEC 60825-1:2014 and EN 60825-1:2014.
Interface:
IO-Link: Supports IO-Link V1.1 and provides process data, parameter Settings, and diagnosis functions, facilitating remote monitoring and control.
Digital output: Support reverse pulse PNP/NPN output type, maximum output current ≤100mA.
Analog output: Support current output and voltage output, resolution up to 12 bit.
Environmental parameters:
Operating ambient temperature: suitable for operating ambient temperature from -30°C to +55°C.
Warehouse ambient temperature: can be stored in the temperature range of -40°C to +75°C.
Vibration and shock resistance: in accordance with EN 60068 standards, can withstand a certain degree of vibration and shock.
The SICK laser distance sensor DT35-B15251 has the advantages of high precision, strong stability and wide adaptability, which is suitable for various applications in the field of industrial automation requiring distance measurement.

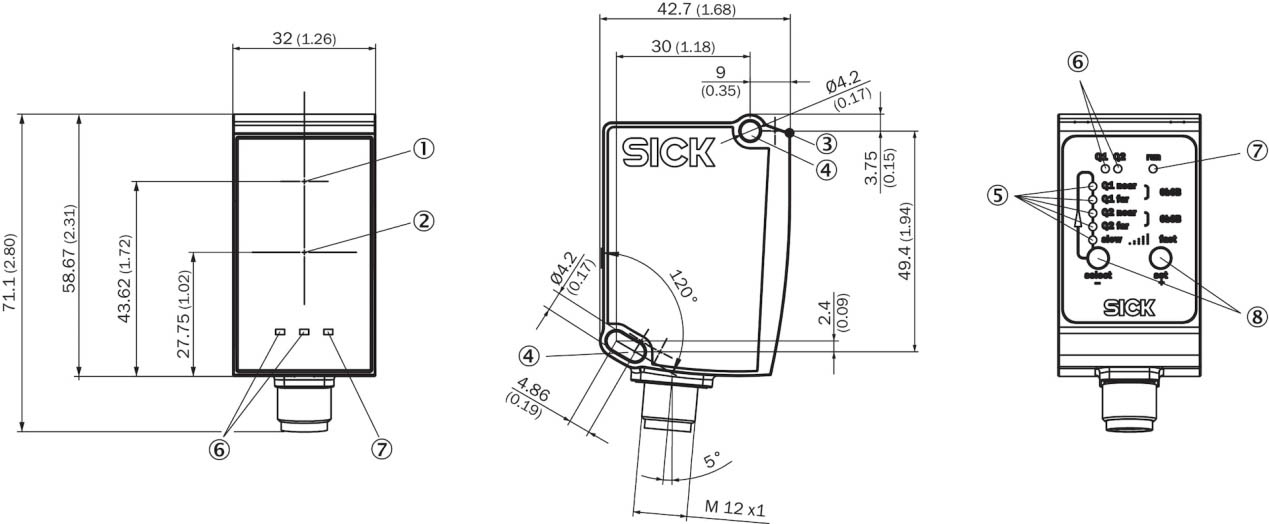

(Size)
(Connection type M12 male plug, 5 pins)

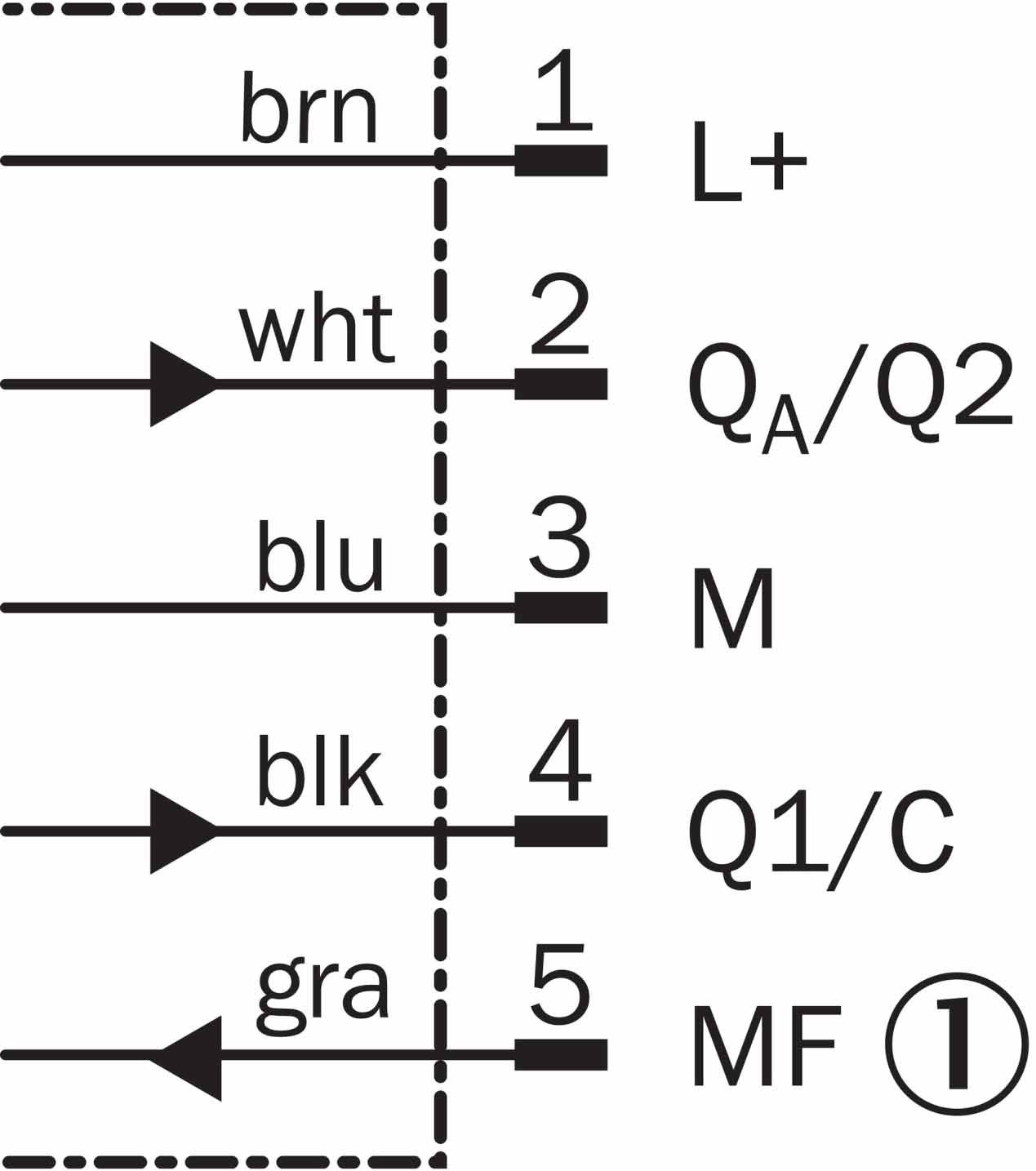

[Wiring Diagram] ① Function Input (MF)
