Origin: USA
Brand: AB

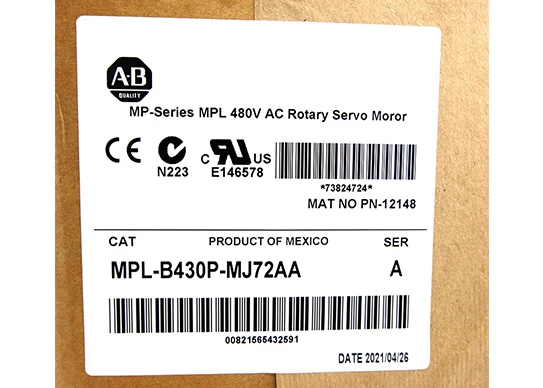

Model: MPL-B430P-MJ72AA
Size: 31*21.5*23.5cm
Weight: 6kg
Operating voltage: Standard V
Output frequency: standard kHz
Product certification: ccc

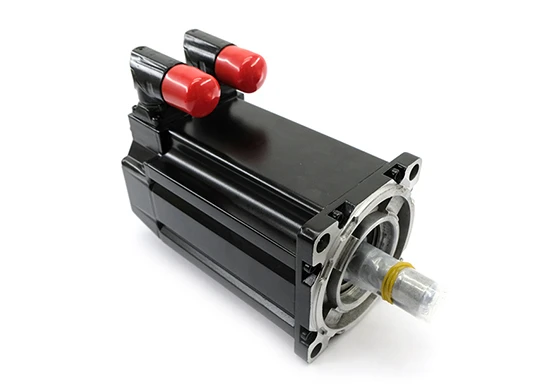

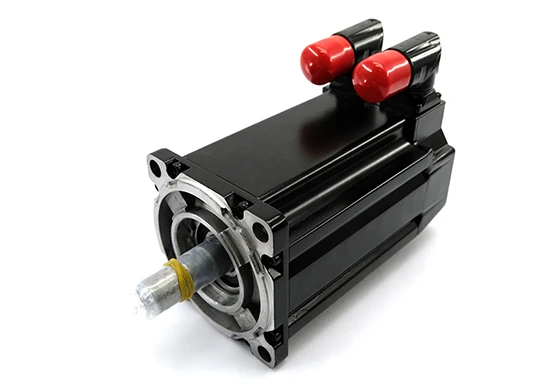

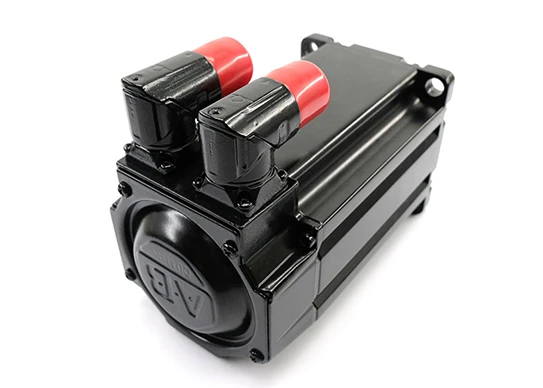

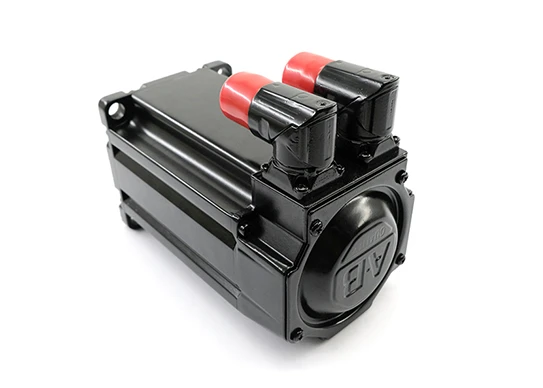

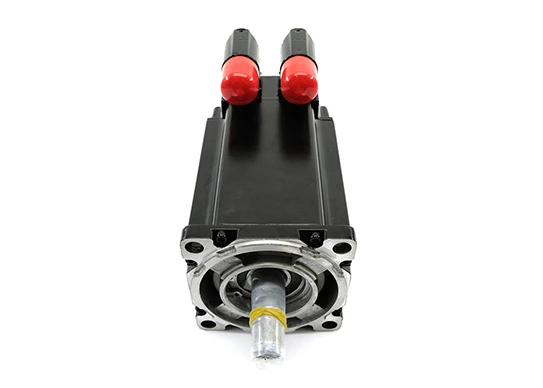

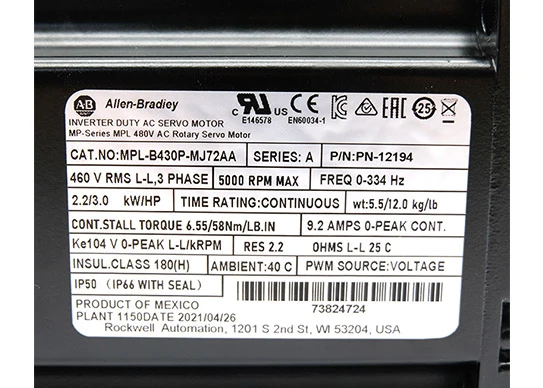

The Allen-Bradley MPL-B430P-MJ72AA is an MP series low inertia servo motor. Part of the MP series, this motor features a high-output brushless design and is specifically designed to reduce motor size while increasing output torque.
The MPL-B430P-MJ72AA has a rated speed of 5000 RPM and an output power of 2.2 kW. It has a rotor inertia of 0.00038 kg/m2 or 0.0033 LBS/inch. -s2. It has a sustained stall torque of 6.55 nm or 58 pound-inches. ; Peak stall torque is 19.8 nm or 175 lb-inches. ; Continuous stall current of 9.2 amps (peak 0) and peak stall current of 32.0 amps (peak 0). This servo motor belongs to the 400 V class and is specially designed for a rated supply voltage of 460VAC. It is a frame 4 motor with a magnet stack length pf 76.2 mm or 3.0 inches. It is equipped with a circular (SpeedTec) DIN connector and can be rotated 180° at right angles. For position feedback, the servo motor uses a multi-turn high-resolution encoder and is equipped with a shaft key without a shaft seal. The shaft seal kit for MPL-B430P-MJ72AA is MPL-SSN-A4B4. When the optional shaft seal is installed, the motor is rated IP 66 and dust, strong spray and room temperature water are prevented from entering the device. If there is no shaft seal, the motor grades are IP53, IP 51 and IP 50 according to the motor orientation.
The operating temperature of the servo motor is required to be 0-40°C or 32-104°F, while the storage temperature is 30-70°C or -22-158°F. In addition, the motor must be stored in a non-corrosive environment.
The MPL-B430P-MJ72AA servo motor operates in a temperature range of 32 to 104 degrees Fahrenheit or 0 to 40 degrees Celsius. The MPL-B430P-MJ72AA has an environmental rating of IP66 housing with water and dust resistance, optional shaft key extension, relative humidity range of 5-95% and no condensation. With a speed of 5000 RPM, this powerful motor is equipped with a SpeedTEC DIN connector and can be rotated at a right Angle of 180 degrees. This low inertia motor has a rated AC voltage of 460 volts and an output power of 2.2 kilowatts. The Allen-Bradley MPL-B430P-MJ72AA low inertia motor is also capable of operating under constant shaft loads. The motor has an axial load rating of 15 kg (42 lb) for maximum radial load and 25 kg (55 lb) for zero radial load. The radial load is rated at 49 kg (109 lb). Allen-bradley servo motors provide continuous and peak stall torque capability. This highly dynamic servo motor has a peak stall torque of 19.8 nm (175 pounds per inch) and a continuous stall torque of 6.55 nm (58 pounds per inch). The continuous stall current rating is 9.2 amps (0 peak) and the peak stall current rating is 32 amps (0 peak). Other specifications for the motor include a stack length of 30 (76.2 mm or 3.0 inches), frame size of 4, and free mounting holes (F-shaped). It has no brakes. In addition, Allen-Bradley MPL-B430P-MJ72AA servo motors are commonly used in the Ultra3000, Kinetix 7000, Kinetix 2000 and Kinetix 6000 servo drive series.
