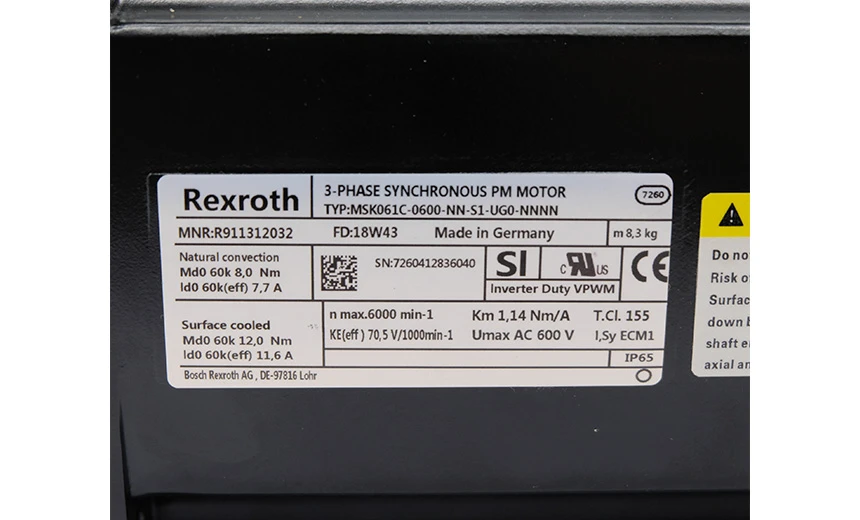

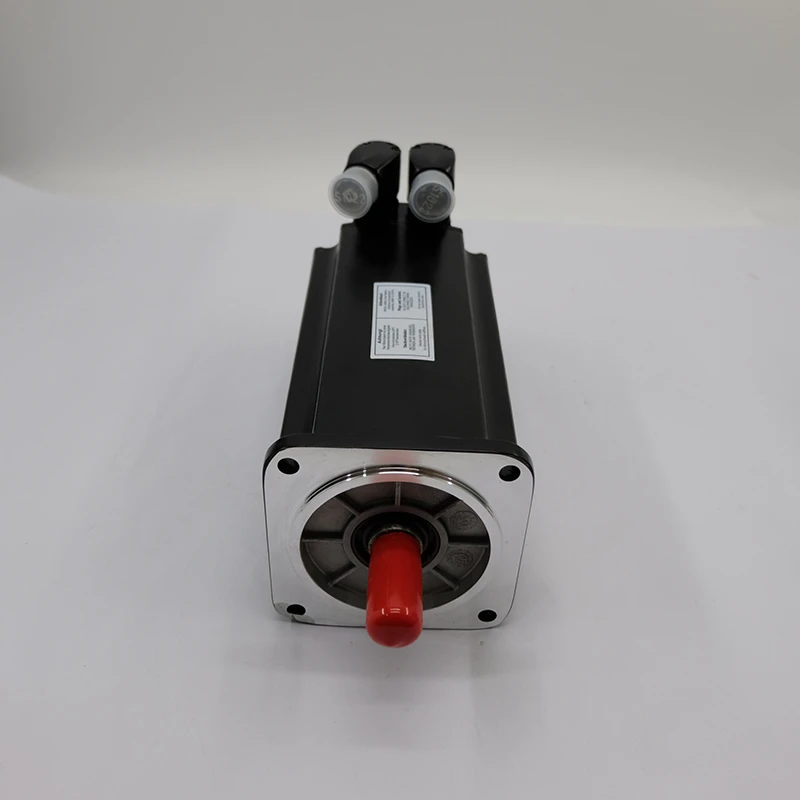

The MSK061C‑0600‑NN‑S1‑UG0‑NNNN is a permanent‑magnet, 3‑phase synchronous servo motor in the IndraDyn S / MSK family, designed for use with IndraDrive and compatible servo amplifiers in precision machine tools, industrial robots, and packaging equipment. The code indicates motor size 061 (medium/large frame), length C, and winding code 0600, which corresponds to a high‑torque, high‑speed design typically running at ≈3000 rpm with a continuous standstill current of 8.7 A and natural‑convection cooling (no external fan or liquid cooling).

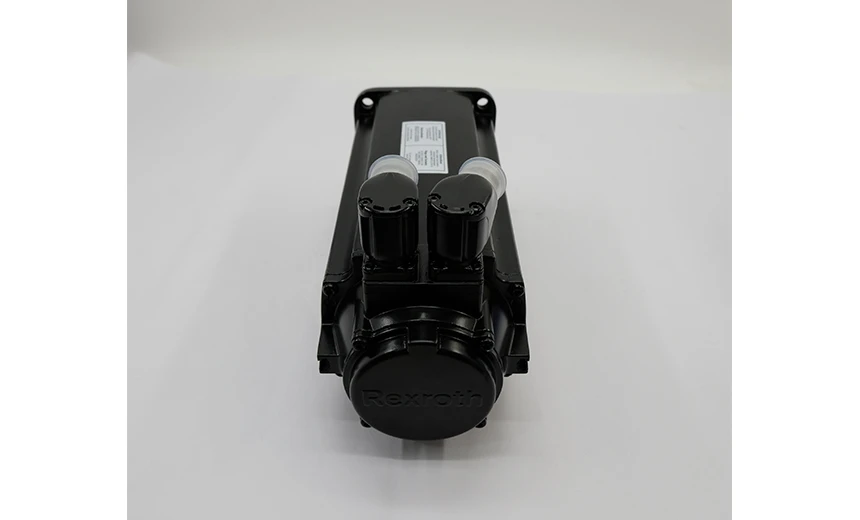

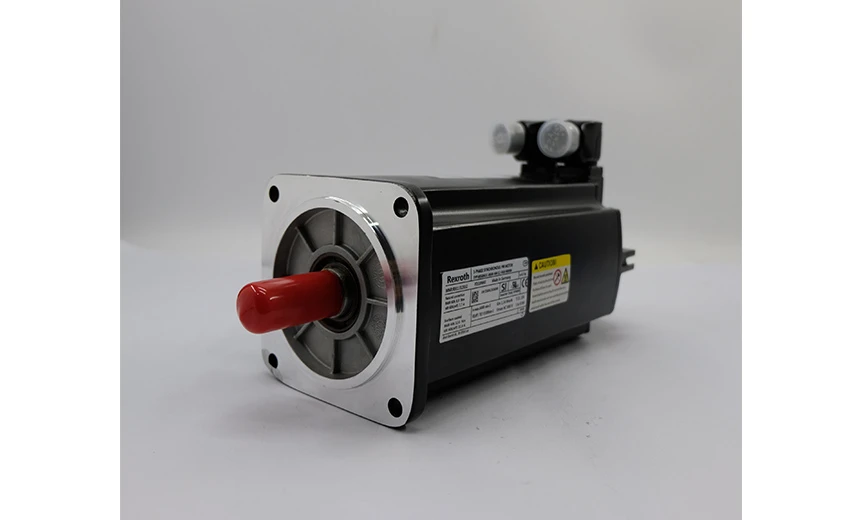

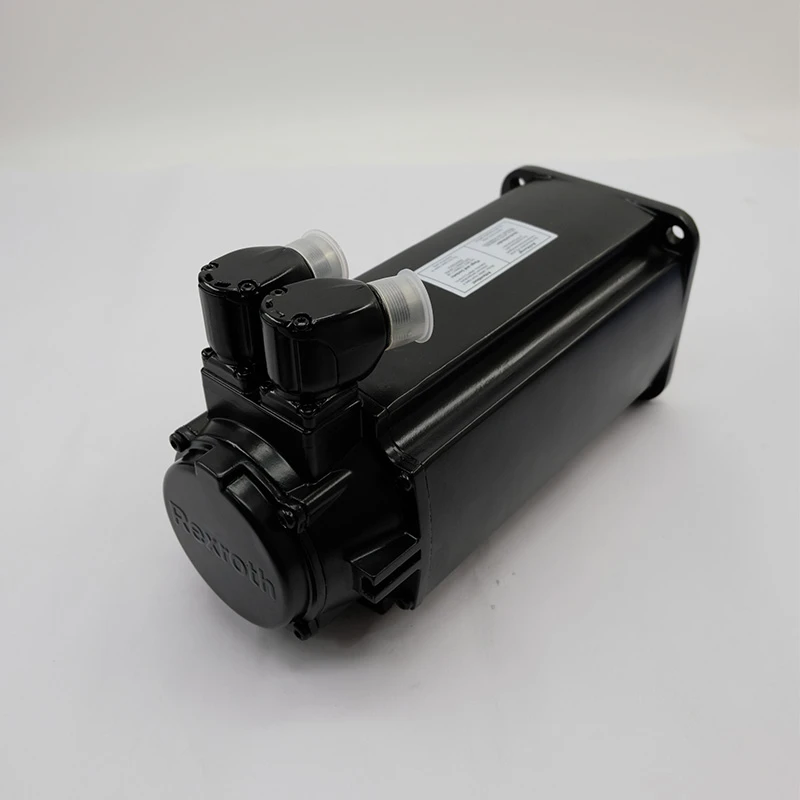

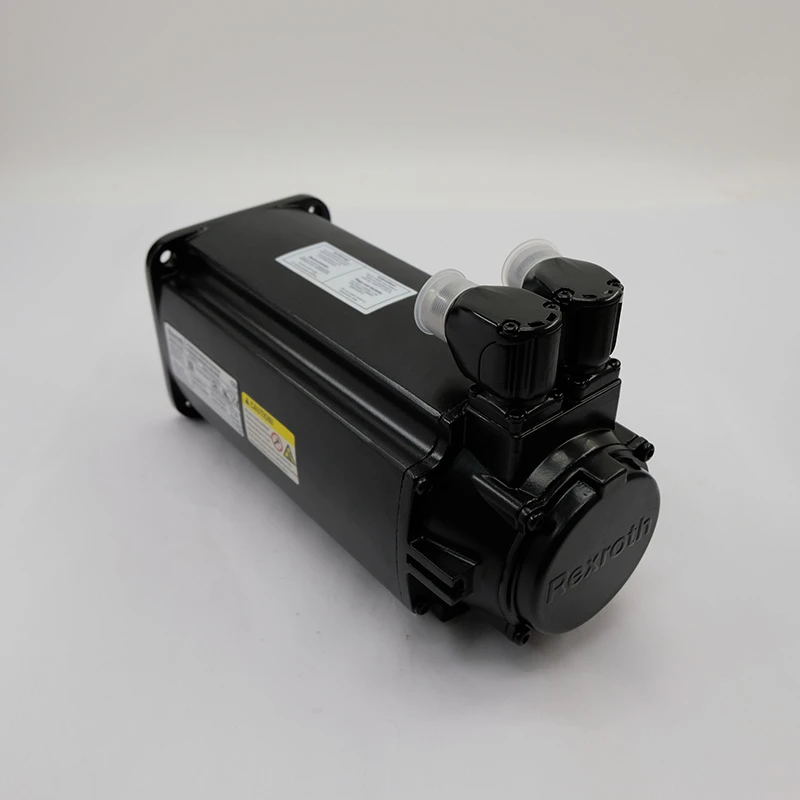

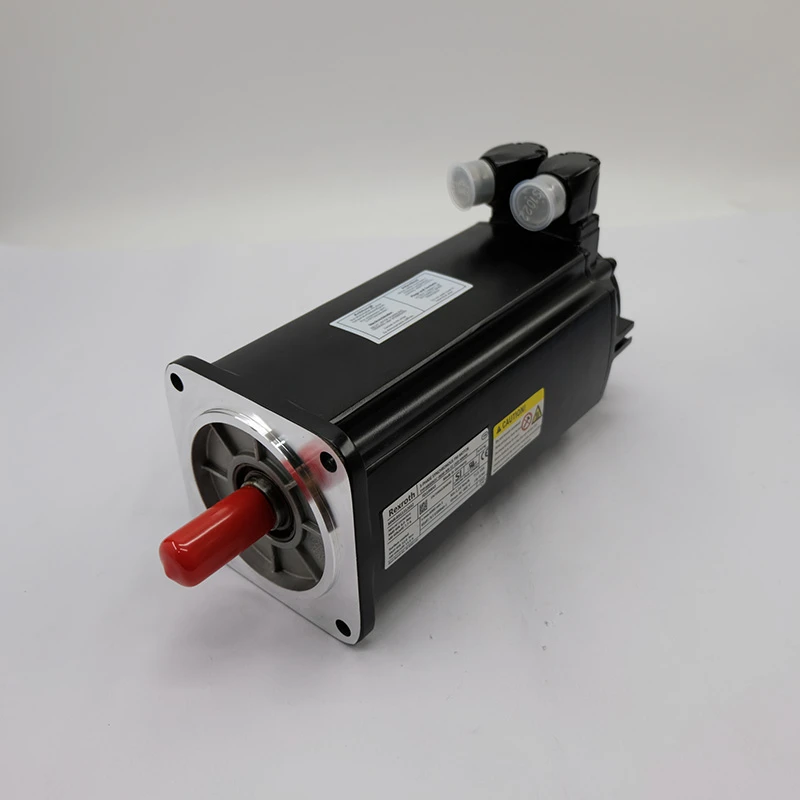

Technically, the motor uses an optical singleturn encoder with 128 signal periods and Hiperface interface, providing high‑resolution position feedback without batteries for multi‑turn data. The encoder is connected via a 240°‑rotatable plug connector (U‑code), easing cable routing and replacement in tight machine‑tool spaces. The shaft is plain (smooth) with a standard shaft‑sealing ring, suitable for direct coupling or via flexible shaft couplings. The motor has no integrated electric‑release holding brake (0‑code), so any holding function must be provided mechanically or via the drive’s control logic.
Mechanically, the unit has a “C”‑length housing, giving a compact but powerful profile with a weight of about 8.3 kg, and is rated for standard industrial ambient temperature and vibration. The IndraDyn S design emphasizes high torque density, short thermal time constant (≈15 minutes), and low rotor inertia, making it suitable for axes requiring fast acceleration, short positioning cycles, and minimal overshoot. Typical applications include CNC milling and turning spindles or feed drives, robotic joints, and high‑speed indexing tables where a no‑brake, high‑performance servo motor is acceptable.
