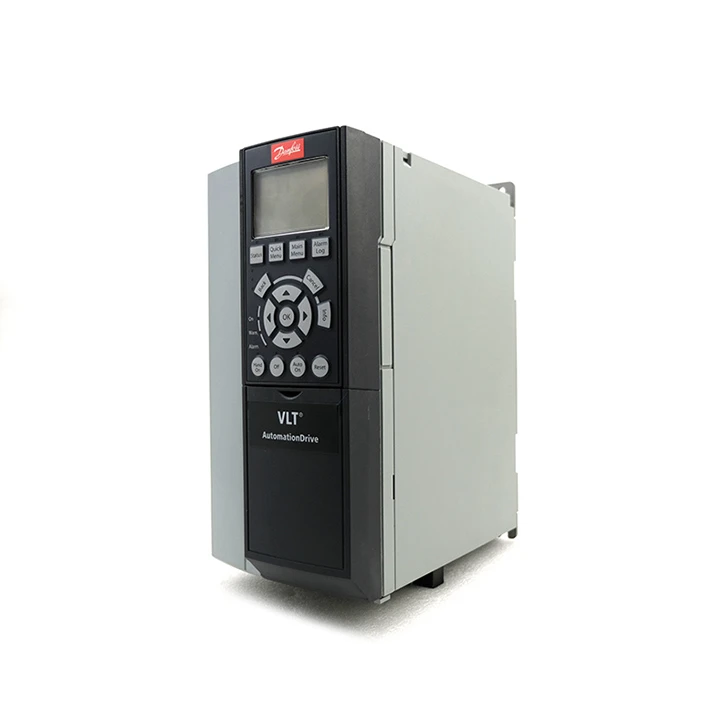

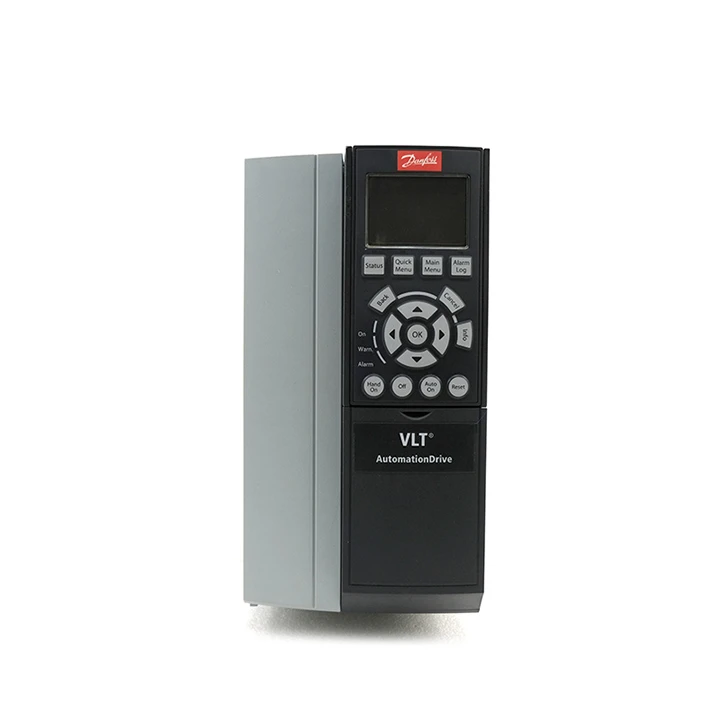

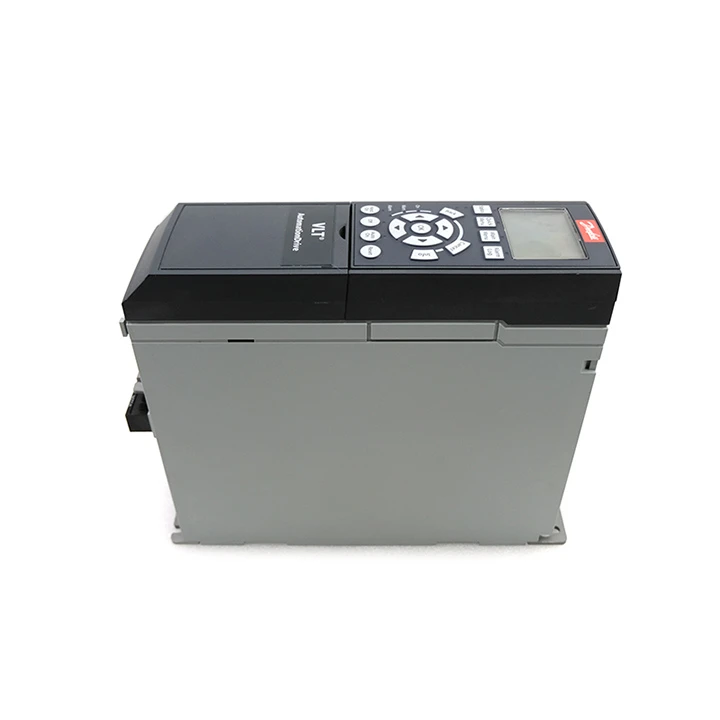

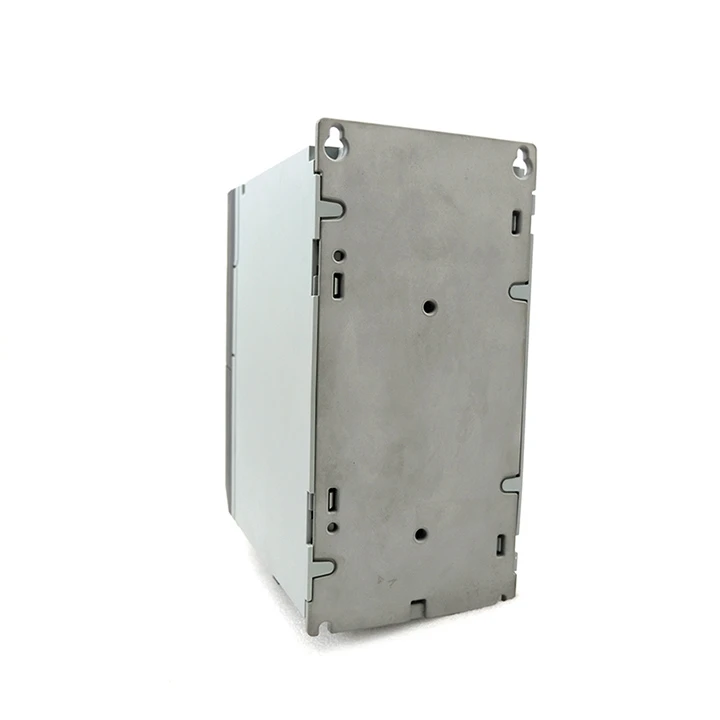

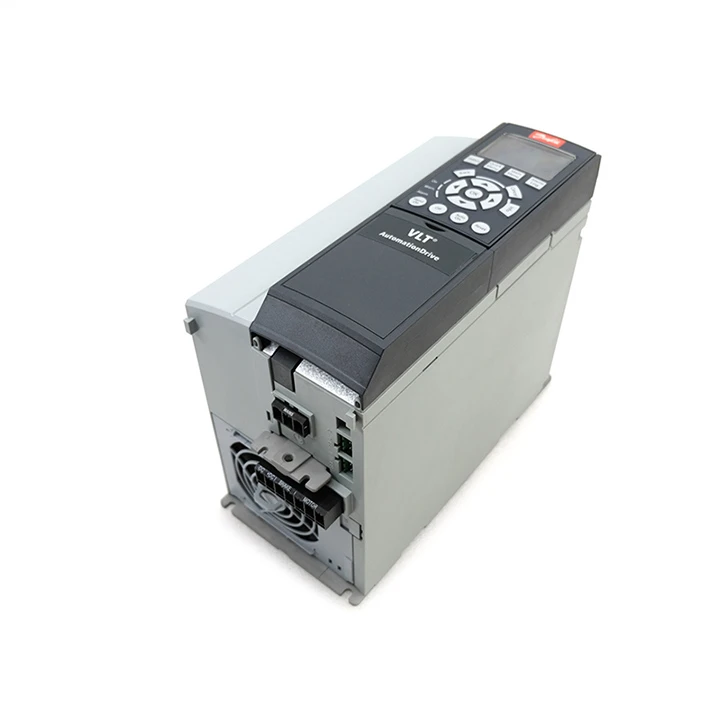

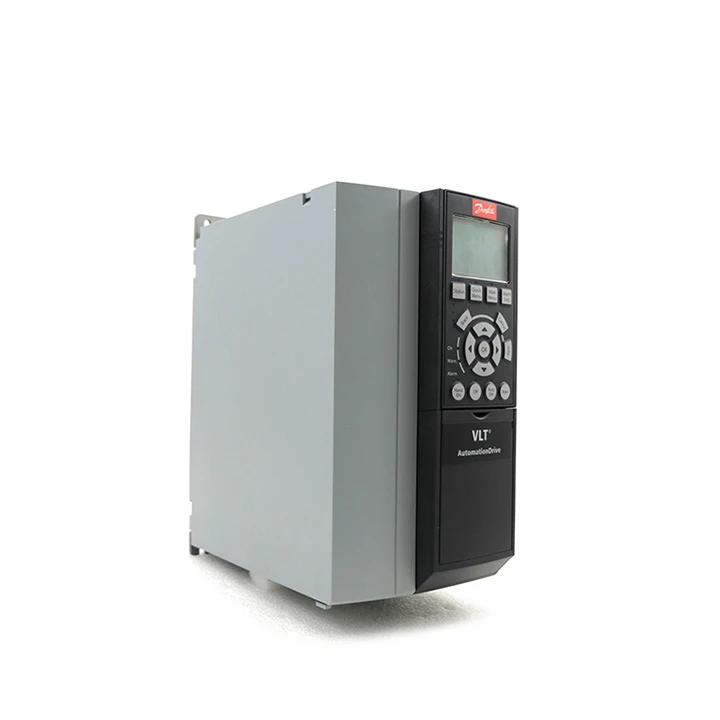

Danfoss p5k5t5e20h1bgxxxxsxxxxa0bxcxxxxdx inverter FC - 302 is a high performance, multi-function electric control equipment, applicable to all kinds of industrial scene, can effectively improve the production efficiency and system reliability.
Brand: Danfoss
Size: 38.5*19.5*19.5cm
Weight: 7kg
Type: Inverter
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product view (Switch) | GLBL | Global (standard) |
Product category | FC- | VLT® AutomationDrive FC- |
series | 302 | 302 |
Rated power | P5K5 | (P5K5) 5.5KW / 7.5HP |
phase | T | Three phase |
Main supply voltage | 5 | 380 - 500 VAC |
chassis | E20 | (E20) IP20 / rack |
Radio-frequency interference filter | H1 | (H1) Class A1/B RFI (C1) |
Brake - Stop safely | B | Brake chopper |
LCP | G | Graphical local control panel |
Coated PCB | X | Uncoated PCB |
Main power option | X | No main power option is available |
Adjustment A | X | Standard cable inlet |
Adjustment B | X | unadjusted |
Software version | SXXX | Latest version standard standard |
Software language pack | X | Standard language pack |
A option | A0 | PROFIBUS DP MCA 101 |
B Option | BX | Option B is not available |
C0 Option MCO | CX | None C0 option |
C1 Options | X | No C1 option is available |
C Optional software | XX | No software option |
D Option | DX | There is no D option |
Frame size | A3 | A3 |

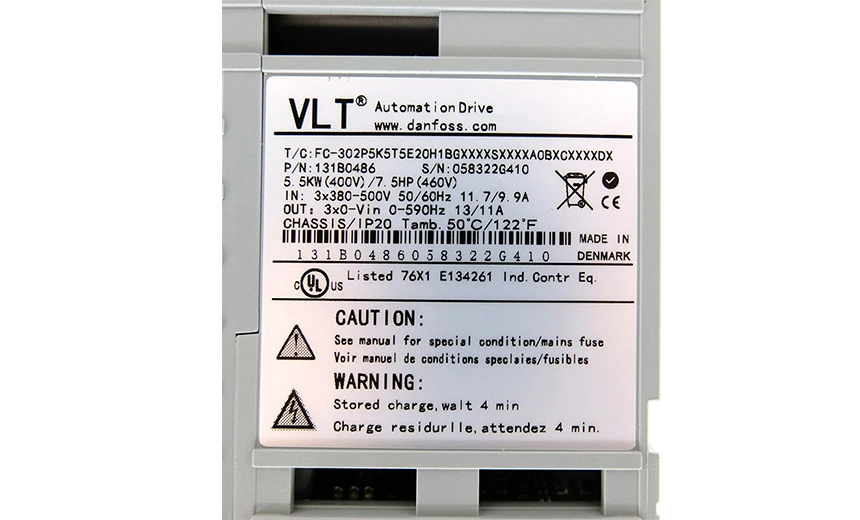

Type code Part 1 | FC-302P5K5T5E20H1BGX | |
Type code Part 2 | XXXSXXXXA0BXCXXXXDX |
1. Manufacturer: Danfoss is a leading engineering company dedicated to providing control solutions with high performance and reliability.
2 models: p5k5t5e20h1bgxxxxsxxxxa0bxcxxxxdx FC - 302 type code provides detailed technical specifications and features of the information.
3. Power and performance: With a rated power of 5.5 kW, the inverter offers excellent performance to meet the needs of a wide range of industrial applications, including motor speed control and torque control.
4. Functional features: In addition to the basic speed and torque control functions, the inverter also has dynamic braking, overload protection and a variety of operating modes, such as constant current control.
5. Technical specifications: According to the model code, the input/output voltage, control mode and other technical parameters can be understood to ensure compatibility with the existing system, and provide flexible integration and application.
6. Application: Danfoss inverter is widely used in industrial production, manufacturing, wind energy and water treatment and other fields, for precise control of various types of motors, improve production efficiency and energy utilization.
7. Advantages and value: The inverter has the advantages of high efficiency, strong reliability, easy installation and easy maintenance, which helps to reduce energy costs, improve production efficiency and system reliability, and achieve long-term economic benefits.
Overall, danfoss p5k5t5e20h1bgxxxxsxxxxa0bxcxxxxdx inverter FC - 302 is a high performance, multi-function electric control equipment, applicable to all kinds of industrial scene, can effectively improve the production efficiency and system reliability.
