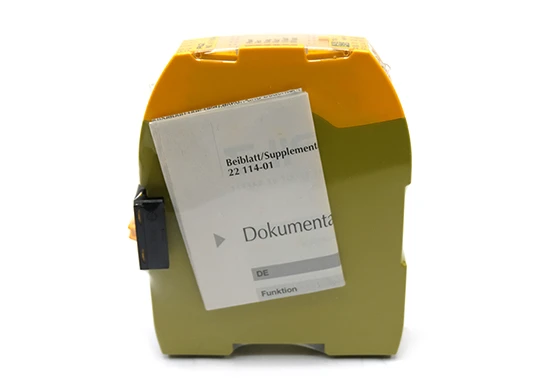

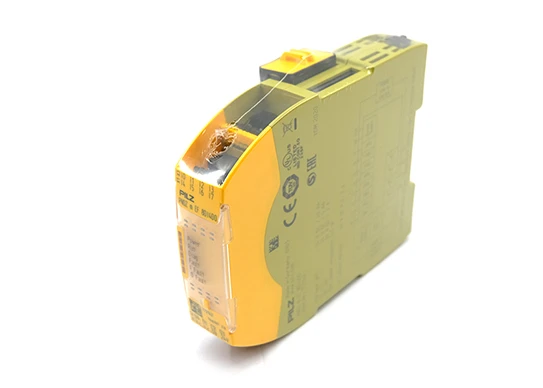

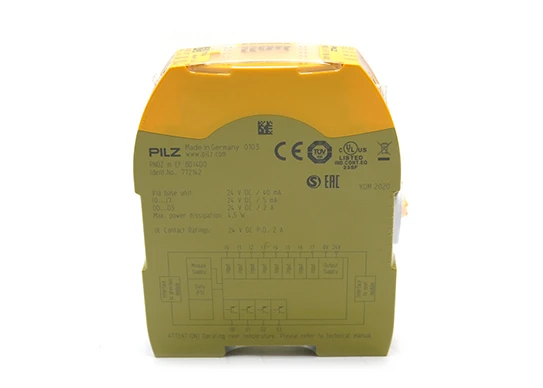

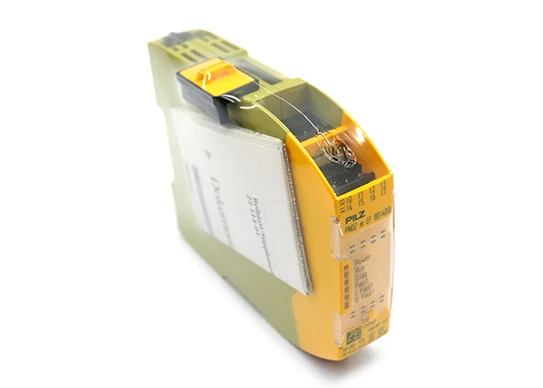

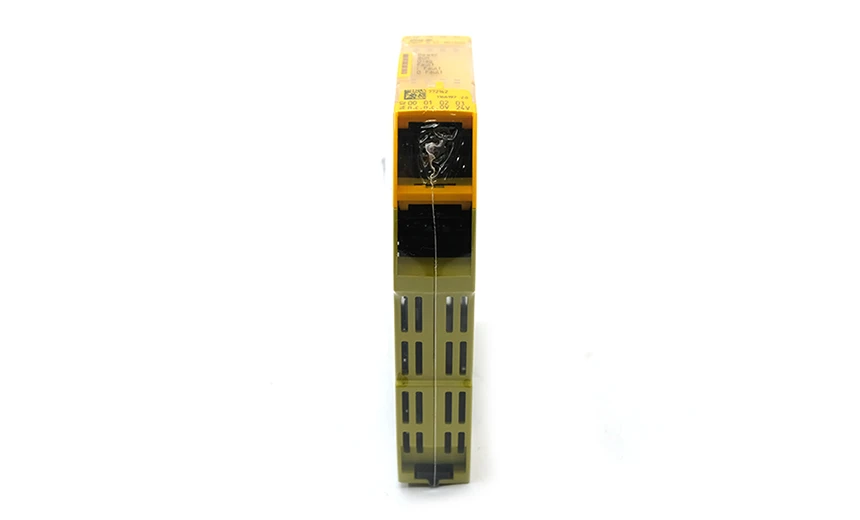

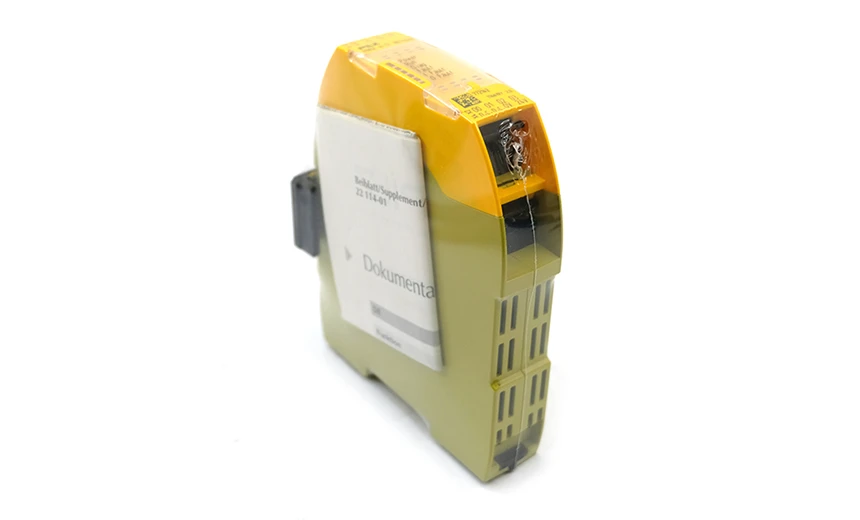

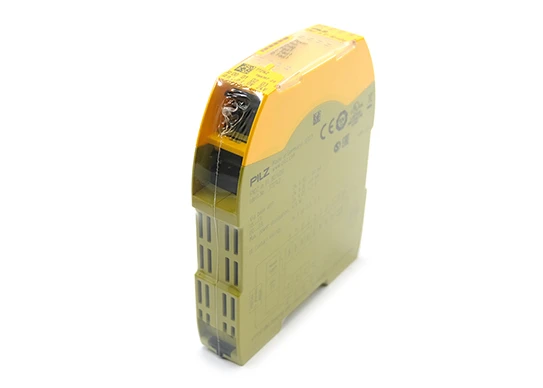

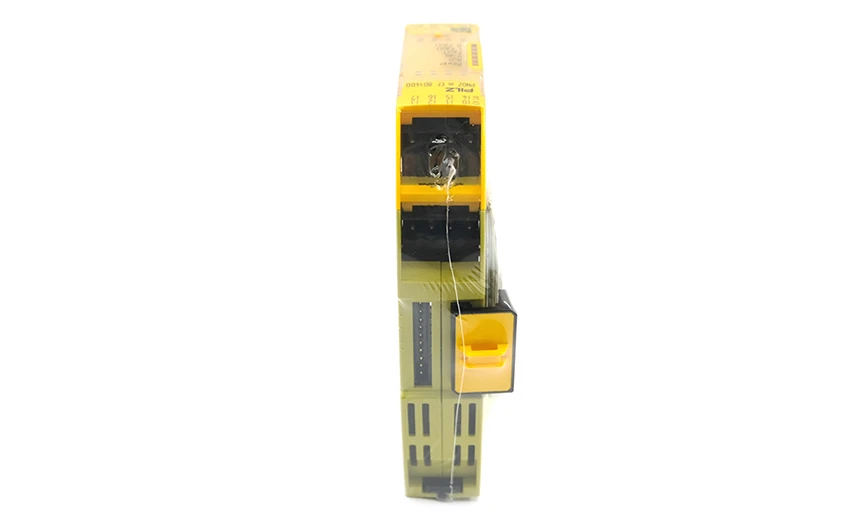

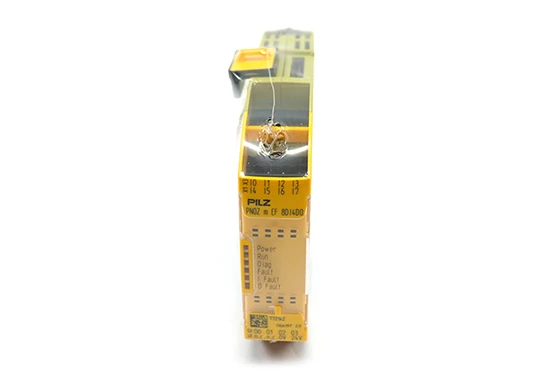

The Pilz 772142 is a small, configurable safety controller designed to implement a variety of safety features to protect people and equipment from potential hazards. It is an extension module of the PNOZmulti 2 series, providing efficient security solutions for industrial applications.
Brand: PILZ Pilz
Model: 772142
Product size: 10*12*2.5cm
Net weight: 115g
Origin: Germany
Use of U2: SC output power supply
Supply voltage 2 (V) : 24 V
Supply voltage type U2: DC
The purpose of UINT1: module power supply
Internal voltage source: Through the base module
Voltage type of UINT1: DC
Allowable load: resistance, inductance, capacitance
The module has 8 safe digital inputs and 4 safe semiconductor outputs. Safety digital inputs can be used to monitor various safety signals, such as the status of safety doors, sensor signals, etc. The safety semiconductor output can be used to control various safety actuators, such as emergency stop buttons, safety brakes, etc.
In terms of electrical data, the Pilz 772142 is supplied at 24V DC and supports various types of input loads, including resistive, inductive and capacitive. It has a potential isolation function to ensure electrical isolation between input and output, improving the stability and safety of the system.
In terms of environment, the module is capable of operating in a wide temperature range, from 0°C to 55°C, suitable for a variety of industrial environments. It adopts spring-loaded terminals and screw terminals as connection terminals, and supports pluggable wiring for easy installation and maintenance.
The Pilz 772142 has passed several certifications, including CE, UKCA, cULus Listed, KOSHA, TUV and EAC (Eurasia), which meet international safety standards and can be used worldwide. It also complies with RoHS and REACh standards, but may contain SVHC substances such as lead.
Overall, the Pilz 772142 is a powerful, safe and reliable extension module that provides a flexible and reliable safety solution for industrial safety control systems, helping to protect people and equipment from potential hazards.
