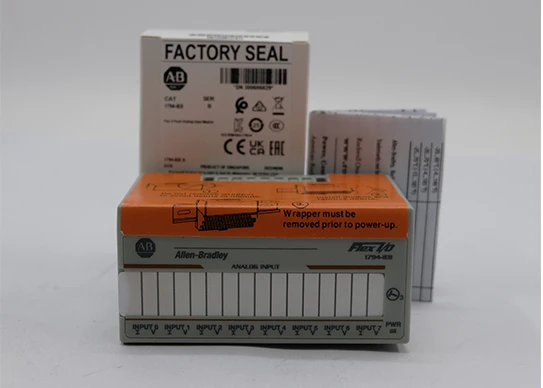

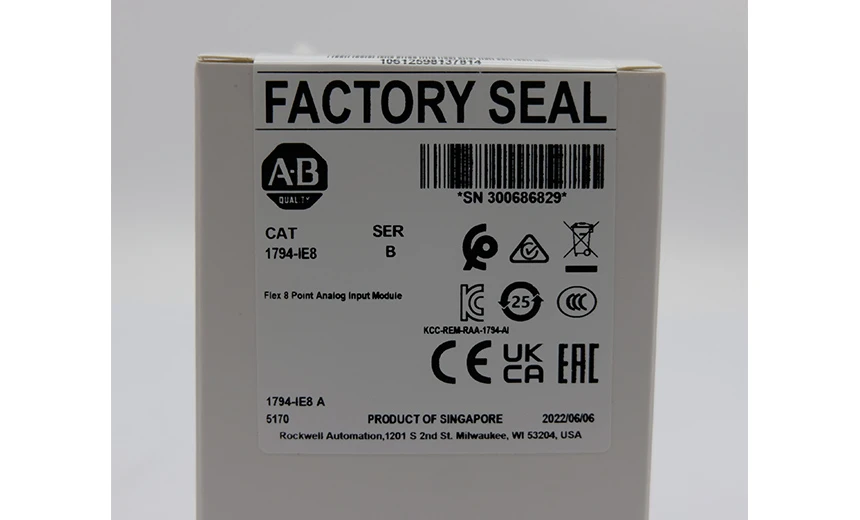

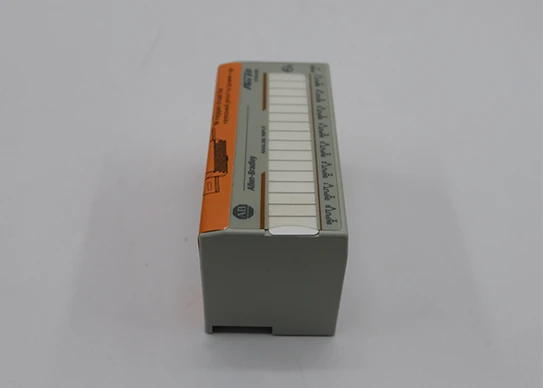

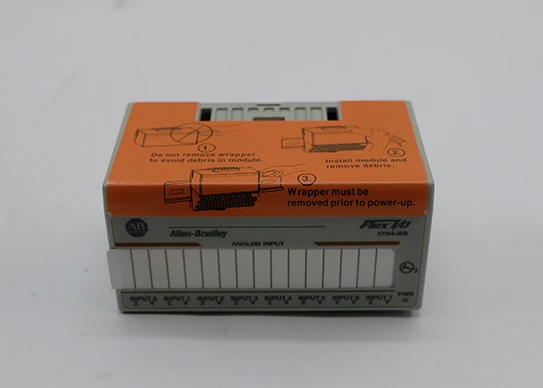

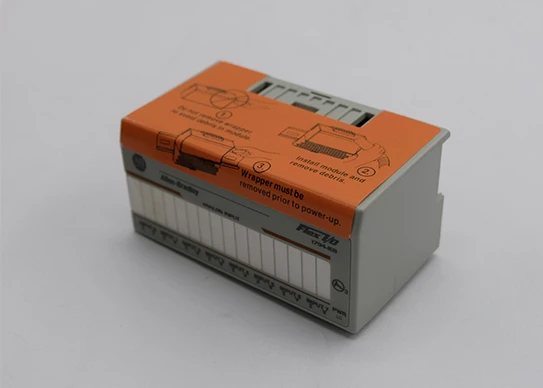

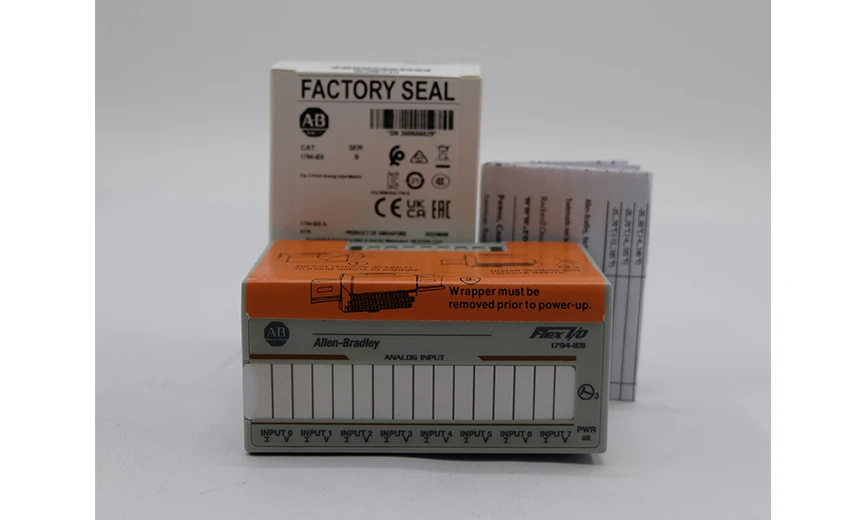

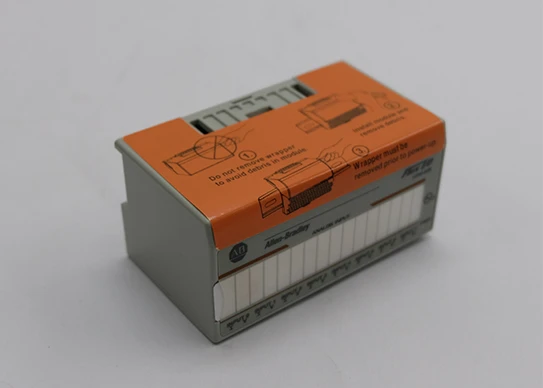

The A-B Rockwell 1794-IE8 is A Flex I/O analog input module
It has eight (8) voltage/current single-ended input channels. It receives analog signals such as 0-20 mA, 4-20 mA, +/- 10VDC, and 0-10VDC.
It is compatible with Flex I/O communication adapters and is mounted to terminal mounts such as 1794-TB2, -TB3, -TB3S, -TB3T, -TB3TS.
Brand: AB
Model: 1794-IE8
Size: 9.7*5.2*6.3cm
Weight: 0.5kg
Product features: PLC module
Origin: USA
Working voltage: 220V
Output frequency: 10kHz
Product certification: CCC
About 1794-IE8:
Allen-Bradley 1794-IE8 is a component module of the Flex I/O product family.
The module is an analog input module that is used with a Flex I/O communication adapter and terminal dock to implement a distributed I/O architecture.
The module uses the module's eight (8) single-ended, non-isolated, user-configurable channels capable of receiving 0 to 20mA, 4 to 20mA, +/ -10VDC, and 0 to 10VDC input signals. The module is capable of connecting instruments such as field transmitters, analog indicating instruments, loggers, process loop controllers and other analog instruments that generate a compatible signal range.
This Flex I/O analog input module is configured as a 12-bit sign in unipolar mode and an 11-bit plus sign in bipolar mode.
It uses successive approximate conversions and saves the converted data in an EFT-aligned, 16-bit 2s complement data format.
It has a conversion rate of 256 seconds on all channels with an absolute accuracy of 0.20% at full scale @25°C,
The voltage accuracy drift is -0.00428% full scale /°C and the current input is 0.00407% full scale /°C. This module does not require calibration.
1794-IE8 requires an external supply voltage range of 10.5-31.2VDC and a nominal supply voltage of 24VDC.
It requires 60 mA of supply current. It requires installation and connection of input signal wiring using a terminal base.
Compatible terminal bases are 1794-TB2, 1794-TB3 and 1794-TB3S, 1794-TB3T and 1794-TB3TS. Modules require only one terminal base.
This Flex I/O module is compatible with Flex I/O communication adapters such as Ethernet, control network, remote I/O adapters.
This module does not need to be calibrated beyond factory Settings. It measures 3.7 x 2.1 x 31.8 inches and can be mounted on a DIN rail or directly panel mounted.
The 1794-IE8 module can be installed on a 1794-TB2, 1794-TB3S, 1794-TB3ST, 1794-TB3T, or 1794-TB3 terminal base.
It also comes with power and status indicators and has an open housing.
The module has a rated voltage specification of 24 volts DC and a supply voltage range of 10.5 to 31.2 VDC, including 5% AC ripple.
The module is compatible with analog current signal ranges such as 0-20mA and 4-20 mA, and voltage signal ranges of +/-10VDC and 0-10VDC inputs.
The voltage resolution is 2.56 mV/cnt (unipolar) and 5.13 mV/cnt (bipolar), and the current resolution is 5.13 μA/cnt.
The module has a maximum voltage overload of 30 volts continuous and a maximum current overload of 32 mA continuous, but only one channel each.
The 1794-IE8 module has a maximum power consumption of 3 W and a heat dissipation of 10.2 BTU/ hour, both at 31.2 volts DC.
It has an operating vibration of 500 g at 5 to 10 Hz. It has a working shock of 30 g and a non-working shock of 50 g.
The module operates in a temperature range of -20 to 55 degrees Celsius, while its storage temperature ranges from -40 to 85 degrees Celsius.
The 1794-IE8 module has 20.25% full scale current input and voltage input accuracy at 0 ° C, although the voltage input includes gain, offset, repeatability and nonlinear error terms. The step response of the voltage terminal to 63% is 9.4 ms and the current terminal is 18.2 ms.
It has an absolute accuracy of 2.25% full scale at 0 degrees Celsius, an accuracy drift of 0.00428% full scale per degree Celsius for the voltage terminal, and 0.00407% full scale for the temperature of the current terminal.
FAQ for 1794-IE8:
1794-IE8 What is the difference between Series A and Series B?
1794-IE8 Series A produces 2 volts or 4 mA until the module is configured.
1794-IE8 Series B has an off position for the range selection table, enabling it to produce 0V or 0mA.
In addition, the B series has an uppotential in the read word, while the A series does not.
How many inputs does this module have?
1794-IE8 has eight inputs, all single-ended.
1794-Can IE8 panel mount?
Yes, 1794-IE8 can be panel mounted.
What is Compatible Terminal base for 1794-IE8?
Compatible terminal bases are 1794-TB2, 1794-TB3 and 1794-TB3S, 1794-TB3T and 1794-TB3TS.
1794-What are the signal types and ranges supported by IE8?
The module supports 0-20mA, 4-20mA, and 0-10VDC and +/ -10VDC signals.
What is the analog conversion resolution of the module?
The resolution of the module is configured as 12 bits in unipolar mode and 11 bits plus in bipolar mode.
Technical notes of 1794-IE8:
Allen-Bradley 1794-IE8 Flex I/O high-density analog module has eight single-ended inputs, one 5.13? A/CNT resolution voltage current and 256 'conversion rate.
It also operates with +/ -10V input voltage terminals and 60 mA flexible bus current.
