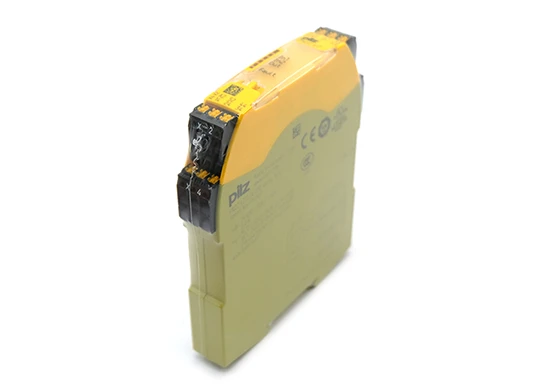

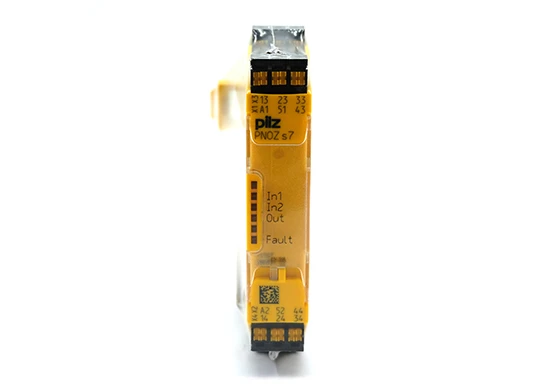

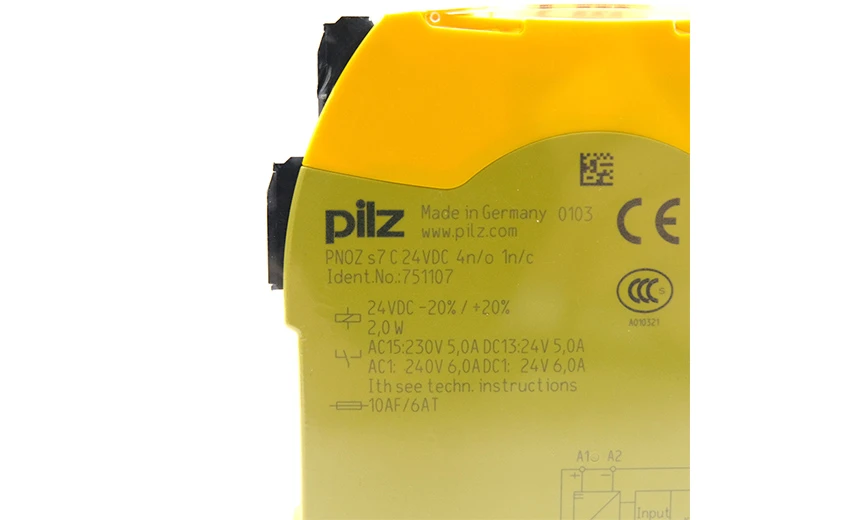

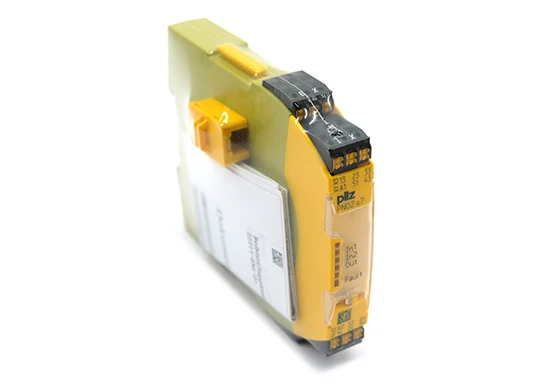

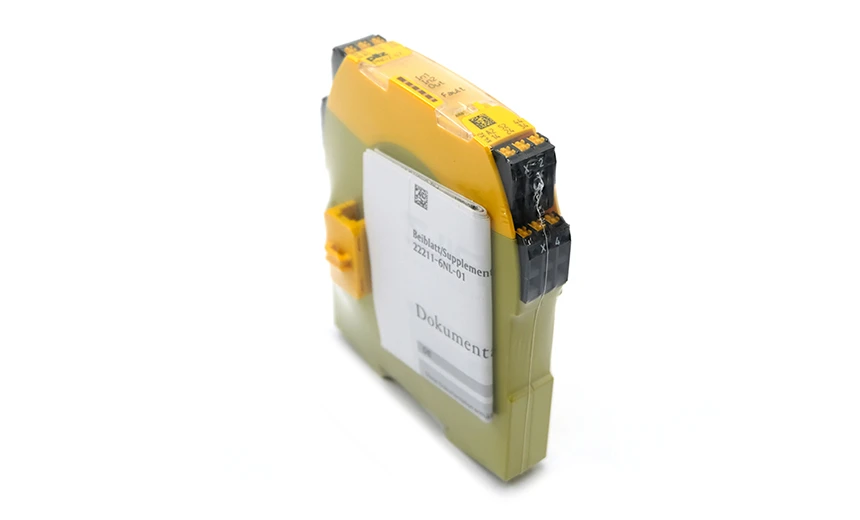

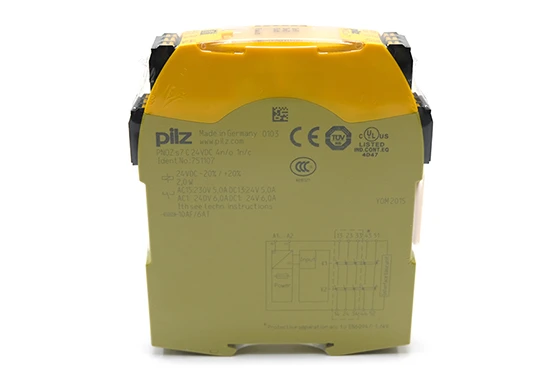

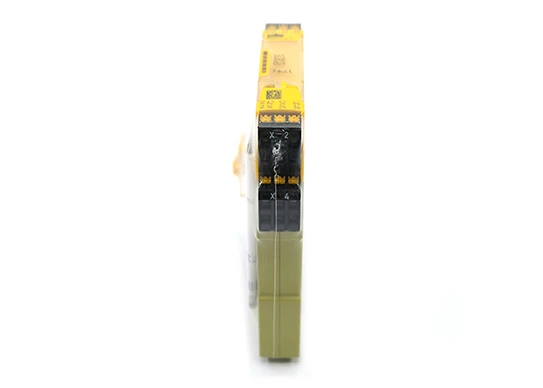

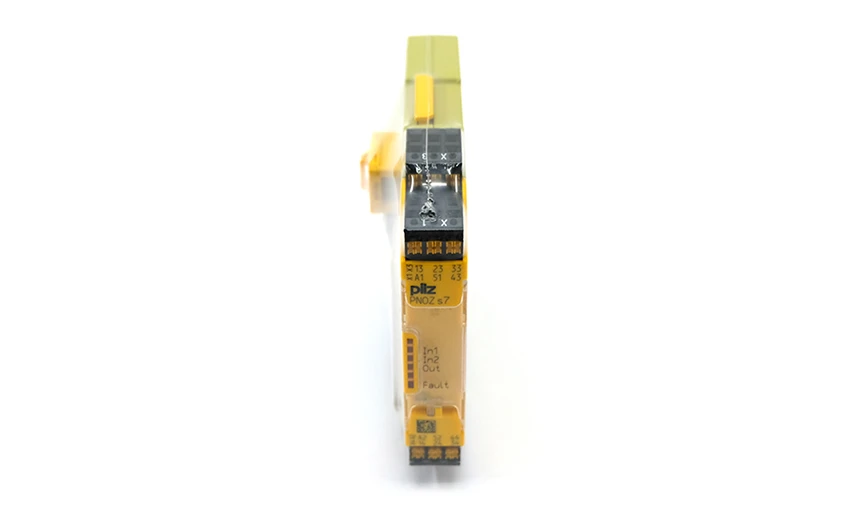

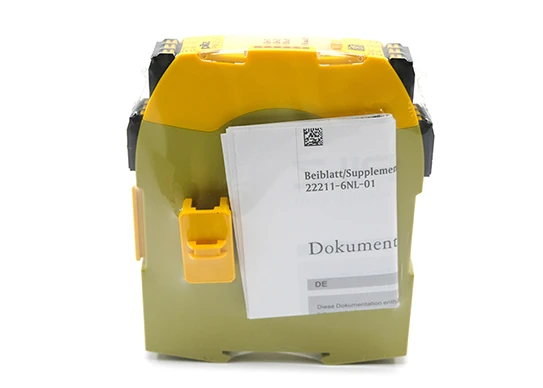

The Pilz 751107 is a contact extension module for safety-related control systems designed to extend the output function of safety control systems.
Brand: PILZ Pilz
Model: 751107
Product size 12*10*3cm with accessories
Net weight: 180g
Product type: Relay
Power supply: direct current
Origin: Germany
Supply voltage (V) : 4 V
Power supply voltage type U1: DC
Power consumption DC: 2 W
Use category AC/DC1 standard: EN 60947-4-1
AC1 Safety control voltage: 240 V
AC1 Safety control maximum current: 6 A
DC1 Safety control voltage: 24 V
DC1 Safety control maximum current: 6 A
Use category AC15/DC13 standard: EN 60947-5-1
AC15 safety control voltage: 230 V
AC15 safety control maximum current: 5 A
DC13 safety control voltage: 24 V
Safety contact: AC, UL standard: 240 VAC G.U. (same polarity)
Relay contact material: AgCuNi
Other contact specifications for relays: + 0.2µm Au
The Pilz 751107 offers four normally open contacts (4 N/O) and one normally closed contact (1 N/C) to meet the needs of different security applications. These contacts can be connected with safety-related control elements, such as safety relays, safety PLCS, etc., for safe shutdown, emergency stop, door locking and other functions.
The supply voltage of the module is 24V DC, the supply voltage type is DC, and the power consumption is low, which is 2W. It has 1 input port and 4 relay output ports, conforming to EN 60947-4-1 and EN 60947-5-1 for safety control at AC and DC voltages. The safety contact material is AgCuNi, which has good electrical conductivity and wear resistance, and can ensure long-term stable working performance.
In terms of the environment, the Pilz 751107 can operate over a wide temperature range, from -10°C to 55°C, suitable for a variety of industrial environments. It uses spring-loaded terminals as connection terminals and supports pluggable wiring for easy installation and maintenance.
The module has passed several certifications, including CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasia) and TUV, among others, meets international safety standards and can be used worldwide. It also complies with the RoHS directive, but may contain SVHC substances such as lead oxide.
Overall, the Pilz 751107 is a powerful, safe and reliable contact expansion module for a variety of industrial control systems, providing users with a flexible and reliable safety solution.
