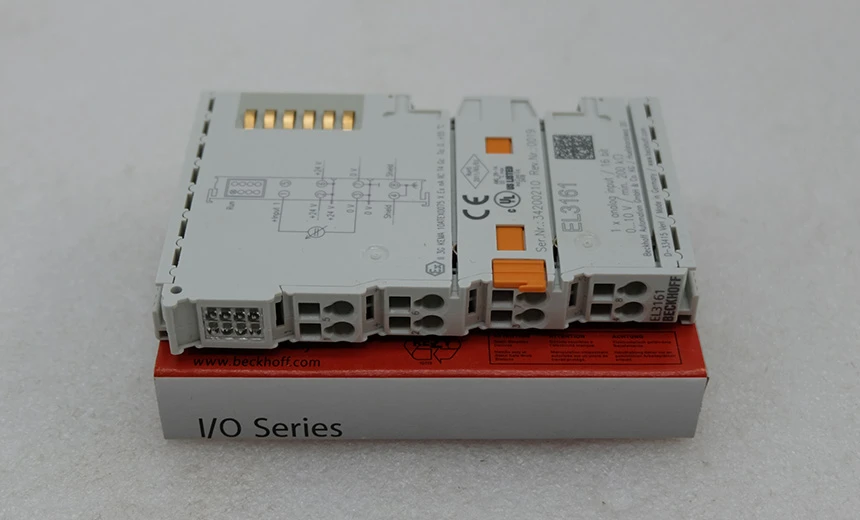

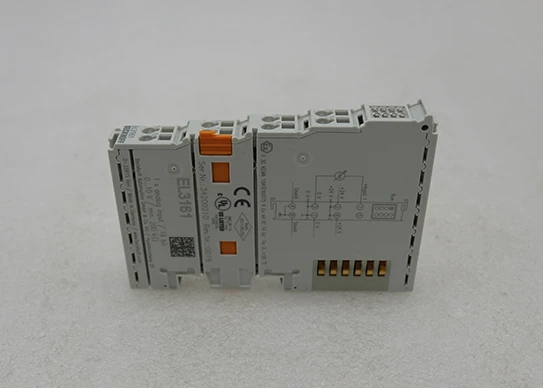

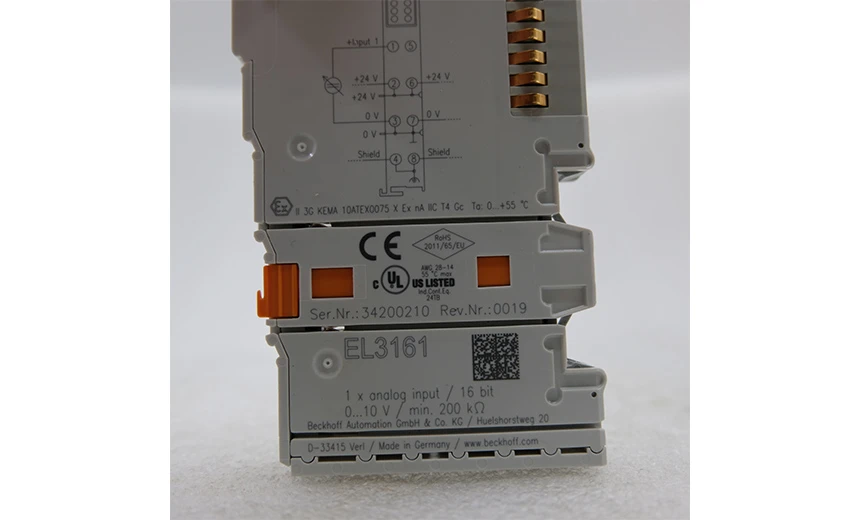

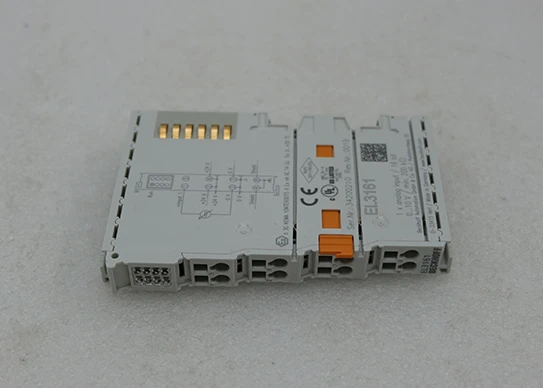

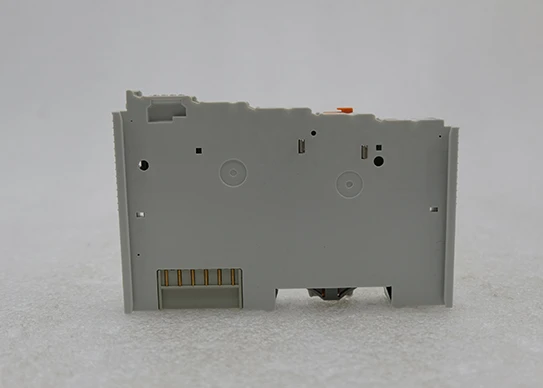

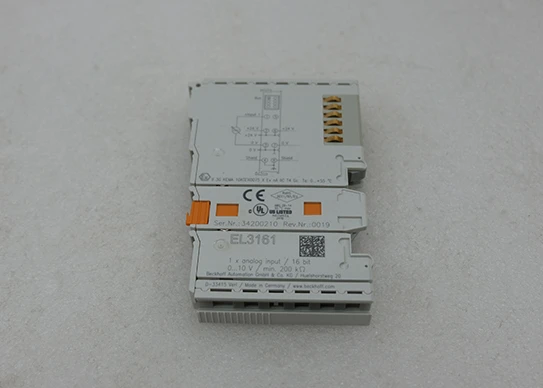

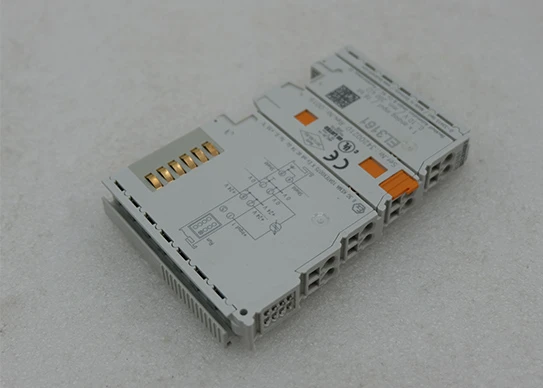

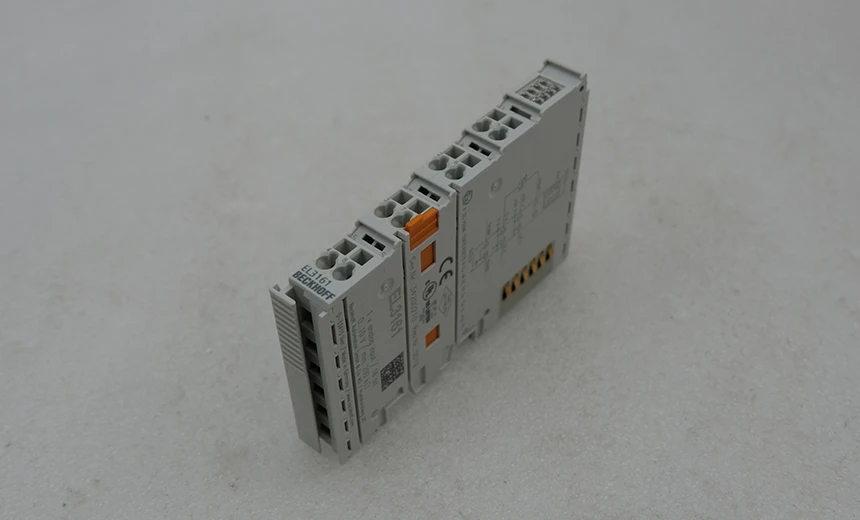

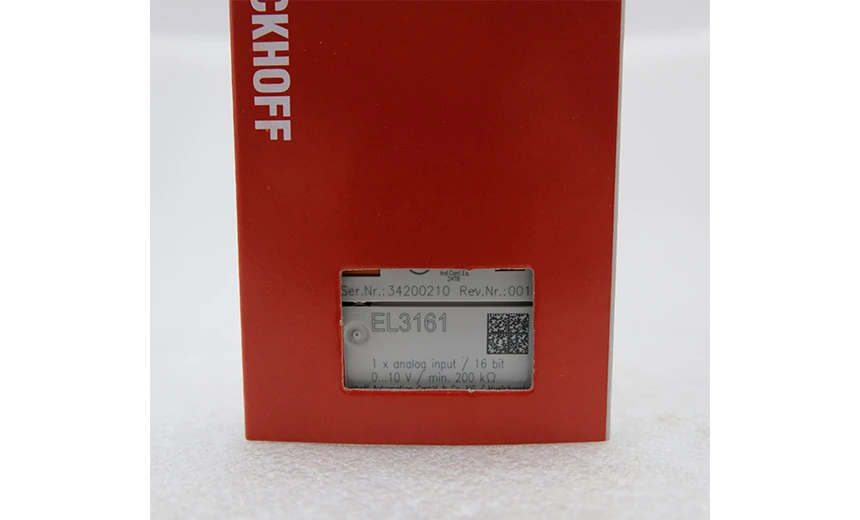

The Beckhoff EL3161 is a high-performance EtherCAT analog input module designed for analog signal acquisition tasks in industrial automation systems. The EL3161 module has an analog input channel that measures analog signals in the range of 0 to 10V and performs accurate analog-to-digital conversion at a resolution of 16 bits.
Brand: BACKHOFF
Model: EL3161
Signal voltage: 0... 10V
Weight: 0.5kg
Packing size: 7.2*1.8*10cm
Product type: Module
Origin: Germany
The Beckhoff EL3161 is a high-performance EtherCAT analog input module designed for analog signal acquisition tasks in industrial automation systems. The EL3161 module has an analog input channel that measures analog signals in the range of 0 to 10V and performs accurate analog-to-digital conversion at a resolution of 16 bits. The following is a detailed description of the EL3161 module:
Number of inputs: 1 (single-ended), suitable for measurement and acquisition of a single analog input channel.
Power supply: The E-bus power supply simplifies module power connection.
Signal voltage range: 0 to 10V to meet the analog signal range common in industrial control systems.
Distributed clock: Support for distributed clocks helps ensure synchronization and coordination between the various parts of the system.
Internal resistance: greater than 200kΩ to ensure high impedance of the input signal to avoid influence on the circuit under test.
Limit frequency of input filter: 5kHz, which can effectively suppress high-frequency noise and improve signal stability and accuracy.
Insulation strength: up to 30V, with good electrical isolation performance, protect the system from external interference and electrical shock.
Conversion time: about 35μs, to achieve fast analog signal conversion and acquisition.
Resolution: 16 bits (including symbols) to provide high precision analog signal measurement.
Measurement error: < ±0.3% (full scale), to ensure the high measurement accuracy and reliability of the module.
Electrical isolation: 500V (E-bus/ signal voltage), provides good electrical isolation performance to ensure the stability and safety of the system.
Special features: Standard and compact process imaging, activated FIR/IIR filters and limit monitoring functions to meet the needs of different application scenarios.
Operating/storage temperature: -25°C to +60°C / -40°C to +85°C, suitable for use in various industrial environments.
Weight: about 60g, light and compact, easy to install and wire.
Relative humidity: 95%, non-condensing, suitable for various humidity environment conditions.
Vibration resistance/impact resistance: in line with EN 60068-2-6/EN 60068-2-27 standard, with good mechanical properties.
Anti-electromagnetic interference/anti-electromagnetic radiation performance: in accordance with EN 61000-6-2/EN 61000-6-4 standards, to ensure the stability and reliability of the module in electromagnetic environment.
Protection level/installation position: IP20/ variable, suitable for different installation environments and requirements.
Certification/marking: CE, UL, ATEX, IECEx, in line with international standards and certification requirements.
Pluggable cable: applicable to all ESxxxx terminal modules, you can flexibly connect and network with other devices.

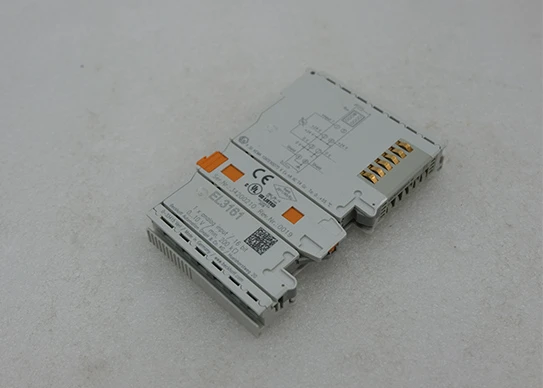

The EL3161 module features a compact terminal block housing with LED signal indicator, 12mm x 100mm x 68mm, and is secured to a 35mm DIN rail by latch, in accordance with EN 60715 for easy and reliable installation. It also has a pluggable wiring design that supports a variety of wire cross-sectional areas and types of connections for different wiring needs.
In general, the Beckhoff EL3161 module is a powerful and stable analog input module with a wide range of applications, which can be used in analog signal measurement and acquisition tasks in industrial automation systems.
