Omron CJ1W-ID261

Basic features
- CJ1W-ID261 is a 64-point DC input module for receiving ON/OFF signals from external devices into a PLC system to update the I/O memory in the CPU unit.
- The module is suitable for high-speed input and different application scenarios, which can help increase the total processing power of the system.

Technical Parameters
- **Input Voltage**:D C24V
- Input Current: 4.1mA
- Response time: ON response time 15 μs, OFF response time 90 μs
- **External Connection**: Uses Fujitsu compatible connectors
- Polarity Selection: Devices with NPN or PNP outputs can be connected without the need to select polarity
- **Digital Filtering**: The digital filter of 0~32ms can be set to reduce external interference
- **Installation**:D IN rail mounting

Features
1. **High-speed processing**: Provide fast response time, suitable for high-speed application scenarios.
2. **Flexible Connection**: Support Fujitsu or MIL connector interface, and provide a variety of terminal block conversion unit models.
3. **Anti-interference design**: Built-in digital filter to reduce the impact of external interference.
4. Scalability: As part of the CJ series, it can be combined with other digital I/O, analog I/O, and communication modules.
5. **Simplified wiring**: Detachable I/O terminal blocks are used for easy maintenance and start-up.

Applications
CJ1W-ID261 is widely used in industrial automation control systems, especially for occasions that require high-speed input signal processing, such as:
- Automatic control of production lines
- Machinery monitoring
- Process control systems
- Signal acquisition in decentralized control systems

Physical Properties
- Weight: Approx. 110.22 grams
- Dimensions: Height 90mm, width 31mm, thickness 89mm (may vary slightly depending on the source)

The product is RoHS compliant, lead-free, and currently in production. Omron also provides technical manuals and engineering guides to support the use of the product.

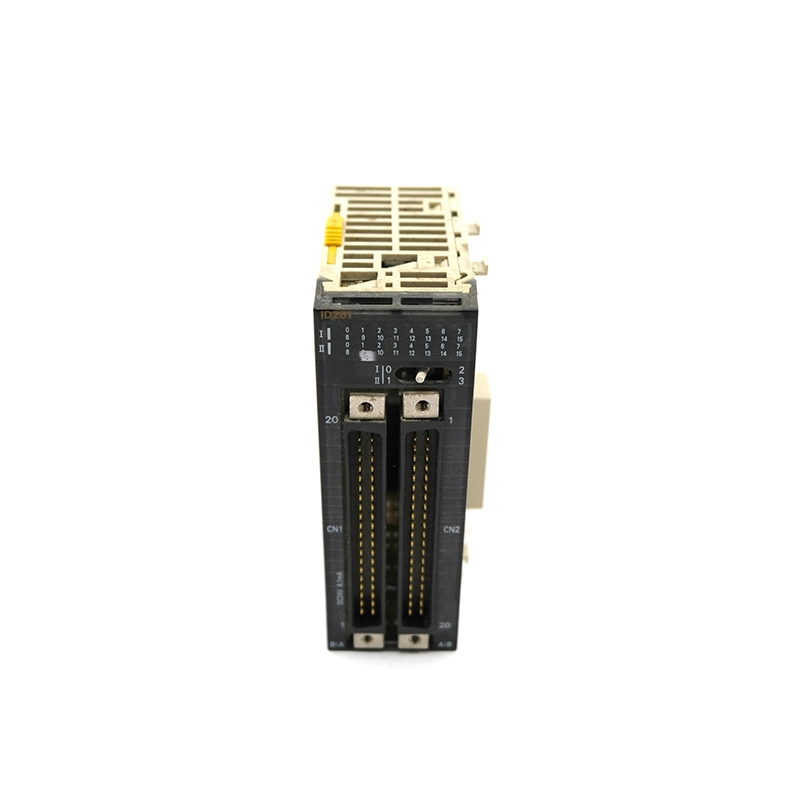

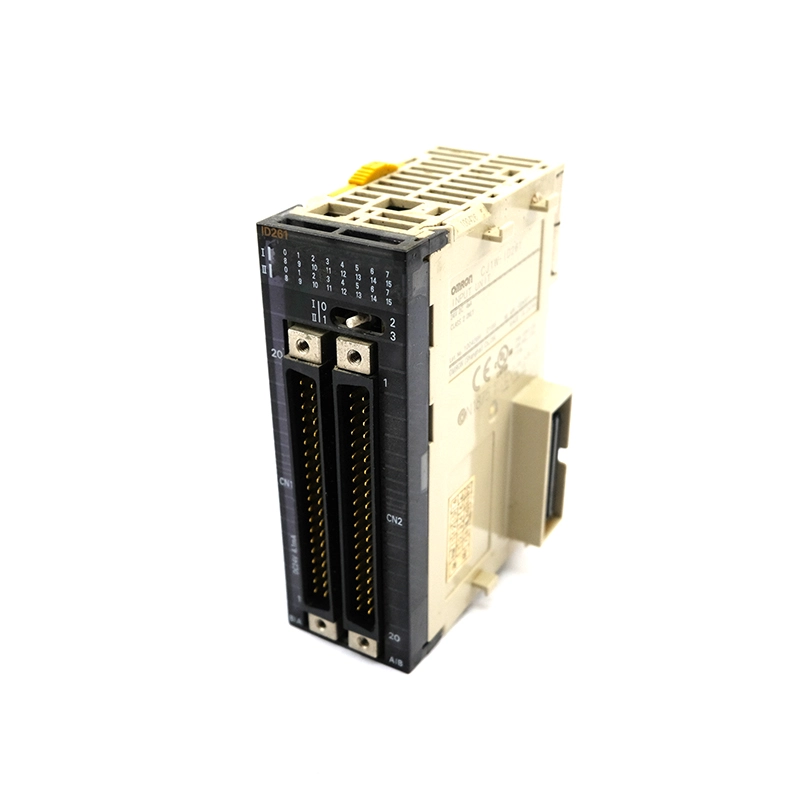

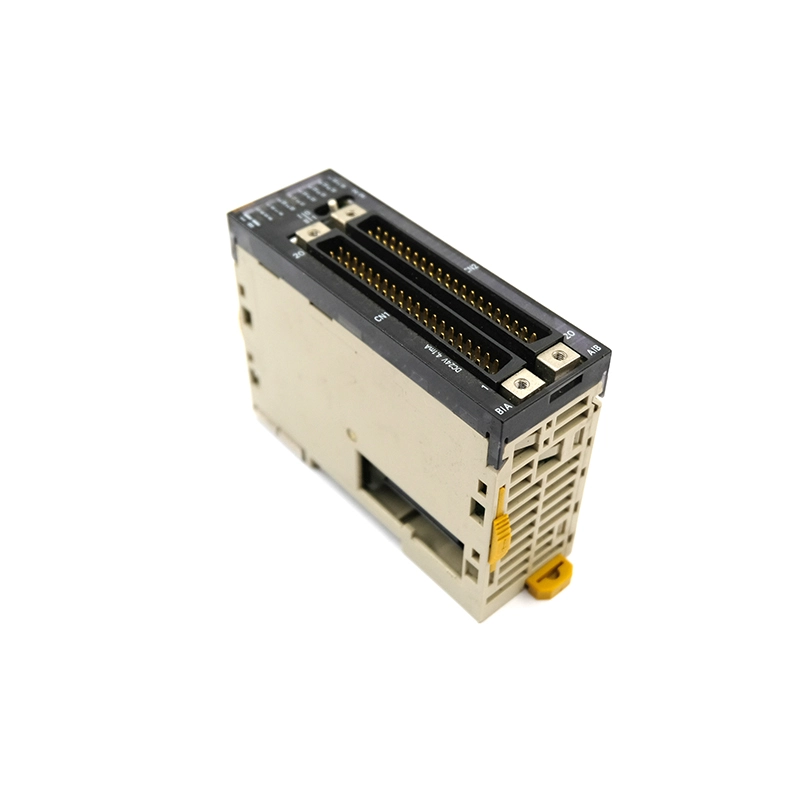

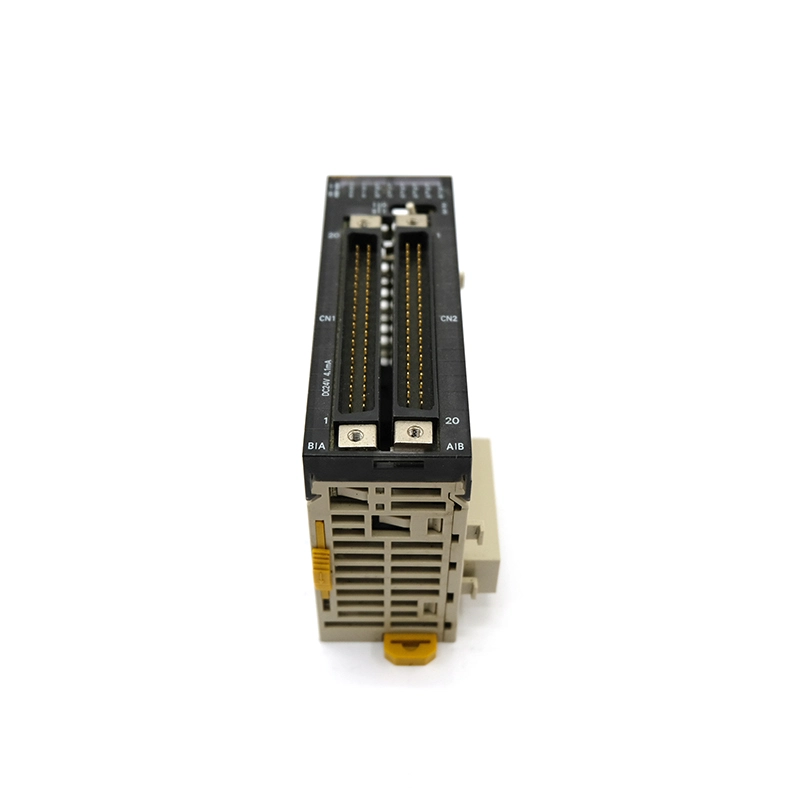

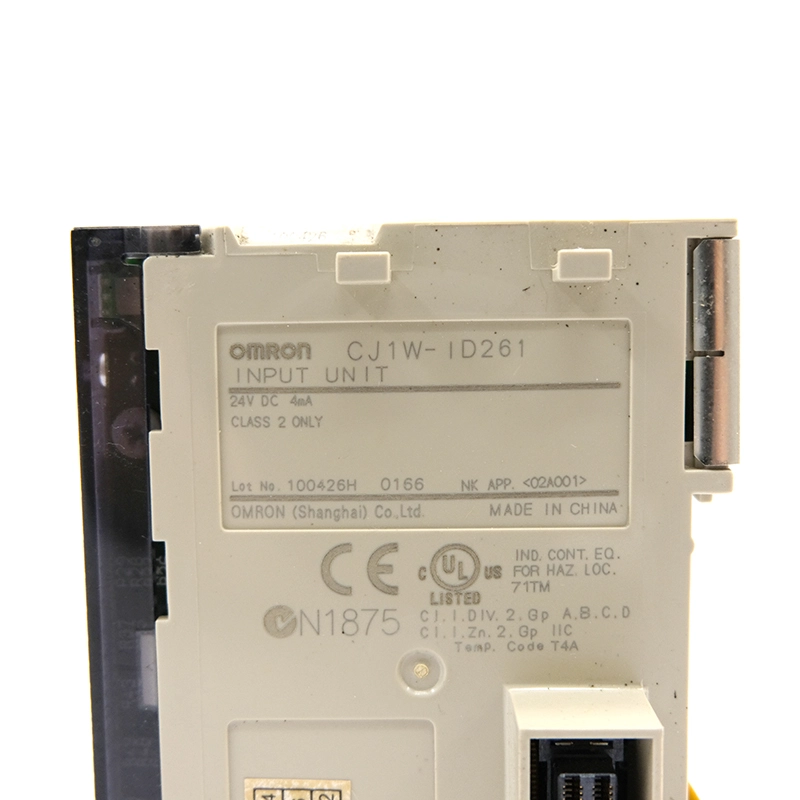

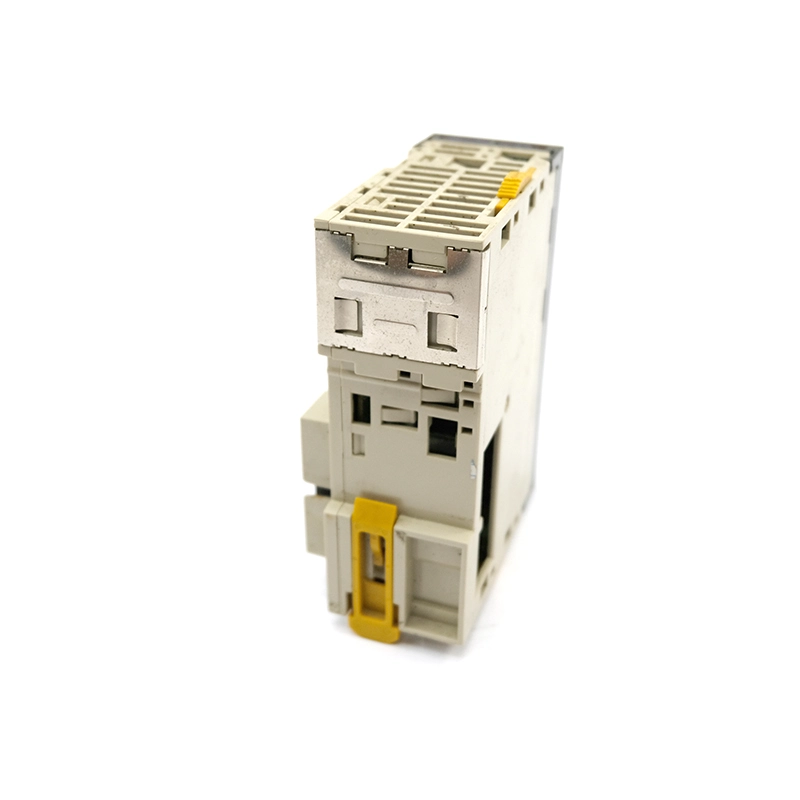

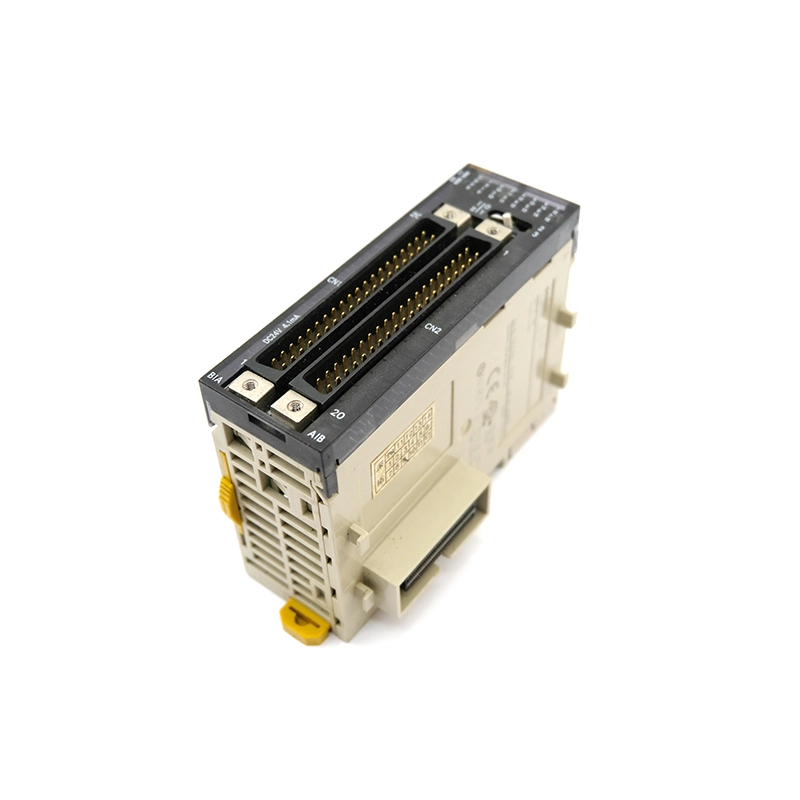

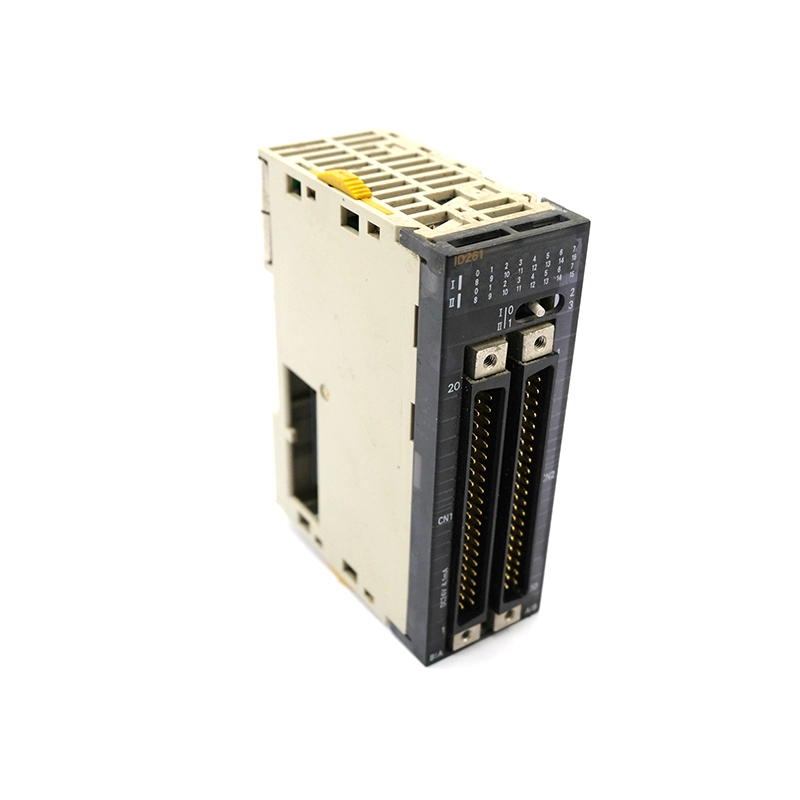

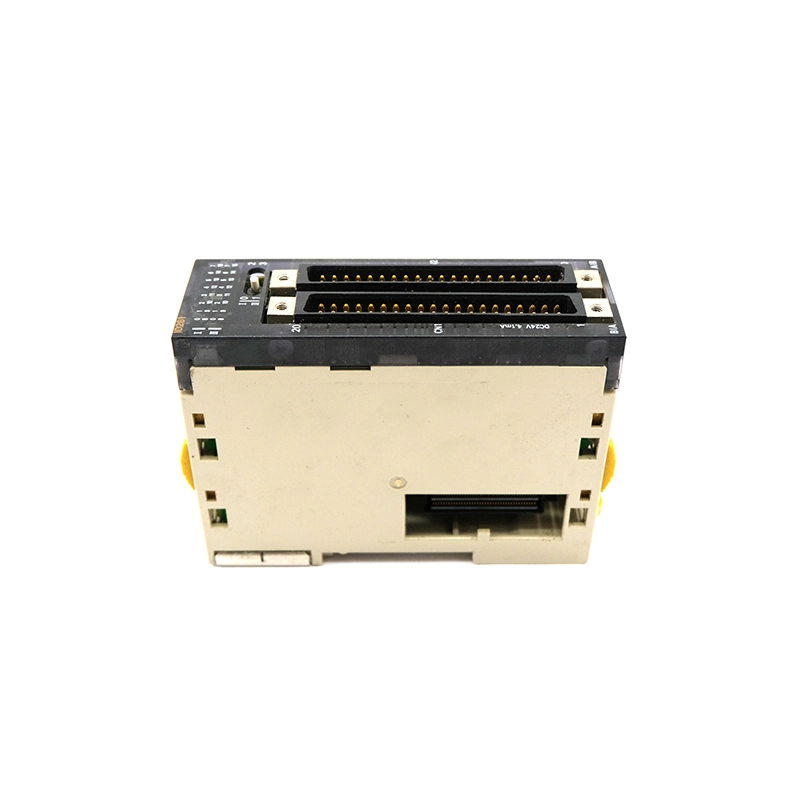

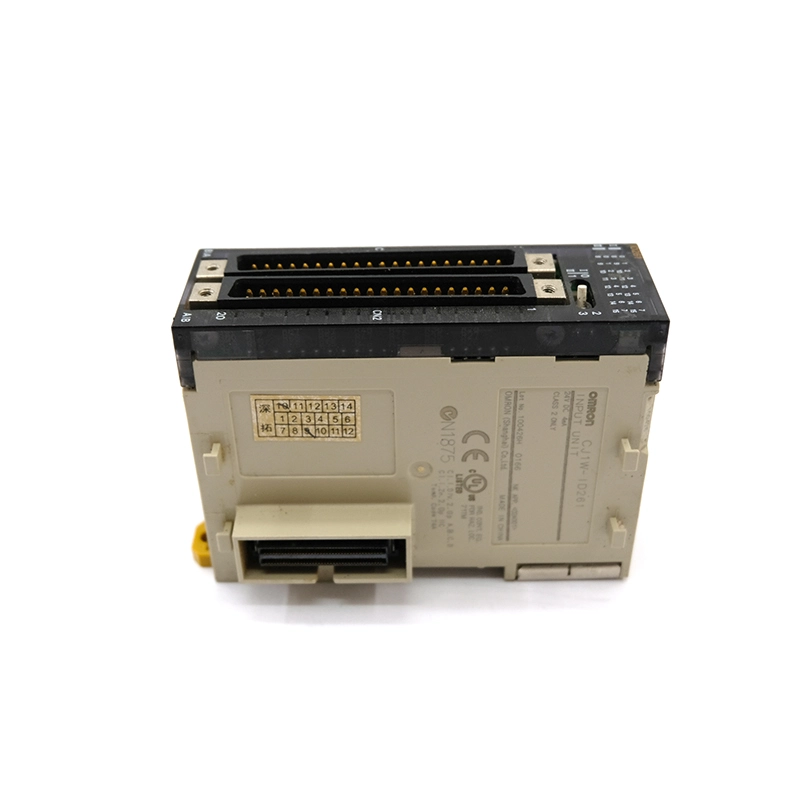

Details of Omron CJ1W-ID261
