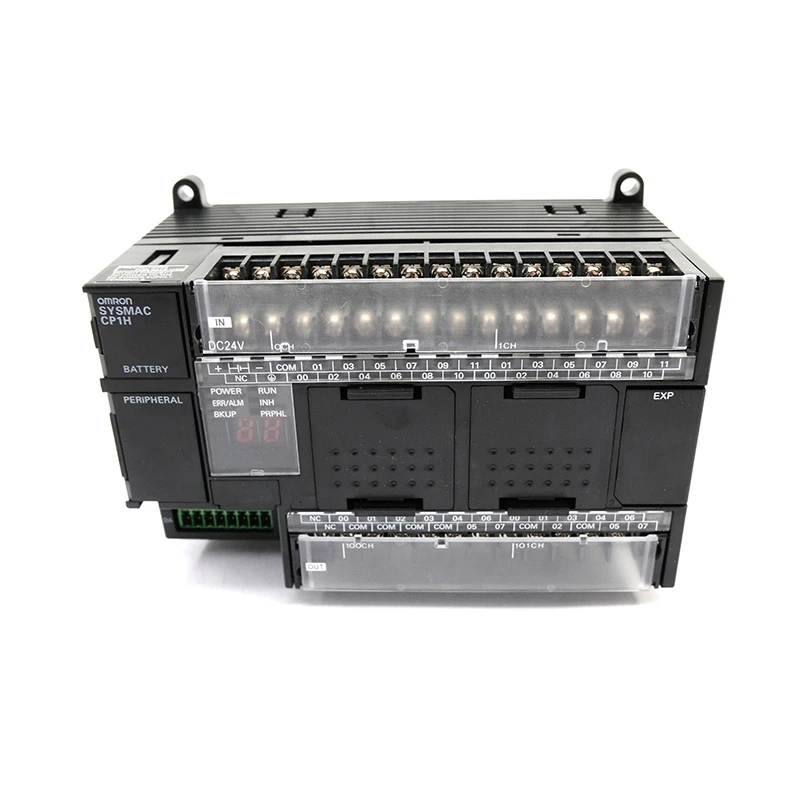

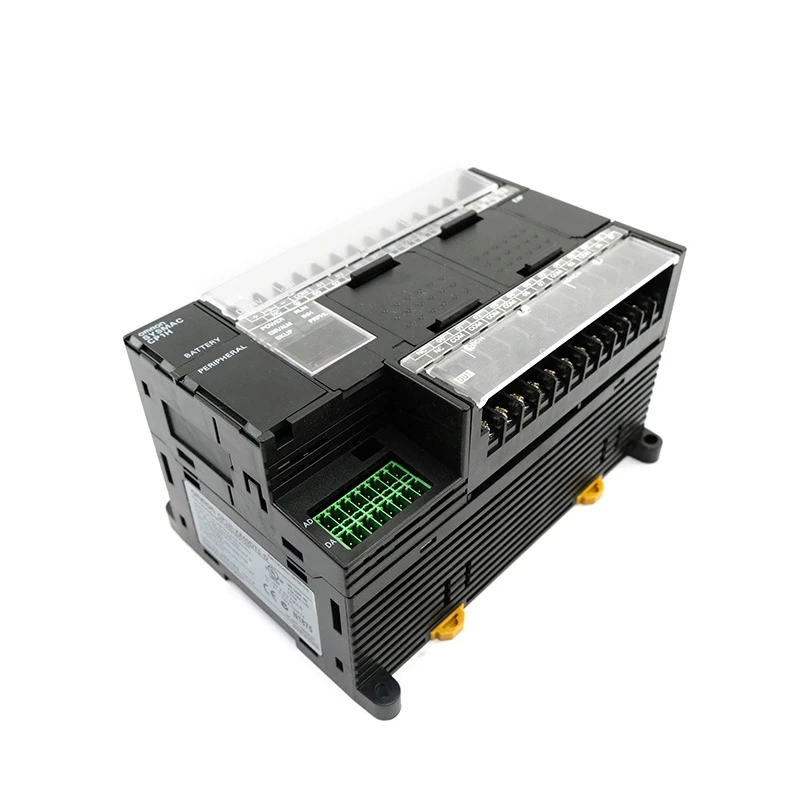

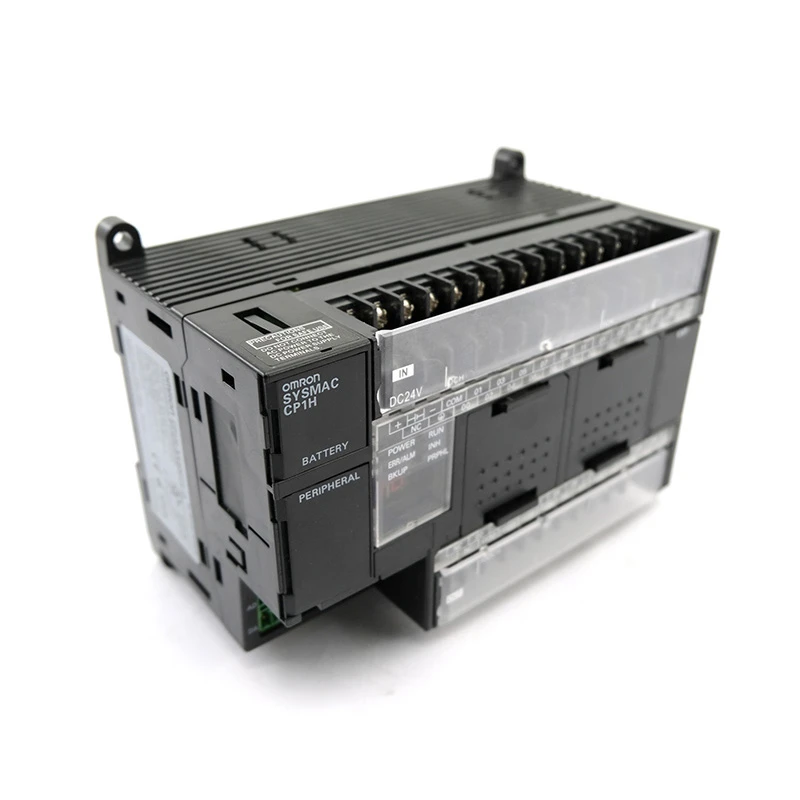

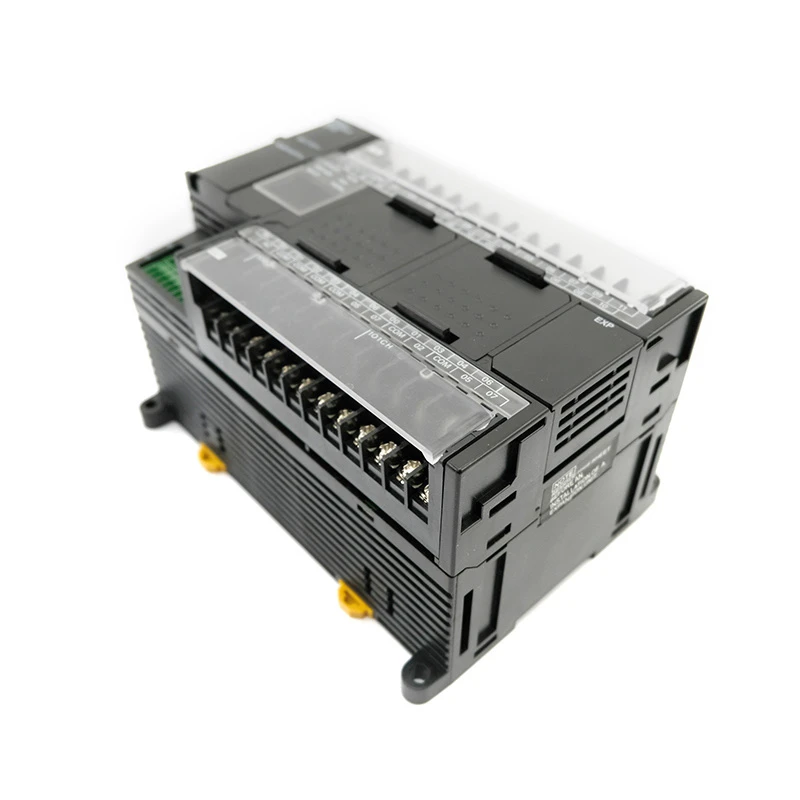

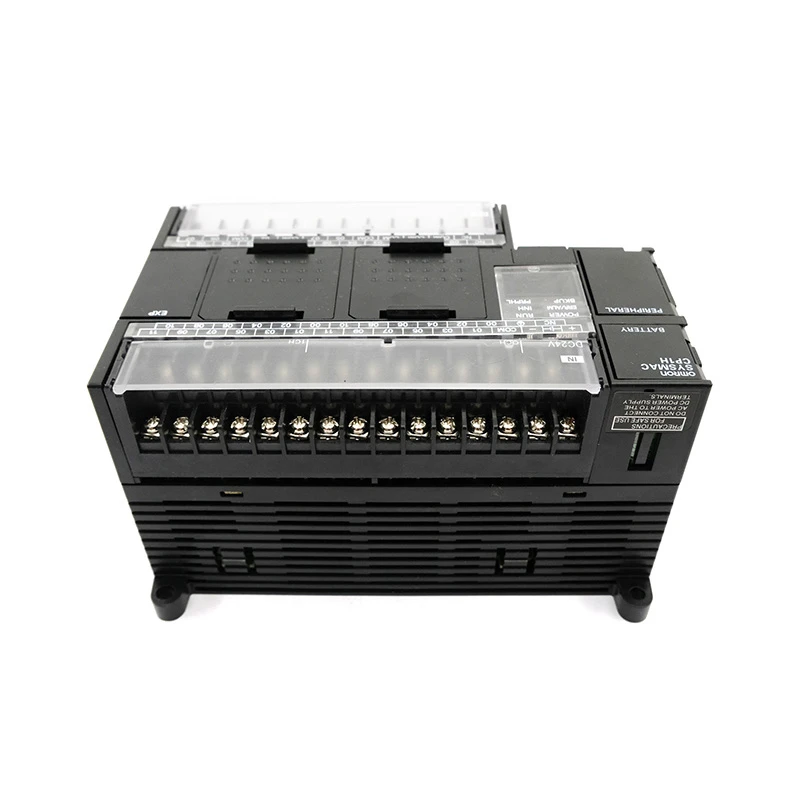

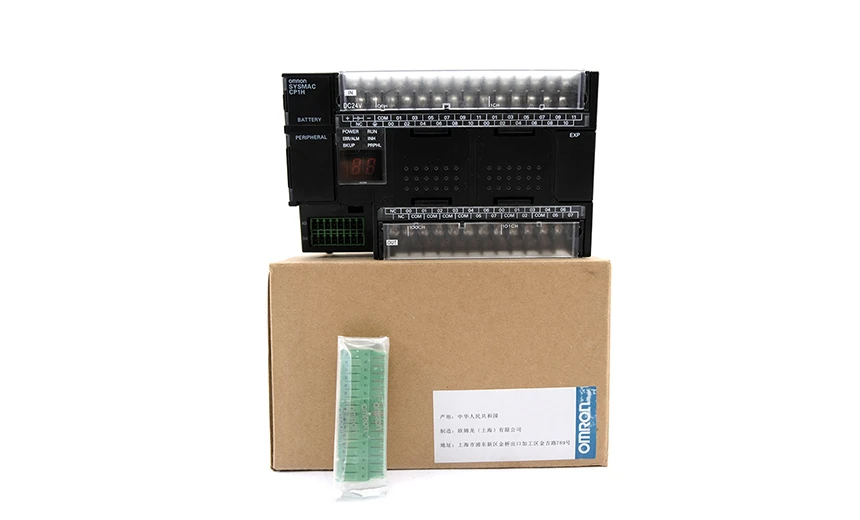

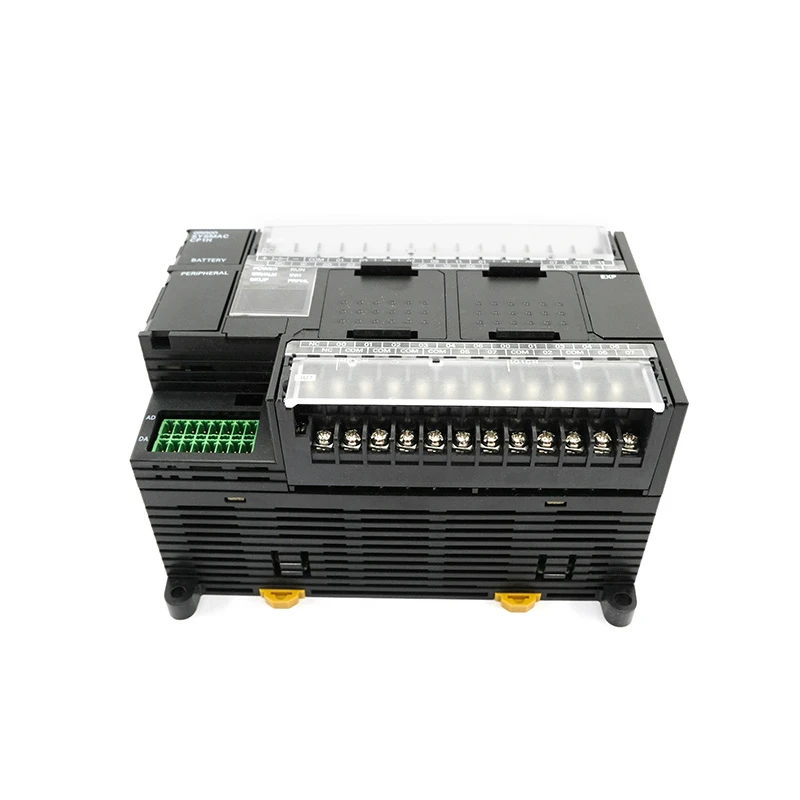

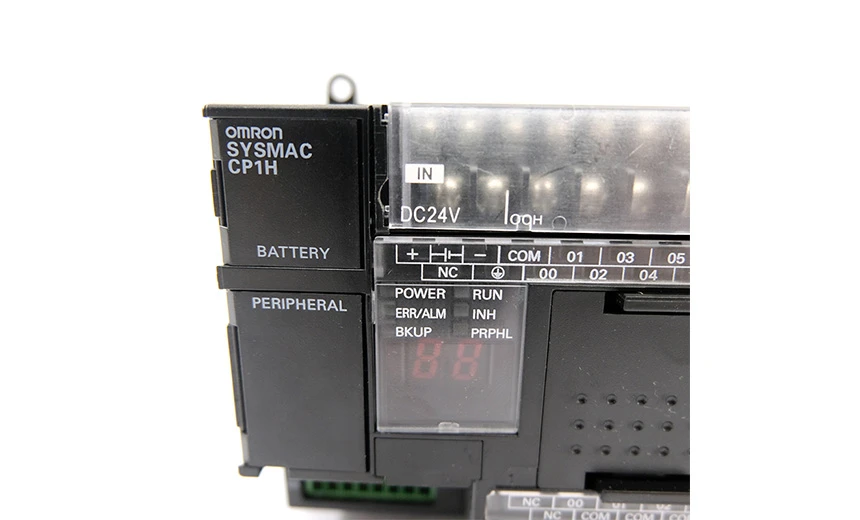

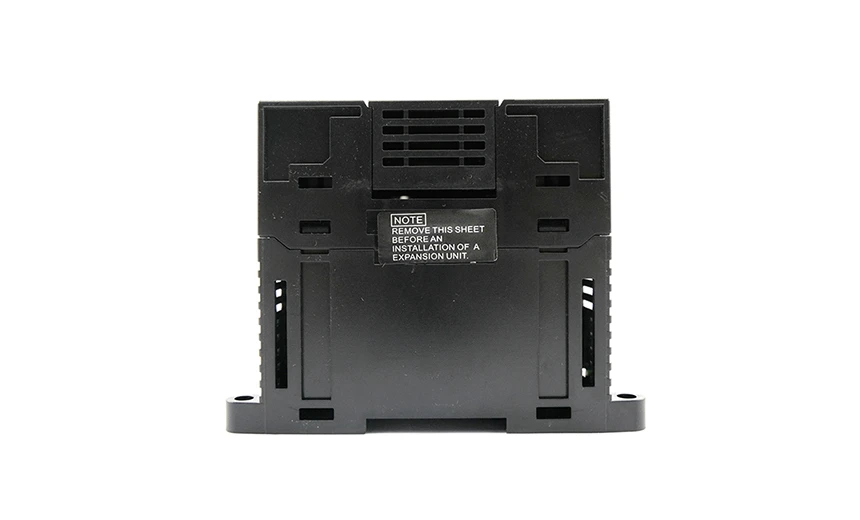

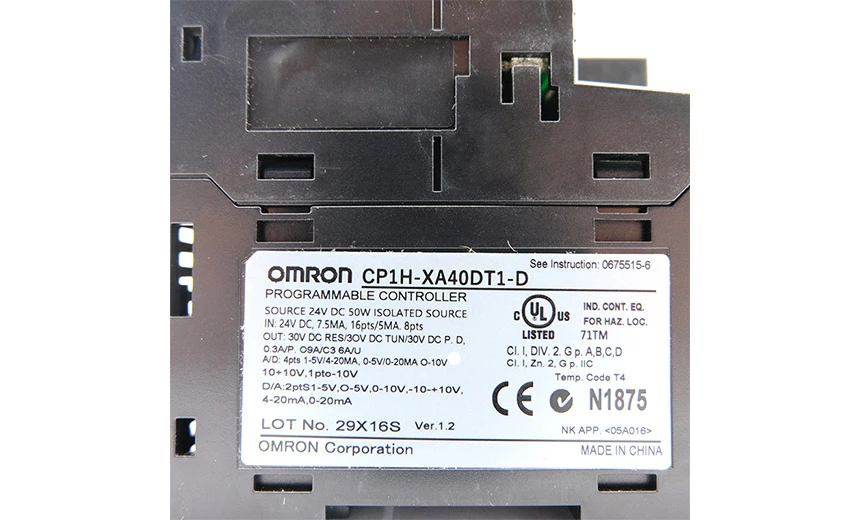

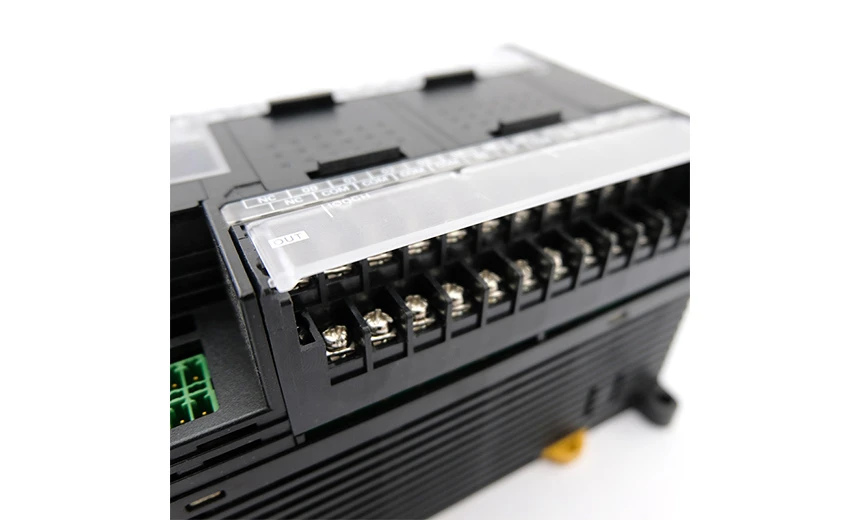

The Omron CP1H-XA40DT1-D is a powerful all-in-one PLC that combines discrete, analog, and motion control in a compact form factor suitable for OEM machines and small to medium automation systems. It offers 24 VDC power supply, 24 DC digital inputs (PNP/NPN), and 16 PNP transistor outputs, making it ideal for applications that require high-speed transistor outputs, such as packaging machines, indexing tables, feeders, and assembly equipment.
With 4 built-in analog inputs and 2 analog outputs, the CP1H-XA40DT1-D can directly handle process signals such as temperature, pressure, level, and speed references without additional analog expansion units. It supports 4 encoder input channels and 4-axis pulse outputs, each up to 100 kHz, enabling precise positioning control for stepper or servo drives in multi-axis systems. A program capacity of 20 K steps and 32 K words of data memory, combined with a basic instruction execution time of 0.10 µs, provides enough performance for complex control logic, data handling, and process interlocks.
The CP1H-XA40DT1-D supports ladder programming, function block programming, and features such as real-time clock, battery-free memory backup, and support for analogue option boards. Up to 7 expansion units can be connected, allowing a maximum of 320 local I/O points and up to 62 analog I/O channels when using option boards. Communication options (via CP1W/CP series option units) allow integration with networks such as Modbus, DeviceNet, and Ethernet, making it easy to connect HMIs, inverters, and other controllers. Operating in a temperature range of 0–55 °C, the PLC is designed for industrial environments and offers robust noise, vibration, and shock resistance compliant with IEC and JIS standards.
