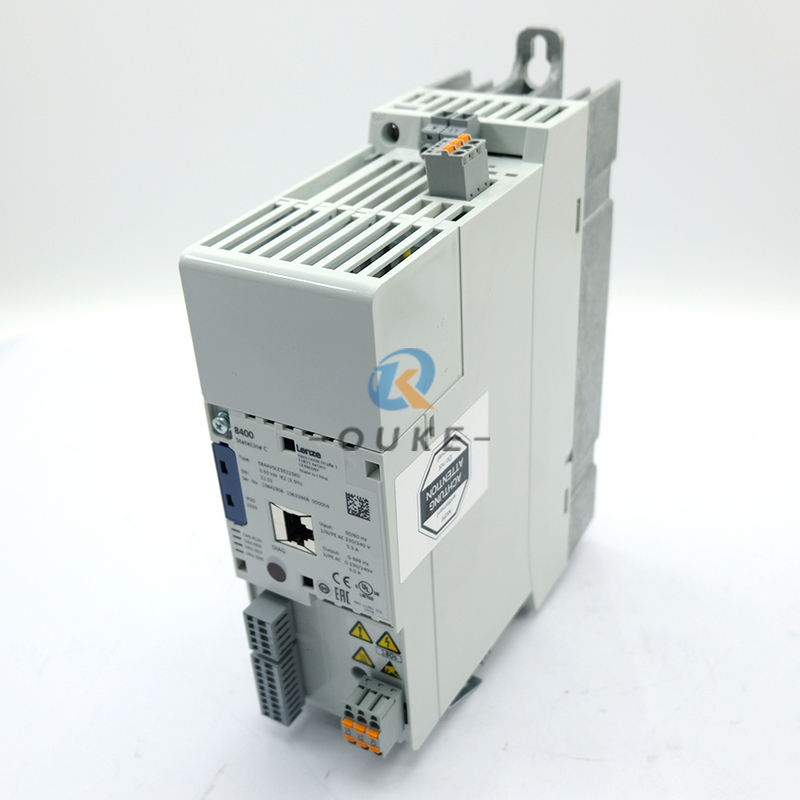

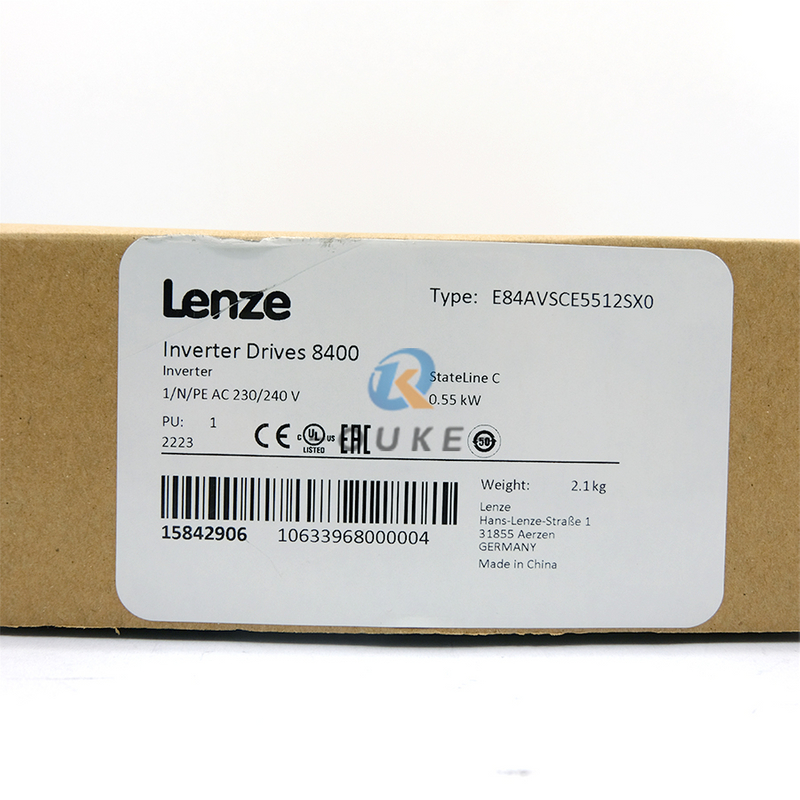

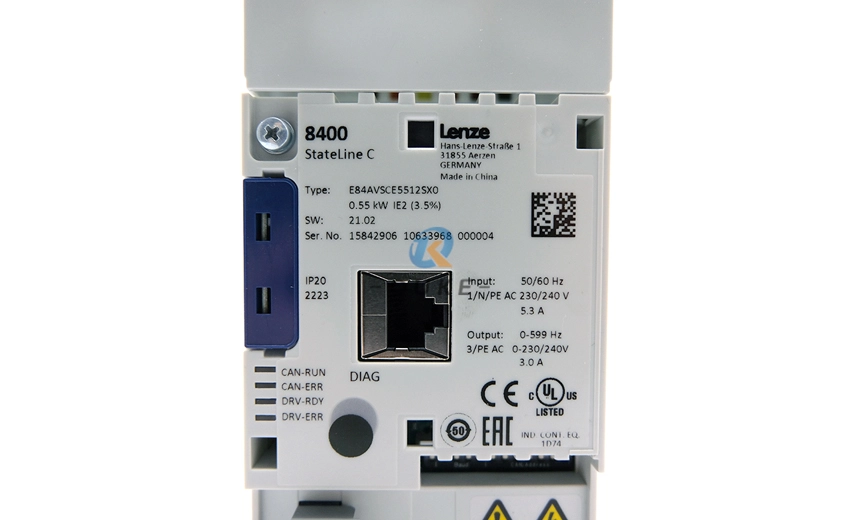

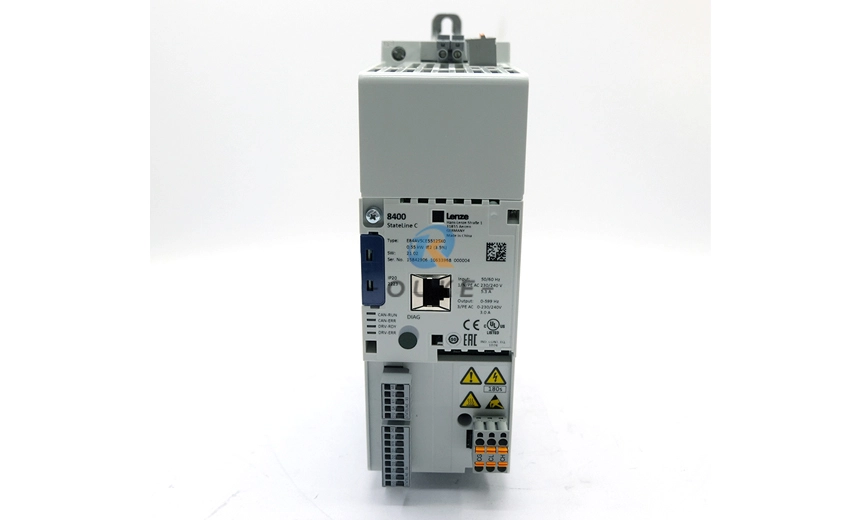

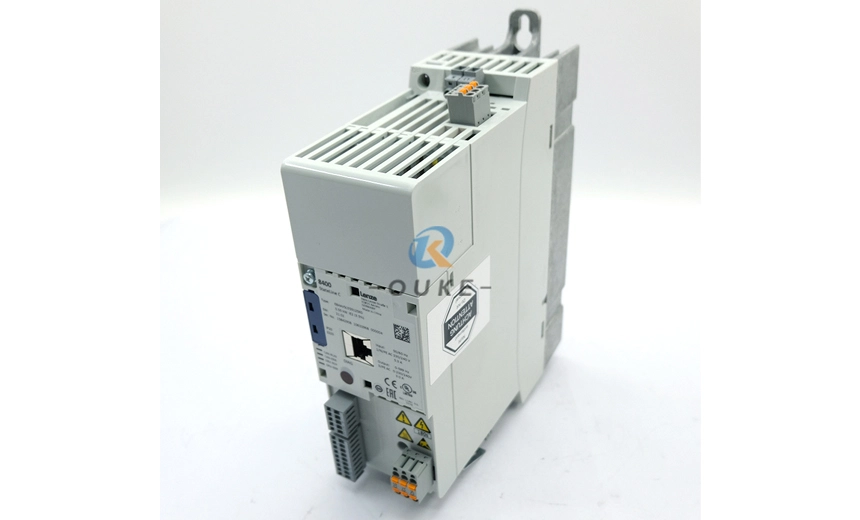

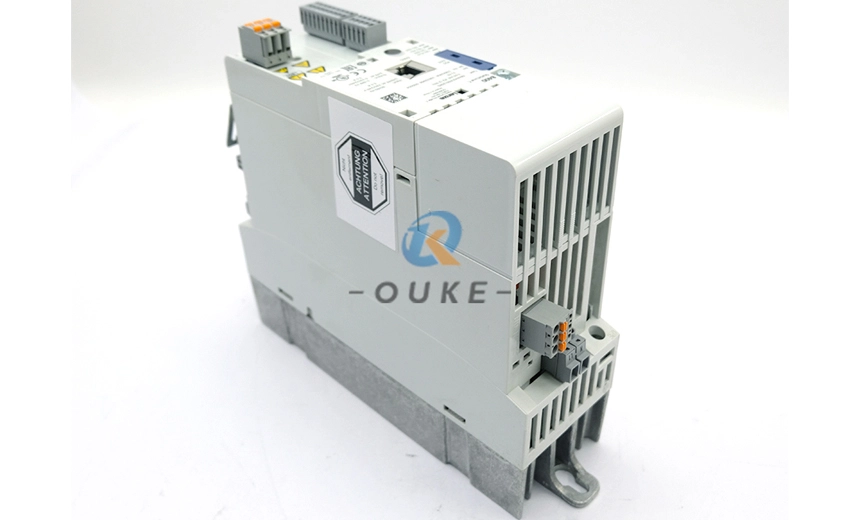

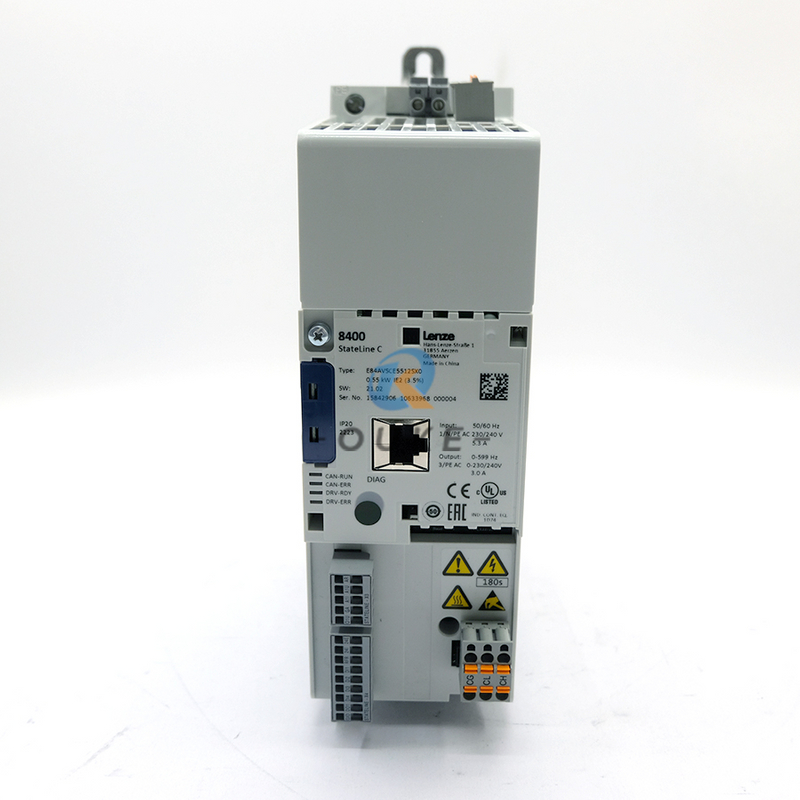

The Lenze E84AVSCE5512SX0 belongs to the 8400 StateLine C series of inverter drives, designed to “ensure movement in complex applications” such as transverse material handling, palletizers, extruders, and filling systems. It operates from a 1/N/PE 230/240V AC mains (50/60Hz) and provides 0.55kW rated motor power with 3.0A rated output current and 0–599Hz output frequency range, enabling both standard and high‑speed operation for three‑phase motors.

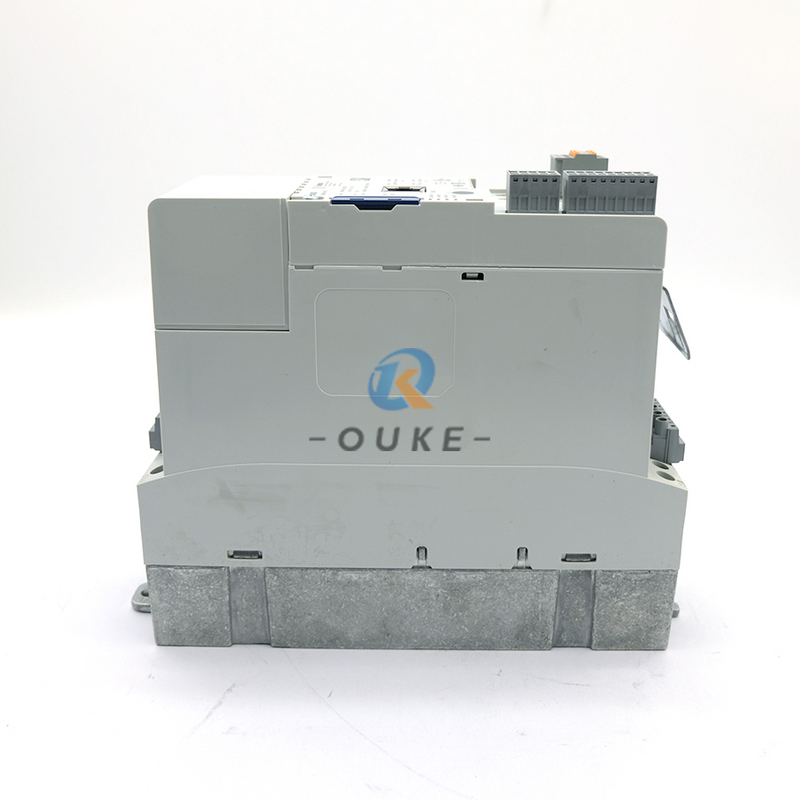

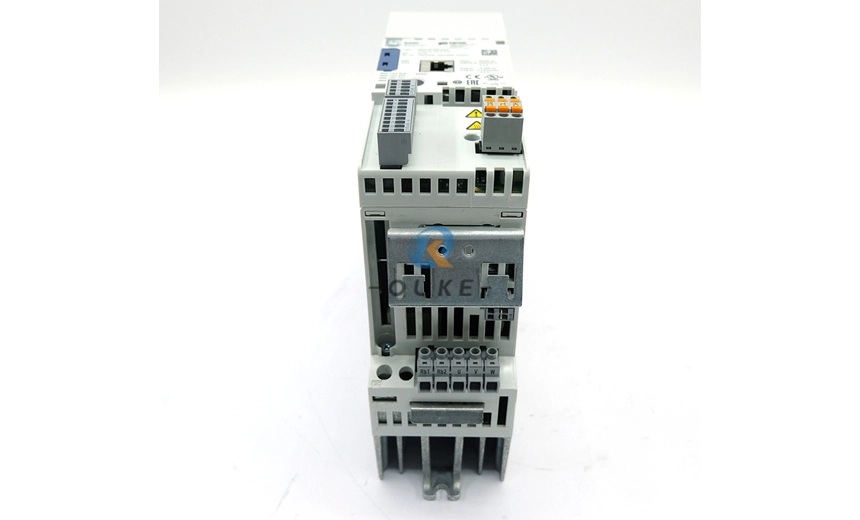

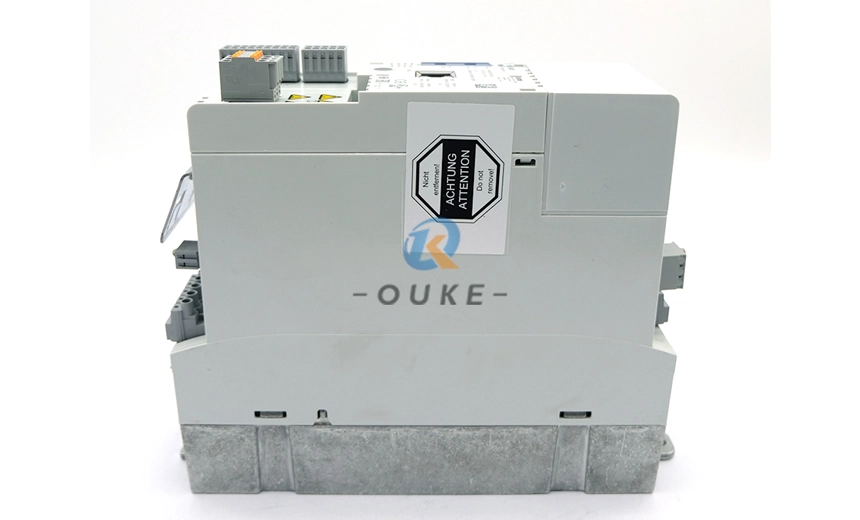

The drive features start/stop terminals, 1 analog input and 1 analog output (0–10V), plus 4 freely programmable digital inputs and 1 digital output/relay, allowing flexible integration with PLCs and field I/O. Communication options include on‑board CANopen and optional EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, or PROFINET modules, making it suitable for centralized or decentralized control architectures. Advanced functions such as integrated brake management, the “VFC eco” energy‑saving mode, and STO (Safe Torque Off) safety function improve energy efficiency, motor control performance, and machine safety. The compact IP20 installation design (approx. 26.5 × 26 × 8cm, 2.1–2.36kg) simplifies panel mounting and wiring in OEM machinery.
