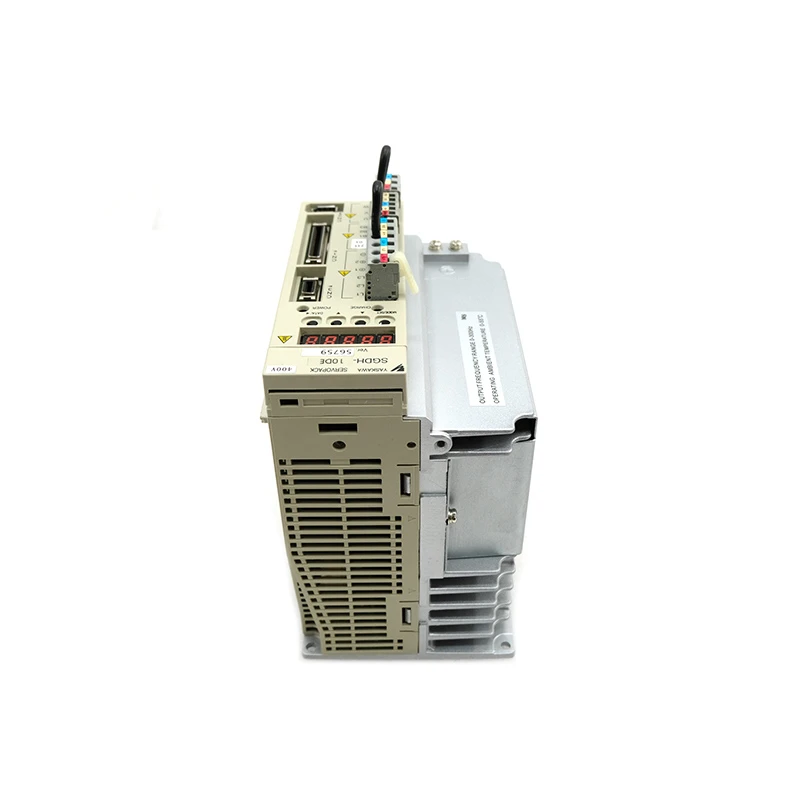

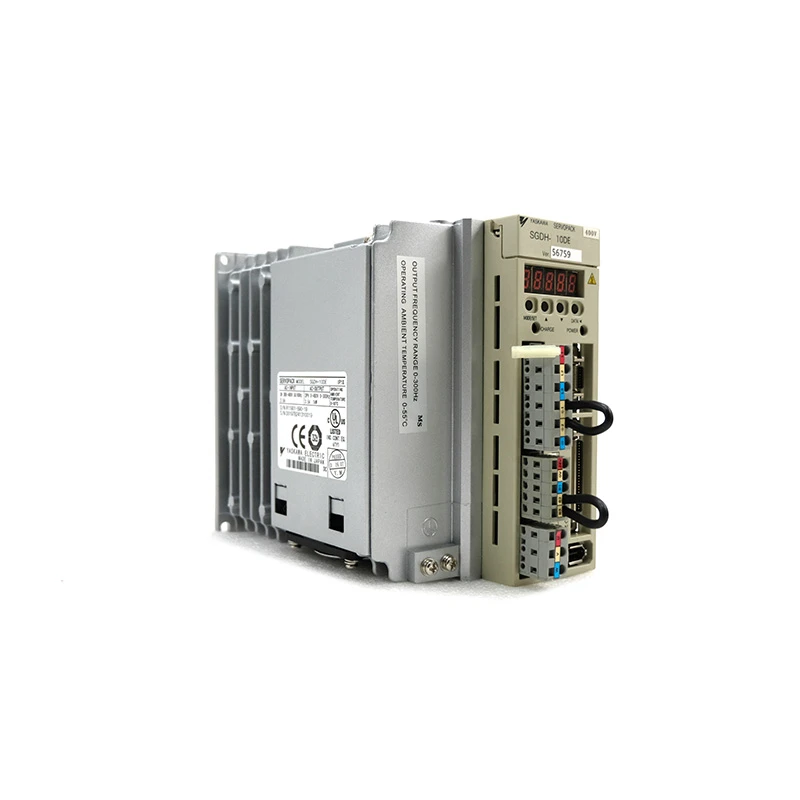

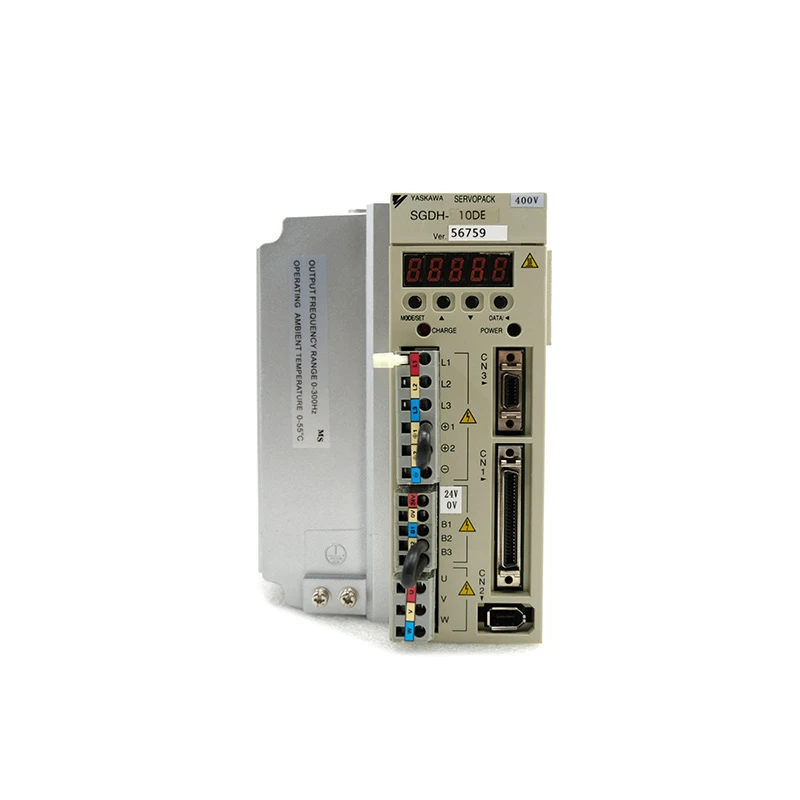

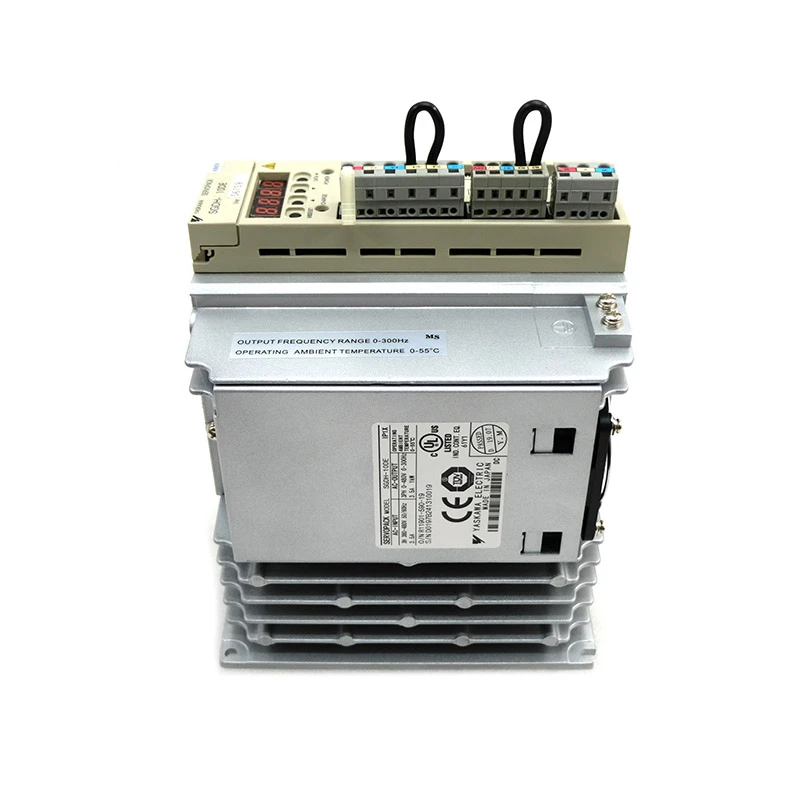

Yaskawa SGDH-10DE | Yaskawa Drive Module

Brand: Yaskawa

Model: SGDH-10DE

Packing size: 27.5*23*19cm

Packing weight: 3.4kg

Power supply: AC

Power: 2.9kw Speed response frequency: 50KHz

Rated voltage: 200V

Product type: Servo drive

Origin: Japan

The Yaskawa Drive module SGDH-10DE is a high performance servo drive with the following main specifications and features:

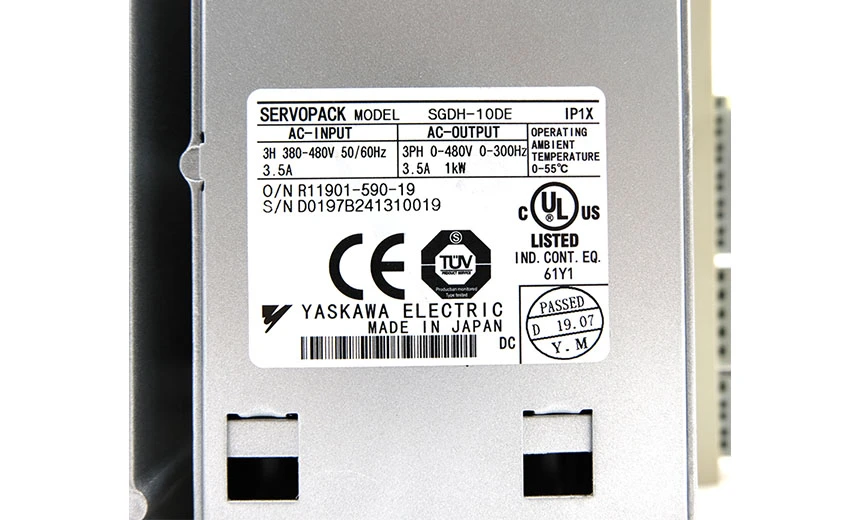

Model and specification: SGDH-10DE is a servo drive module model manufactured by Yaskawa Corporation. In terms of input, the AC input is three-phase, the voltage range is 380-480V, the frequency is 50/60Hz, and the rated current is 3.5A. In terms of output, three-phase output voltage range is 0-480V, frequency range is 0-300Hz, rated current is 3.5A, rated power is 1kW.

Protection level: The output end of the driver module is protected by IP1X, indicating that it can effectively prevent the intrusion of solid objects.

Operating environment temperature: The driver module can work normally in the ambient temperature range of 0°C to 55°C, adapt to different working environment and temperature conditions.

Function extension: The SGDH-10DE servo drive expands its functionality by adding application modules on top of SGDM performance. It has a variety of functional modules, including fully enclosed I/F unit (JUSP-FC100), DeviceNet*I/F unit (JUSP-NS300), INDEXER module (JUSP-NS600), INDEXER module (JUSP-NS500) and so on. In addition to 200V (single phase, three phase) and 100V (single phase) specifications, 400V (three phase) specifications are also available.

Manufacturing information: The driver module is manufactured by Yaskawa Electric Co., Ltd. with advanced design and reliable quality.

Overall, the Yaskawa drive module SGDH-10DE is characterized by high performance, reliability and rich features for industrial automation where precise control and efficient output are required. Its functional extensibility enables it to meet the needs of different application scenarios, and is one of the important components of modern industrial automation control system.
