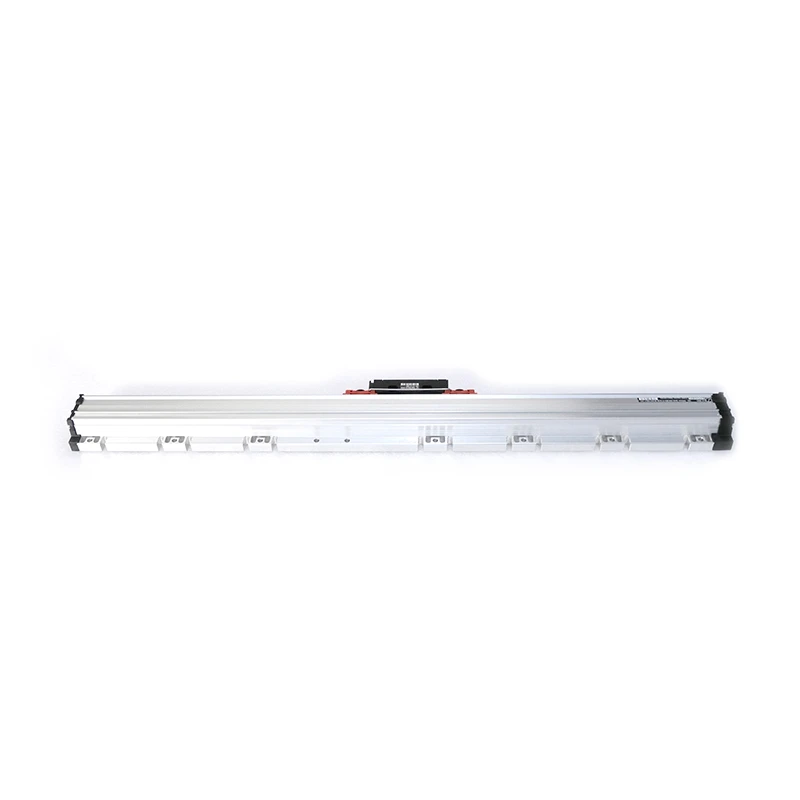

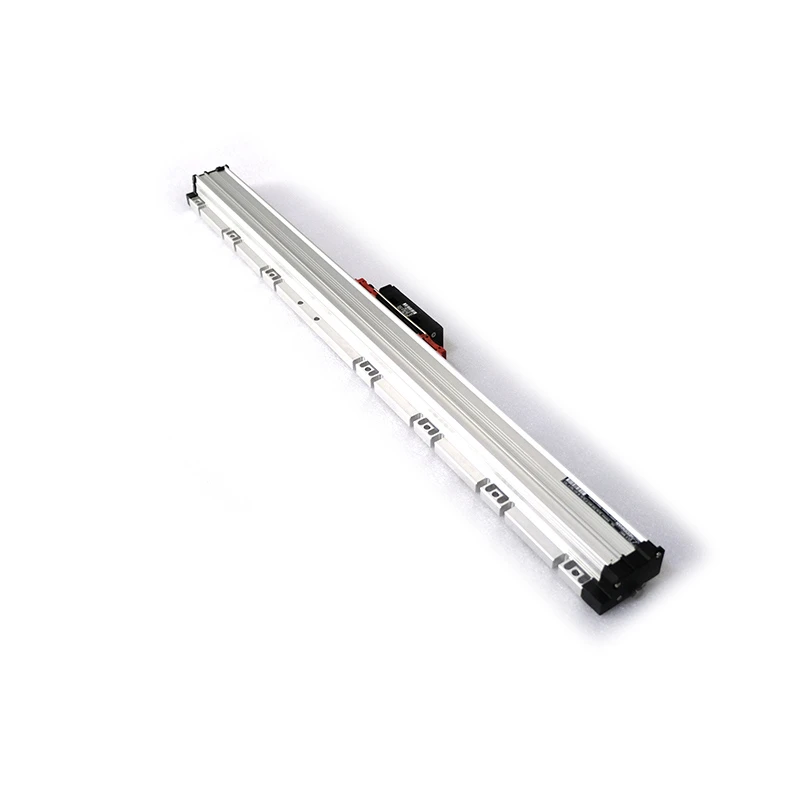

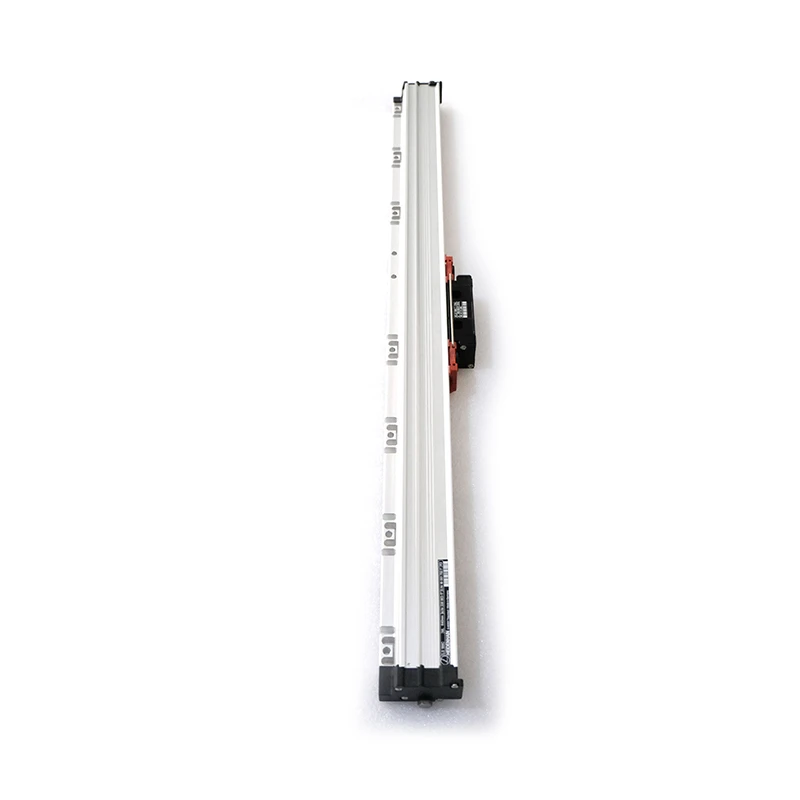

Heidenhain's 336963-17 is an incremental sealed linear encoder with a large cross section design, with high precision measurement, sealed protection and a wide range of applications, suitable for linear position measurement and control of various industrial automation systems.
Brand: Heidenhain
Size: 84*13.5*10cm
Weight: 2.4kg

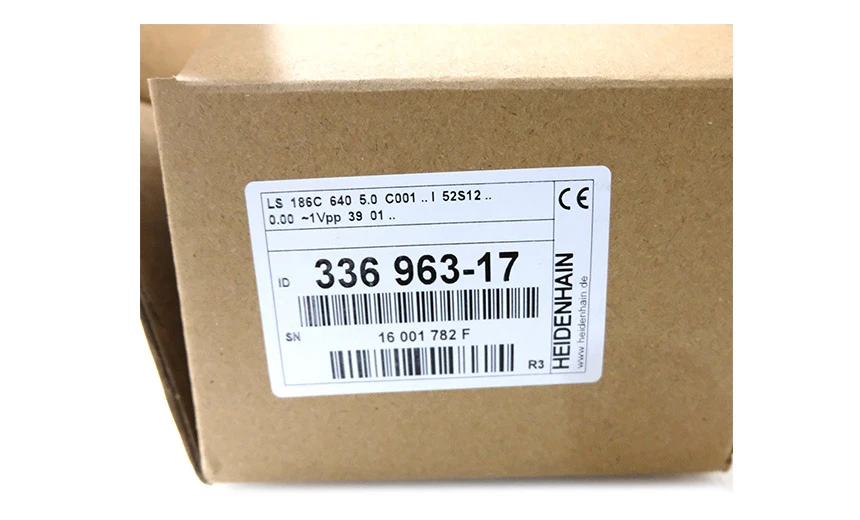

Identnumber: 336963-17
Measuring length: 640 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: Screw-on strip integrated
Output signal: sinusoidal voltage signals (1 Vpp)
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: separate adapter cable
Special characteristics, linear encoder: none
SCIP ID: e4b77e3b-ced4-489d-ab57-4e2cad61a09c

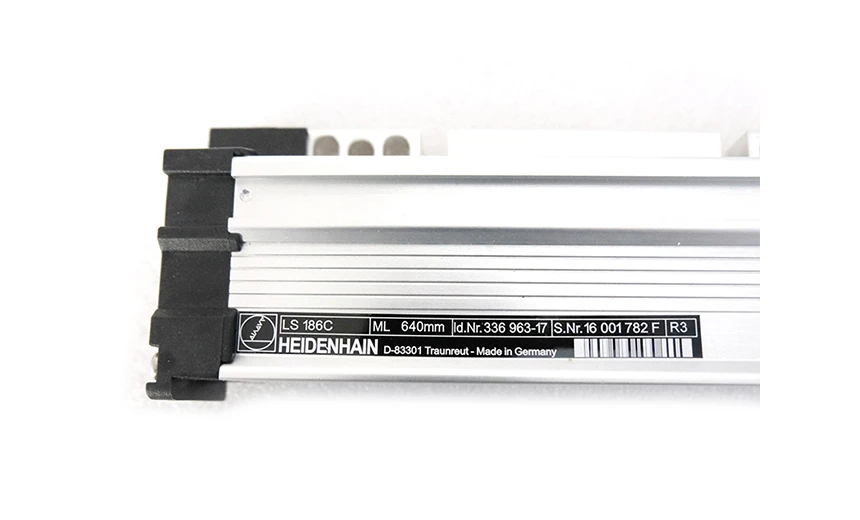

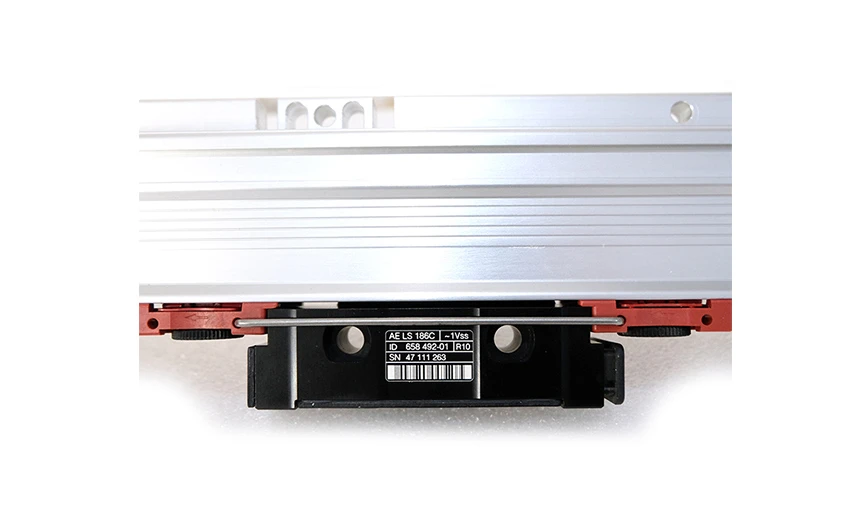

LS 186C

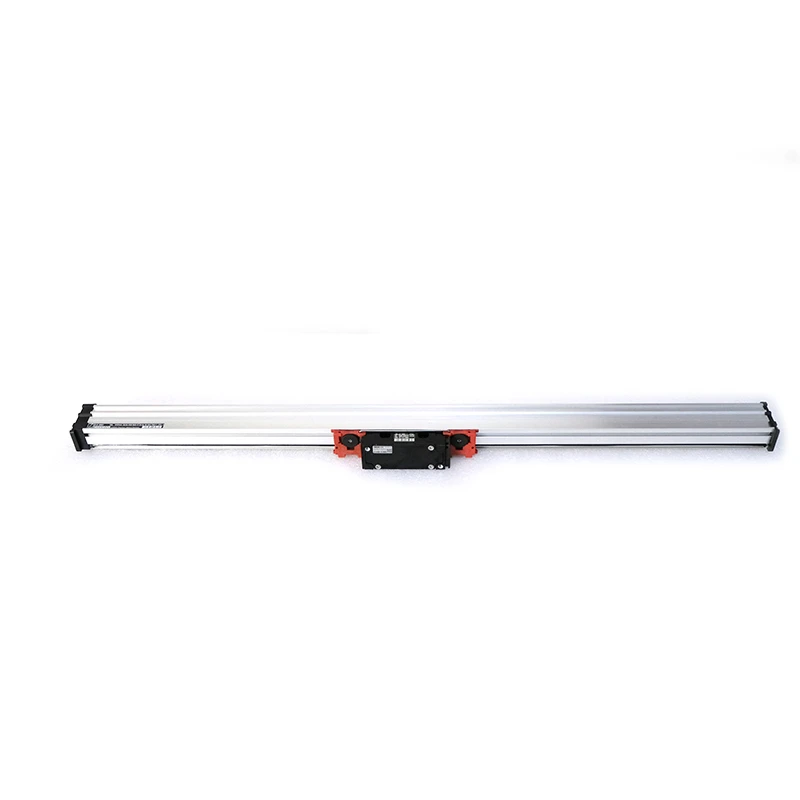

Incremental sealed linear encoder with large cross section
Heidenhain's 336963-17 is an incremental sealed linear encoder with a large cross section, featuring the following features:
1. Incremental design:
336963-17 is designed with an incremental encoder for highly accurate incremental measurement of position.
The incremental design enables the encoder to realize real-time monitoring and feedback of the position of the moving axis to ensure the stability and accuracy of the system.
2. Sealed protection:
The encoder adopts sealed design, has good dust and water resistance, and can operate stably in harsh working environment.
Sealed protection effectively protects the internal precision components and extends the service life of the encoder.
3. Large cross section design:
336963-17 has a large cross section design, providing a larger measurement range and higher measurement accuracy.
The large cross-sectional design enables the encoder to adapt to a variety of complex work scenarios and to achieve accurate measurement of moving parts of larger sizes.
4. High precision measurement:
Encoder with high precision measurement capability, can achieve accurate measurement of the axis of motion position.
High precision measurement ensures the stability and accuracy of the system, and meets the application scenarios that require high position measurement accuracy.
5. Widely used:
336963-17 is suitable for all kinds of linear motion systems, such as CNC machine tools, automatic production lines, etc.
Have a wide range of applications in industrial automation where the position of linear axes of motion needs to be accurately measured and controlled.
In summary, Heidenhain's 336963-17 is an incremental sealed linear encoder with a large cross section design, with high precision measurement, sealed protection and a wide range of applications, suitable for linear position measurement and control of various industrial automation systems.
