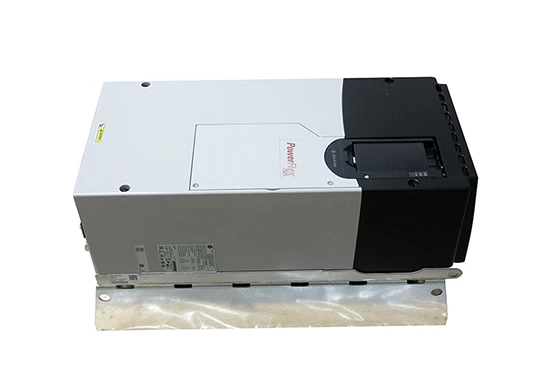

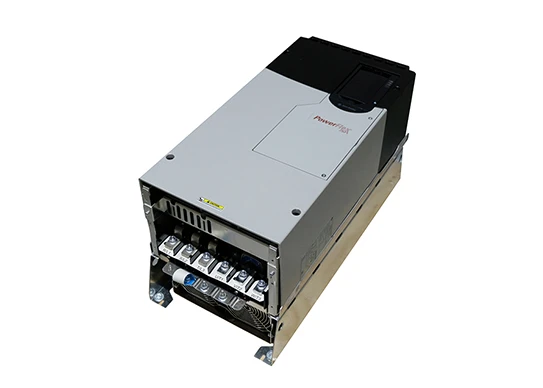

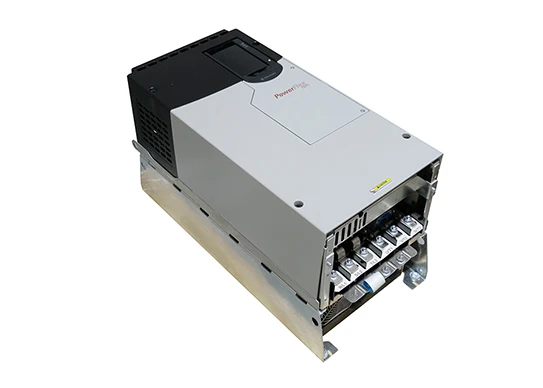

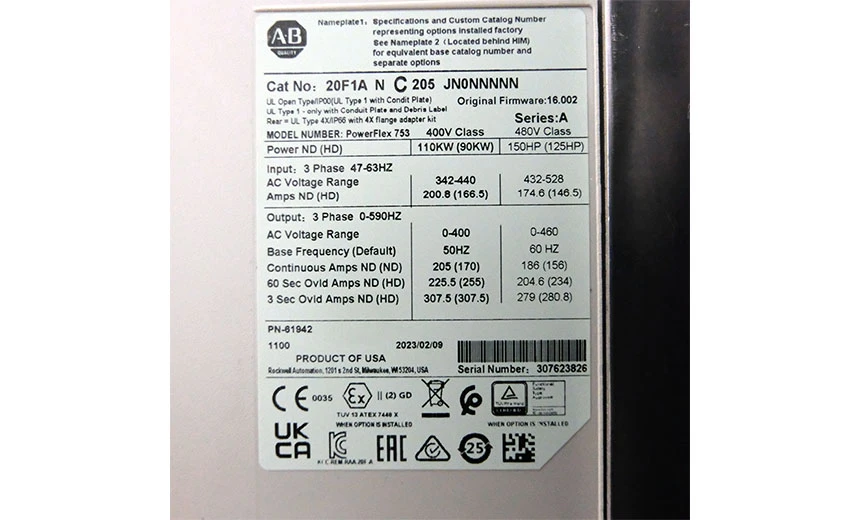

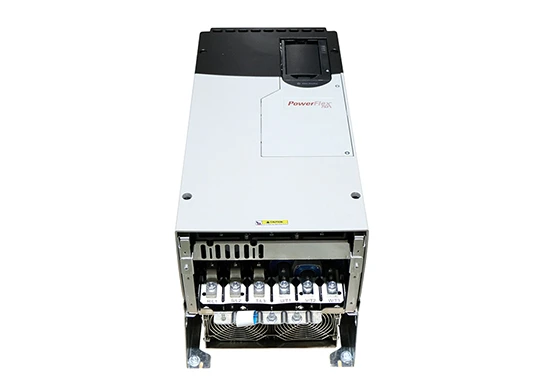

The 20F1ANC205JA0NNNNN is part of the PowerFlex 753 family of premium general‑purpose AC drives designed for a wide variety of industrial variable speed applications. It is a 400 V class, three‑phase drive with a rated output current of 205 A, providing 110 kW normal duty (ND) and 90 kW heavy duty (HD) motor power at 400 V in Frame size 6. The drive is air‑cooled and housed in an IP20/IP00 open‑type, NEMA/UL open enclosure, intended for installation inside a suitable electrical cabinet.
This catalog number specifies an AC input with precharge and no DC terminals, meaning the drive is fed directly from the AC supply and does not provide external DC bus connection points. It includes input filtering with the common‑mode (CM) capacitor jumper installed, helping meet EMC requirements and reducing conducted noise. The unit also has an integrated dynamic braking (DB) transistor, allowing connection of an external brake resistor for applications with high‑inertia loads or frequent rapid deceleration.
The drive operates on 400 V AC nominal input (≈400 V AC / 540 V DC bus) and is suitable for 3‑phase motors typically up to 110 kW / 150 HP at normal duty rating. As a PowerFlex 753 with embedded I/O, it provides standard on‑board I/O including 3 digital inputs, 1 relay output, 1 analog input, 1 analog output, 1 transistor output, and 1 PTC input, and supports additional option cards for extended I/O, communication, feedback, and safety functions.
Designed for robust, high‑performance control, the 20F1ANC205JA0NNNNN offers features such as integrated PID control, advanced diagnostics, fault and alarm functions, and a real‑time clock for time‑stamped events and run‑time tracking. The mechanical design includes accessible heatsink and fans for easier maintenance, and it is compatible with Rockwell’s control architectures for integration with PLCs and networks.
Typical applications include large pumps, fans, compressors, conveyors, mixers, and other high‑power industrial drives requiring precise speed control and reliable performance at 400 V.
