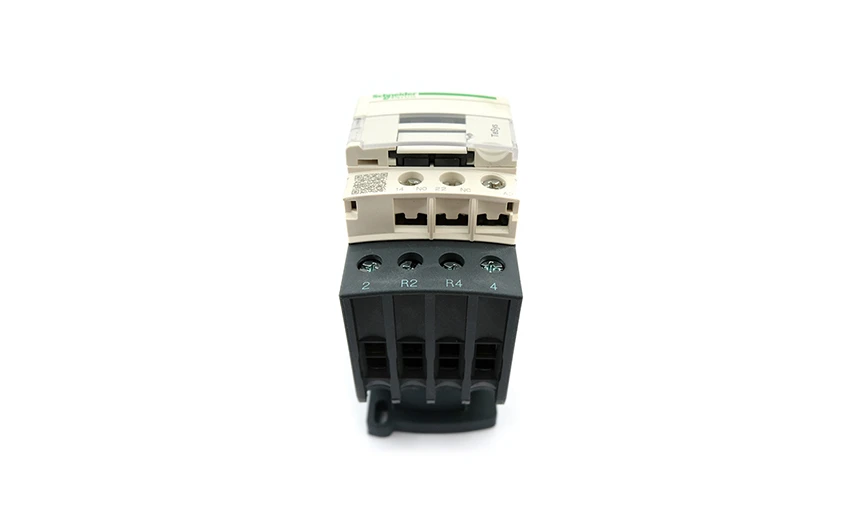

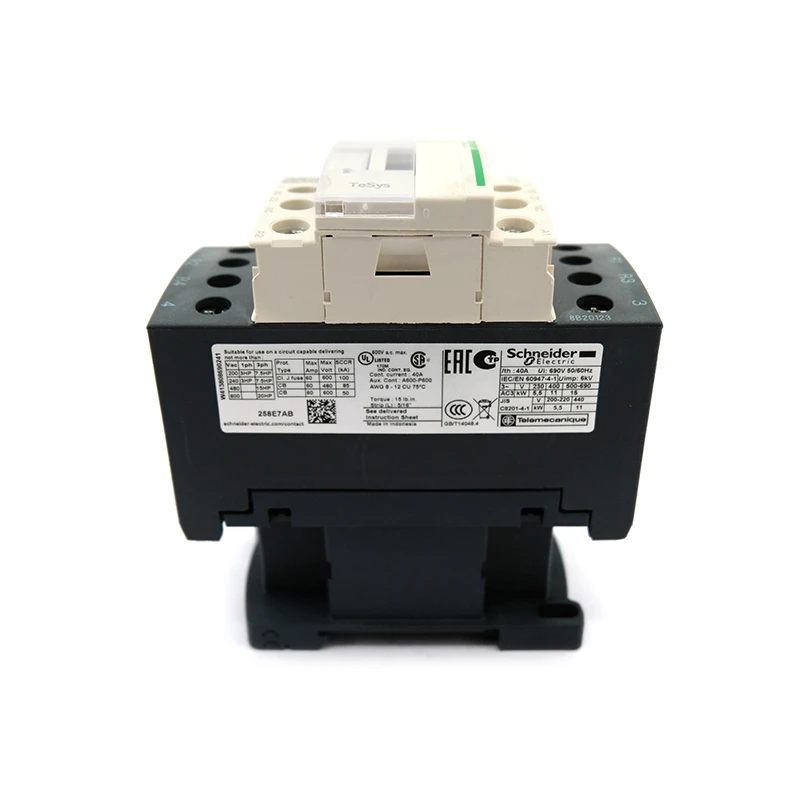

Name: Schneider LC1D258 | Schneider Electromagnetic Contactor
Brand: Dongguan Ouke Automation Equipment Co., Ltd.

Model: LC1D258

Brand: Schneider

Size: 12*9.5*5.5cm

Weight: 0.5kg

Country of origin: France

Product series	TeSys Deca
Product type	contactor
Product short name	LC1D
Contactor application field	Applied to non inductive or micro inductive load, resistance furnace
Category of use	AC-1 AC-3 AC-3e AC-4
Number of poles	4P
Rated operating voltage [Ue]	Power supply circuit: <= 690 V AC 25... 400 Hz
Rated operating current [Ie]	40 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-1 for power supply circuit
[Uc] control circuit voltage	48 V AC 50/60 Hz

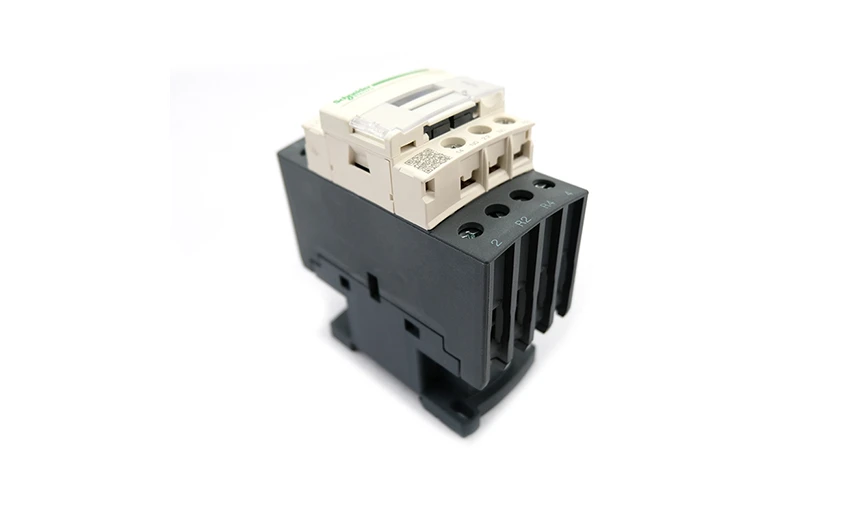

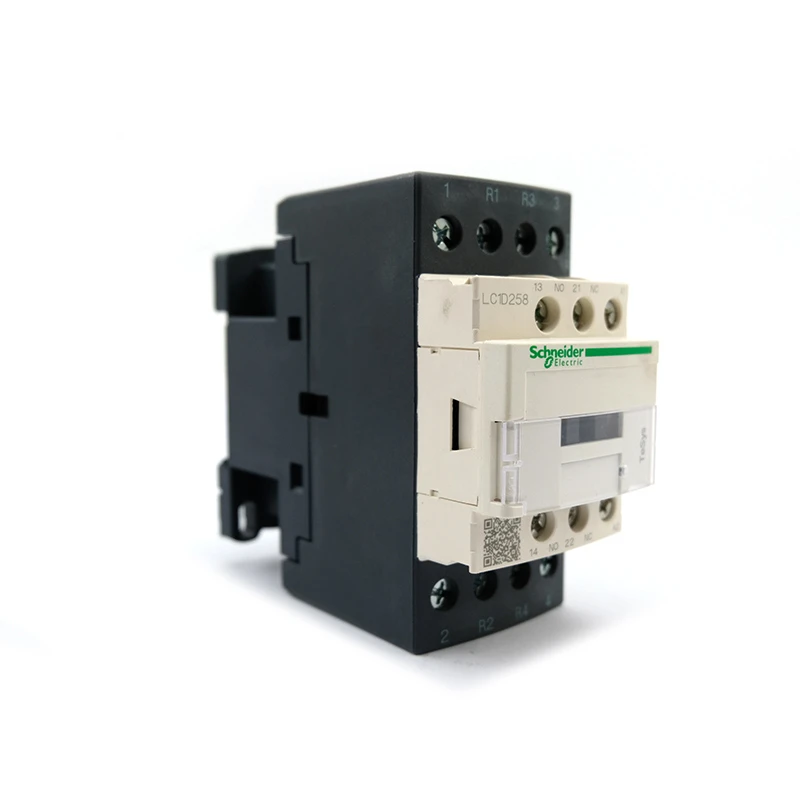

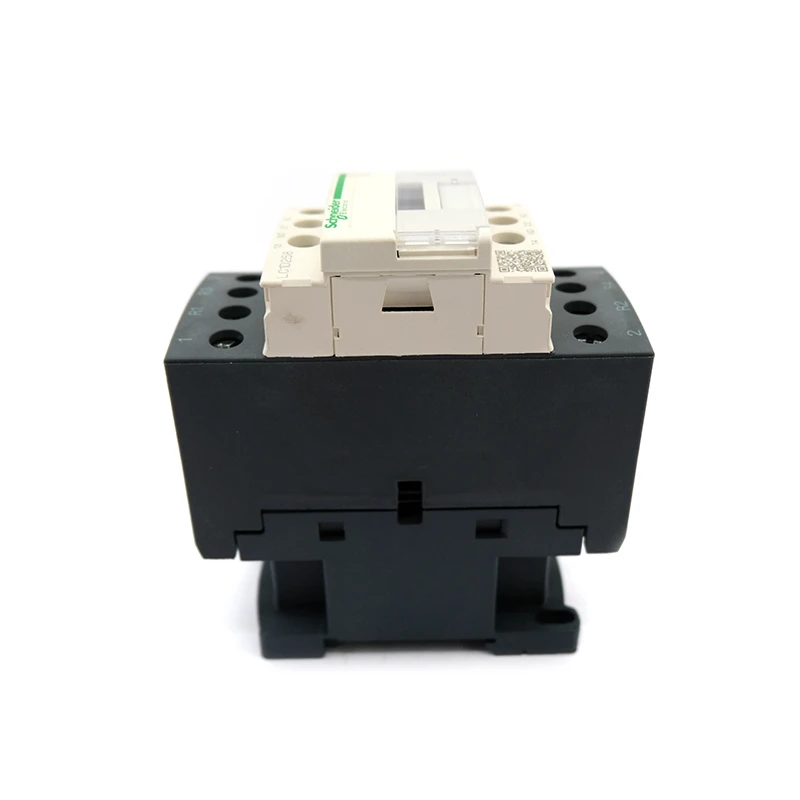

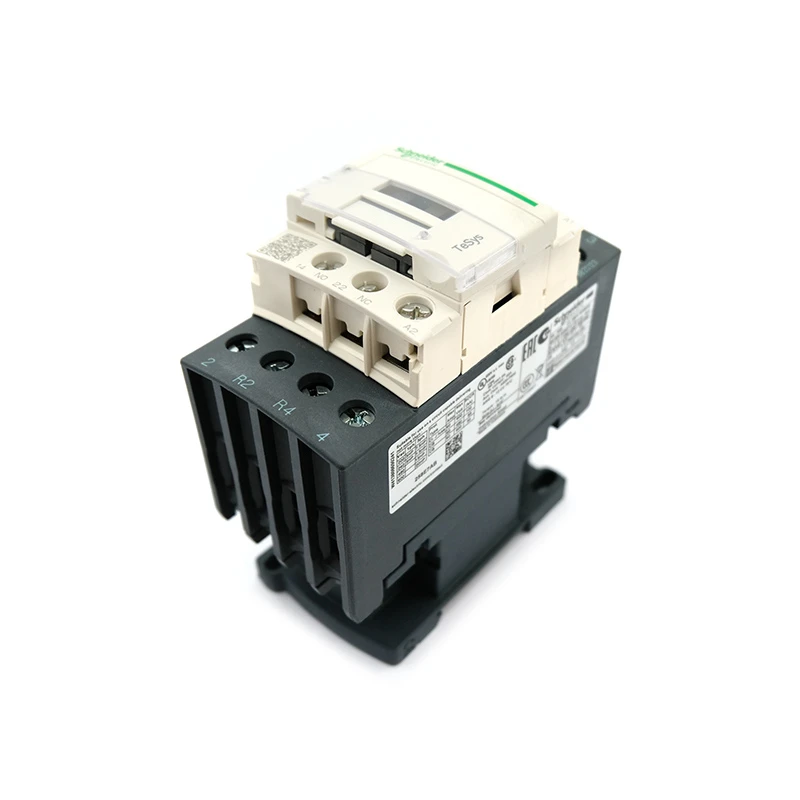

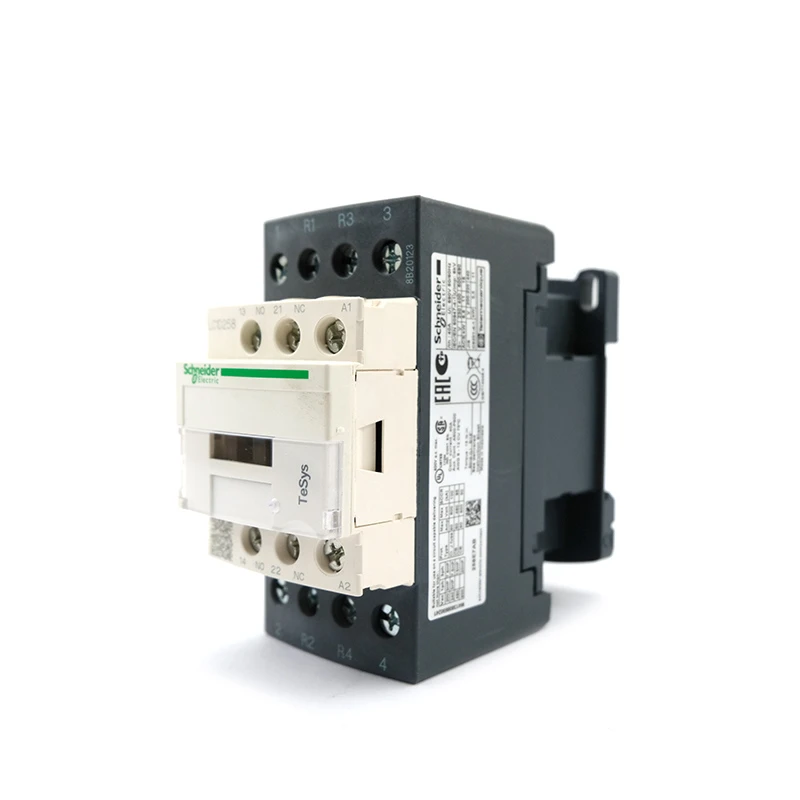

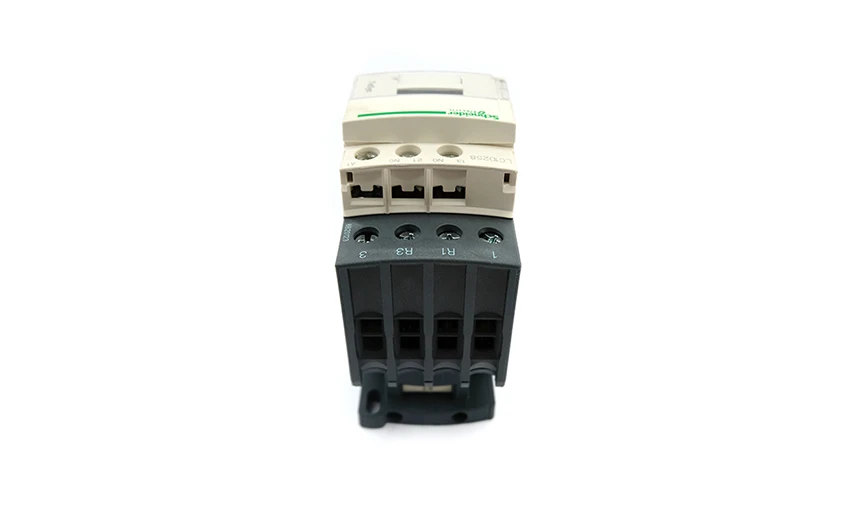

The LC1D258 is a contactor in the Schneider TeSys Deca family designed for load control and motor starting. Here are some more details:

Product type and short name: LC1D258 is an electromagnetic contactor, short name LC1D. It is designed to provide reliable load control and motor starting functions.

Application: LC1D258 is mainly used in non-inductive or micro-inductive loads and resistance furnaces. Its design and characteristics make it ideal for industrial automation and power control systems.

Usage categories: The LC1D258 supports a variety of usage categories, including AC-1, AC-3, AC-3e, and AC-4. This enables it to meet the requirements of different load types and application scenarios.

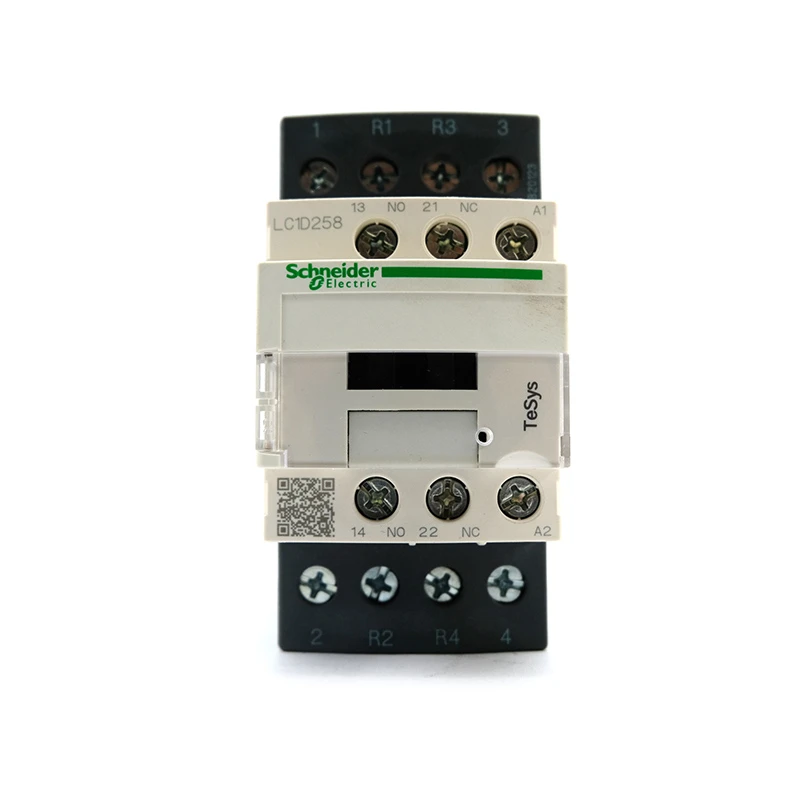

Poles: The LC1D258 has four main contacts, including two normally open contacts (NO) and two normally closed contacts (NC). This design allows it to flexibly control the on-off state of the circuit.

Rated operating voltage [Ue] : The LC1D258 can be operated in a power loop and supports rated operating voltages up to 690 V AC in a frequency range of 25 to 400 Hz. This makes it suitable for a variety of different power systems.

Rated operating current [Ie] : For the power supply circuit, the LC1D258 is rated for 40 A, which to some extent demonstrates its strong capability for load control.

Control loop voltage [Uc] : The voltage of the control loop is 48 V AC and the frequency is 50/60 Hz. This parameter determines the action and release of the control contactor.

Rated switching capacity [Irms] : In the signal circuit, the LC1D258 is rated for 140 A AC and 250 A DC. 450 A under the power loop. This ensures that the contactor can safely open and close the circuit and will not be damaged by excessive load current.

Rated breaking capacity: The LC1D258 has A rated breaking capacity of 450 A in the power loop, which means it can safely disconnect the load circuit and remain reliable even under high load conditions.

LC1D258 contacts are highly reliable and durable, meet a number of standards, and are rigorously certified. Its design and performance make it an integral part of industrial control systems, ensuring the safe and stable operation of circuits.
