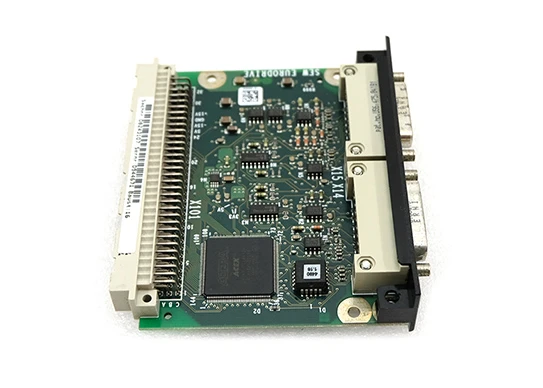

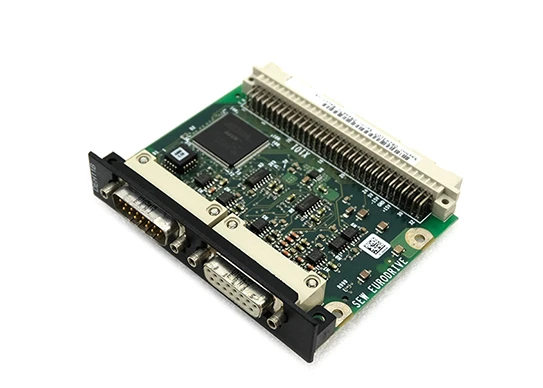

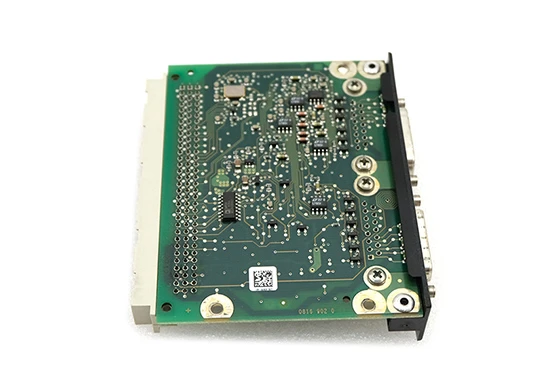

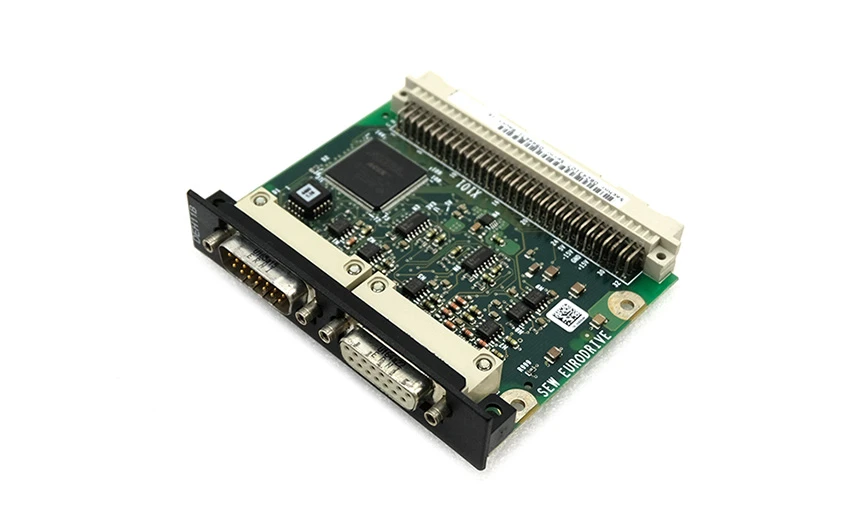

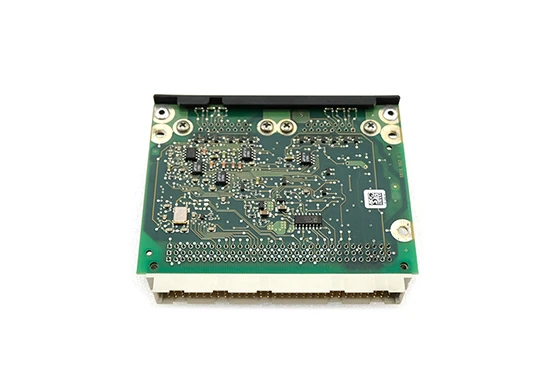

SEW Eurodrive's DEH11B is an incremental encoder card designed for the MOVIDRIVE MDX61B unit with optional functionality. The encoder card provides inputs for motor encoders and external encoders (also known as distance encoders), and can also be used as outputs for incremental encoder simulations.
Brand: SEW Eurodrive
Model: DEH11B
Product size 10*8.8*2cm
Net weight: 0.5kg
Product type: Encoder card
Country of Origin: Germany
Technical parameter
Incremental encoder input:

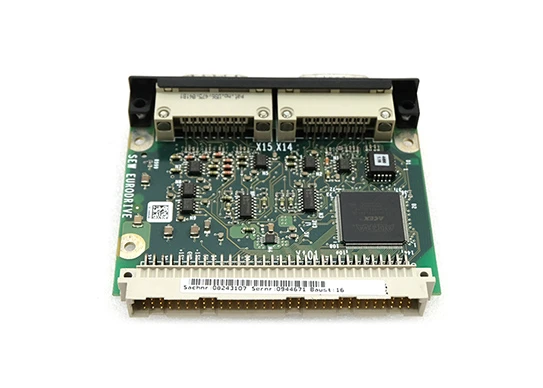

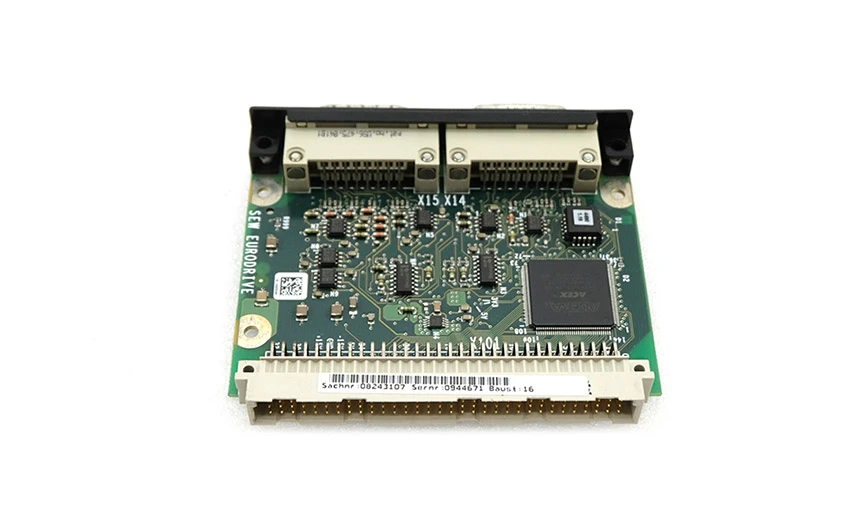

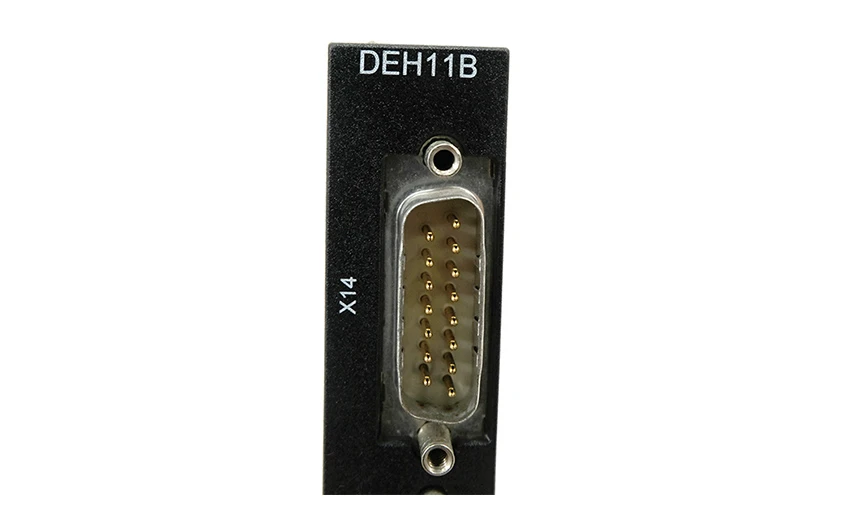

X14 port: For external encoder inputs, supports Hiperface® encoders, Sin/cos encoders (VPP=AC 1V), TIL encoders with reverse tracks, and encoders with signal levels up to RS422.

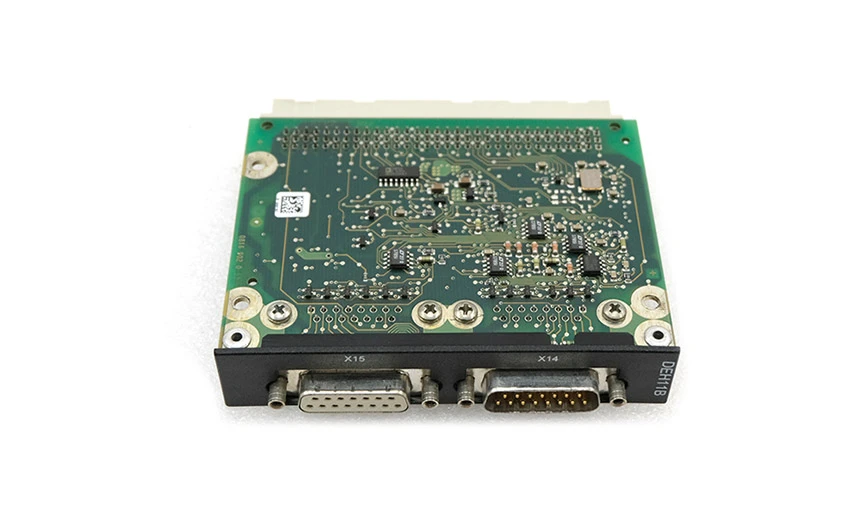

X15 port: For motor encoder input, supports Hiperface® encoders, Sin/cos encoders (VPP=AC 1V), TIL encoders with reverse tracks, and encoders with signal levels up to RS422. The PPR (pulses per revolution) range supported includes 128/256/512/1024/2048.
Encoder power supply:
Power supply voltage: DC +12V (the allowable range is DC 10.5-13 V).
Maximum current: DC 650mA.
Output mode:
The signal from the X14 port can be used as the simulation output of the incremental encoder.
Product introduction
SEW Eurodrive's DEH11B encoder card provides flexible encoder interface options for the MOVIDRIVE MDX61B unit. It not only supports the input of the motor encoder, but also receives the signal of the external encoder, thus achieving precise control of the position information. In addition, the DEH11B also has the capability of incremental encoder simulation, making it more versatile. Whether in industrial drive control or precision positioning applications, the DEH11B provides users with a reliable encoder interface solution.
In summary, SEW Eurodrive's DEH11B incremental encoder card has flexible interface options and reliable performance for a variety of drive control and positioning applications, providing users with an efficient solution.
