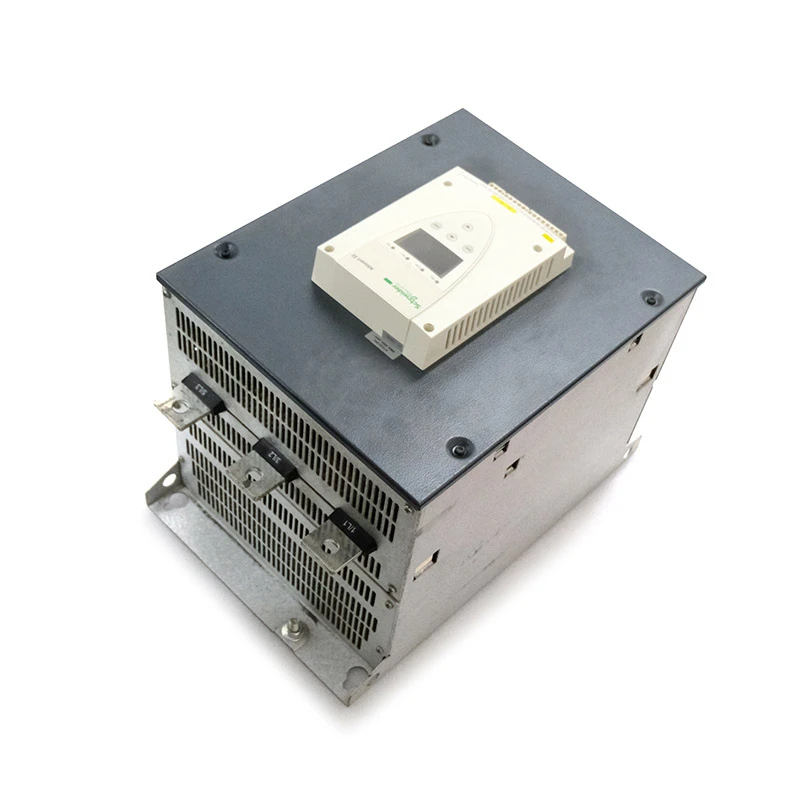

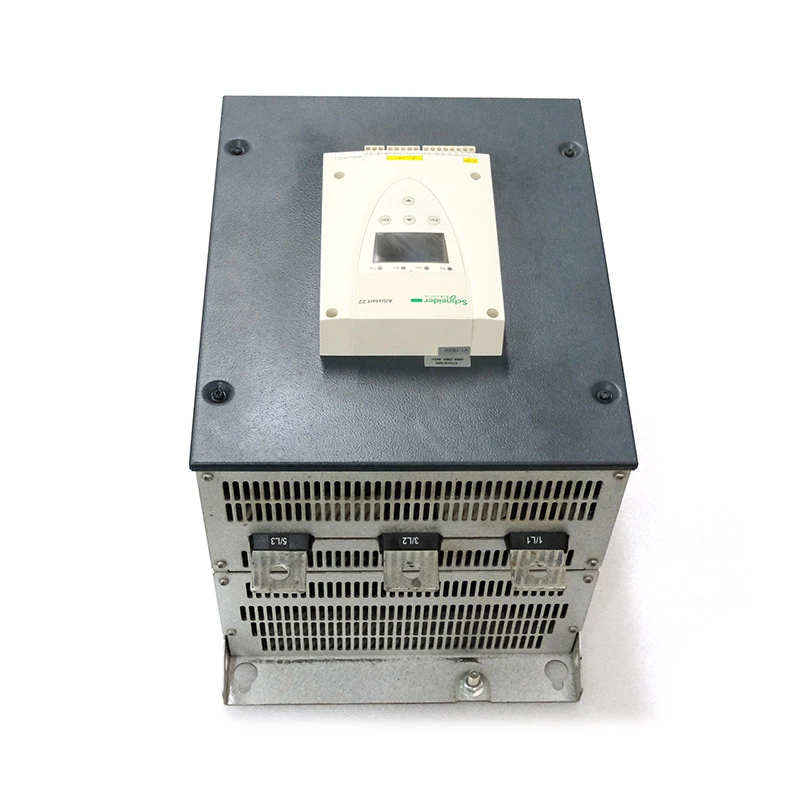

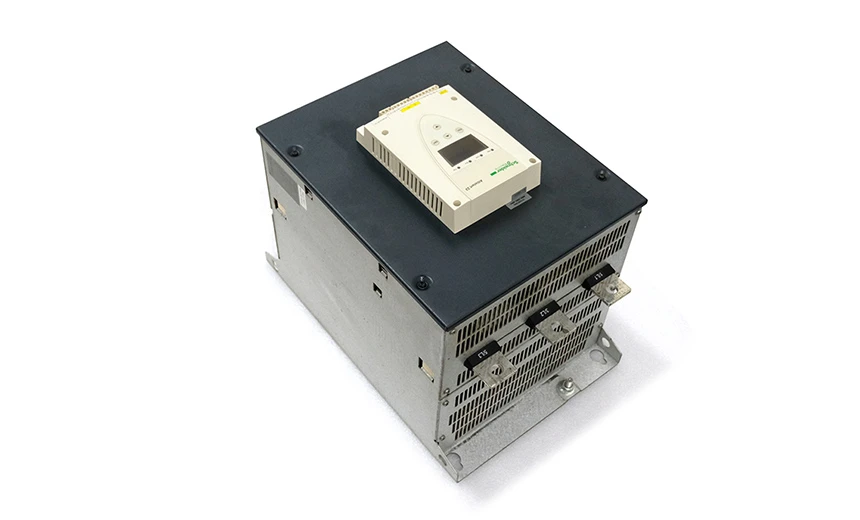

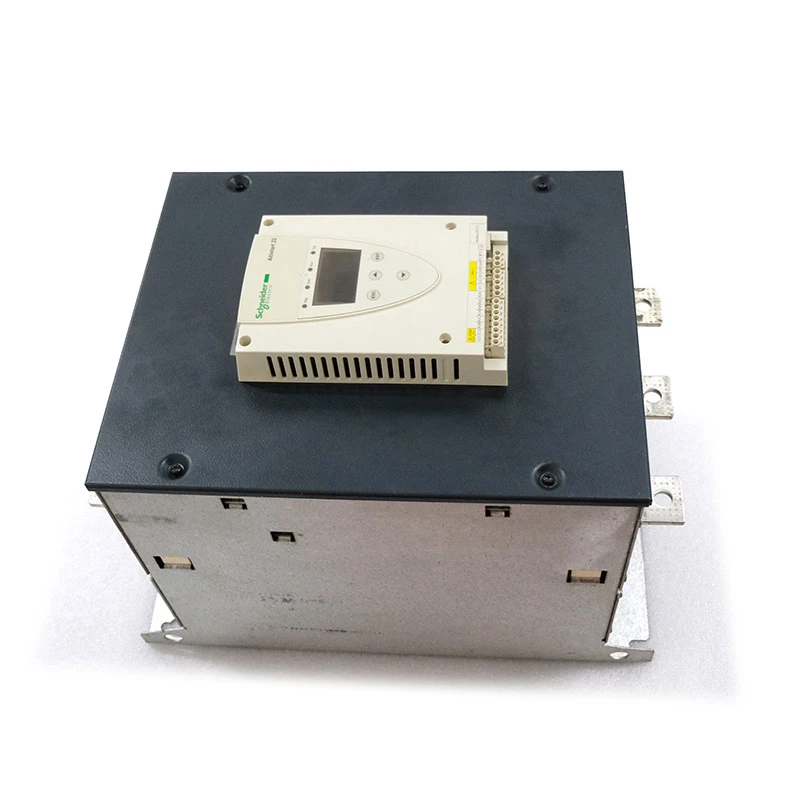

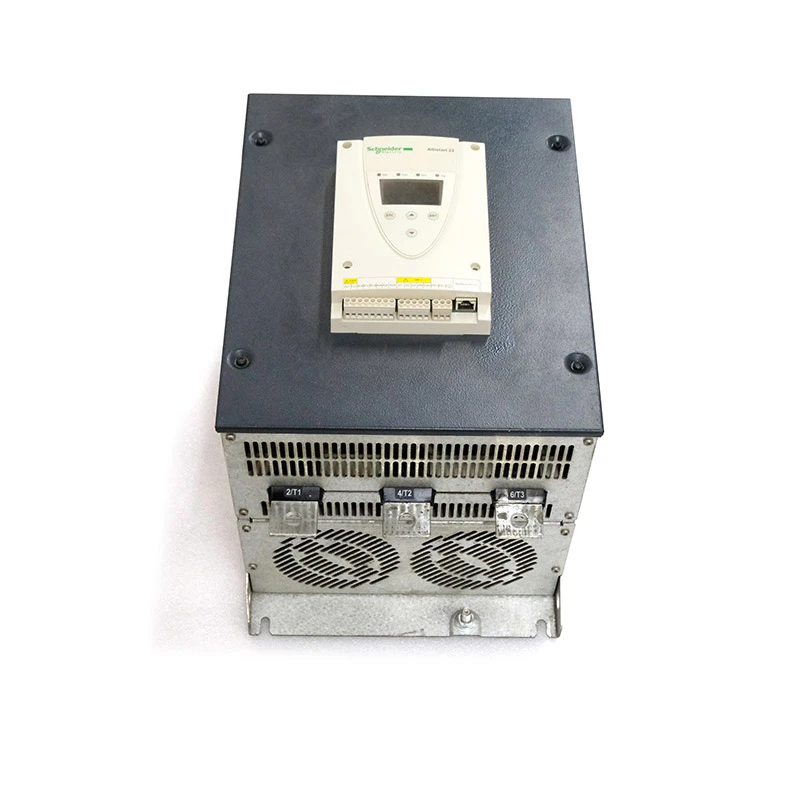

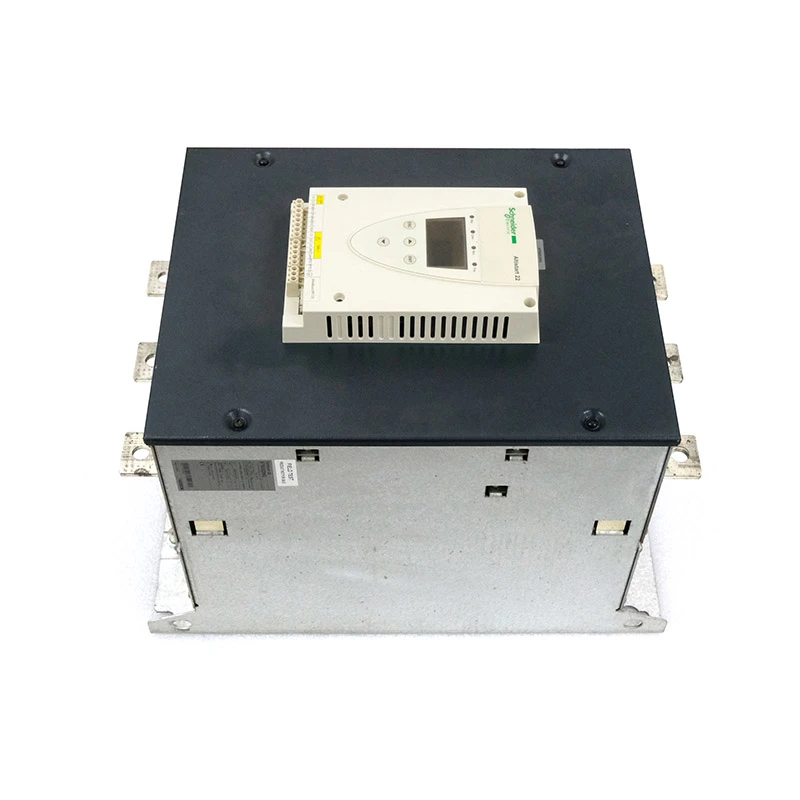

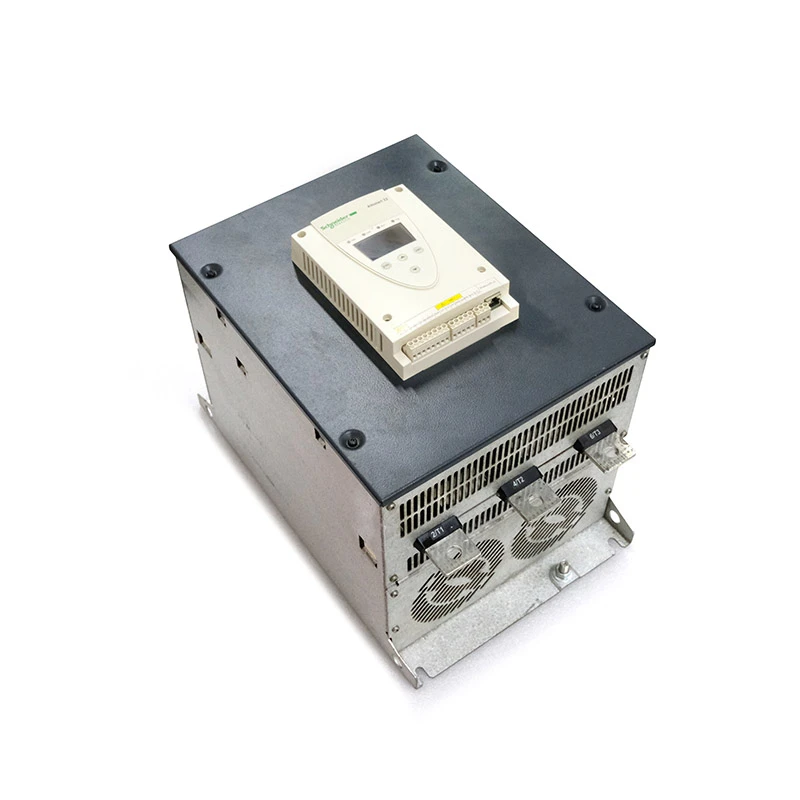

ATS22C59Q soft starter is a comprehensive and stable motor control equipment, widely used in pumps, fans and other industrial equipment start and stop control, to provide users with a reliable and efficient operation solution.
Model: ATS22C59Q
Brand: Schneider
Size: 45.5*30*34cm
Weight: 31kg
Country of origin: France

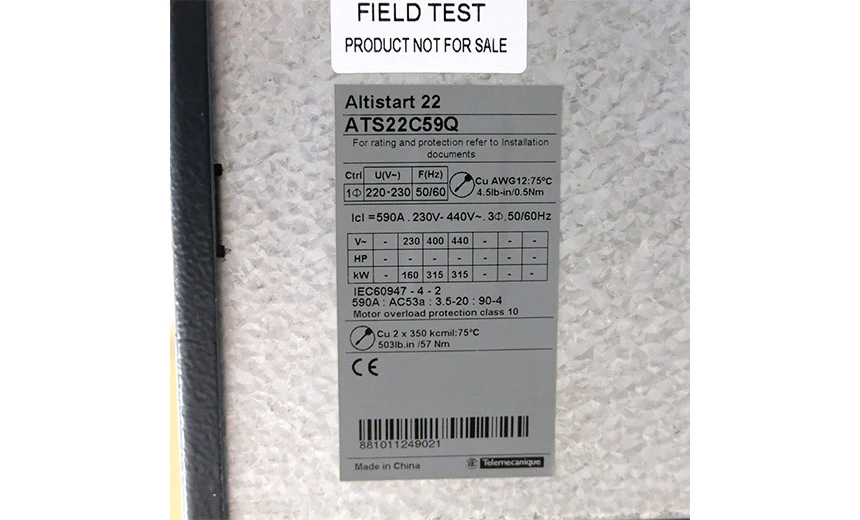

Product series | Altistart 22 |
Product type | Soft starter |
Product application scenario | Asynchronous motor |
Application field | Pumps and fans |
Component name | ATS22 |
Grid phase number | three-phase |
Rated supply voltage [Us] | 230...440 V - 15...10 % |
Motor power (kW) | 160 kW 230V AC |
Factory setting current | 560 A |
Power consumption W | 251 W for standard applications |
Category of use | AC-53A |
Startup type | Torque controlled starting (current limited to 3.5 In) |
IcL starter rating | The 590 A is suitable for standard applications connected to the motor power cord |
IP protection level | IP00 |
ATS22C59Q is the Altistart 22 series soft starter from Schneider Electric, which is mainly used to control the start and stop process of three-phase asynchronous motors. Suitable for applications such as pumps and fans, the soft starter provides reliable start and stop functions for motors, while providing multiple protection features to ensure the safety of equipment and personnel.
Main features:
Efficient and reliable: The ATS22C59Q soft starter uses advanced control algorithms and reliable components to ensure efficient start and stop of the motor.
A variety of protection functions: the soft starter has a variety of protection functions such as phase loss protection, overload protection, overvoltage protection, etc., to protect the safe operation of the motor and equipment.
Simple installation: compact design, easy installation, users can quickly configure and debug, reduce the installation and debugging time.
Flexible control: supports a variety of control modes, including local keyboard control, remote signal control and network control, to meet the needs of different users.
Application scenario:
Pump system: used to control the start and stop of the pump, to achieve accurate control of water flow.
Fan system: used to control the start and stop of industrial fans, adjust the air volume and wind speed, improve the efficiency of the system.
Other applications: Suitable for all kinds of asynchronous motor equipment requiring start and stop control, such as compressors, conveyors, etc.
Technical parameters:
Number of grid phases: 3
Rated power supply voltage: 230-440 V
Rated power range: 110-500 kW
Starting type: Soft starter with torque control
Protection level: IP00
Operating temperature range: -10°C to +40°C
Environmental adaptability:
Electromagnetic compatibility: in line with IEC 60947-4-2 standard, with strong anti-interference ability.
Vibration and shock resistance: suitable for harsh industrial environments according to EN/IEC 60068-2-6 and EN/IEC 60068-2-27.
Working altitude: up to 2000 meters, suitable for installation in different altitude areas.
Summary: ATS22C59Q soft starter is a comprehensive and stable motor control equipment, widely used in pumps, fans and other industrial equipment start and stop control, to provide users with a reliable and efficient operation solution.
