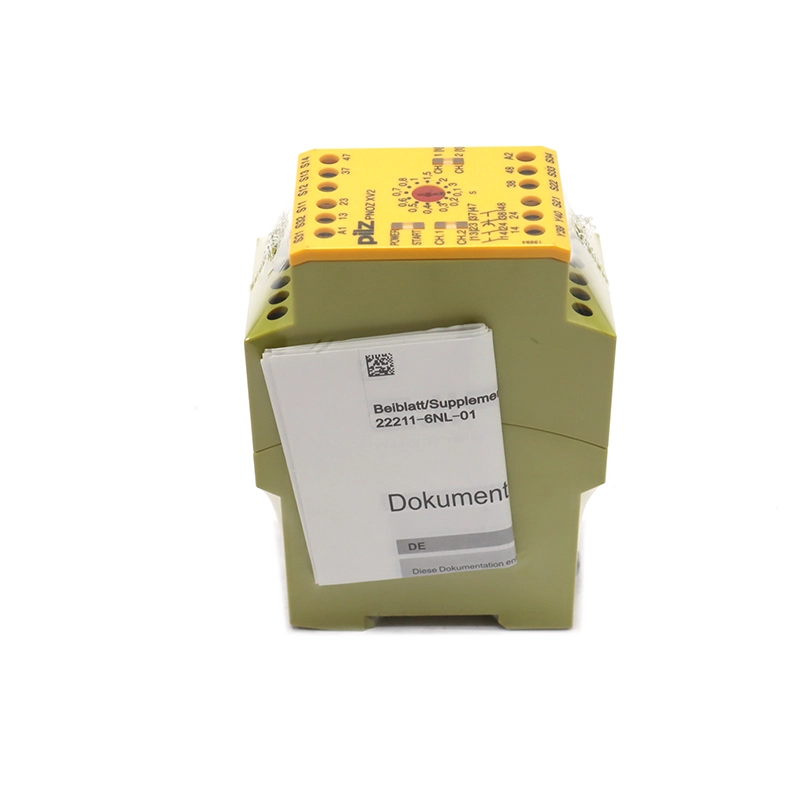

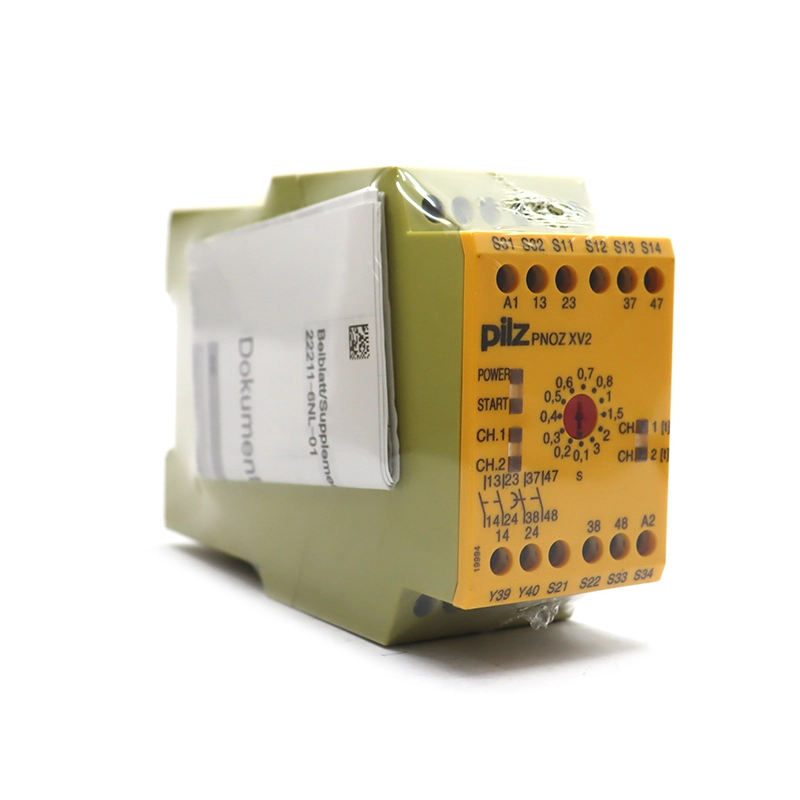

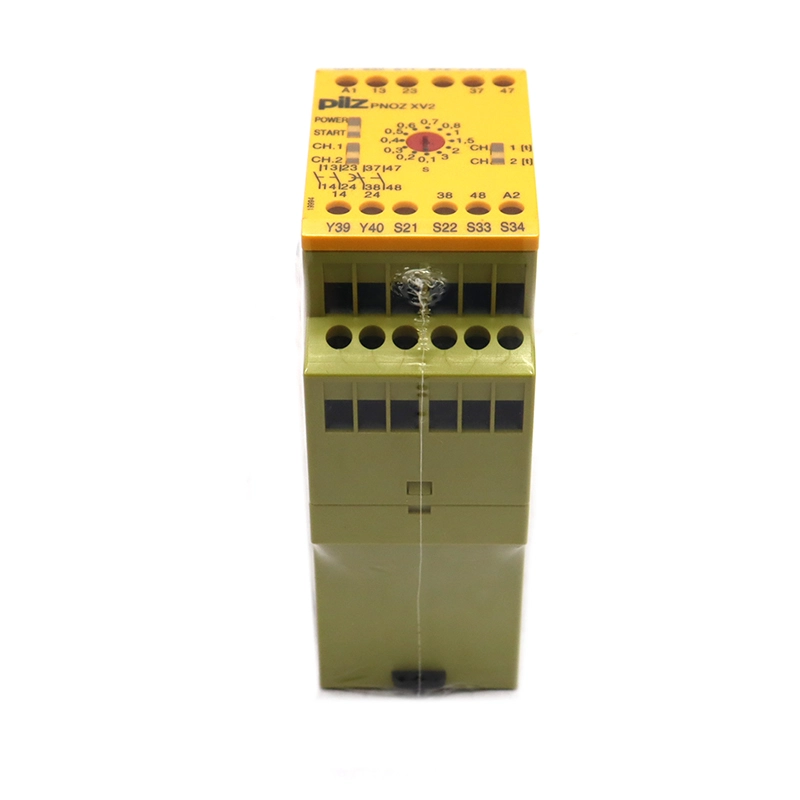

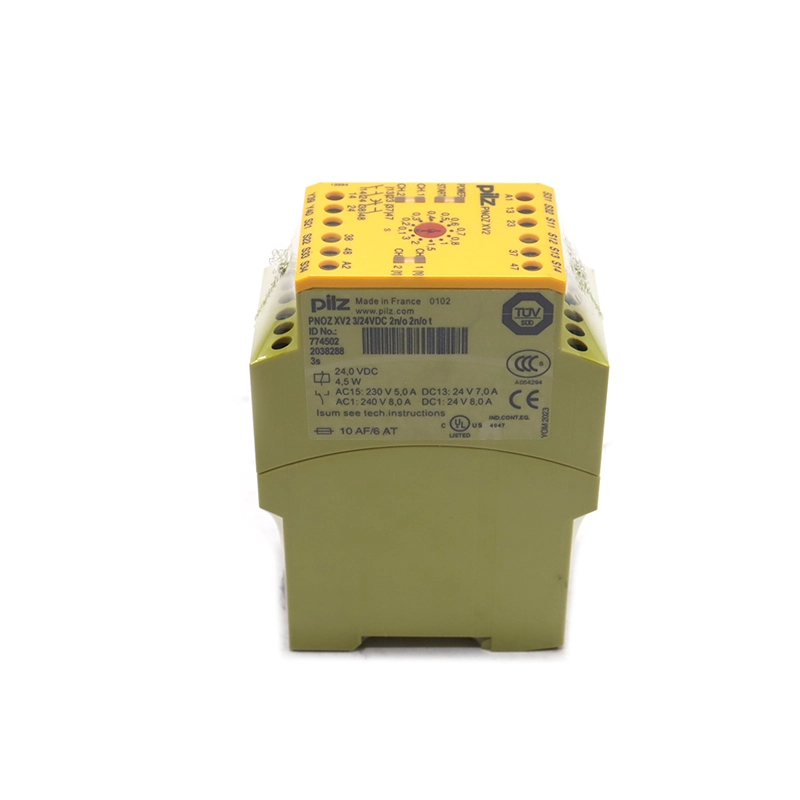

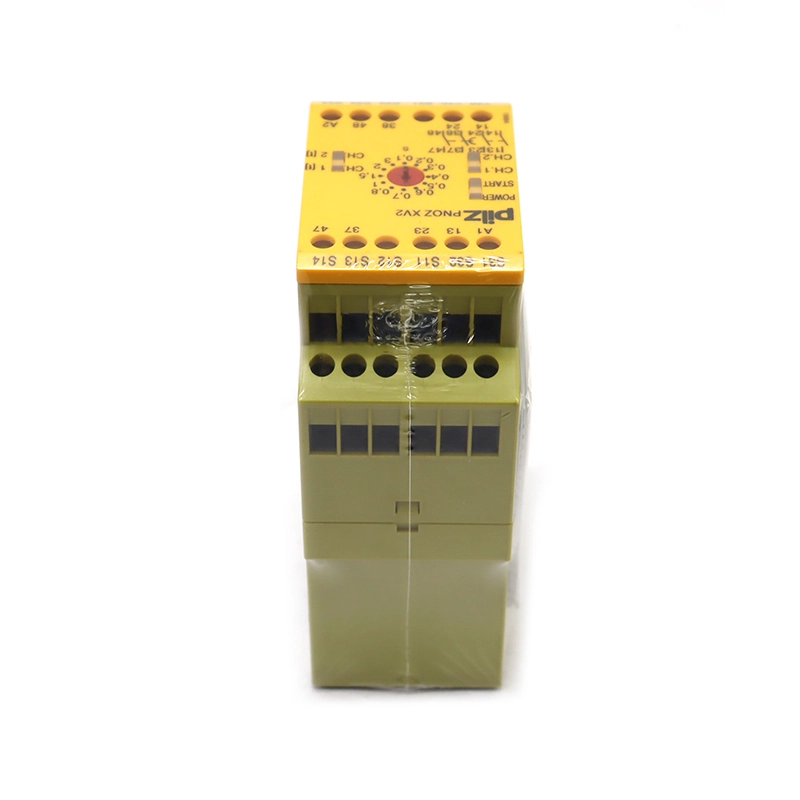

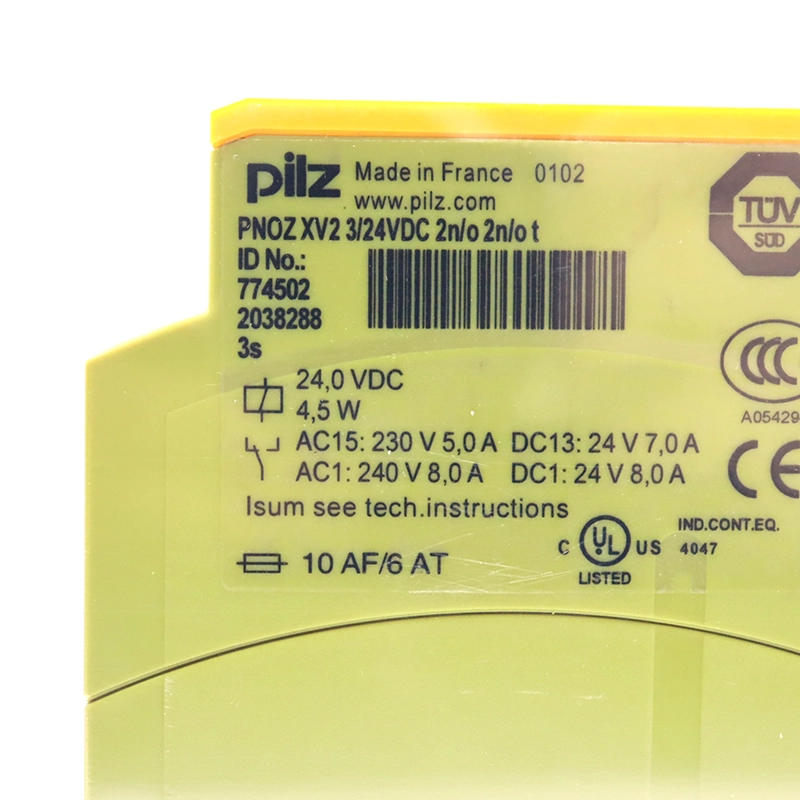

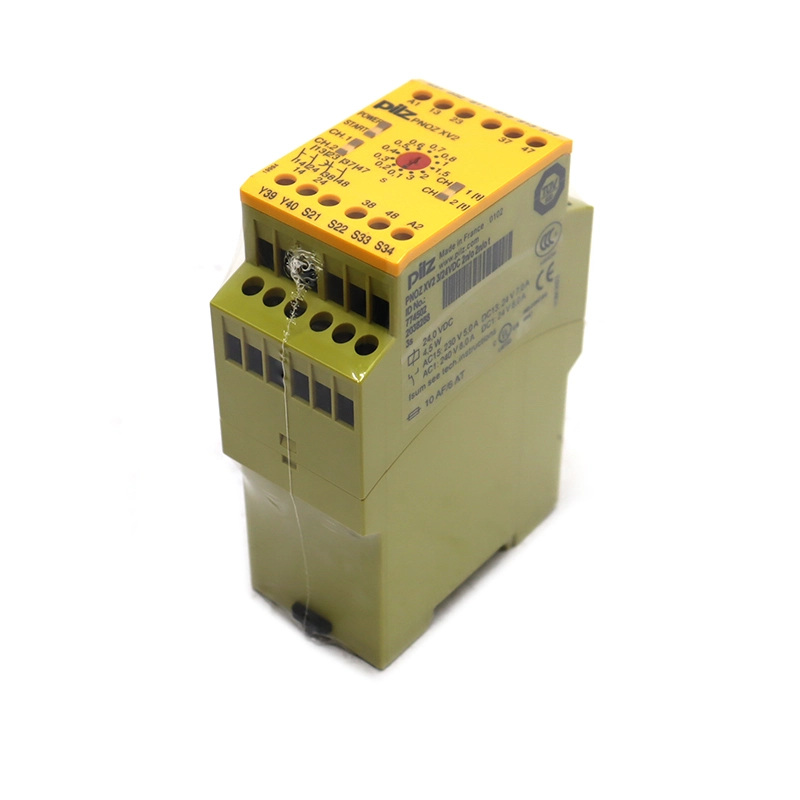

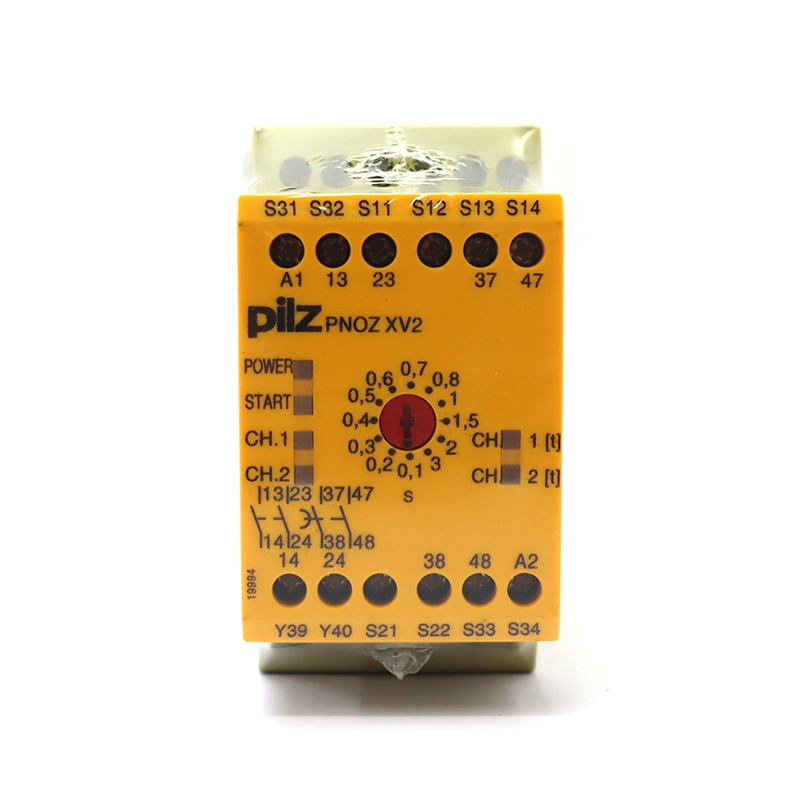

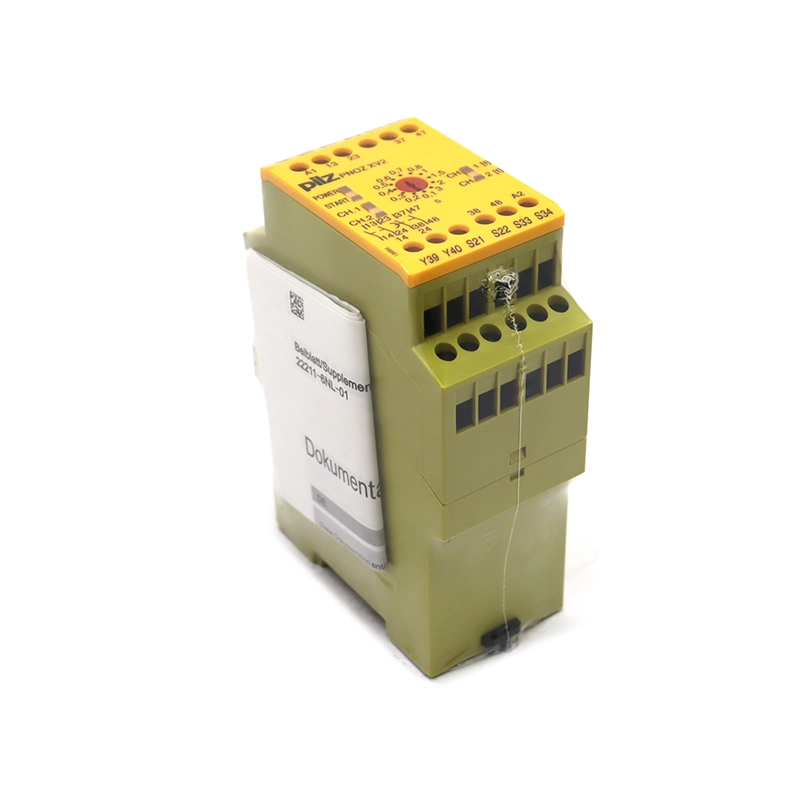

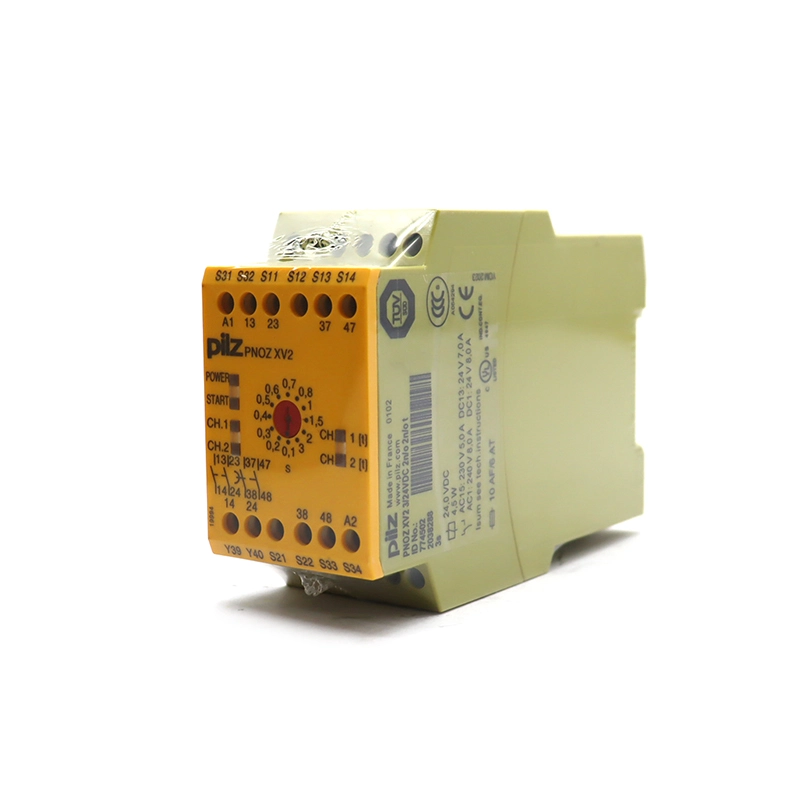

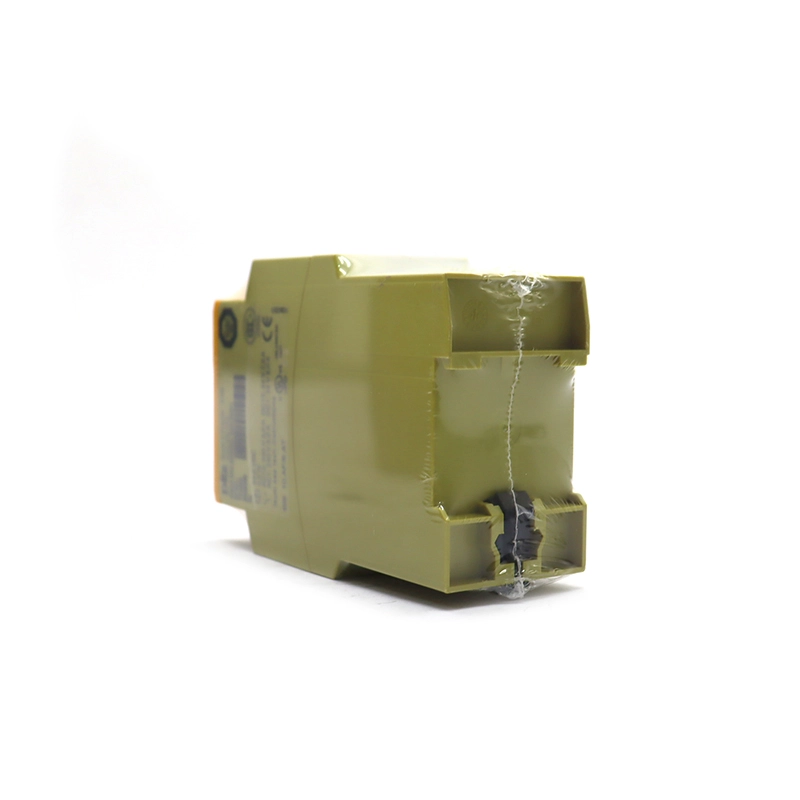

PNOZ XV2 3/24VDC 2n/o 2n/o t
Safety relay (stand-alone), input: 1/2-channel wiring with/without short-circuit detection across contacts, output: 2 N/O, 2 N/ Ot -d, UB = 24 V DC, Width: 45 mm, integrated screw terminals, monitoring of emergency stop and safety door, with 2 time-delayed de-energizing contacts, delay time adjustable in 12 steps between 0.1 and 3 seconds.
Technical Data
Electrical data: Supply voltage (V): 24V Supply voltage type U1: DC Power consumption DC: 4.5W
Inputs:
Number of inputs: 2
Semiconductor outputs:
Number of semiconductor outputs: 0
Relay output
Utilization category AC/DC1 Standard: EN 60947-4-1
AC1 safety control voltage: 240 V
AC1 safety control maximum current: 8 A
DC1 safety control voltage: 24 V
DC1 safety control maximum current: 8 A
Utilization category AC15/DC13 Standard: EN 60947-5-1
AC15 safety control voltage: 230 V
AC15 safety control maximum current: 5 A
DC13 safety control voltage: 24 V
Safety contacts: AC, UL compliant: 240 VAC G. P.
Safety contacts: Pilot load: C300, R300
Relay contact material: AgSnO2
Other contact specifications for relays: + 0.2 µm Au
Environmental data
Climatic suitability of the device for use in accordance with: EN 60068-2-78
Ambient temperature in degrees Celsius: -10 - 55 °C
Humidity rating: 93 % r.h. 40 °C
Condensation allowed/not allowed: not allowed
EMC compliance ...
EN 60947-5-1
EN 61000-6-2
EN 61326-3-1
Vibration test in accordance with: EN 60068-2-6
Clearance and creepage distances in accordance with: EN 60947-1
Overvoltage class: I/II
Pollution degree specification for clearance and creepage distances: 2
Protection type, mounting
Protection type, housing
Terminal protection type
Mechanical data
Mounting position: Any
Housing material lower part
Housing material front plate: ABS UL 94 V0
Housing upper part material
Connection terminals: Screw terminals
Terminal style: Fixed
Allowable cross-sectional area of flexible AWG conductor: 24 - 10 AWG
Height dimension: 87 mm
Width dimension: 45 mm
Depth dimension: 121 mm
Net weight: 345 g
Gross weight: 355 g
